MKP1840322634 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MKP1840322634

MKP1840322634: DescriptionFilm Capacitors MKP 22nF 5% 630Vdc Pitch 10mm; CategoryPassive components; File Size97KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

MKP1840322634 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MKP1840322634	-	-	View	Buy Now

MKP1840322634 Overview

Film Capacitors MKP 22nF 5% 630Vdc Pitch 10mm

MKP1840322634 Parametric

Parameter Name	Attribute value
Product Category	Film Capacitors
Manufacturer	Vishay
Termination Style	Radial
Product	AC and Pulse Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	0.022 uF
Voltage Rating AC	250 VAC
Voltage Rating DC	630 VDC
Tolerance	5 %
Lead Spacing	10 mm
Lead Style	Straight
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 100 C
Length	13 mm
Width	11.5 mm
Height	6.5 mm
Capacitance - nF	22 nF
Capacitance - pF	22000 pF
Lead Diameter	0.6 mm
Number of Pins	2
Type	Metallized Polypropylene Film Capacitor

Preview

Download Datasheet

View All

Not Recommended for New Designs, Use MKP385

MKP1840

www.vishay.com

Vishay Roederstein

AC and Pulse Metallized Polypropylene Film Capacitors

MKP Radial Potted Type

FEATURES

• Material categorization:

for definitions of compliance please see

www.vishay.com/doc?99912

APPLICATIONS

• Pulse operations

• SMPS and thyristor circuits

• Storage, filter, timing, sample and hold circuits

QUICK REFERENCE DATA

Capacitance range

Capacitance tolerances

Climatic testing class according to IEC 60068

Operating temperature range

Dielectric

Electrodes

Construction

Coating

Leads

Rated voltages (U

)

Insulation resistance

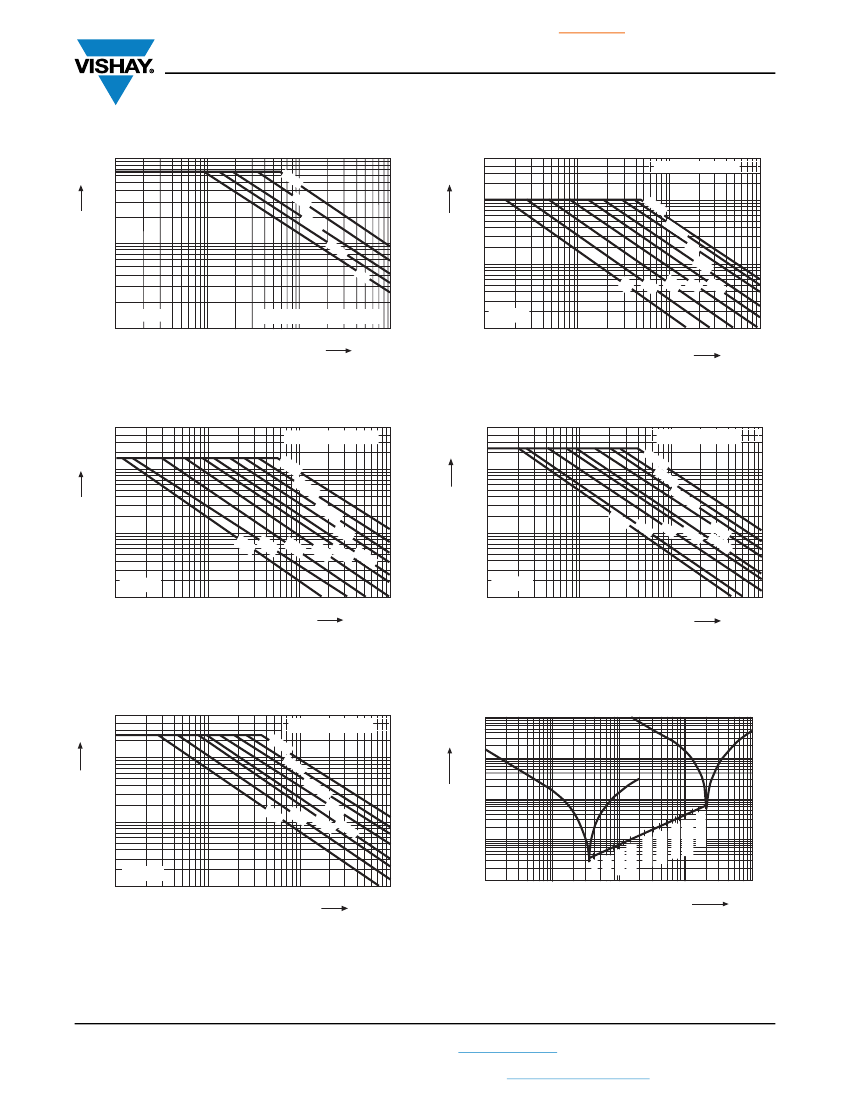

Permissible AC voltages (RMS) up to 60 Hz

Test voltage (electrode/electrode)

Time constant

Temperature coefficient

Capacitance drift

Dielectric absorption

Derating for DC and AC category voltage U

Self inductance

Pull test on leads

4700 pF to 10 μF

± 20 % (M), ± 10 % (K), ± 5 % (J)

55/100/56

-55 °C to +100 °C

Polypropylene film

Metallized

Extended metallized film

(refer to general information following the link in note below table)

Flame retardant plastic case, epoxy resin sealed

UL-class 94 V-0

Tinned wire

100 V

, 160 V

, 250 V

, 400 V

, 630 V

Measured at 100 V

after one minute

For C



0.33 μF:

25 000 M (U

100 V

)

63 V

, 100 V

, 160 V

, 220 V

, 250 V

1.6 x U

for 2 s

Measured at 100 V

after one minute

For C > 0.33 μF:

30 000 s minimum value

-250 x 10

-6

/°C (typical value)

Up to +40 °C, < 0.5 % for a period of two years

0.05 % (typical value) according to IEC 60068-2-21

At +85 °C: U

= 1.0 U

At +100 °C: U

= 0.7 U

~ 6 nH measured with 2 mm long leads

30

N in direction of leads according to IEC 60068-2-21

Note

• For further details, please refer to the general information available at

www.vishay.com/doc?26033

Revision: 13-Oct-14

Document Number: 26061

For technical questions, contact:

dc-film@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
