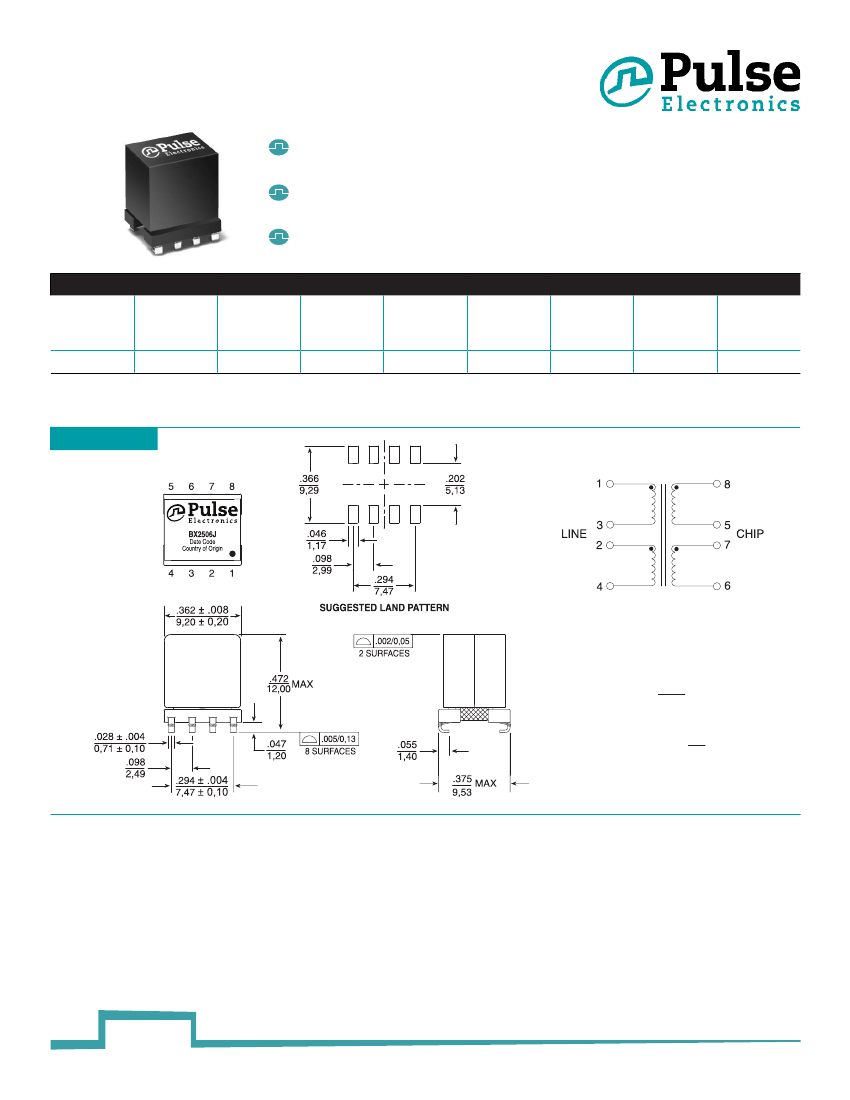

ADSL Line Transformer
For Analog Devices Chipset
Matched to Analog Devices Eagle II CPE chipset for
ADSL Annex A
Designed to comply with EN60950 supplementary insulation
requirements for working voltages up to 250 Vrms
Compact footprint for high density board layous
Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C
Part
Number
BX2506J
ADI Spec
Number
D6762-05
Turns Ratio
Ratio
(Line:Chip)
2.29 : 1
OCL
Primary
(mH
±10%)
1.2
Leakage
Inductance
(μH MAX)
6.0
Isolation
Voltage
(Vrms)
1500
DCR Primary
(1-4 w/2-3 s/c)
(Ω MAX)
3.0
DCR Secondary
8-6 (with 2-3s/c)
(Ω MAX)
1.0
THD @ 40kHz
2Vrms
(dB MIN)
-80
Notes:
Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix “T” to this part number (BX2506JT)
Mechanical
BX2506J
Schematic
Weight
......................3.8 grams
Tape & Reel
..................175/reel
Tray
..............................105/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Tel: 858 674 8100
Fax: 858 674 8262
Pulse Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Road
High-Tech Zone
Nanshan District
Shenzen, PR China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
135 Joo Seng Road
#03-02
PM Industrial Bldg.
Singapore 368363
Tel: 65 6287 8998
Fax: 65 6287 8998
Pulse North Asia
3F, No. 198
Zhongyuan Road
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823 (Pulse)
Fax: 886 3 4356820 (FRE)
Tel: 49 7032 78060
Fax: 49 7032 7806 135
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2012. Pulse Electronics, Inc. All rights reserved.
