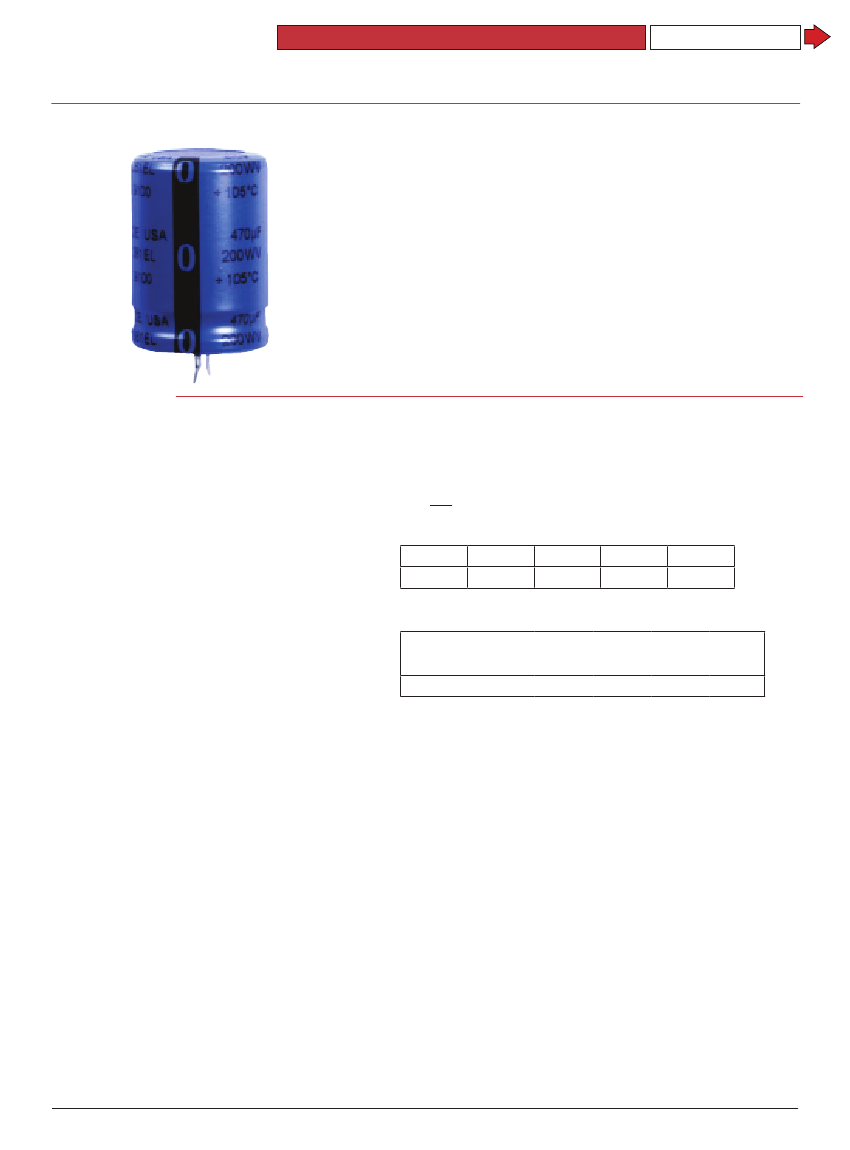

Type 381LR
105 °C Ultra-High-Ripple Snap-in
25% More Ripple Current Capability
Compared to standard 105 °C snap-ins like the Type 381L/LX
Type 381LR can handle an extra 25% ripple current or more.
This remarkable capability stems from advances in electrolyte that
give extremely low ESR values.In high ripple current applications
like motor drives you can save by using fewer capacitors.
Highlights
•
•
•
•
Operating Temperature:
Rated Voltage:
Capacitance:
Leakage Current:
Ripple Current Multipliers:
The right choice for motor drive bus capacitors
The right choice for UPS bus capacitors
Compare to Type 381L
Up to 2 times the ripple current
–40 °C to + 105 °C
≤
315 Vdc
–25 °C to + 105 °C
≥
350
Vdc
200 to 450 Vdc
56 µF to 2,200 µF ± 20%
≤
3
√
CV µA, 4 mA max, 5 minutes
Ambient Temperature
45 ºC
2.35
Frequency
50Hz
0.75
60 Hz
0.80
120 Hz
1.00
500 Hz
1.20
1 kHz
1.25
10 kHz
& up
1.40
60 ºC
2.20
70 ºC
2.00
85 ºC
1.70
105 ºC
1.00
Specifications
EIA Ripple Life:
Load LifeTest:
Shelf Life:
Vibration:
10,000 h at 85 °C, full load per EIA IS-749
∆
Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
3000 h at full load at 105 °C
∆
Capacitance 20%
ESR 200% of limit
DCL 100% of limit
1000 h at 105 °C
∆
Capacitance 20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06" and 10 g max, 2 h each plane
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
COPY & PASTE A CDE PART NUMBER TO CHECK STOCK ONLINE:
GO
Type 381LR
105 °C Ultra-High-Ripple Snap-in

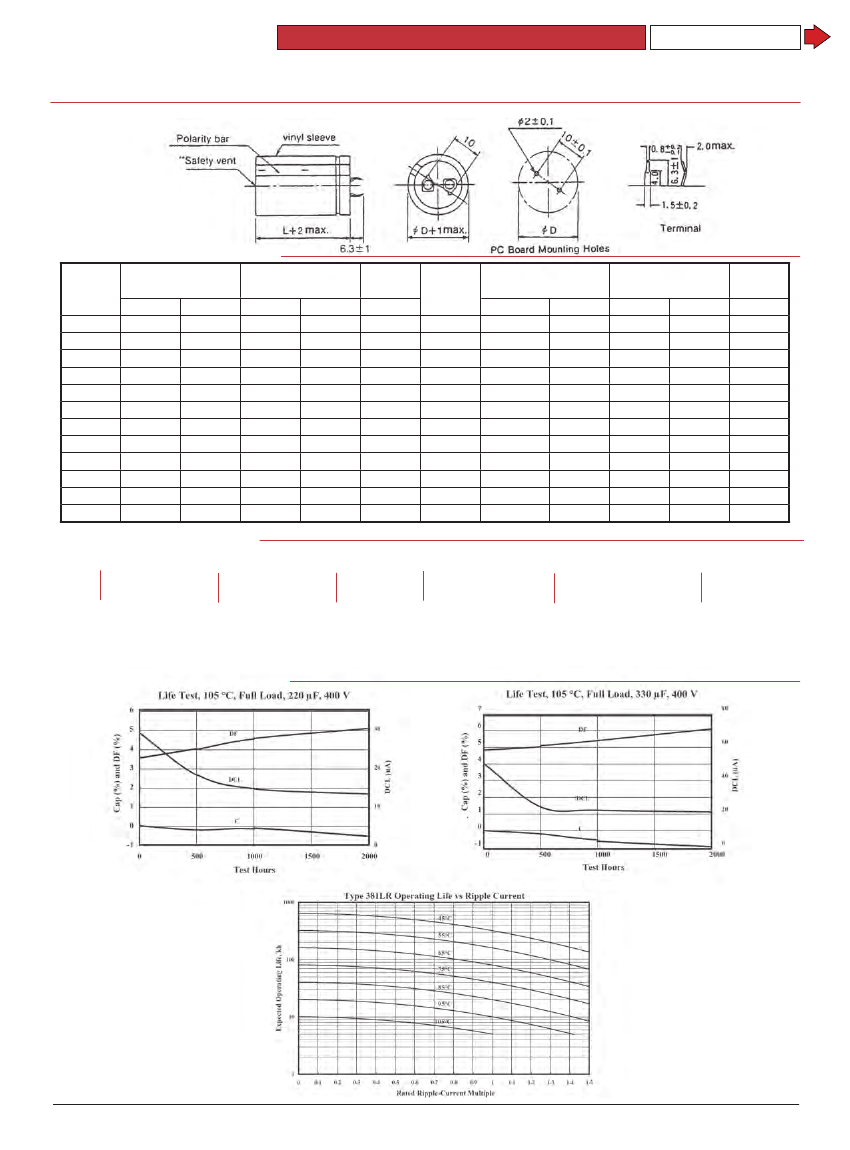

Outline Drawing
Insulated Case Dimensions
Case
Code
H01
H02
H03
H04
H45
H05
J01
J02
J03
J04
J45
J05
DIAMETER
D
mm
22
22
22
22
22
22
25
25
25
25
25
25
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
LENGTH
L
mm
25
30
35
40
45
50
25
30
35
40
45
50
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
16
19
22
24
28
31
20
24
27
31
35
38
Case
Code
K01
K02
K03
K04
K45
K05
A01
A02
A03
A04
A45
A05
DIAMETER
D
mm
30
30
30
30
30
30
35
35
35
35
35
35
inches
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
1.38
1.38
LENGTH
L
mm
25
30
35
40
45
50
25
30
35
40
45
50
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
30
35
40
44
49
53
42
48
54
60
67
74
Part Numbering System
380LR
271
M
200
H01
2
Type
Capacitance
271 = 270 µF
222 = 2200 µF
Tolerance
M =
±
20%
Typical Performance Curves
160 = 160 V
450 = 450 V
Rated
Voltage
Case Code
Insulation
2=PVC
CDM Cornell Dubilier
•
140 Technology Place
•
Liberty, SC 29657
•
Phone: (864)843-2277
•
Fax: (864)843-3800
•
www.cde.com
