HMC511LP5/511LP5E
v06.0114
MMIC VCO WITH HALF FREQUENCY OUTPUT
9.05 - 10.15 GHz
Typical Applications
Low noise MMIC VCO w/Half Frequency, for:
Features
Dual Output: Fo = 9.05 - 10.15 GHz
Fo/2 = 4.525 - 5.075 GHz
Pout: +13 dBm
Phase Noise: -115 dBc/Hz @100 kHz Typ.
No External Resonator Needed
32 Lead 5x5mm SMT Package: 25mm²
VCOS WITH FO/2 OUTPUT - SMT
• VSAT Radio
• Point to Point/Multi-Point Radio
• Test Equipment & Industrial Controls
• Military End-Use
Functional Diagram
General Description
The HMC511LP5 & HMC511LP5E are GaAs InGaP
Heterojunction Bipolar Transistor (HBT) MMIC VCOs.
The HMC511LP5 & HMC511LP5E integrate resonators,
negative resistance devices, varactor diodes and
feature a half frequency output. The VCO’s phase
noise performance is excellent over temperature,
shock, and process due to the oscillator’s monolithic
structure. Power output is +13 dBm typical from a +5V
supply. The voltage controlled oscillator is packaged
in a leadless QFN 5x5 mm surface mount package,
and requires no external matching components.
Electrical Specifications,
T
A
= +25° C, Vcc = +5V
Parameter
Frequency Range
Power Output
SSB Phase Noise @ 100 kHz Offset, Vtune= +5V @ RFOUT
Tune Voltage
Supply Current (Icc) (Vcc = +5.0V)
Tune Port Leakage Current (Vtune= 13V)
Output Return Loss
Harmonics/Subharmonics
1/2
2nd
3rd
2
38
15
30
8
15
0.9
Vtune
2
200
265
Fo
Fo/2
RFOUT
RFOUT/2
+9
+5
-115
13
300
10
Min.
Typ.
9.05 - 10.15
4.525 - 5.075
+16
+11
Max.
Units
GHz
GHz
dBm
dBm
dBc/Hz
V
mA
µA
dB
dBc
dBc
dBc
MHz pp
MHz/V
MHz/°C
Pulling (into a 2.0:1 VSWR)
Pushing @ Vtune= 5V
Frequency Drift Rate
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC511LP5/511LP5E
v06.0114
MMIC VCO WITH HALF FREQUENCY OUTPUT
9.05 - 10.15 GHz

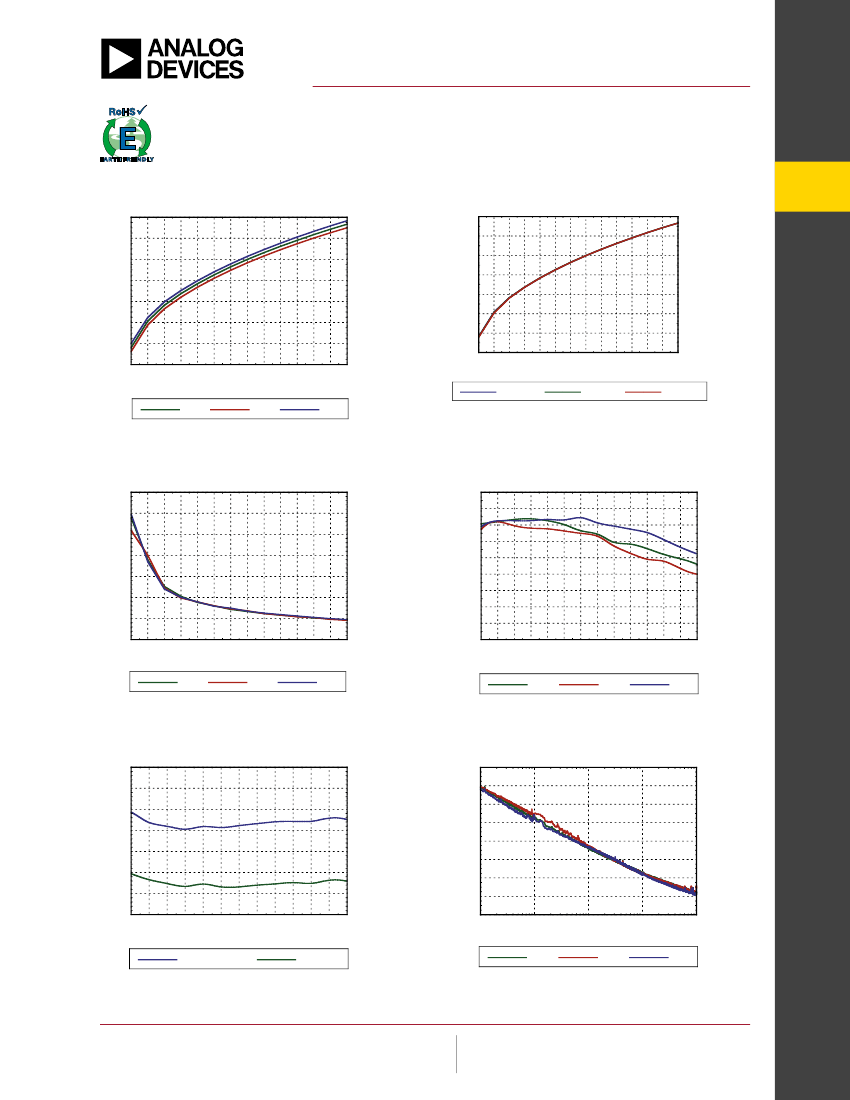

Frequency vs. Tuning Voltage
10.6
OUTPUT FREQUENCY (GHz)
10.2
9.8
9.4
9
8.6
8.2
7.8
OUTPUT FREQUENCY (GHz)
Frequency vs. Tuning Voltage, T = 25C
10.6
9.8
9.4
9
8.6
8.2
7.8
0
1
2
3
4
5
6
7
8
9
10 11 12 13
TUNING VOLTAGE (Vdc)
+25 C
+85 C
-40 C
0
1
2
3
4
5
6
7
8
9
10 11 12 13
TUNING VOLTAGE (Vdc)
Vcc= +4.75V
Vcc= +5.0V
Vcc= +5.25V
Sensitivity vs. Tuning Voltage
700
600
Output Power vs. Tuning Voltage
18
16
OUTPUT POWER (dBm)
14
12
10
8
6
4
2
0
500
400
300
200
100
0
0
1
2
3
4
5
6
7
8
9
10 11 12 13
TUNING VOLTAGE (Vdc)
+25 C
+85 C
-40 C
0
1
2
3
4
5
6
7
8
9
10 11 12 13
TUNING VOLTAGE (Vdc)
+25 C
+85 C
-40 C
SSB Phase Noise vs. Tuning Voltage
-60
SSB PHASE NOISE (dBc/Hz)
-70
-80
-90
SSB Phase Noise @ Vtune = +5V
0
SSB PHASE NOISE (dBc/Hz)
-20
-40
-60
-80
-100
-120
-140
-160
2
10
3
4
5
6
-100
-110
-120
-130
1
2
3
4
5
6
7
8
9
10
11
12
13
TUNING VOLTAGE (Vdc)
10kHz offset
100kHz offset
10
10
10
10
OFFSET FREQUENCY (Hz)
+25 C
+85 C
-40 C
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
VCOS WITH FO/2 OUTPUT - SMT
2
10.2
SENSITIVITY (MHz/V)
HMC511LP5/511LP5E
v06.0114
MMIC VCO WITH HALF FREQUENCY OUTPUT
9.05 - 10.15 GHz
RFOUT/2 Frequency vs. Tuning Voltage
5.4
RFOUT/2 Output Power
vs. Tuning Voltage
14
12
OUTPUT POWER (dBm)
10
8
6
4
2
0
VCOS WITH FO/2 OUTPUT - SMT
OUTPUT FREQUENCY (GHz)
5.2
5
4.8
4.6
4.4
4.2
4
3.8
0
1
2
3
4
5
6
7
8
9
10 11 12 13
TUNING VOLTAGE (Vdc)
+25 C
+85 C
-40 C
0
1
2
3
4
5
6
7
8
9
10 11 12 13
TUNING VOLTAGE (Vdc)
+25 C
+85 C
-40 C
Absolute Maximum Ratings
Vcc
Vtune
Storage Temperature
ESD Sensitivity (HBM)
+5.5 Vdc
0 to +15V
-65 to +150 °C
Class 1A
Reliability Information
Junction Temperature To Maintain
1 Million Hour MTTF
Nominal Junction Temperature
(T = +85
°C
Thermal Resistance
(junction to ground paddle)
Operating Temperature
135 °C
126.9
°C
31.6 °C/W
-40 to +85 °C
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

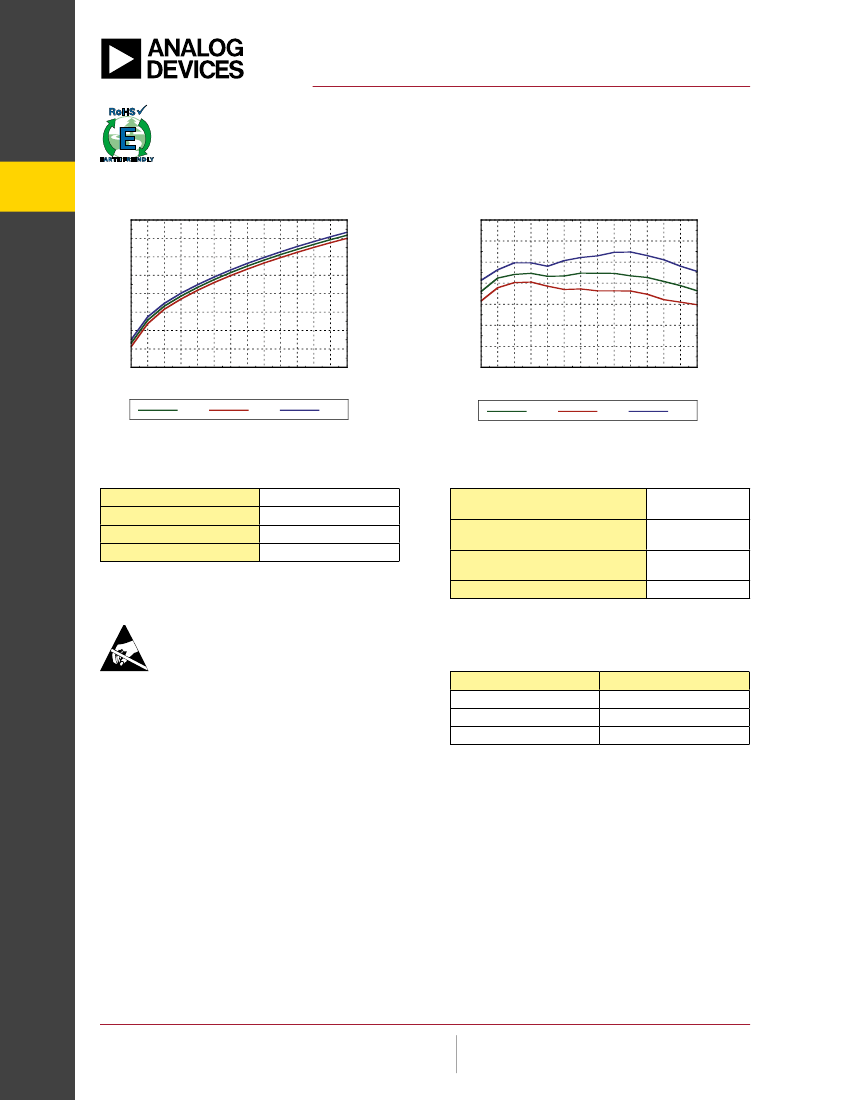

Typical Supply Current vs. Vcc
Vcc (V)
4.75
5.0
5.25
Icc (mA)
245
265
285
Note: VCO will operate over full voltage range shown above.
3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC511LP5/511LP5E
v06.0114
MMIC VCO WITH HALF FREQUENCY OUTPUT
9.05 - 10.15 GHz

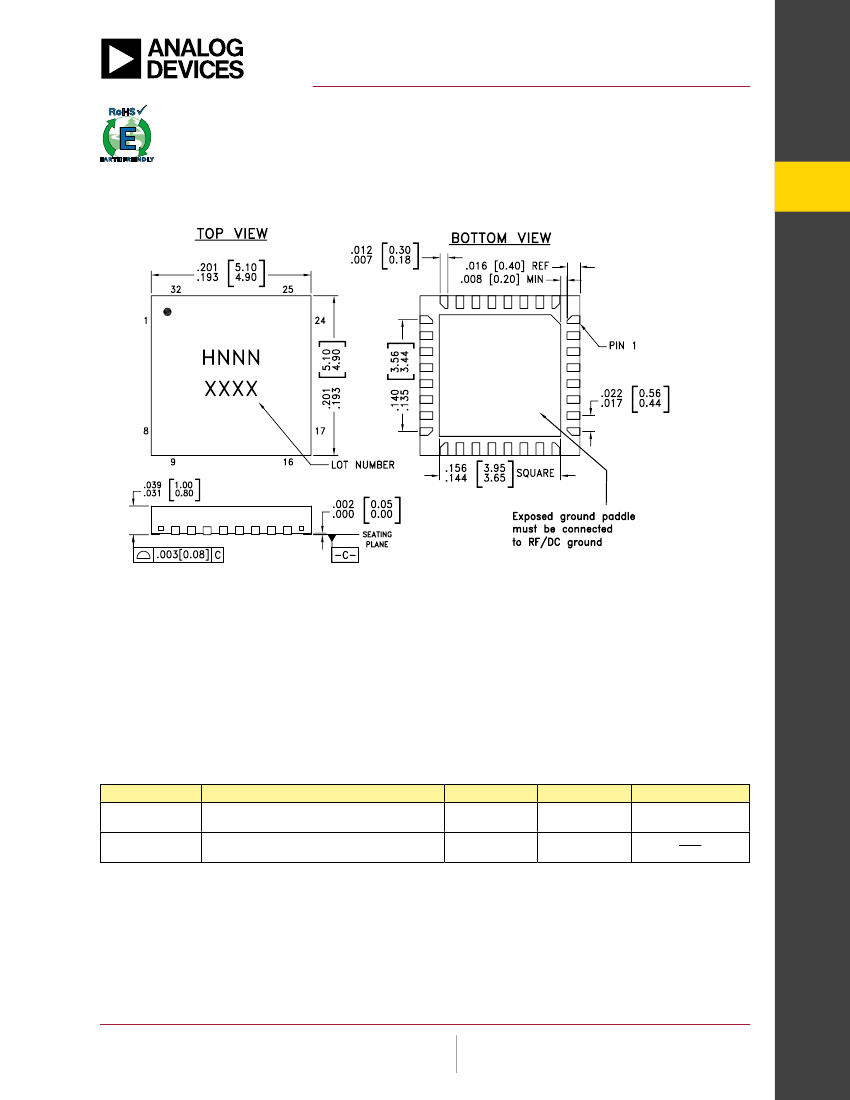

Outline Drawing
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS]
3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM.
PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM.
5. PACKAGE WARP SHALL NOT EXCEED 0.05mm.
6. ALL GROUND LEADS AND GROUND PADDLE MUST BE
SOLDERED TO PCB RF GROUND.
7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED
LAND PATTERN.
Package Information
Part Number
HMC511LP5
HMC511LP5E
Package Body Material
Low Stress Injection Molded Plastic
RoHS-compliant Low Stress Injection Molded Plastic
Lead Finish
Sn/Pb Solder
100% matte Sn
MSL Rating
MSL3
MSL3
[1]
Package Marking
[3]
H511
XXXX
H511
XXXX
[2]
[1] Max peak reflow temperature of 235 °C
[2] Max peak reflow temperature of 260 °C
[3] 4-Digit lot number XXXX
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
VCOS WITH FO/2 OUTPUT - SMT
4
HMC511LP5/511LP5E
v06.0114
MMIC VCO WITH HALF FREQUENCY OUTPUT
9.05 - 10.15 GHz

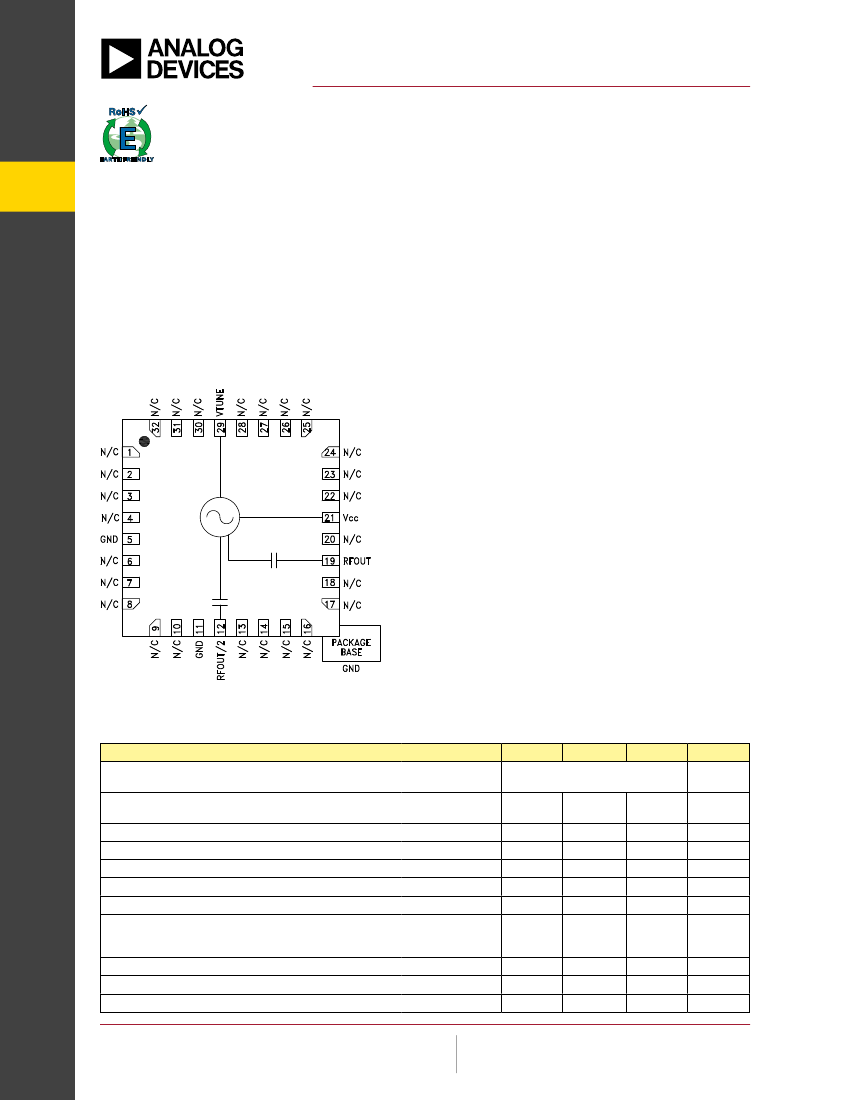

Pin Descriptions
Pin Number
Function
N/C
Description
No Connection. These pins may be connected to RF/
DC ground. Performance will not be affected.
Interface Schematic
VCOS WITH FO/2 OUTPUT - SMT
1 - 4, 6 - 10,
13 - 18, 20, 22 -
28, 30 - 32
12
RFOUT/2
Half frequency output (AC coupled).
19
RFOUT
RF output (AC coupled).
21
Vcc
Supply Voltage, +5V
29
VTUNE
Control Voltage Input. Modulation port bandwidth
dependent on drive source impedance.
5, 11 Paddle
GND
Package bottom has an exposed metal paddle
that must be connected to RF/DC ground.
5
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and
Drive,
orders: Analog Devices, Inc.,
For price, delivery and to place orders:
infringements of patents or
Corporation, 2 Elizabeth
to place
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any
Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Phone: 781-329-4700
www.hittite.com
Order On-line at
• Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
