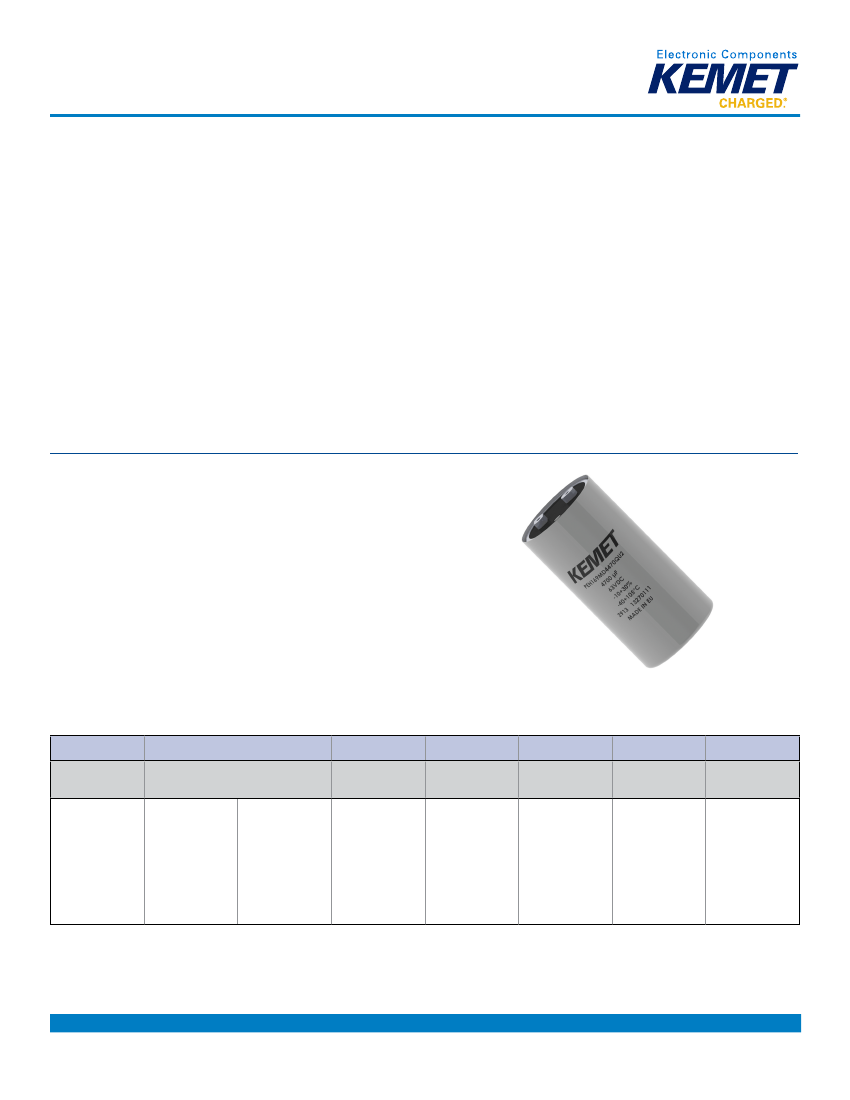

Screw Terminal Aluminum Electrolytic Capacitors
PEH169 Series, +105°C
Overview
Applications
Typical applications for KEMET's PEH169 capacitor
include smoothing, energy storage or pulse operation in
telecommunication demanding power supplies, process
control, AC motor control, traction, welding, and measuring.
KEMET's PEH169 Series is a long-life electrolytic capacitor
with outstanding reliability and electrical performance. The
device has a polarized all-welded design, heavy duty screw
terminals, extended cathode construction, safety vent, and
plastic insulation. The PEH169 Series winding is housed
in a cylindrical aluminum can with a reinforced molded lid
incorporating a safety vent. The sealing system is designed
for electrolyte leakage-free operation and a very low gas-
diffusion rate of electrolyte. Mechanical contact between
the winding and case allows excellent heat transfer from
the winding to the ambient, which means cooler operation.
Low ESR is the result of a low resistive paper/electrolyte
system, at least two tabs per foil and all-welded design.
Benefits
•
•
•
•
•
High performance
Long life, up to 18,000 hours at +105°C (V
R
, I
R
applied)
Low ESR and ESL
High stability, 10 years shelf life
Optimized designs available on request
Part Number System
PEH169
Series
Screw Terminal
Aluminum
Electrolytic
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
E
Rated Voltage (VDC)
E = 10
G = 16
H = 25
K = 40
M = 63
P = 100
Q = 160
R = 200
S = 250
U = 350
A
Size Code
See Dimension
Table
468
Capacitance Code
(µF)
The last two
digits represent
significant
figures. The
first digit
specifies the
total number of
digits.
0
Version
0 = Standard
Q
Capacitance
Tolerance
Q = −10 +30%
U2
Stud Option
U2 = Plain Can
B2 = Threaded
mounting stud
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4038_PEH169_105ºC • 2/7/2017
1
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operating Temperature
Capacitance Tolerance
100 – 330,000 µF
10 – 350 VDC
−40 to +105°C
−10/+30% at 100 Hz/+20°C
D (mm)
35
Operational Lifetime
50
65
75
90
Shelf Life
Leakage Current
Rated Voltage and Ripple Current at
+105°C (hours)
7,000
8,000
10,000
13,000
18,000
25,000
Rated Voltage at +105°C (hours)
Performance Characteristics
5,000 hours at +105°C or 10 years at +40°C 0 VDC
I = 0.003 CV + 4,000 (µA)
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
0.75 mm displacement amplitude
or 10 g maximum acceleration.
Vibration applied for three
2-hour sessions at 10 – 500 Hz
(Capacitor clamped by body).
0.75 mm displacement amplitude
or 10 g maximum acceleration.
Vibration applied for three 2-hour
sessions at 10 – 55 Hz
(Capacitor clamped by body).
Requirements
D ≤ 50 mm
Vibration Test Specifications
D > 50 mm
No leakage of electrolyte
or other visible damage.
Deviations in capacitance from
initial measurements must not
exceed: Δ C/C < 5%
Standards
CECC
IEC 60384–4 long life grade 40/105/56, DIN 41240 type 1A CECC 30300, DIN 40040 GPF, DIN 41248
CECC 30301–058, corresponding to CECC 30301–803
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4038_PEH169_105ºC • 2/7/2017
2
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+105°C
2,000 hours
Maximum ripple current specified in table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
≤ 160 V
> 160 V
Does not exceed 200% of the initial value
Does not exceed leakage current limit
Within 15% of the initial value
Within 10% of the initial value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4038_PEH169_105ºC • 2/7/2017
3
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Dimensions – Millimeters
SIDE VIEW
L3
L2
L1
D
Optional Mounting
Stud (M x S)
OVAL TERMINAL
END VIEW
(D > 36.6)
Safety Vent
ROUND TERMINAL
END VIEW
(D = 36.6)
Safety Vent
a
+
b
DT
Polarity
Mark
+
DT
Polarity
Mark
Reference Size
(mm)
35 x 51
35 x 60
35 x 75
35 x 95
50 x 75
50 x 95
50 x 105
50 x 115
65 x 105
65 x 115
65 x 130
75 x 78
75 x 98
75 x 105
75 x 115
75 x 145
75 x 220
90 x 145
Size Code
A
B
C
D
H
J
K
I*
O
Q*
S*
L
P*
T
U
V
X
Y
D
±1.0
36.6
36.6
36.6
36.6
51.6
51.6
51.6
51.6
66.6
66.6
66.6
76.6
76.6
76.6
76.6
76.6
76.6
91.6
Dimensions in mm
L1
L2
L3
±1.0
±1.0
±1.0
51.5
54.5
58.9
59.5
62.5
66.9
73.5
76.5
80.9
94.5
97.5
101.9
74.5
77.5
82.4
95.5
98.5
103.4
103.5
106.5
111.4
115.5
118.5
123.4
106.0
109.2
113.0
118.0
121.2
125.0
129.0
132.2
136.0
77.0
80.2
84.0
98.0
101.2
105.0
106.0
109.2
113.0
118.0
121.2
125.0
146.0
149.2
153.0
221.0
224.2
228.0
145.5
148.7
152.4
Note: Dimensions include sleeving
*Additional case sizes available on request
a
±0.5
13.0
13.0
13.0
13.0
22.0
22.0
22.0
22.0
28.5
28.5
28.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
Mounting Stud
(M x S)
Nominal
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
Approximate
Weight
Grams
70
85
105
130
180
240
265
300
415
460.0
520.0
430.0
530
585
640
800
1400
1400
Termination Table
Reference
Diameter
35
50
65
75
90
Thread
M5
M5
M5
M5
M5
Termination
Style
Round
Oval
Oval
Oval
Oval
Dimensions in mm
DT
8
15
15
15
15
13
13
13
13
b
Note: M6 and other termination options available on request
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4038_PEH169_105ºC • 2/7/2017
4
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however
the leakage current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of three
years at 40°C. See sectional specification under each product series for specific data.
Re-age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen
to a steady value below the specified limit. During re-aging a maximum charging current of twice the specified leakage
current or 5 mA (whichever is greater) is suggested.
Reliability
The reliability of a component can be defined as the probability that it will perform satisfactorily under a given set of
conditions for a given length of time.
In practice, it is impossible to predict with absolute certainty how any individual component will perform; thus, we must
utilize probability theory. It is also necessary to clearly define the level of stress involved (e.g. operating voltage, ripple
current, temperature and time). Finally, the meaning of satisfactory performance must be defined by specifying a set of
conditions which determine the end of life of the component.
Reliability as a function of time, R(t), is normally expressed as: R(t)=e-
λt
where R(t) is the probability that the component will perform satisfactorily for time t, and λ is the failure rate.
Failure Rate
The failure rate is the number of components failing per unit time. The failure rate of most electronic components follows
the characteristic pattern:
• Early failures are removed during the manufacturing process.
• The operational life is characterized by a constant failure rate.
• The wear out period is characterized by a rapidly increasing failure rate.
The failures in time (FIT) are given with a 60% confidence level for the various type codes. By convention, FIT is expressed as
1 x 10
-9
failures per hour. Failure rate is also expressed as a percentage of failures per 1,000 hours.
e.g., 100 FIT = 1 x 10
-7
failures per hour = 0.01%/1,000 hours
End of Life Definition
Catastrophic Failure: short circuit, open circuit or safety vent operation
Parametric Failure:
• Change in capacitance > ±10%
• Leakage current > specified limit
• ESR > 2 x initial ESR value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4038_PEH169_105ºC • 2/7/2017
5
