440L Series
www.vishay.com
Vishay Cera-Mite
AC Line Rated Ceramic Disc Capacitors
Class X1, 760 V
AC
/ Class Y1, 500 V
AC
FEATURES
• Complies with IEC 60384-14, 4
th
edition
• High reliability
• Radial leads
• High capacitance up to 20 nF
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1, Y1 according to IEC 60384-14.4
• Across-the-line
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
• Line by-pass
• Antenna coupling
DESIGN
The capacitors consist of a ceramic disc of which both sides
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.032" (0.81 mm). The
capacitors may be supplied with radial kinked or straight
leads having a lead spacing of 0.375" (9.5 mm). The
standard tolerances are ± 10 % or ± 20 %. Coating is made
of flame-retardant epoxy resin in accordance with
“UL 94 V-0.”
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
C0G,
U2J,
P3K,
R3L
500
10
47
Radial
1
C0G,
U2J,
P3K,
R3L
760
X7R,
Y5U
500
68
20 000
VALUE
2
X7R,
Y5U
760
CAPACITANCE RANGE
10 pF to 20 nF
RATED VOLTAGE
INSULATION RESISTANCE
Min. 1000
F
IEC 60384-14.4:
• X1:
• Y1:
760 V
AC
, 50 Hz
500 V
AC
, 50 Hz
TOLERANCE ON CAPACITANCE
± 10 %; ± 20 %
DIELECTRIC STRENGTH BETWEEN LEADS
Component test:
4000 V
AC
, 50 Hz, 2 s
As repeated test admissible only once with:
3600 V
AC
, 50 Hz, 2 s
Random sampling test (destructive test):
4000 V
AC
, 50 Hz, 60 s
DISSIPATION FACTOR
2.0 % max. at 1 kHz; 1 V
CERAMIC DIELECTRIC
C0G, U2J, P3K, R3L (class 1)
X7R, Y5U (class 2)
OPERATING TEMPERATURE RANGE
-30 °C to +125 °C
DIELECTRIC STRENGTH OF BODY
INSULATION
4000 V
AC
, 50 Hz, 60 s (destructive test)
CLIMATIC CATEGORY ACC. TO EN 60068-1
25/125/21
Revision: 29-Mar-18
Document Number: 23102
1
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
440L Series
www.vishay.com
Vishay Cera-Mite
DIMENSIONS
in inches (millimeters)
440LS20-R
1.250 min.
(32)
D
max.
Tinned Copper Leads
Ø
T
max.
0.125
max. (3.2)
LS
LO
D
max.
1.625 ± 0.125
(41.3 ± 3.2)
0.125 max.
(3.2)
LS
T
max.
ORDERING INFORMATION, CERAMIC X1 / Y1 CAPACITORS 440L
C
(pF)
C0G
10
U2J
15
P3K
22
R3L
33
47
X7R
68
100
150
220
330
Y5U
470
560
680
1000
1500
2000
2200
2700
2800
3000
3200
3300
3900
4000
4700
5000
5500
5600
6800
8000
9000
10 000
20 000
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
T
max.
THICKNESS
INCH (mm)
0.195 (5.0)
0.210 (5.3)
0.190 (4.8)
0.200 (5.1)
0.180 (4.6)
0.220 (5.6)
0.220 (5.6)
0.235 (6.0)
0.235 (6.0)
0.225 (5.7)
0.230 (5.8)
0.230 (5.8)
0.235 (6.0)
0.225 (5.7)
0.220 (5.6)
0.220 (5.6)
0.225 (5.7)
0.225 (5.7)
0.220 (5.6)
0.225 (5.7)
0.220 (5.6)
0.220 (5.6)
0.220 (5.6)
0.220 (5.6)
0.230 (5.8)
0.225 (5.7)
0.230 (5.8)
0.230 (5.8)
0.235 (6.0)
0.220 (5.6)
0.225 (5.7)
0.230 (5.8)
0.355 (9.0)
WIRE SIZE
AWG
20
20
20
20
20
INCH (mm)
0.032 (0.81)
0.032 (0.81)
0.032 (0.81)
0.032 (0.81)
0.032 (0.81)
LS
LEAD SPACE
INCH (mm)
± 1 mm
0.375 (9.5)
0.375 (9.5)
0.375 (9.5)
0.375 (9.5)
0.375 (9.5)
LO
LEAD OFFSET
INCH (mm)
± 0.5 mm
0.098 (2.5)
0.110 (2.8)
0.094 (2.4)
0.102 (2.6)
0.083 (2.1)
0.122 (3.1)
0.122 (3.1)
0.138 (3.5)
0.138 (3.5)
0.126 (3.2)
0.130 (3.3)
0.130 (3.3)
0.138 (3.5)
0.126 (3.2)
0.118 (3.0)
0.118 (3.0)
0.126 (3.2)
0.126 (3.2)
0.122 (3.1)
0.126 (3.2)
0.122 (3.1)
0.122 (3.1)
0.118 (3.0)
0.122 (3.1)
0.130 (3.3)
0.126 (3.2)
0.134 (3.4)
0.134 (3.4)
0.138 (3.5)
0.122 (3.1)
0.126 (3.2)
0.134 (3.4)
0.134 (3.4)
ORDERING
CODE
± 10
± 10
± 10
± 10
± 10
440LQ10-R
440LQ15-R
440LQ22-R
440LQ33-R
440LQ47-R
440LQ68-R
440LT10-R
440LT15-R
440LT22-R
440LT33-R
440LT47-R
440LT56-R
440LT68-R
440LD10-R
440LD15-R
440LD20-R
440LD22-R
440LD27-R
440LD28-R
440LD30-R
440LD32-R
440LD33-R
440LD39-R
440LD40-R
440LD47-R
440LD50-R
440LD55-R
440LD56-R
440LD68-R
440LD80-R
440LD90-R
440LS10-R
440LS20-R
± 10
0.330 (8.4)
20
0.032 (0.81)
0.375 (9.5)
± 20
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.365 (9.3)
0.365 (9.3)
0.400 (10.2)
0.430 (10.9)
0.460 (11.7)
0.460 (11.7)
0.490 (12.4)
0.490 (12.4)
0.490 (12.4)
0.530 (13.5)
0.530 (13.5)
0.620 (15.7)
0.620 (15.7)
0.680 (17.3)
0.680 (17.3)
0.720 (18.3)
0.720 (18.3)
0.790 (20.1)
0.850 (21.6)
0.850 (21.6)
20
0.032 (0.81)
0.375 (9.5)
Notes
• Alternate lead spacings are available bulk or tape and reel on request.
• Minimum lead clearance according to IEC 60384-14: 0.315" (8 mm)
TAPE AND REEL OPTIONS
Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link
below.
Revision: 29-Mar-18
Document Number: 23102
2
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
440L Series
www.vishay.com

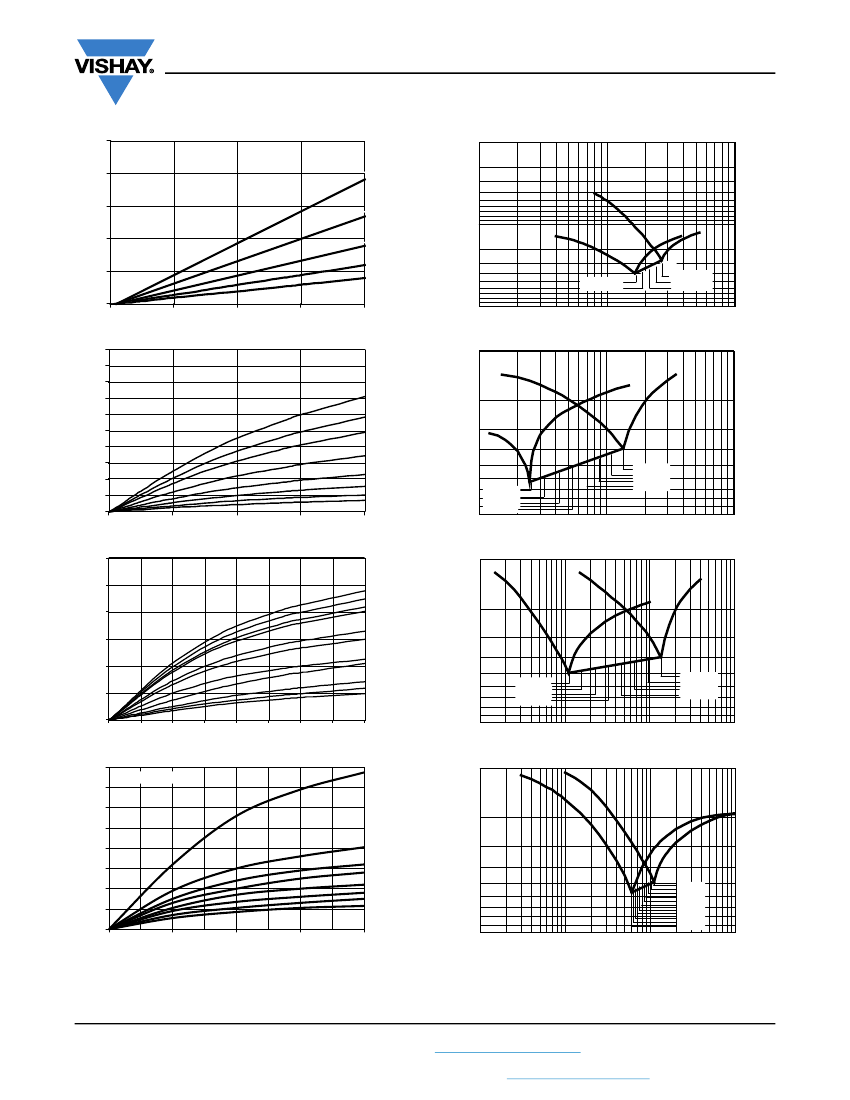

LEAKAGE CURRENT VS. VOLTAGE
(Typical)
100
Leakage Current (µA) RMS
80
60
440LQ33-R
Vishay Cera-Mite
INSERTION LOSS VS. FREQUENCY
(Typical)
1
2
Insertion Loss (dB)
440LQ47-R
3
4
5
10
20
30
40
50
100
10
440LQ10-R
440LQ15-R
440LQ22-R
40
20
0
0
1000
2000
AC Voltage (V) RMS
1
440LQ22-R
440LQ15-R
440LQ10-R
440LQ47-R
440LQ33-R
3000
4000
100
1000
Frequency (MHz)
10
Leakage Current (mA) RMS
0.9
0.8
0.7
0.6
0.5
0.4
440LT33-R
440LT68-R
440LT56-R
440LT47-R
Insertion Loss (dB)
20
30
40
50
440LT68-R
440LT56-R
440LT47-R
440LT33-R
440LQ68-R
440LT10-R
440LT15-R
440LT22-R
0.3
0.2
0.1
0
0
1000
2000
3000
4000
440LT22-R
440LT15-R
440LT10-R
440LQ68-R
100
10
100
1000
AC Voltage (V) RMS
3
10
Frequency (MHz)
Leakage Current (mA) RMS
2.5
2
1.5
1
0.5
0
0
500
1000
1500
2000
2500
3000
3500
Insertion Loss (dB)
440LD32-R
440LD30-R
440LD28-R
440LD27-R
440LD22-R
440LD20-R
440LD15-R
440LD10-R
440LT68-R
440LT56-R
440LT47-R
20
30
40
50
440LD32-R
440LD30-R
440LD28-R
440LD27-R
440LD10-R
440LD15-R
440LD20-R
440LD22-R
4000
100
0.1
1
10
100
AC Voltage (V) RMS
16
Frequency (MHz)
440LS20-R
50 Hz, 22 °C
Leakage Current (mA) RMS
14
12
10
8
6
4
2
0
0
500
1000
1500
2000
2500
3000
3500
10
Insertion Loss (dB)
20
440LS10-R
440LD80-R
440LD68-R
440LD56-R
440LD47-R
440LD39-R
440LD30-R
30
40
50
60
70
80
90
100
0.01
440LD33-R
440LD39-R
440LD40-R
440LD47-R
440LD50-R
440LD55-R
440LD56-R
440LD68-R
440LD80-R
440LD90-R
440LS10-R
4000
0.1
1
10
AC Voltage (V) RMS
Frequency (MHz)
Revision: 29-Mar-18
Document Number: 23102
3
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
440L Series
www.vishay.com
Vishay Cera-Mite

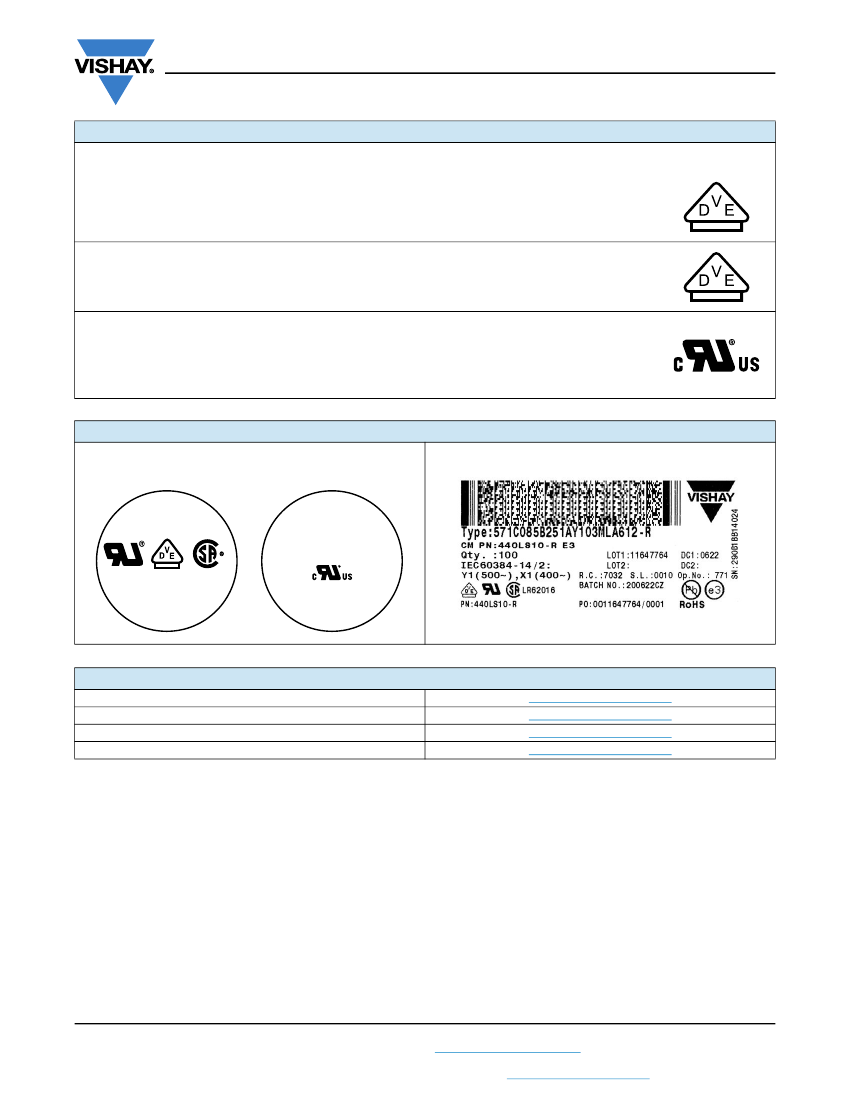

APPROVALS
IEC 60384-14.4 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y1-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
VDE
Y1-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Underwriters Laboratories Inc.
Y1-capacitor: UL test certificate:
X1-capacitor: UL test certificate:
UL 60384-14, CSA E60384-1:03, CSA E60384-14:09
Fixed capacitors for electromagnetic interference suppression and connection to the supply mains.
E99264
E99264
10 pF to 20 nF
10 pF to 20 nF
500 V
AC
760 V
AC
40003985
40003985
10 pF to 20 nF
10 pF to 20 nF
500 V
AC
400 V
AC
DE1-56450/A1
DE1-56450/A1
10 pF to 20 nF
10 pF to 20 nF
500 V
AC
760 V
AC
MARKING
Samples
10 pF to 10 nF
20 nF
CM
272M
440L
203M
440L
IEC 60384-14
125 °C
Y1 500 ~
X1 400 ~
CM
Y1 500 ~
X1 760 ~
RELATED DOCUMENTS
General Information
CB Test Certificate
VDE Marks Approval
UL Test Certificate
www.vishay.com/doc?23140
www.vishay.com/doc?22237
www.vishay.com/doc?22238
www.vishay.com/doc?22239
Revision: 29-Mar-18
Document Number: 23102
4
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 08-Feb-17
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
