3700 Series
Flat Coil SM Power Inductors
SELECTION GUIDE
Order Code
37301C
37501C
37951C
37112C
37142C
37222C
37242C
37302C
37392C
Inductance
(100kHz, 0.1V
AC
)
±10%
μH
0.30
±20%
0.50
±20%
0.95
±20%
1.1
1.4
2.2
2.4
3.0
3.9
DC
Current
1
Max.
A
19.5
19.5
18.0
14.5
16.0
11.5
12.0
9.0
10.0
Saturation
Current
2
Typ.
A
39
30
25
20
22
15
16.5
13
12
DC
Resistance
Max.
mΩ
0.9
1.0
1.3
2.2
1.9
4.0
3.0
4.8
4.2
Height
A
A
B
A
B
A
B
A
B
FEATURES
RoHS compliant
High current, low DCR
Surface mount
Pick & place compatible
J-STD-020D reflow
Backward compatible with Sn/Pb
soldering systems
ABSOLUTE MAXIMUM RATINGS
Operating temperature range
Storage temperature range
-40°C to +130°C
-40°C to +150°C
SOLDERING INFORMATION
3
Peak reflow temperature
Pin finish
Moisture sensitivity level
245°C
Pure tin dip
1

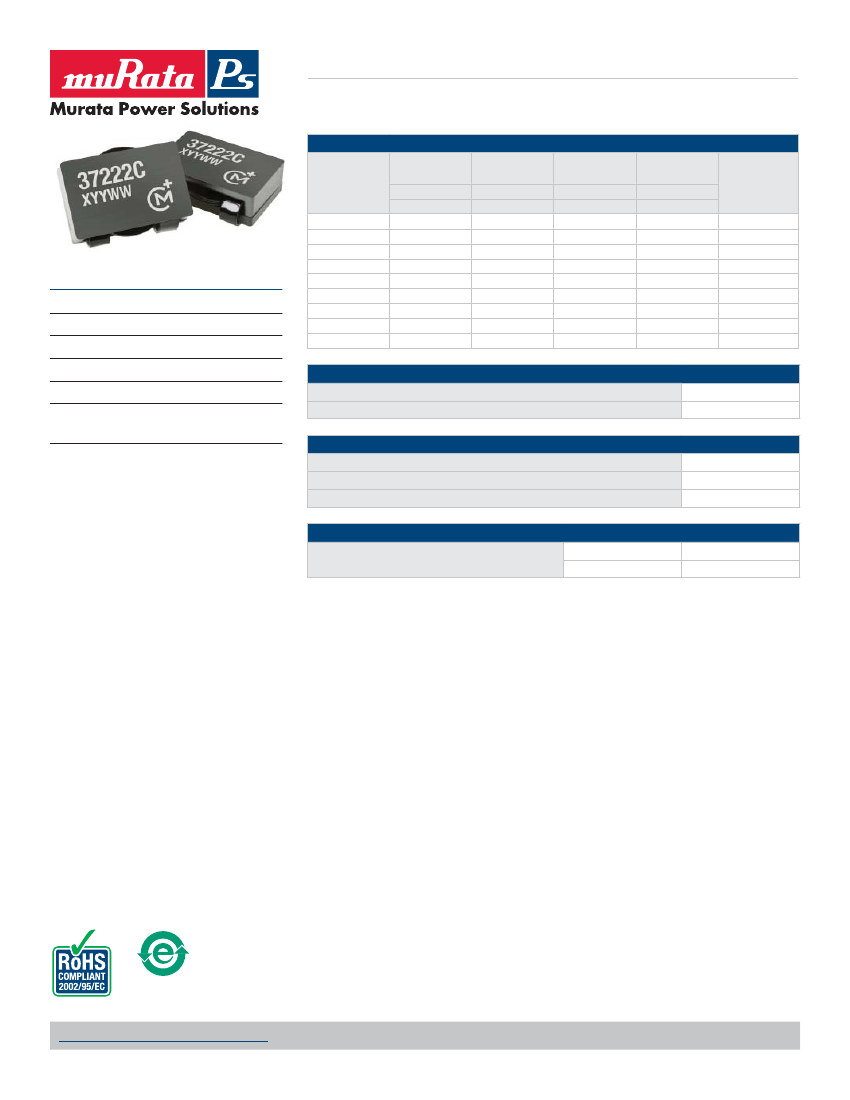

DESCRIPTION
The 3700 series is a range of surface mount,
flat-coil wound power inductors. They are ideally
suited for use where high current and low loss
is essential, such as in laptop computers and
plasma screens.
PACKAGING INFORMATION
Tape & Reel
All specifications typical at T
A
=25°C
1 The maximum DC Current is the value at which the inductance falls to 80% of its zero current value, or
when its temperature rise reaches 40°C, whichever is sooner.
2 Saturation current is the continuous current at 20°C ambient at which the inductance falls to 80% of
its zero current value.
3 For further information, please visit www.murata-ps.com/rohs
Height A
700 per reel
Height B
550 per reel
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KMP_3700C_A02
Page 1 of 3
3700 Series
Flat Coil SM Power Inductors

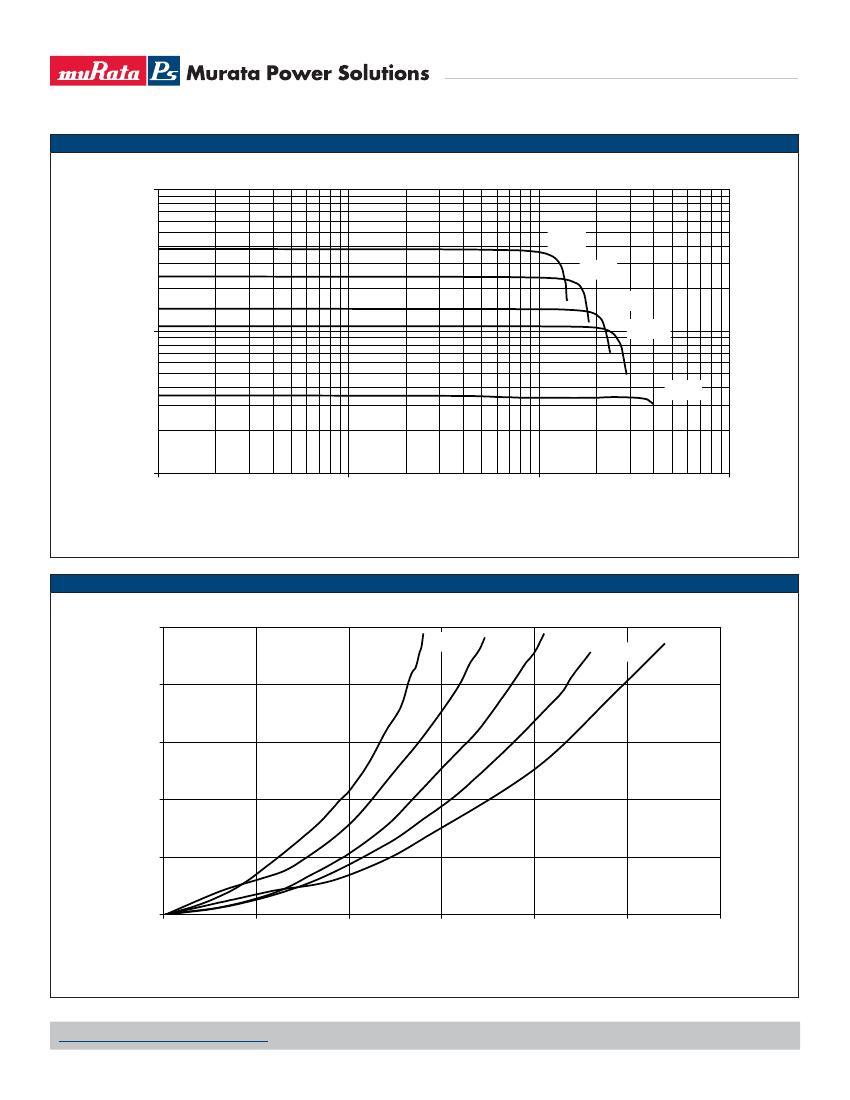

INDUCTANCE Vs CURRENT
10
3.9μH
2.4μH
1.4μH
1
Inductance, L (μH)
0.95μH
0.3μH
0.1
0.1
1
10
100
Current, I
DC
(A)
TEMPERATURE Vs CURRENT
50
3.9μH
2.4μH
1.4μH
Temperature rise above ambient, t (ºC)
0.95μH
0.3μH
40
30
20
10
0
0
5
10
15
20
25
30
Current, I
DC
(A)
www.murata-ps.com/support
KMP_3700C_A02
Page 2 of 3
3700 Series
Flat Coil SM Power Inductors
PACKAGE SPECIFICATIONS
MECHANICAL DIMENSIONS
RECOMMENDED FOOTPRINT DETAILS
14.5 (0.571) Max.
37XXXC
XYYWW
7.5±1.5 (0.295±0.059)
4.4
(0.173)
12.8
(0.504)
H
2.4±0.5 (0.094±0.02)
11.0±1.5 (0.433±0.06)
11.5 (0.453) Max.
Height A: 5.8 (0.228) Max.
Height B: 6.8 (0.268) Max.
10.4
(0.409)
All dimensions in mm (inches).
Package weight: 2.6g Typ. (Height A), 3.4g Typ. (Height B)
All dimensions in mm (inches).
TAPE & REEL SPECIFICATIONS
TAPE OUTLINE DIMENSIONS
1.75 (0.069)
2.0 (0.079)
16.0 (0.630)
4.0 (0.157)
1.5 (0.059)
0.5 (0.020)
37XXXC
37XXXC
GYYWW
GYYWW
24.0
(0.945)
11.5
(0.453)
1.5 (0.059)
14.4 (0.567)
Direction of unreeling
6.0 Max. (0.236) for height A.
7.0 Max. (0.276) for height B.
All dimensions in mm (inches).
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
ISO 9001 and 14001 REGISTERED
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2011 Murata Power Solutions, Inc.
www.murata-ps.com/support
KMP_3700C_A02
Page 3 of 3
