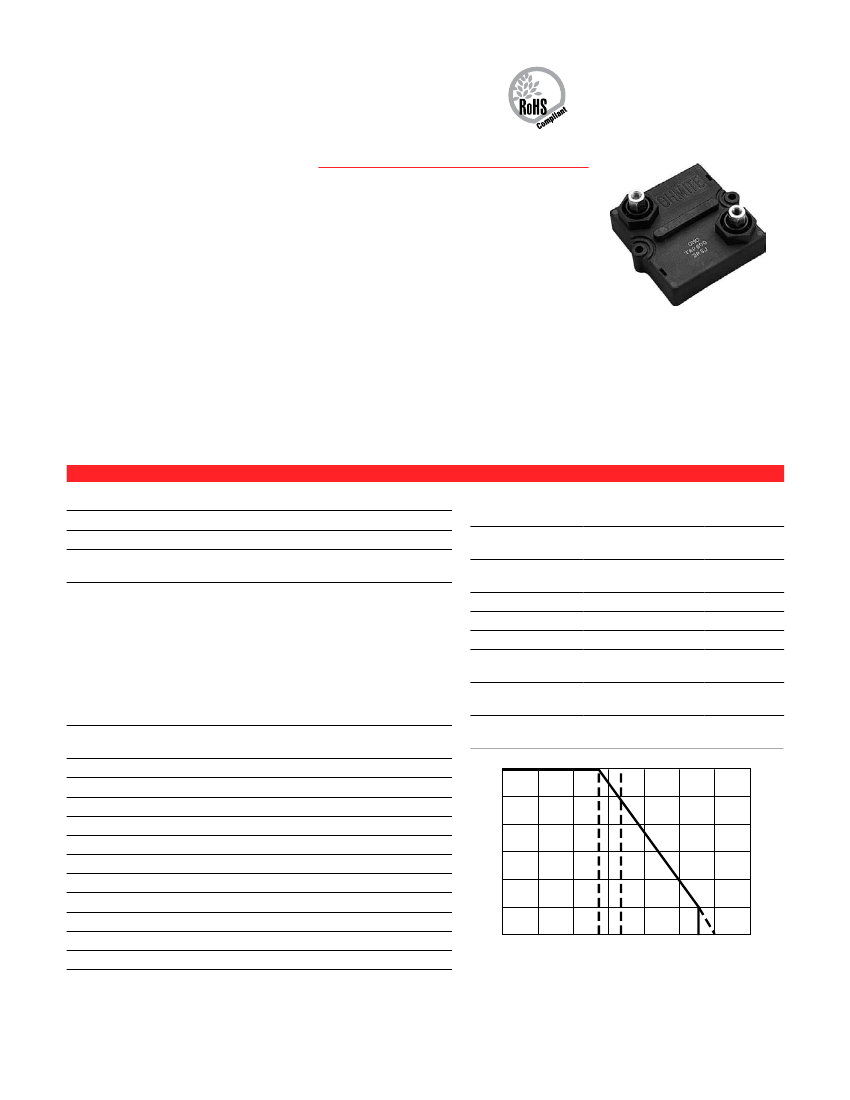

taP600 series
600 Watt Heat Sinkable Planar
Ohmite’s TAP600 delivers 600
watts of reliable power to a
variety of power conditioning,
power transmission, and power
control applications. These resis-
tors can be designed for liquid
or air cooled heat sink systems.
Applications include variable
speed drives, power supplies,
robotics, motor control, and other
control devices.
F e at u r e s
• Dielectric Strength up to 12KV
• Special Design for Low Inductance and
Capacitance Values
• Contacts allow for easy load connec-
tion with M5 screws (not included)
available with M4 as special request.
Thread depth 7mm
• Encapsulated with a special resin filled
epoxy casing with a large creepage
distance to mass, large air distance
between terminals, and a high insula-
tion resistance (CTI 600).
• Materials meet the requirements of
UL94-V0
characteristics
Resistance Values
0.25Ω to 100KΩ
Resistance Tolerance
±10% Std., 5% available on request.
Temperature Coefficient
±150ppm/°C (others upon request)
Maximum Working Voltage
5,000V DC, higher voltage on request, not
exceeding max. power
Power Rating
600W at 70°C heat sink temperature or
85°C bottom case temperature. This value
is only valid by using a thermal conduction
to the heat sink Rth -cs<0.025°C/W.
The value can be reached by using thermal
transfer compound with a heat conductivity
of 1w/mk. The flatness of the cooling plate
must be better than 0.05mm overall. The
roughness of the surface should not exceed
6.4µm.
Dielectric Strength Voltage
6k Vrms, 50Hz, 1min standard; up to 12k
Vrms available
Single Shot Voltage
Up to 12KV Normwave (1.5/50 µsec)
Insulation Resistance
10GΩ min. at 500V
Creeping Distance
42mm min.
Air Distance
14mm min.
Inductance
≤80nH
Capacitance/Mass
≤110pF
Capacitance/Parallel
≤40pF
Operation Temperature
-55°C to +150°C
Max. Torque for Contacts
2 Nm
Max. Torque for Mounting
1.8 Nm
Derating (thermal resist.)
8.73W/°C (0.115°C/W)
Test
Method
Short Time
1000 W/10 Sec. @
Overload
70°C
Typical
Results - ∆R
0.4%
0.25%
0.20%
0.25%
0.25%
0.40%
0.05%
Humidity Steady
56 Days/40°C/ 95°C
State
Temp. Cycling
-55/+125/5 Cycles
Shock
40g/4,000 Times
Vibrations
2 - 500Hz/10g
Load Life 1,000
Pn 30 min. ON/30
Cycles
min. OFF
Terminal Strength
200N
of Contacts
Derating
120
100
Percent rated power
80
60
40
20
0
720
600
Rated power, watts
480
360
240
120
0
0
25
50
75
100
125
150
Bottom of base plate Temperature,
°C
175
(continued)
140
1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
taP600 series
600 Watt Heat Sinkable Planar
(iin./mm)
dimensions
ø0.159–0.169"
(4.05–4.3mm)
*Also C to C
L
L
dimension for
mounting holes
øM5
occ. Din
2.331–2.394"
(59.2–60.8mm)
*2.236–2.252"
(56.8–57.2mm)
1.331–1.346"
(33.8–34.2mm)
0.689–0.728"
(17.5–18.5mm)
0.177–0.216"
(4.5–5.5mm)
2.527–2.591"
(64.2–65.8mm)
1.409–1.425"
(35.8–36.2mm)
0.295–0.335"
(7.5–8.5mm)
0.177–0.216"
(4.5–5.5mm)
1.240–1.279"
(31.5–32.5mm)
*
*Dimensions are taken while part is
mounted to a proper heatsink
1.161–1.201"
(29.5–30.5mm)
*
0.571–610"
(14.5–15.5mm)
*
o r d e r i n g i n F o r m at i o n
RoHS compliant
Non-compliant version
unavailable
Standard Values
10% tol.
0.10
1.0
TAP600KR25E
TAP600KR33E
TAP600KR50E
TAP600K100E
TAP600K10KE
TAP600K10RE
TAP600K1K0E
TAP600K1R0E
500
TAP600K4R0E TAP600K5R0E
TAP600K40RE TAP600K7K5E
TAP600K20RE TAP600K7R5E
TAP600K200E TAP600K75RE
TAP600K22RE TAP600K750E
TAP600K2R0E TAP600K30RE
TAP600K3R0E TAP600K500E
TAP600K50RE
15
5% tol.
TAP600J1R0E
TAP600J10RE
TAP600J50RE
TAP600J100E
TAP600J500E
TAP600J1K0E
TA P 6 0 0 K 5 R 0
E
Style
Tolerance
J = 5%
K = 10%, Std.
L = 20%
Resistance
1 Ohm = 1R0
10 Ohm = 10R
1000 Ohm = 1K0
THIS PRODUCT IS DESIGNED FOR
USE WITH PROPER HEATSINKING.
Maximum base plate temperature of the resistor must
be monitored and kept within specified limits to es-
tablish the power rating. Best technique is to attach a
thermocouple to the side of the base plate of the resis-
tor. Temperature of plastic housing or heat sink cannot
be used to establish rating of the resistor.
The Ohmite CP4 (http://www.ohmite.com/cat/sink_cp4.
pdf) is an example of properly designed heat sink.
1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
