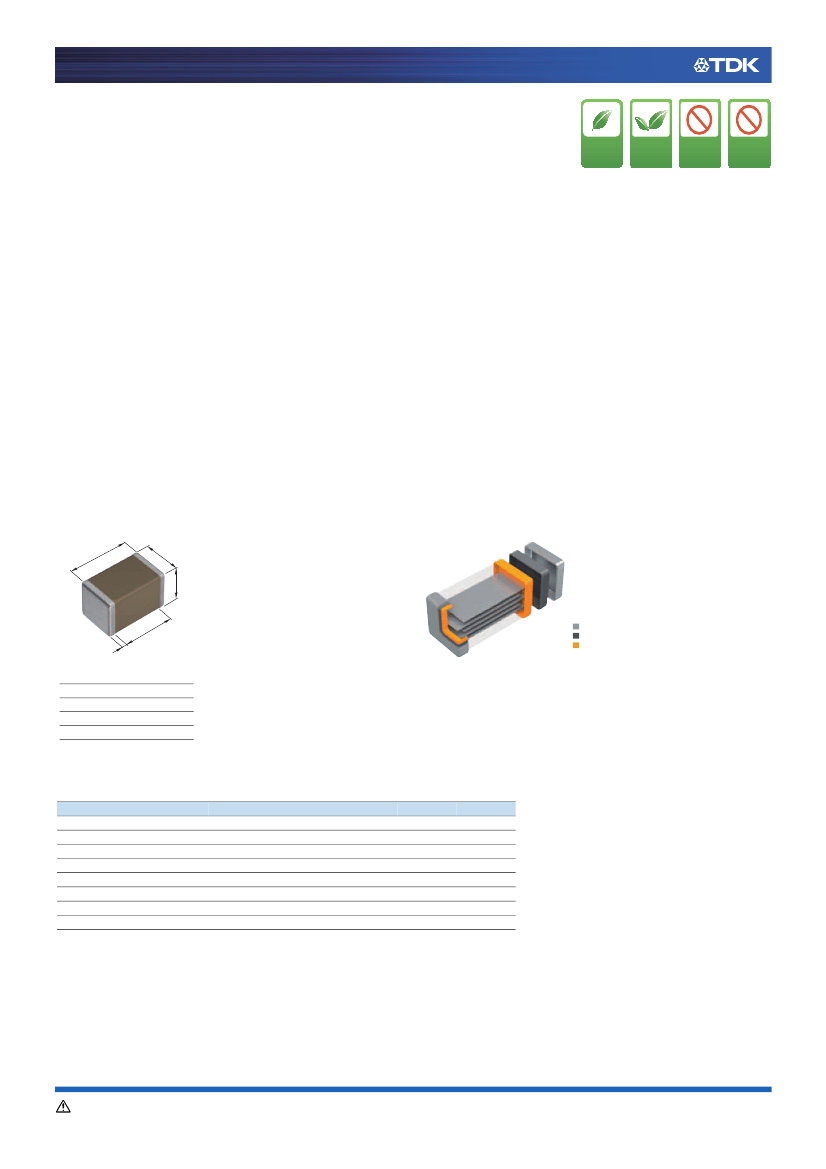

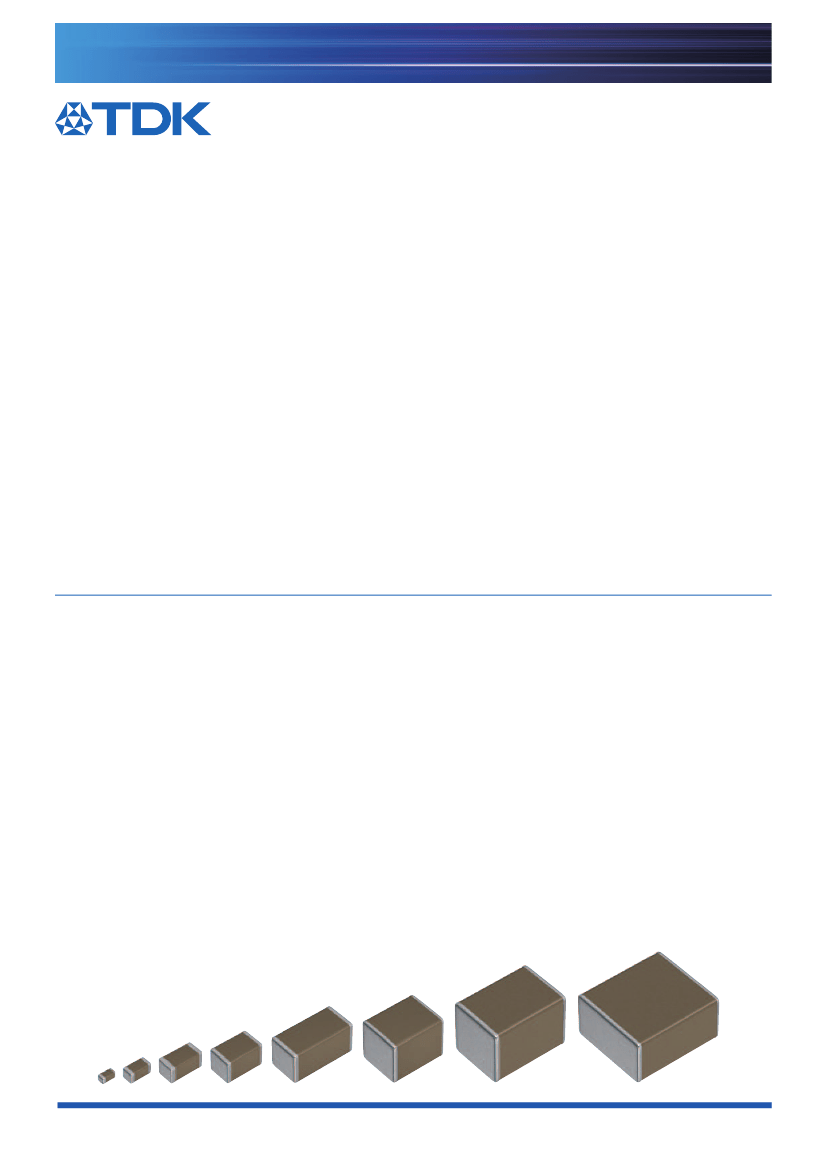

MULTILAYER CERAMIC CHIP CAPACITORS
CGA
series
General (Up to 75V)
Type: CGA1/0603 [0201 inch]、
CGA2/1005 [0402 inch]、
CGA3/1608 [0603 inch]、
CGA4/2012 [0805 inch]、
CGA5/3216 [1206 inch]、
CGA6/3225 [1210 inch]、
CGA8/4532 [1812 inch]、
CGA9/5750 [2220 inch]
■
SERIES OVERVIEW
RoHS
Cl
Br
REACH Halogen
Free
SVHC-Free
Pb
Lead
Free
TDK multilayer ceramic chip capacitor automotive grade CGA series is a product for surface mount which multiple sheets of dielectric and conduc-
tive material are layered alternately. The monolithic structure ensures superior mechanical strength and reliability.
Also the lower ESR, ESL and better frequency characteristics are offered by the simple structure than other capacitors. The capacitance range is up
to 47uF and the line-up has been expanding to the region of the film capacitor or electrolytic capacitor.
■
FEATURES
• The superior mechanical strength and reliability due to the monolithic
structure.
• Low ESR, ESL and excellent frequency characteristics allow for a cir-
cuit design that closely conforms to theoretical values.
• Low self-heating and high ripple resistance due to low ESR.
• No polarity.
• AEC-Q200 compliant.
■
APPLICATIONS
• Automotive electronic equipment (Engine control units, Sensor mod-
ules and Battery line smoothing)
• LC resonance circuit (C0G).
• Applications requiring higher reliability
■
SHAPE & DIMENSIONS
L
■
PRODUCT STRUCTURE
W
T
G
B
Sn
Ni
Cu
L
W
T
B
G
Body length
Body width
Body height
Terminal width
Terminal
spacing
The structure which multiple sheets of dielectric and conductive material
are layered alternately. The superior mechanical strength and reliability
are realized by the monolithic and simple structure.
Type
L
W
CGA1
0.60±0.03
0.30±0.03
CGA2
1.00±0.05
0.50±0.05
CGA3
1.60±0.10
0.80±0.10
CGA4
2.00±0.20
1.25±0.20
CGA5
3.20±0.20
1.60±0.20
CGA6
3.20±0.40
2.50±0.30
CGA8
4.50±0.40
3.20±0.40
CGA9
5.70±0.40
5.00±0.40
Dimensional
tolerances are typical values.
T
0.30±0.03
0.50±0.05
0.80±0.10
1.25±0.20
1.60±0.20
2.50±0.30
2.50±0.30
2.50±0.30
Dimensions in mm
B
G
0.10 min.
0.20 min.
0.10 min.
0.30 min.
0.20 min.
0.30 min.
0.20 min.
0.50 min.
0.20 min.
1.00 min.
0.20 min.
—
0.20 min.
—
0.20 min.
—
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20181029 / mlcc_automotive_general_en.fm
(4/23)
MULTILAYER CERAMIC CHIP CAPACITORS
■
CATALOG NUMBER CONSTRUCTION
CGA
(1)
6
(2)
P
(3)
1
(4)
X7R
(5)
1N
(6)
106
(7)
M
(8)
250
(9)
A
(10)
C
(11)
(1) Series
(2) Dimensions L x W (mm)
Code
1
2
3
4
5
6
8
9
EIA
CC0201
CC0402
CC0603
CC0805
CC1206
CC1210
CC1812
CC2220
Length
0.60
1.00
1.60
2.00
3.20
3.20
4.50
5.70
Width
0.30
0.50
0.80
1.25
1.60
2.50
3.20
5.00
Terminal width
0.10
0.10
0.20
0.20
0.20
0.20
0.20
0.20
(6) Rated voltage (DC)
Code
0J
1A
1C
1E
1V
1H
1N
Voltage (DC)
6.3V
10V
16V
25V
35V
50V
75V
(3) Thickness code
Code
A
B
C
E
F
H
J
L
M
N
P
Q
R
Thickness
0.30 mm
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
(7) Nominal capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first and
second significant figures of the capacitance. The third digit identi-
fies the multiplier. R designates a decimal point.
(Example)0R5 = 0.5pF
101 = 100pF
225 = 2,200,000pF = 2.2µF
(8) Capacitance tolerance
Code
C
D
J
K
M
Tolerance
±0.25pF
±0.50pF
±5%
±10%
±20%
(4) Voltage condition for life test
Symbol
1
2
3
Condition
1 × R.V.
2 × R.V.
1.5 × R.V.
(9) Thickness
Code
030
050
060
080
085
115
125
160
200
230
250
280
320
Thickness
0.30 mm
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
(5) Temperature characteristics
Temperature
characteristics
C0G
X5R
X7R
X7S
Temperature coefficient
or capacitance change
0±30 ppm/°C
±15%
±15%
±22%
Temperature range
-55 to +125°C
-55 to +85°C
-55 to +125°C
-55 to +125°C
(10) Packaging style
Code
A
B
K
Style
178mm reel, 4mm pitch
178mm reel, 2mm pitch
178mm reel, 8mm pitch
(11) Special reserved code
Code
A,B,C
Description
TDK internal code
