RN1610,RN1611
TOSHIBA Transistor Silicon Npn Epitaxial Type (PCT Process)
RN1610,RN1611
Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications
l
Including two devices in SM6 (super mini type with 6 leads)
l
With built-in bias resistors
l
Simplify circuit design
l
Reduce a quantity of parts and manufacturing process
l
Complementary to RN2610, RN2611
Unit: mm

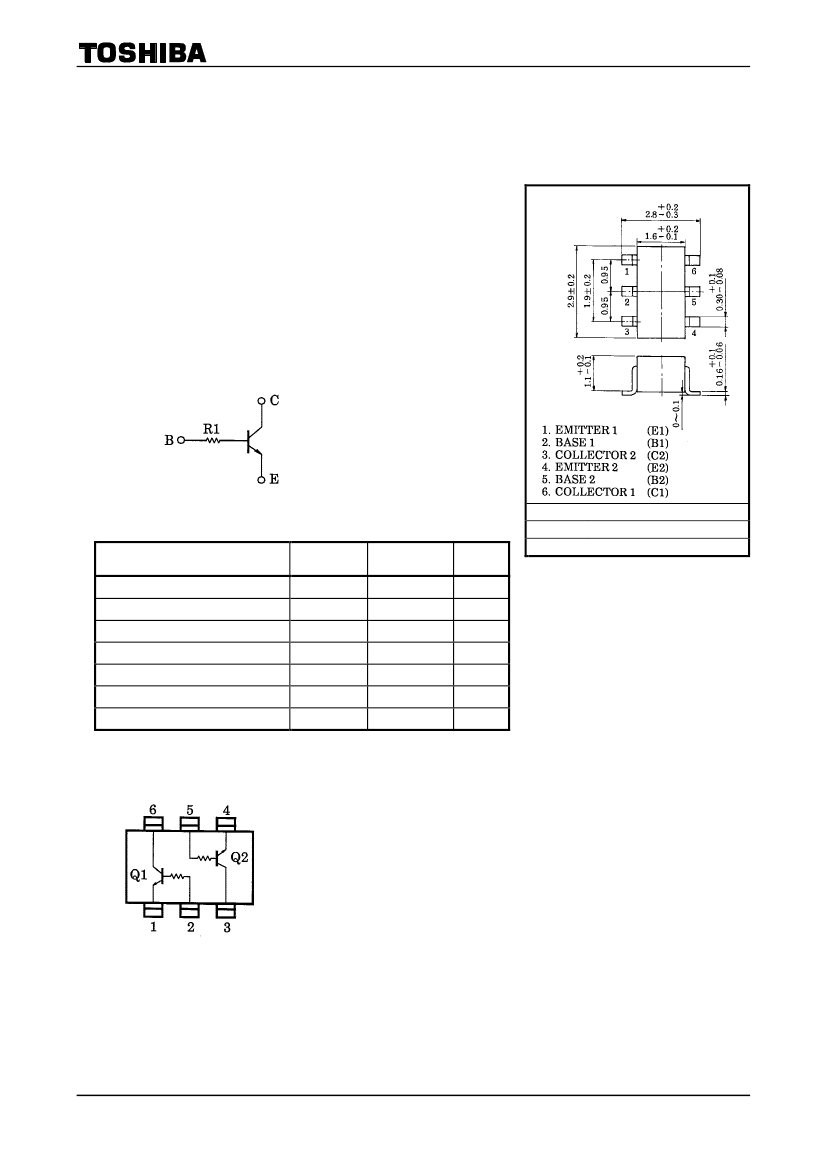

Equivalent Circuit
Maximum Ratings
(Ta = 25°C) (Q1, Q2 Common)
°
Characterisstic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
*
T
j
T
stg
Rating
50
50
5
100
300
150
−55~150
Unit
V
V
V
mA
mW
°C
°C
JEDEC
EIAJ
TOSHIBA
Weight: 0.015g
―
―
2-3N1A
*
Total rating
Equivalent Circuit
(Top View)
1

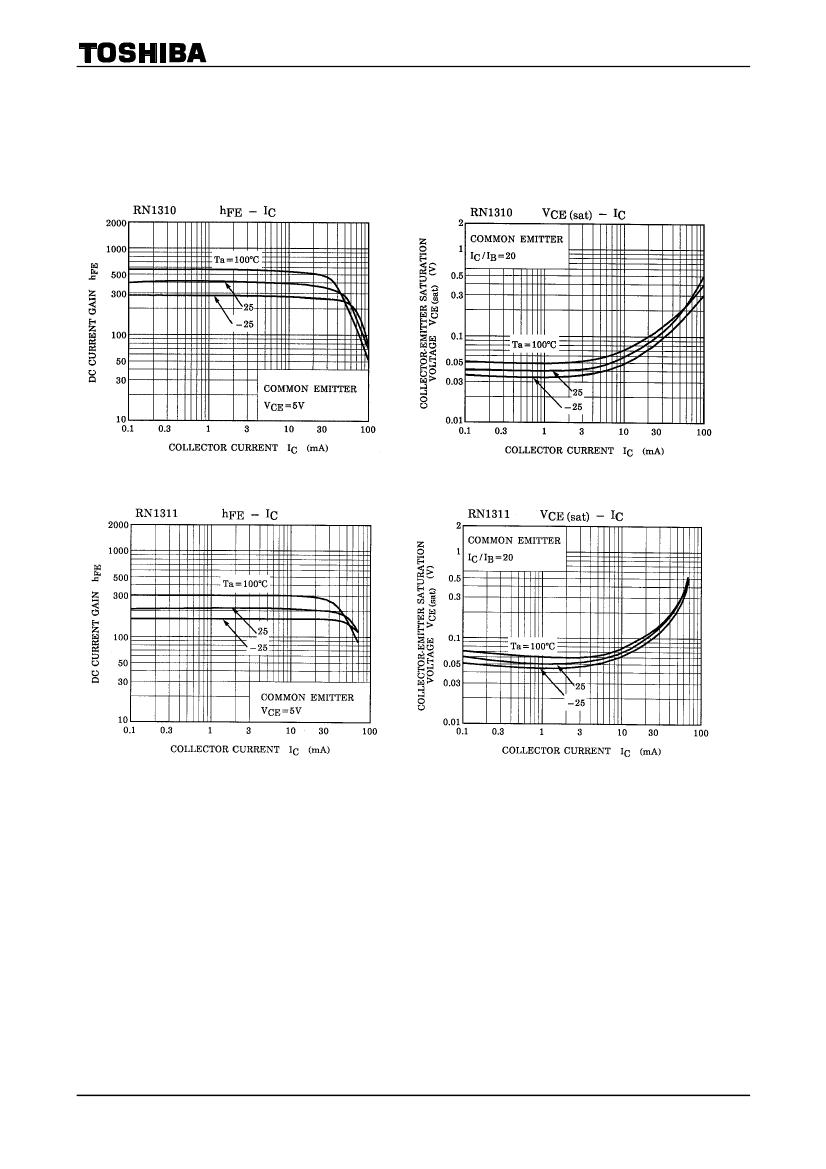

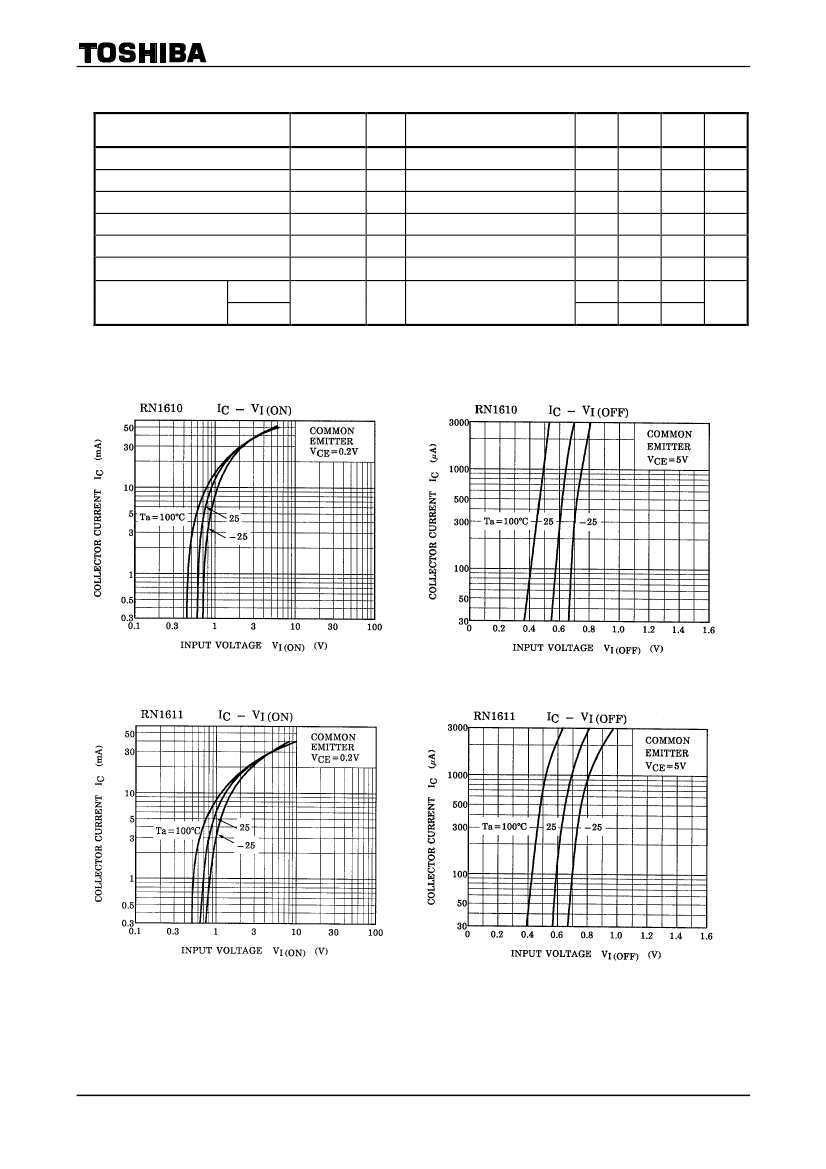

2001-06-07
