PM3316-6R8M-RC: DescriptionFixed Inductors 6.8uH 20%; CategoryPassive components inductor; File Size314KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM3316-6R8M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM3316-6R8M-RC	-	-	View	Buy Now

PM3316-6R8M-RC Overview

Fixed Inductors 6.8uH 20%

PM3316-6R8M-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	5039
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	5039
structure	Unshielded
core material	FERRITE
DC Resistance	0.03 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	5 mm
Package length	12.7 mm
Package form	SMT
Package width	10 mm
method of packing	TR, 13 Inch
Minimum quality factor (at nominal inductance)	50
Maximum rated current	4.5 A
self resonant frequency	31 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

NT

Features

OM

PL

IA

n

Formerly model

n

Available in E6 series

n

Low profile of only 5.0 mm

n

Inductance as low as 1.0 µH

n

RoHS compliant*

LE

AD

F

RE

E

Applications

n

Input/output of DC/DC converters

n

Power supplies for:

*R

oH

S

C

• Portable communication equipment

• Camcorders

• LCD TVs

• Car radios

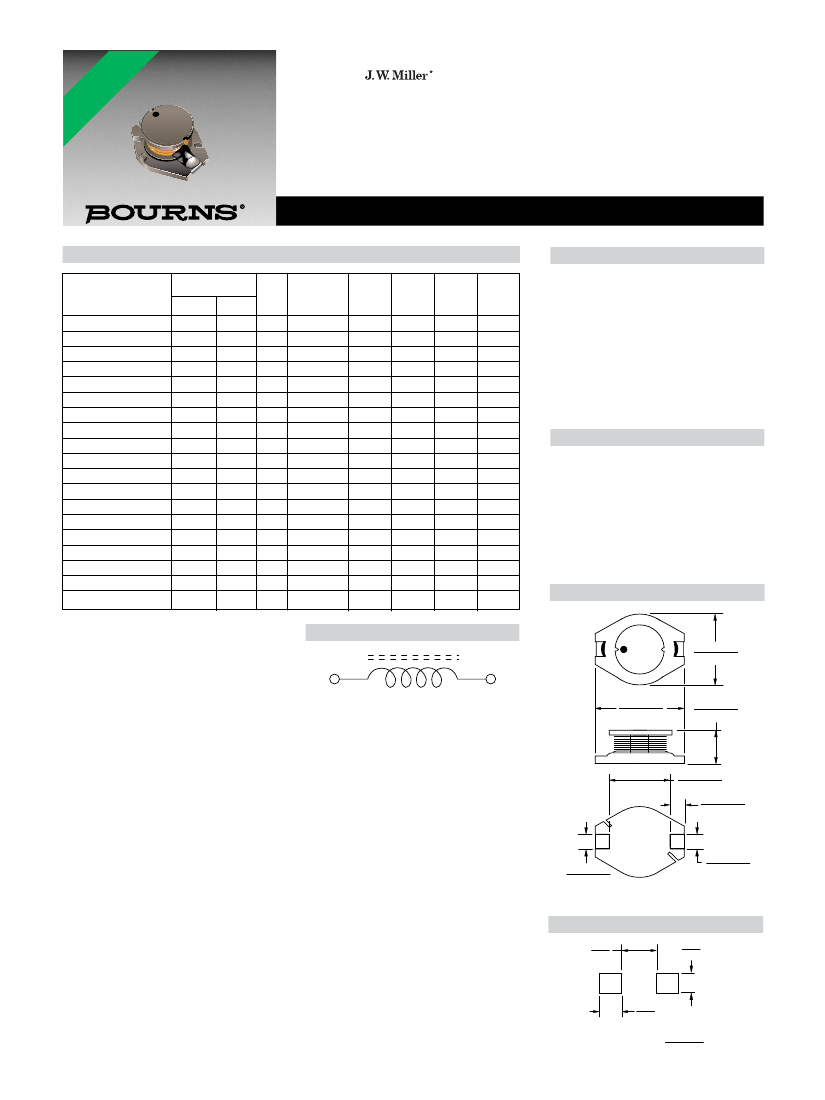

PM3316 Series - SMD Power Inductors

SRF

Min.

(MHz)

137

95

65

54

42

31

26

22

18

14

12

11

8

6

5

4

3

2

I rms

Max.

(A)

7.50

6.50

6.10

5.00

4.50

3.40

2.90

2.50

2.00

1.80

1.40

1.20

1.00

0.80

0.70

0.55

0.45

0.35

0.30

I sat

Typ.

(A)

9.00

8.00

7.00

6.40

5.40

4.50

3.70

3.00

2.50

2.00

1.60

1.40

1.20

1.00

0.80

0.60

0.50

0.40

0.35

Electrical Specifications

Inductance 1 kHz

Bourns Part No.

PM3316-1R0M-RC

PM3316-1R5M-RC

PM3316-2R2M-RC

PM3316-3R3M-RC

PM3316-4R7M-RC

PM3316-6R8M-RC

PM3316-100M-RC

PM3316-150M-RC

PM3316-220M-RC

PM3316-330M-RC

PM3316-470M-RC

PM3316-680M-RC

PM3316-101M-RC

PM3316-151M-RC

PM3316-221M-RC

PM3316-331M-RC

PM3316-471M-RC

PM3316-681M-RC

PM3316-102M-RC

(µH)

1

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

470

680

1000

Tol. %

± 20

Test

Q Frequency

Ref.

(MHz)

20

10

50

3

50

3

50

4

50

4

50

3

50

3

50

3

40

3

25

1

25

1

25

1

30

0.05

30

0.05

33

0.05

33

0.05

57

0.05

57

0.05

81

0.07

RDC

(Ω)

0.007

0.009

0.012

0.015

0.019

0.030

0.050

0.060

0.10

0.12

0.19

0.24

0.33

0.59

0.78

1.15

1.70

2.60

3.90

Test Voltage ....................................0.1 V

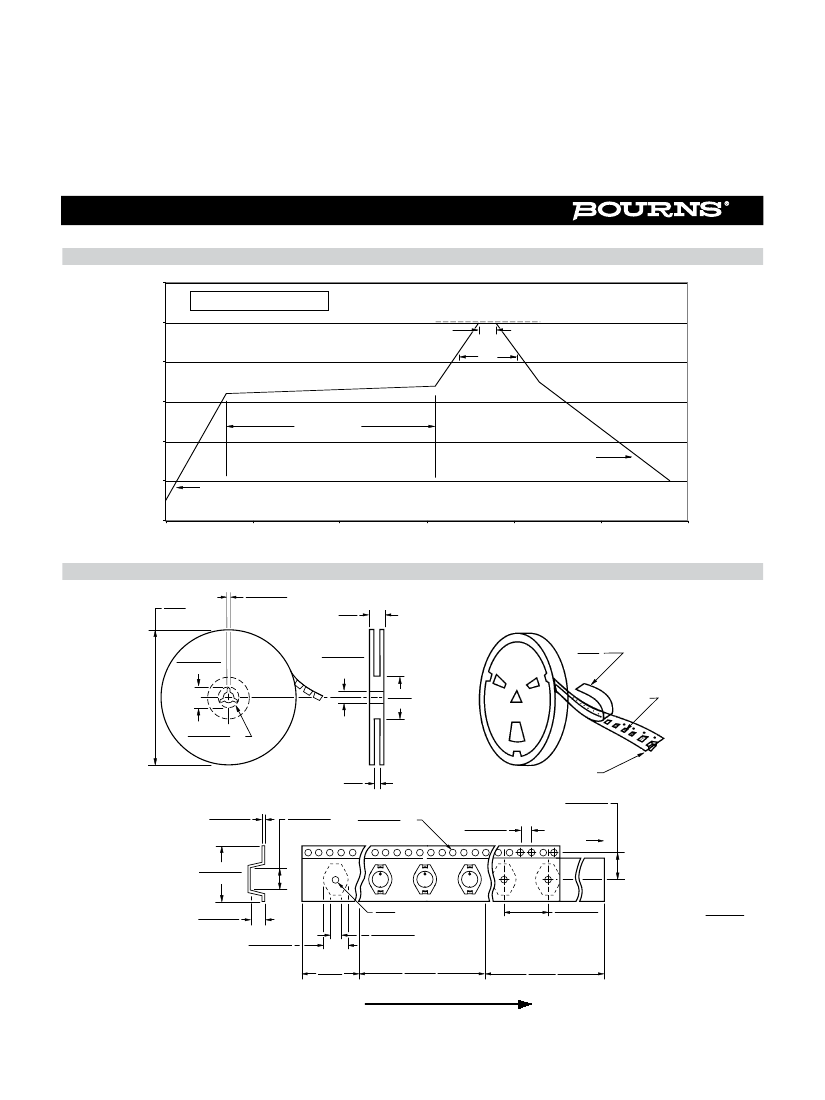

Reflow soldering .... 250 °C; 10 sec max.

(In compliance with JEDEC,

J-STD-020C, Table 4-2)

Operating Temperature

................................-55 °C to +125 °C

(Temperature rise included)

Storage Temperature

................................-55 °C to +125 °C

Resistance to Soldering Heat

.......................... 250 °C, 10 sec. max.

Core ....................................... Ferrite DR

Wire ............................Enameled copper

Base ................................................DAP

Terminal ........................................Cu/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise ................. 15 °C max.

at rated Irms

Packaging .................... 500 pcs. per reel

Product Dimensions

Materials

General Specifications

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

NT

*

101

Electrical Schematic

10.0 ± 0.2

(.393 ± .008)

12.7 ± 0.2

(.500 ± .008)

5.0 ± 0.3

MAX.

(.197 ± .012)

7.6 ± 0.3

TYP.

(.299 ± .012)

2.4 ± 0.2

(.094 ± .008)

TYP.

1.95 ± 0.1

(.077 ± .003)

TYP.

2.2 ± 0.2

(.087 ± .008)

TYP.

• = START OF wINDINg

Recommended Layout

7.3

(.287)

2.8

(.110)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual

device performance may vary over time.

Users should verify actual device performance in their specific applications.

3.0

(.118)

DIMENSIONS:

MM

(INCHES)
