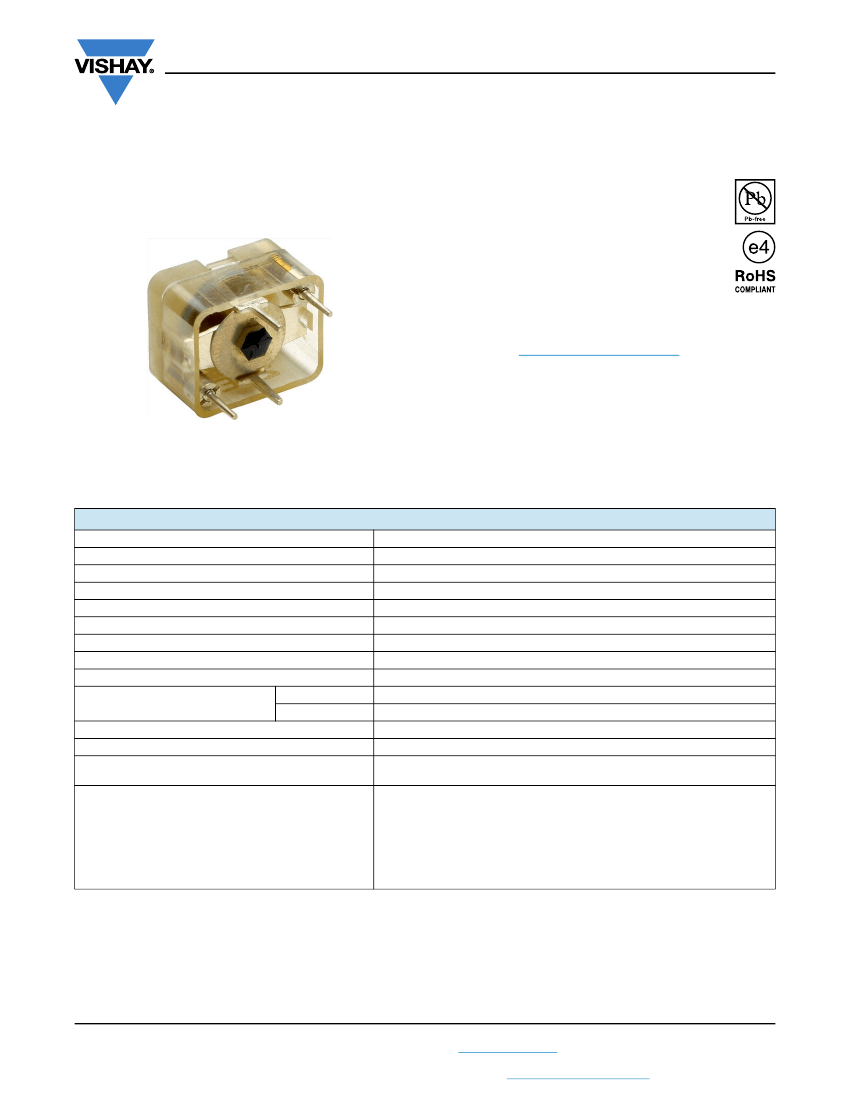

Film Dielectric Trimmers
FEATURES
• High temperature type
• Housing dimensions:
6 mm x 8 mm x 9 mm
• For a basic grid of 2.54 mm
• Top and bottom adjustment
• Round head
• Mounting: radial
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Antennas
• Impedance matching circuits
• Medical
• RF
• For fine adjustment in professional applications
QUICK REFERENCE DATA
Rated DC voltage
Test DC voltage for 1 min
Maximum contact resistance
Minimum insulation resistance between stator and rotor
Category temperature range
Climatic category (IEC 60068)
Minimum storage temperature
Related specification
Effective angle of rotation
Operating torque
Maximum axial thrust
Capacitance range (C
min.
/ C
max.
)
Life of trimmer
C
max.
< 3.5 pF
C
max.
3.5 pF
300 V
DC
600 V
DC
5 m
10 000 M
-40 °C to +125 °C
40/125/21
-55 °C
IEC 60418-1 and 4
180° (rotation in 180° only, see “Life of trimmer”)
1 mNm to 15 mNm
1 mNm to 20 mNm
2N
1.2 pF / 3.5 pF to 2 pF / 18 pF
Maximum 10 cycles: rotation in 180° only (the electrical and mechanical
performance is not guaranteed if rotated beyond 10 cycles)
Sampling and data evaluation for quality level in accordance
with
“MIL-STD-105D”
and
“IEC 60410”:
Quality level
< 0.15 % major defects
< 0.65 % minor defects
Each capacitor is tested for minimum C
max.
and is also subjected to
the full test voltage.
Revision: 04-Aug-15
Document Number: 28529
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BFC2 809 05...
www.vishay.com

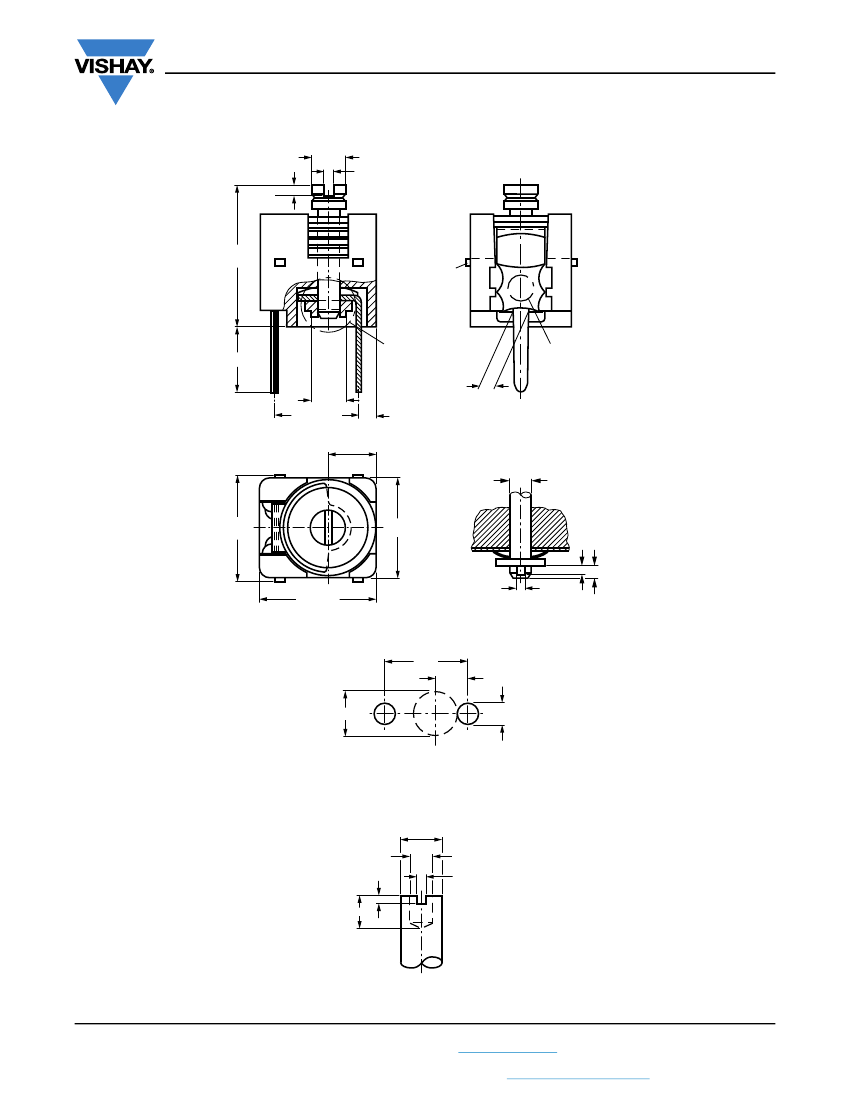

DIMENSIONS
in millimeters
Ø 2.2
0.6
0.5 min.
Vishay BCcomponents
9
max.
Sprue
Z
3.7 ± 0.2
Color mark
Ø 2.2
5.08 ± 0.2
1.1 ± 0.2
1.1 max.
3 ± 0.2
DETAIL Z
turned 90°
Ø 1.4
6.7
max.
6.4
max.
0.85 max.
7.4 max.
0.6 ± 0.1
0.5
± 0.15
Trimmers BFC2 809 05... series, with round heads
5.08
1.9
S
2.3 ± 0.1
R
1.2 (2 x)
Hole pattern
ADJUSTMENT
For top adjustment a screwdriver or trimming key can be used; for bottom adjustment a key is required as shown below.
Ø 2.2
Ø 1.5 + 0.1
0
0.6 + 0.2
0
2 min.
0.7 + 0.1
0
Bottom adjustment key
Revision: 04-Aug-15
Document Number: 28529
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BFC2 809 05...
www.vishay.com
Vishay BCcomponents
CATALOG NUMBER BFC2 809 05...
ORDERING INFORMATION
C
min.
/ C
max.
(pF)
1.2 / 3.5
1.8 / 10
2 / 18
215
216
217
TOP AND BOTTOM ADJUSTMENT
ROUND HEAD
ROUND HEAD AND
FLUX GUARD
001
002
003
MOUNTING
The trimmer can be mounted on printed-circuit boards with a minimum hole diameter of 2.54 mm.
PACKAGING
Blister packs of 70 units each. For smallest packaging quantity (SPQ) see “Electrical Data” table.
ELECTRICAL DATA
GUARANTEED
MAX. C
min.
/
MIN. C
max.
AT 200 kHz
(pF)
1.2 / 3.5
1.8 / 10
2 / 18
SHAPE
OF HEAD
tan
AT C
max.
x 10
-4
FIG.
1 MHz
1
1
1
10
10
10
100 MHz
20
20
25
TEMP.
COEFF.
(1)
(10
-6
/K)
-250 ± 350
-250 ± 350
-250 ± 350
MIN. f
res
AT C
max.
(MHz)
850
1200
580
360
COL.
OF
DOT
Orange
None
White
Red
SPQ
CATALOG
NUMBER
BFC2 ... .....
.... 809 05001
.... 809 05215
.... 809 05002
.... 809 05216
.... 809 05217
.... 809 05003
Round
Round
Round
700
700
700
700
700
700
Note
(1)
C: 60 % to 80 % of C
max.
; T
amb
: from +20 °C to +125 °C
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile, we refer to the application note “Soldering Guidelines for Film
Capacitors”:
www.vishay.com/doc?28171
TEST PROCEDURES AND REQUIREMENTS
IEC
60418-1
CLAUSE
4.2
14
19
21
21.1
21.2
22
Ua
Ub
Na
IEC 60068
TEST
METHOD
TEST
Method of mounting
Capacitance drift
Thrust
Robustness of terminations:
Tensile
Bending
Rapid change of temperature
1 N
1 cycle
1 cycle; 0.5 h at lower and
0.5 h at upper category
temperature
No damage
No damage
C/C:
2.5 %
PROCEDURE
Method A
After TC measurement
Axial thrust of 2 N
C/C:
2.5 %; 4 % for 2 pF
C/C:
0.3 %
REQUIREMENTS
23
T
Ta
Soldering:
Solderability
Solder bath immersion 3 mm;
235 °C; 2 s
Solder bath: 260 °C; 10 s
Good wetting,
no mechanical damage
No mechanical damage
Tb
Revision: 04-Aug-15
Resistance to heat
Document Number: 28529
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BFC2 809 05...
www.vishay.com
Vishay BCcomponents
TEST PROCEDURES AND REQUIREMENTS
IEC
60418-1
CLAUSE
24
25
IEC 60068
TEST
METHOD
Eb
Fc
TEST
Impact bump
Vibration
PROCEDURE
4000 ± 10 bumps; 40 g; 6 ms
Frequency 10 Hz to 55 Hz;
amplitude 0.35 mm;
1.5 h
REQUIREMENTS
C/C:
0.6 %;
no mechanical damage
C/C:
0.6 %;
no mechanical damage
C/C:
2.5
16 h at upper category
temperature
tan
:
10 x 10
-4
for C
max.
< 18 pF;
tan
:
40 x 10
-4
for C
max.
18 pF
R
ins.
:
10 000 M;
rotor contact R:
5 m
Voltage proof:
600 V for 1 min
Visual examination:
no mechanical damage
Operating torque:
1 mNm to 20 mNm
C/C:
2.5 %
tan
:
10 x 10
-4
for C
max.
< 18 pF;
tan
:
25 x 10
-4
for C
max.
18 pF
R
ins.
:
10 000 M;
rotor contact R:
5 m
Voltage proof:
600 V for 1 min
Visual examination:
no mechanical damage
Operating torque:
1 mNm to 20 mNm
C/C:
0.3 %;
2.5 % for 2 pF
C/C
after axial thrust:
0.3 %;
rotor contact R:
5 m
Voltage proof:
600 V for 1 min
Visual examination:
no mechanical damage
Operating torque:
1 mNm to 20 mNm
26
26.1
B
Climatic sequence:
Dry heat
26.2
D
Damp heat accelerated,
first cycle
Cold
1 cycle; 24 h; +40 °C;
95 % to 100 % RH
16 h; -40 °C
26.3
Aa
26.5
27
Ca
Damp heat accelerated,
remaining cycles
Damp heat steady state
1 cycle; 24 h; +40 °C;
95 % to 100 % RH
21 days; +40 °C;
90 % to 95 % RH
29
Mechanical endurance
10 cycles
Maximum 10 cycles: rotation in
180° only (the electrical and
mechanical performance is not
guaranteed if rotated beyond
10 cycles)
Revision: 04-Aug-15
Document Number: 28529
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
