BFT12M0JF08 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BFT12M0JF08

BFT12M0JF08: DescriptionCarbon Film Resistors - Through Hole 6watts 12Mohms 5% 25Kvolts; CategoryPassive components The resistor; File Size84KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

BFT12M0JF08 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BFT12M0JF08	-	-	View	Buy Now

BFT12M0JF08 Overview

Carbon Film Resistors - Through Hole 6watts 12Mohms 5% 25Kvolts

BFT12M0JF08 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-609 code	e0
Manufacturer's serial number	B
Installation features	CHASSIS MOUNT
Number of terminals	2
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	6 W
Rated temperature	25 °C
resistance	12000000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	CARBON FILM
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	LUG
Tolerance	5%
Operating Voltage	25000 V

Preview

Download Datasheet

View All

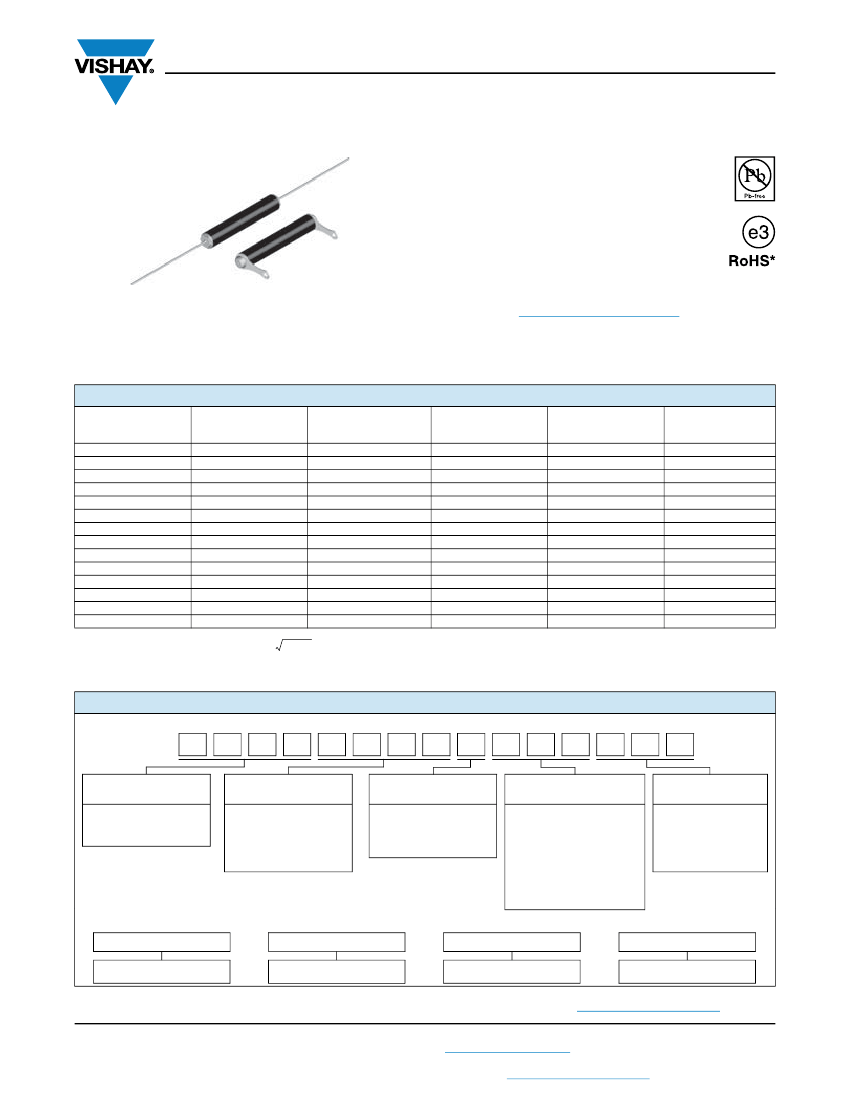

B, T

www.vishay.com

Vishay Dale

Carbon Film Resistors, General Purpose, High Voltage

FEATURES

• Ratings to 10 W, 40 kV

• Available with either radial lugs or axial leads

• Epoxy/enamel coated, with additional Mylar

Available

heat shrink sleeve 0.002" (0.051 mm) thick

• ± 20 % tolerance standard, tolerances of ± 15 %,

± 10 % and ± 5 % available

• See models D and G for special purpose high

Available

voltage carbon film resistors

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non-RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details.

STANDARD ELECTRICAL SPECIFICATIONS

GLOBAL MODEL

POWER RATING

25 °C

0.5

1.5

MAXIMUM WORKING

VOLTAGE

(1)

2.5K

3.5K

7.5K

15K

30K

15K

25K

40K

7.5K

RESISTANCE

RANGE

(2)



50K to 500M

100K to 500M

50K to 500M

100K to 500M

200K to 500M

100K to 500M

200K to 500M

400K to 500M

1M to 500M

TOLERANCE

(3)

±%

STYLE

BAEW

5, 10, 15, 20

BAKW

5, 10, 15, 20

BBF

5, 10, 15, 20

BBFW

5, 10, 15, 20

BBM

5, 10, 15, 20

BBMW

5, 10, 15, 20

BBR

5, 10, 15, 20

BBRW

5, 10, 15, 20

BBV

5, 10, 15, 20

BFQ

5, 10, 15, 20

BFT

5, 10, 15, 20

BFW

5, 10, 15, 20

TAFW

5, 10, 15, 20

TAKW

5, 10, 15, 20

Notes

(1)

Continuous working voltage shall be

or maximum working voltage, whichever is less.

(2)

All resistance values are calibrated at 100 V -calibration at other voltages available on request. Contact factory for availability of values

outside the listed range.

(3)

± 20 % standard, ± 5 %, ± 10 %, and ± 15 % are available.

GLOBAL PART NUMBER INFORMATION

New Global Part Numbering: BAEW2M50LF08 (preferred part numbering format)

GLOBAL

MODEL

(3 or 4 digits)

(see Standard Electrical

Specifications table)

RESISTANCE

VALUE

= k

= M

50K0

= 50 k

1M00

= 1 M

500M

= 500 M

TOLERANCE

CODE

=±5%

= ± 10 %

= ± 15 %

= ± 20 %

PACKAGING

E08

= Lead (Pb)-free,

foam (B series only)

E22

= Lead (Pb)-free,

bulk (TAFW, TAKW only)

F08

= Tin/lead, foam

(B series only)

B22

= Tin/lead, bulk

(TAFW, TAKW only)

SPECIAL

Blank = Standard

(Dash Number)

(up to 3 digits)

From

1 to 999

as applicable

Historical Part Number example: BAEW 2M50 15 % (will continue to be accepted)

BAEW

HISTORICAL MODEL

2M50

RESISTANCE VALUE

15 %

TOLERANCE CODE

F08

PACKAGING

Note

• For additional information on packaging, refer to the Through Hole Resistor Packaging document (www.vishay.com/doc?31544).

Revison: 07-Jul-15

Document Number: 31039

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
