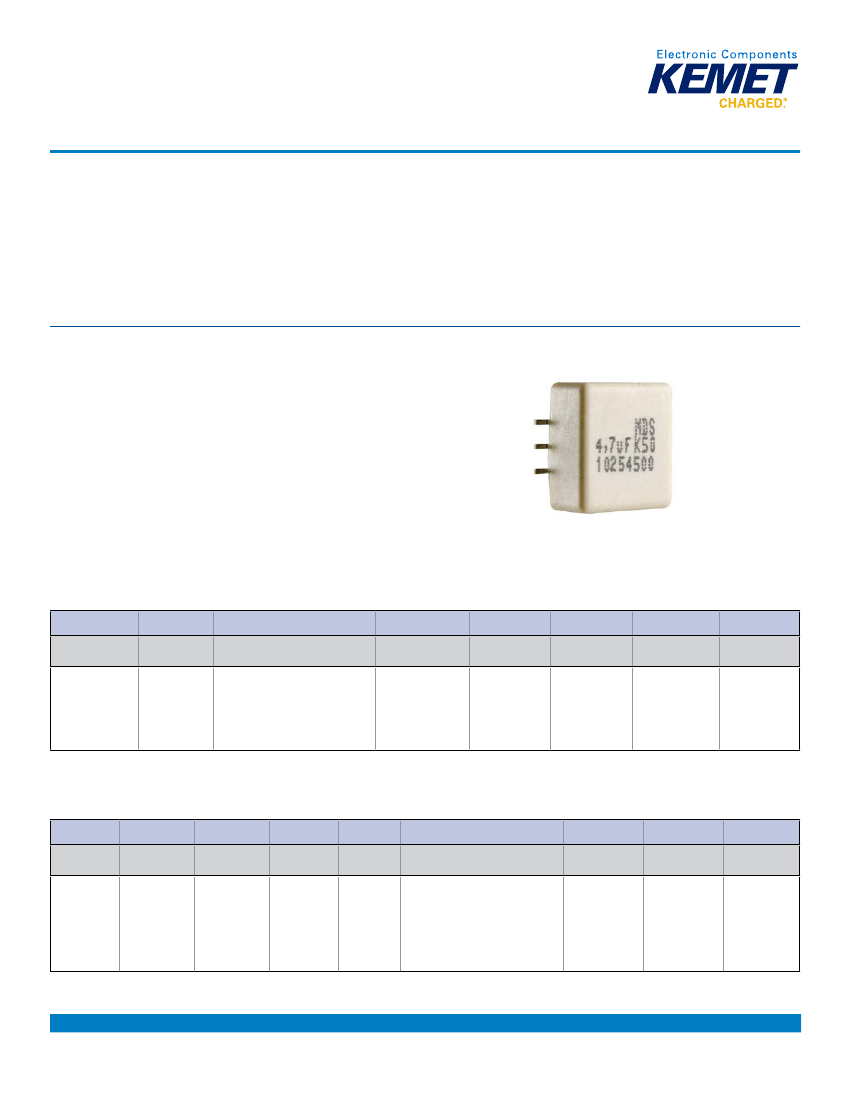

Surface Mount Polyester (PET) Film Capacitor
MDS Series Dual In-Line Low Profile, 50 – 630 VDC,
High Current
Overview
Dual in-line (DIL) metallized polyester (PET) film capacitor.
Encapsulation in self-extinguishing material meeting the
requirements of UL 94 V–0.
Applications
Typical applications include high frequency switched-mode
power supplies, DC/DC converters and input/output filtering.
Benefits
• Rated voltage: 50 – 630 VDC
• Rated voltage: 30 – 220 VAC
• Capacitance range: 0.033 – 6.8 µF
• Capacitance tolerance: ±5%, ±10%, other tolerances on request
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of -55˚C to +125˚C
Legacy Part Number System
MDS
Series
Dual In-Line,
Metallized
Polyester
10
Lead Spacing
(mm)
10
15
333
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other tolerances
on request.
50
Rated Voltage
(VDC)
050 = 50
100 = 100
250 = 250
400 = 400
630 = 630
A52
Size Code
P3
Number of Leads
per Side
TUBE
Packaging
See Ordering
Options Table
See Dimension P3 = 3 leads
Table
P4 = 4 leads
P5 = 5 leads
New KEMET Part Number System
F
Capacitor
Class
F = Film
17
Series
Dual In-Line,
Metallized
Polyester
3
3 = 3 leads
4 = 4 leads
5 = 5 leads
A
A = 10
B = 15
A
A=
Standard
box size
333
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other
tolerances on
request
050
Rated Voltage
(VDC)
050 = 50
100 = 100
250 = 250
400 = 400
630 = 630
T
Packaging
See Ordering
Options Table
Number of Lead Spacing
Size Code
Leads per Side
(mm)
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3075_MDS • 9/22/2016
1
Surface Mount Polyester (PET) Film Capacitor
MDS Series Dual In-Line Low Profile, 50 – 630 VDC, High Current
Ordering Options Table
Packaging Type
Standard Packaging Options
Case Size
A53
Bulk (Tube)
Tape & Reel (Standard
Reel)
T
VV687
TUBE
TR32
KEMET
Legacy
Packaging Packaging
Code
Code
Dimensions – Millimeters
L
G
Center line
See note
B
H1
L3
H
P1
Board
mounting
surface
W
X
Y
LL
P2
P3
L2
Z
H
+/-0.2
6.05
9.0
6.05
6.05
6.05
6.05
9.0
6.05
6.05
6.05
6.05
Close-up of inverted lead
Legacy Leads P1
P2 P3
(1)
B
Size
per
Code
Side
+/-0.2 +/-0.2 +/-0.2 +/-0.2
A52
A53
A54
A55
B53
B55
A53
A54
A55
B55
A55
3
3
3
3
3
3
4
4
4
4
5
10.0
10.0
10.0
10.0
15.0
15.0
10.0
10.0
10.0
15.0
10.0
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
5.08
5.08
5.08
5.08
5.08
5.08
7.62
7.62
7.62
7.62
10.16
12.2
12.7
12.2
12.2
16.5
16.5
12.7
12.2
12.2
16.5
12.2
L
+/-0.2
11.0
14.0
13.5
16.5
11.0
12.2
14.0
13.5
16.5
12.2
16.5
H1
+/-0.4
7.75
10.5
7.75
7.75
7.75
7.75
10.5
7.75
7.75
7.75
7.75
L2
L3
(2)
W
X
Y
Z
LL
+/-0.2
Maximum
+/-0.05 +/-0.05
2.96
4.46
4.21
5.71
2.96
3.56
3.19
2.94
4.44
2.29
3.17
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
+/-0.2
Nominal
+/-0.2
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
0.25
0
0.25
0.25
0.6
0.6
0
0.25
0.25
0.6
0.25
1.7
1.5
1.7
1.7
1.7
1.7
1.5
1.7
1.7
1.7
1.7
Drawing shows MDS with three leads per side. Similar dimensional requirements apply to the 4, 5, 7, and 8 leads per side configurations.
(1) P3 represents the cumulative tolerance of all leads.
(2) L3 represents the extent to which the center line of the leads misaligns with the center line of the body. Dimension shown is the maximum such
misalignment allowed.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3075_MDS • 9/22/2016
2
Surface Mount Polyester (PET) Film Capacitor
MDS Series Dual In-Line Low Profile, 50 – 630 VDC, High Current
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.033 – 15
100
63
0.033 – 10
250
160
0.033 – 1.5
400
200
0.033 – 0.47
630
220
0.033 – 0.18
±5%, ±10%, other tolerances on request
-55°C to +125°C
+85°C
The rated voltage is decreased with 1.25%/°C from +85°C
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C According to IEC 60384–2
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.33 µF
15,000 MΩ
30,000 MΩ
Maximum Values at +23°C
C ≤ 0.1 µF
C > 0.33 µF
5,000 MΩ • µF
10,000 MΩ • µF
0.1 < C < 3.3 µF
0.8%
1.5%
5.0%
3.3 ≤ C ≤ 6.8 µF
0.8%
1.5%
Dissipation Factor
1 kHz
10 kHz
100 kHz
0.8%
1.5%
2.5%
Self Inductance
Approximately 4 nH

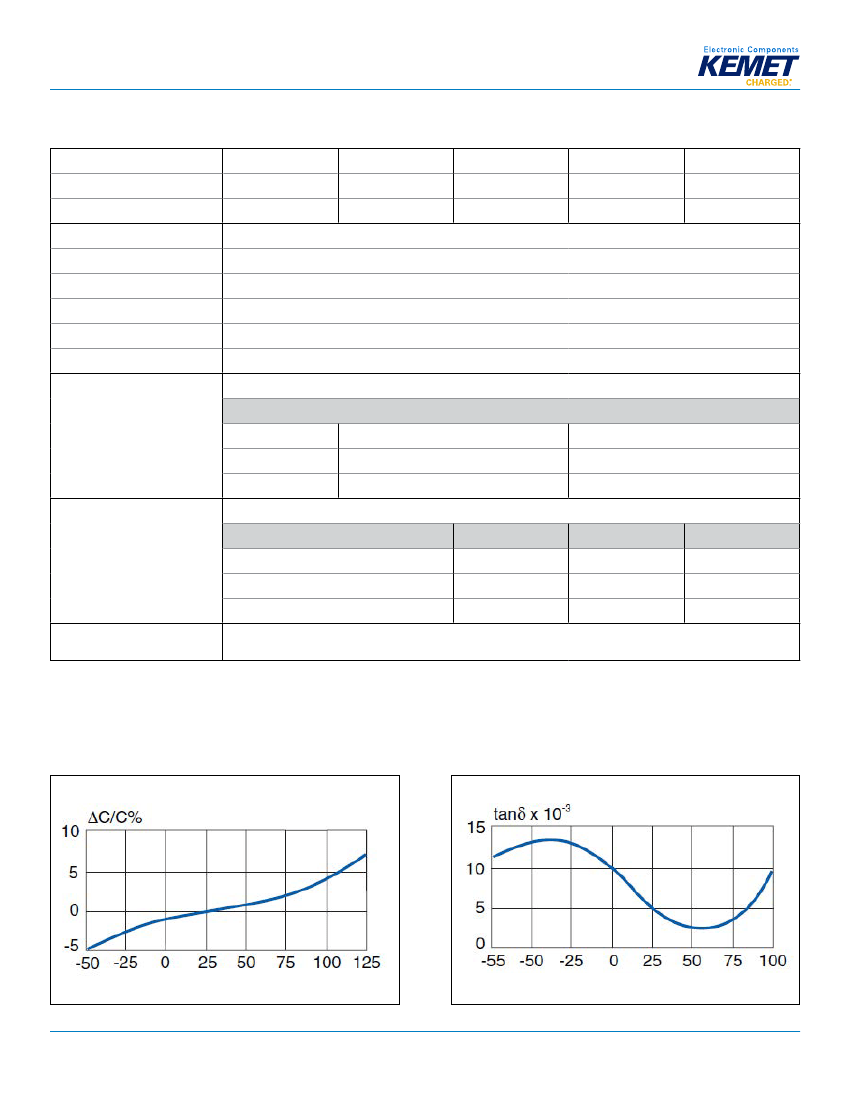

Typical Capacitance vs.
Temperature at 1 kHz
Typical Dissipation Factor vs.
Temperature at 1 kHz
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3075_MDS • 9/22/2016
3
Surface Mount Polyester (PET) Film Capacitor
MDS Series Dual In-Line Low Profile, 50 – 630 VDC, High Current
Table 1 – Ratings & Part Number Reference
Cap Value
VDC VAC
(µF)
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
Size Code
(New/
Legacy)
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
AA/50A
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
BA/50B
Dimensions in
mm
B
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
H
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
L
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
13.5
16.5
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
Lead
ESR 500 New
KEMET
Spacing (p) kHz (mΩ) Part Number
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
390
330
270
230
190
160
130
110
85
70
58
47
39
33
30
26
21
18
15
14
13
12
11
10
8
7
6
5
5
390
330
270
230
190
160
130
110
85
70
58
47
39
39
30
26
21
18
15
13
13
13
11
13
8
13
6
5
Legacy Part
Number
F173AA333(1)050T MDS10333(1)50A52P3TUBE
F173AA393(1)050T MDS10393(1)50A52P3TUBE
F173AA473(1)050T MDS10473(1)50A52P3TUBE
F173AA563(1)050T MDS10563(1)50A52P3TUBE
F173AA683(1)050T MDS10683(1)50A52P3TUBE
F173AA823(1)050T MDS10823(1)50A52P3TUBE
F173AA104(1)050T MDS10104(1)50A52P3TUBE
F173AA124(1)050T MDS10124(1)50A52P3TUBE
F173AA154(1)050T MDS10154(1)50A52P3TUBE
F173AA184(1)050T MDS10184(1)50A52P3TUBE
F173AA224(1)050T MDS10224(1)50A52P3TUBE
F173AA274(1)050T MDS10274(1)50A52P3TUBE
F173AA334(1)050T MDS10334(1)50A52P3TUBE
F173AA394(1)050T MDS10394(1)50A52P3TUBE
F173AA474(1)050T MDS10474(1)50A52P3TUBE
F173AA564(1)050T MDS10564(1)50A52P3TUBE
F173AA684(1)050T MDS10684(1)50A52P3TUBE
F173AA824(1)050T MDS10824(1)50A52P3TUBE
F173AA105(1)050T MDS10105(1)50A52P3TUBE
F173AA125(1)050T MDS10125(1)50A52P3TUBE
F173AA155(1)050T MDS10155(1)50A52P3TUBE
F173AA185(1)050T MDS10185(1)50A52P3TUBE
F173AA225(1)050T MDS10225(1)50A52P3TUBE
F173AA275(1)050T MDS10275(1)50A52P3TUBE
F173AA335(1)050T MDS10335(1)50A52P3TUBE
F173AA395(1)050T MDS10395(1)50A52P3TUBE
F173AA475(1)050T MDS10475(1)50A52P3TUBE
F17(2)AA565(1)050T MDS10565(1)50A54P(2)TUBE
F17(3)AA685(1)050T MDS10685(1)50A55P(3)TUBE
F173BA333(1)050T MDS15333(1)50B53P3TUBE
F173BA393(1)050T MDS15393(1)50B53P3TUBE
F173BA473(1)050T MDS15473(1)50B53P3TUBE
F173BA563(1)050T MDS15563(1)50B53P3TUBE
F173BA683(1)050T MDS15683(1)50B53P3TUBE
F173BA823(1)050T MDS15823(1)50B53P3TUBE
F173BA104(1)050T MDS15104(1)50B53P3TUBE
F173BA124(1)050T
MDS15124(1)50B53P3TUBE
F173BA154(1)050T
MDS15154(1)50B53P3TUBE
F173BA184(1)050T
MDS15184(1)50B53P3TUBE
F173BA224(1)050T MDS15224(1)50B53P3TUBE
F173BA274(1)050T MDS15274(1)50B53P3TUBE
F173BA334(1)050T MDS15334(1)50B53P3TUBE
F173BA394(1)050T MDS15394(1)50B53P3TUBE
F173BA474(1)050T MDS15474(1)50B53P3TUBE
F173BA564(1)050T MDS15564(1)50B53P3TUBE
F173BA684(1)050T MDS15684(1)50B53P3TUBE
F173BA824(1)050T MDS15824(1)50B53P3TUBE
F173BA105(1)050T
MDS15105(1)50B53P3TUBE
F173BA125(1)050T
MDS15125(1)50B53P3TUBE
F173BA155(1)050T
MDS15155(1)50B53P3TUBE
F173BA185(1)050T
MDS15185(1)50B53P3TUBE
F173BA225(1)050T MDS15225(1)50B53P3TUBE
F173BA275(1)050T MDS15275(1)50B53P3TUBE
F173BA335(1)050T MDS15335(1)50B53P3TUBE
F173BA395(1)050T MDS15395(1)50B53P3TUBE
F173BA475(1)050T MDS15475(1)50B53P3TUBE
F173BA565(1)050T MDS15565(1)50B53P3TUBE
VDC
VAC
Capacitance
Value (µF)
Size Code
(New/Legacy)
B (mm) H (mm) L (mm) Lead Spacing (p)
ESR 500
kHz (mΩ)
New KEMET
Part Number
Legacy Part Number
(1) J = ±5%, K = ±10%, other tolerances on request.
(2) = Number of leads per side, 3 or 4.
(3) = Number of leads per side, 3, 4 or 5.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3075_MDS • 9/22/2016
5
Embedded System
京公网安备 11010802033920号
EEWORLD
