Document 895-1

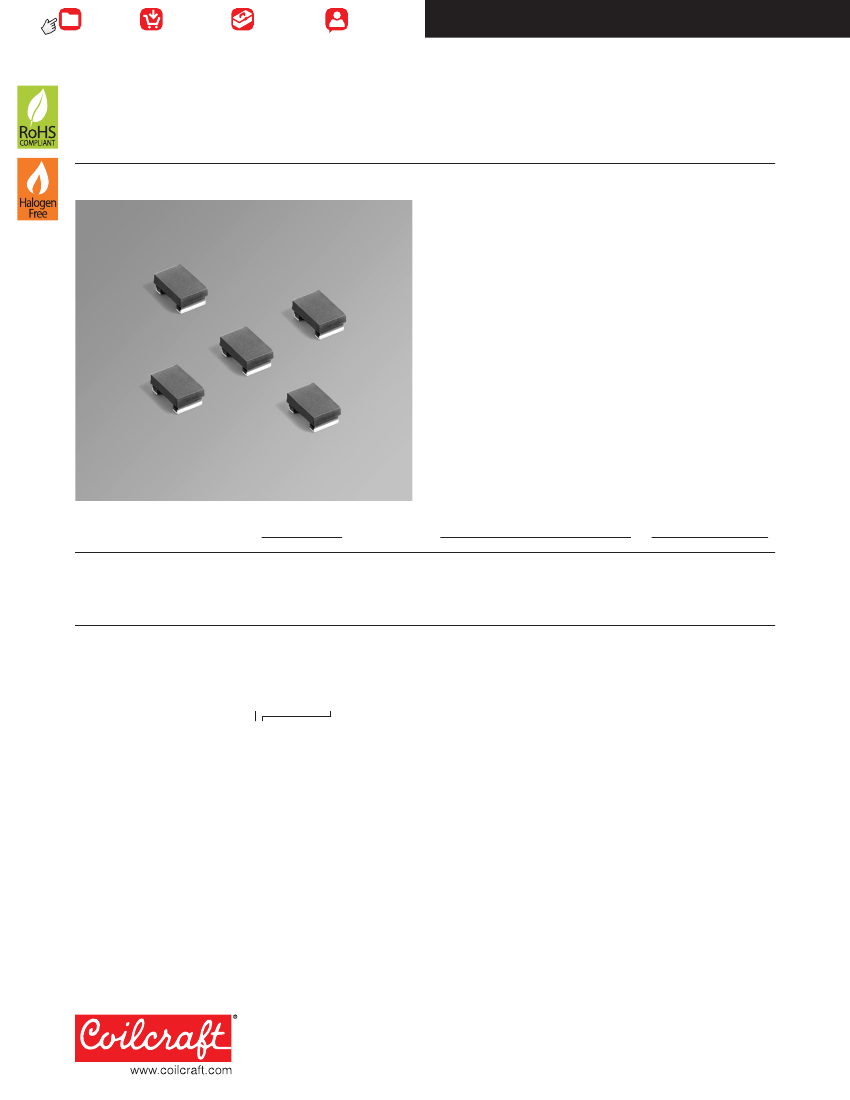

Shielded Power Inductors – PFL3215

• Low cost, low profile 1206 size power inductor

• Provides the current handling of much larger inductors; up

to 2700 mA

Core material

Composite

Core and winding loss

See

www.coilcraft.com/coreloss

Environmental

RoHS compliant, halogen free

Terminations

RoHS compliant matte tin over nickel over silver-plati-

num-glass frit. Other terminations available at additional cost.

Weight

31 – 39 mg

Ambient temperature

–40°C to +85°C with (40°C rise)

Irms

current.

Maximum part temperature

+125°C (ambient + temp rise).

Derating.

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

2000/7″ reel; 7500/13″ reel. Plastic tape: 12 mm wide,

0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part number

PFL3215-681ME_

PFL3215-102ME_

PFL3215-222ME_

PFL3215-332ME_

PFL3215-472ME_

PFL3215-682ME_

PFL3215-103ME_

PFL3215-153ME_

PFL3215-333ME_

Inductance

±20% (µH)

0.68

1.0

2.2

3.3

4.7

6.8

DCR (mOhms)

typ

max

114

175

332

640

1290

1800

1700

130

195

372

720

1340

2100

1920

SRF typ

(MHz)

450

375

250

190

170

155

125

105

13.5

10% drop

2100

1800

950

730

640

600

500

350

290

Isat

(mA)

20% drop

2500

2100

1200

920

810

700

550

420

340

30% drop

2700

2300

1400

1100

900

750

600

440

360

Irms

(mA)

20°C rise 40°C rise

1500

1400

1100

820

520

370

300

240

270

2100

1900

1400

1100

720

500

390

320

360

1. When ordering, please specify

termination

and

packaging

codes:

PFL3215-103MEC

Termination: E

= RoHS compliant matte tin over nickel over silver.

Special order, added cost:

= RoHS tin-silver-copper (95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).

= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

2. Inductance tested at 7.9 MHz, 0.1 Vrms using a Coilcraft SMD-A test fixture with an Agilent/HP 4286 impedance analyzer and Coilcraft-provided

correlation pieces.

3. DCR measured using a micro-ohmmeter.

4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.

5. DC current at 25°C that causes the specified inductance drop from its value without current.

Click for temperature derating information.

6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum

ratings.

Click for temperature derating information.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

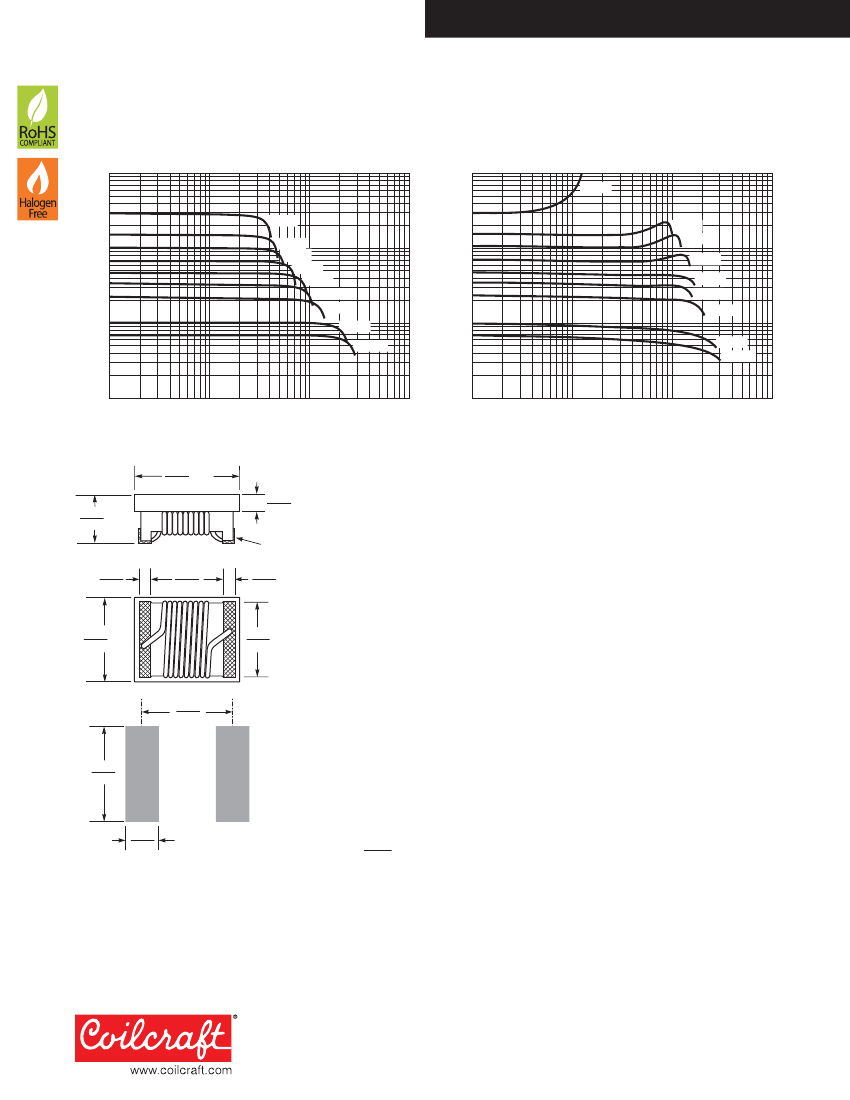

Document 895-1

Revised 10/25/17

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
