ECSpressCON
TM
ECS-P2 (2.5V) and ECS-P3 (3.3V) low jitter, low current
Frequency Configurable SMD crystal controlled oscillators.
ECX-P LVPECL
Oscillator
Request a Sample
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
Parameters
Frequency Range
Operating Temperature
Storage Temperature
Supply Voltage
Frequency Stability *
Standard
Extended (N Option)
V
DD
Option A
Option B
Option C
Option D
10.0 ~ 100.0 MHz
100.1 ~ 250.0 MHz
250.1 ~ 500 MHz
500.1 ~ 1500.0 MHz
@ 50% V
DD
level
Differential
Pin 1 **
Pin 1
Conditions
ECS-P2 (+2.5V)
MIN
TYP
MAX
10.000
1500.0
0
+70
-40
+85
-55
+125
+2.375
+2.5
+2.625
±100
±50
±25
±20
46
48
53
65
48/52
0.7%
0.3%
16
Pin 1 = VIL
VOL
VOH
10% V
DD
to 90% Level
@ +25°C (first year)
@ +25°C (first year)
12 KHz to 20 MHz band
200
50
Vdd-1.6V
Vdd-0.6V
250
±2
10
1.0
+3.63
1
Au
3kV Max.
16
200
50
Vdd-1.6V
Vdd-0.6V
250
±2
10
1.0
+3.63
ECS-P3 (+3.3V)
MIN
TYP
MAX
10.000
1500.0
0
+70
-40
+85
-55
+125
+3.135
+3.3
+3.465
±100
±50
±25
±20
48
50
55
68
48/52
0.7%
0.3%
Units
MHz
°C
°C
°C
VDC
ppm
ppm
ppm
ppm
mA
mA
mA
mA
%
Vdd
Vdd
mA
ns
ns
V
V
ps
PPM
ms
pS
VDC
Input Current
Output Symmetry
Output Load
Output Enable
Output Disable
Disable Current
Output Enable Time
Output Disable Time
“0” Level
“1” Level
Rise and Fall Times
Aging
Start-up Time
Phase Jitter, rms
Absolute Voltage Range
Moisture Sensitivity Level
Termination Finish
ESD Sensitivity
Vdd-1.85V
Vdd-1.03V
150
Vdd-1.85V
Vdd-1.03V
150
Human Body Model
*Note: Inclusive of 25
⁰
C tolerance, operating temperature, input voltage change, load change, shock and vibration.
**Note: Internal pull-up resistor active output if pin 1 is left open.
Part Numbering Guide: Example ECX-P35BN-156.250
Series
Voltage
Package
Size (mm)
2 = 2.5 x 2
3 = 3.2 x 2.5
5 = 5 x 3.25
7=7x5
Stability
A = ± 100 ppm
B = ± 50 ppm
C = ± 25 ppm
D = ± 20 ppm
Operating
Temperature
L=
M=
N=
P=
-10 ~ +70°C
-20 ~ +70°C
-40 ~ +85°C
-40 ~ +105°C
Frequency
ECX-P
(LVPECL Output)
2 = +2.5V
3 = +3.3V
Customer Specified
15351 West 109
th
Street
|
Lenexa, KS 66219
|
Phone: 913.782.7787
|
Fax: 913.782.6991
|
www.ecsxtal.com
ECSpressCON
TM
ECX-P LVPECL
Oscillator

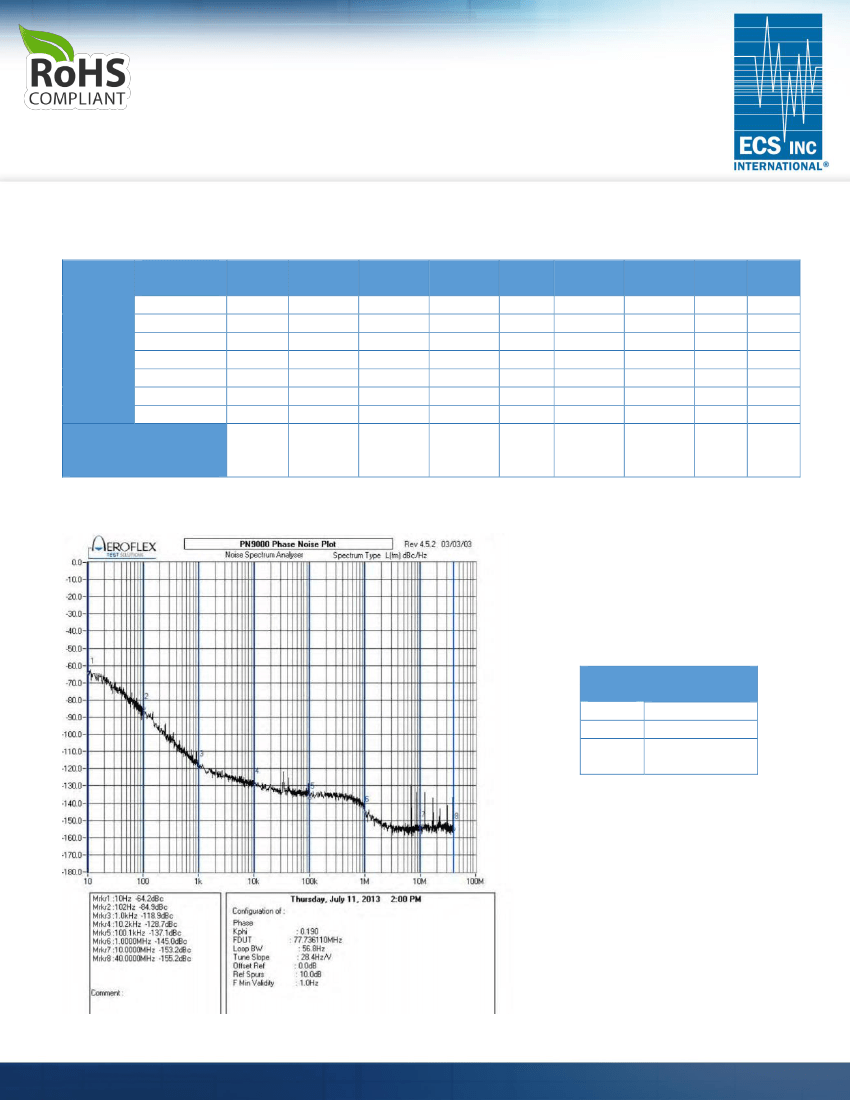

Phase Noise and Jitter Data (typical)
Frequency
(offset)
SSB
10 Hz
Phase
100 Hz
Noise
1 KHz
Data
10 KHz
(dBc/Hz
typical)
100 KHz
1 MHz
5 MHz
Phase Jitter pS
12 KHz ~ 20 MHz,
RMS
77.760 122.880 125.000 156.250
-64
-84
-118
-128
-137
-145
-152
0.9
-68
-99
-113
-119
-120
-140
-142
0.8
-63
-94
-113
-118
-119
-137
-146
1.1
-55
-85
-109
-116
-118
-139
-146
0.9
212.5
-62
-93
-105
-113
-115
-135
-143
1.0
491.520 622.080
-61
-86
-100
-105
-105
-126
-137
1.1
-48
-85
-101
-102
-103
-124
-133
1.2
1000
-52
-82
-93
-97
-97
-116
-127
1.5
1250
-42
-81
-93
-96
-97
-119
-129
1.1
Phase Noise Plot of ECX-H35BM-77.760 (typical)

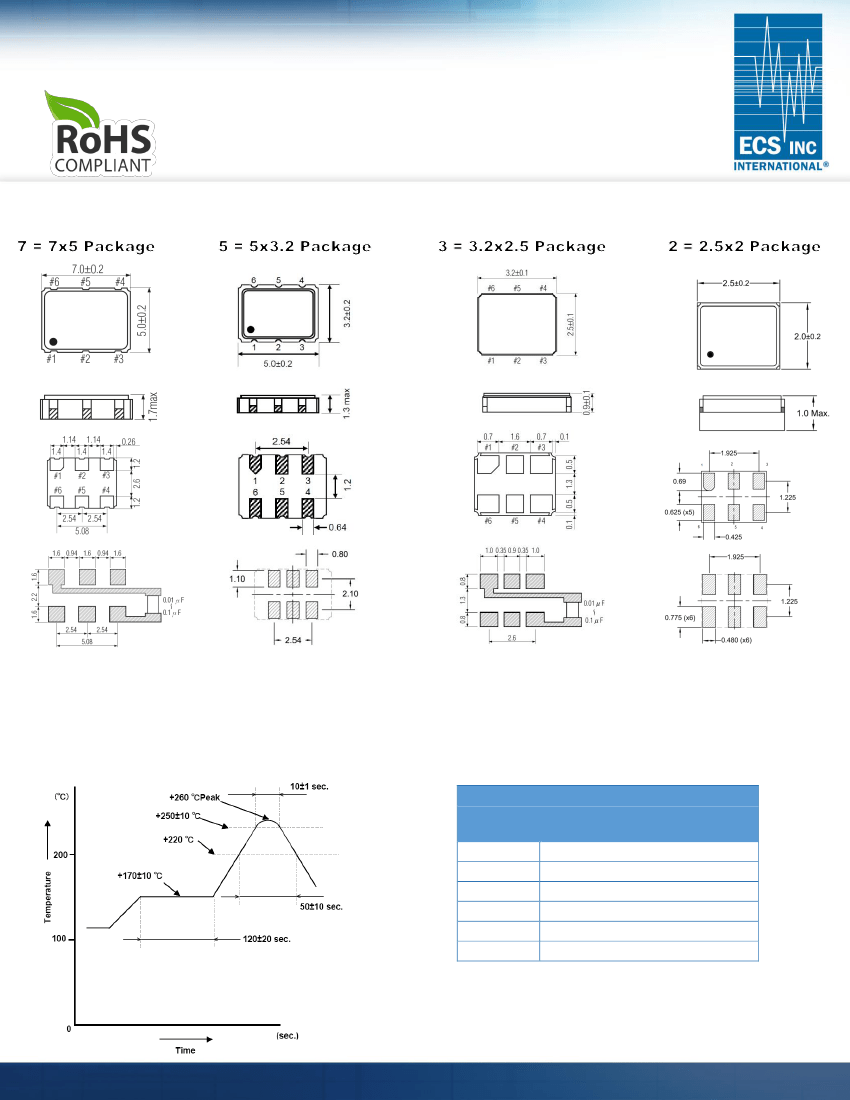

Package Data
Item
Description
Lid
Metal
Base
Ceramic
Plating Gold/Nickel
Surface/Under
15351 West 109
th
Street
|
Lenexa, KS 66219
|
Phone: 913.782.7787
|
Fax: 913.782.6991
|
www.ecsxtal.com
