DSC3001
1.6 x 1.2 mm
Low-Power Ultra-Miniature Oscillator
General Description
The DSC3001 is an ultra-miniature,
low-profile complete timing solution in a
1.6 x 1.2 mm footprint. The device is
available
in
frequencies
from
1 to 150 MHz with frequency stability as
high as 10 PPM across temperature
ranges up to -40 to +105ºC.
The
device delivers the jitter and stability
performance required by high definition
video and audio, media and applications
processors, and solid state drives with a
low power ultra-miniature configuration.
The DSC3001 incorporates an all silicon
MEMS resonator that delivers 20x
higher MTBF than crystal resonators,
and is rated for shock resistance to over
30,000 G. Its miniature packaging is
built to support multiple pad footprints
and deliver a cost effective solution for
mobile and portable applications.
World’s Smallest Production Oscillator
Features
Ultra-Miniature, Low Profile Footprint
o
1.6 x 1.2 mm
Frequency Range:
o
1 to 150MHz
Frequency Stability over Temperature
o
±10 PPM, ±25 PPM, ±50 PPM
Operating voltage
o
1.7 to 3.6V
Operating Temperature Range
o
Ext. Industrial -40ºC to 105ºC
o
Industrial -40ºC to 85ºC
o
Ext. Commercial -20ºC to 70ºC
Low Operating and Standby Current
o
3.0-6.0 mA Operating
o
0.015 mA Standby
MIL-STD 883 Shock and Vibration
Resistant to over 30,000 G
RoHS, Pb Free, Reach SVHC Compliant
AEC-Q100 Automobile Qualified
Benefits
Ultra-miniature footprint with
no external components
High frequency and temp stability
20x higher MTBF than Xtal-based XO
Shock and vibration resistant to
30,000G for mobile and portable
applications
Applications
Imaging, Video, and Audio Modules
Portable Consumer Electronics and
Media Devices
Tablets and Mobile Internet Devices
Low Profile Embedded Designs
Pico and Femto Networking
_____________________________________________________________________________________________________________________________ _________________
DSC3001
Page 1
MK-Q-B-P-D-120731-01-4
DSC3001
t
R
V
OH
Low-Power Ultra-Miniature Oscillator
t
F
Output
V
OL
1/f
o
t
DA
V
IH
t
EN
Standby#
V
IL
Standby Function
Standby#
(pin 1)
Test Circuit
Output
(pin 3)
I
DD
Hi Level
Open
(no connect)
Low Level
Output ON
Output ON
High Impedance
V
DD
0.01uF
*V
SD
4
1
3
2
15pF
*V
SD
= Standby# Logic Level Input
Notes:
1.
Contact factory for lower power, lower jitter, and higher output
drive options.
Solder Reflow Profile
ax
260
°
C
Temperature (°C)
cM
.
20-40
Sec
217
°
C
200
°
C
ax
.
60-150
Sec
150
°
C
3C
/Se
60-180
Sec
cM
Reflow
Pre heat
8 min max
Cool
Time
25
°
C
MSL 1 @ 260°C refer to JSTD-020C
Ramp-Up Rate (200°C to Peak Temp) 3°C/Sec Max.
Preheat Time 150°C to 200°C
60-180 Sec
Time maintained above 217°C
60-150 Sec
255-260°C
Peak Temperature
Time within 5°C of actual Peak
20-40 Sec
6°C/Sec Max.
Ramp-Down Rate
Time 25°C to Peak Temperature
8 min Max.
3C
/
Se
_____________________________________________________________________________________________________________________________ _________________
DSC3001
Page 3
MK-Q-B-P-D-120731-01-4
S
S
S
6C
6C
6C/
M
cM
cM
ec
a.
a.
a x.

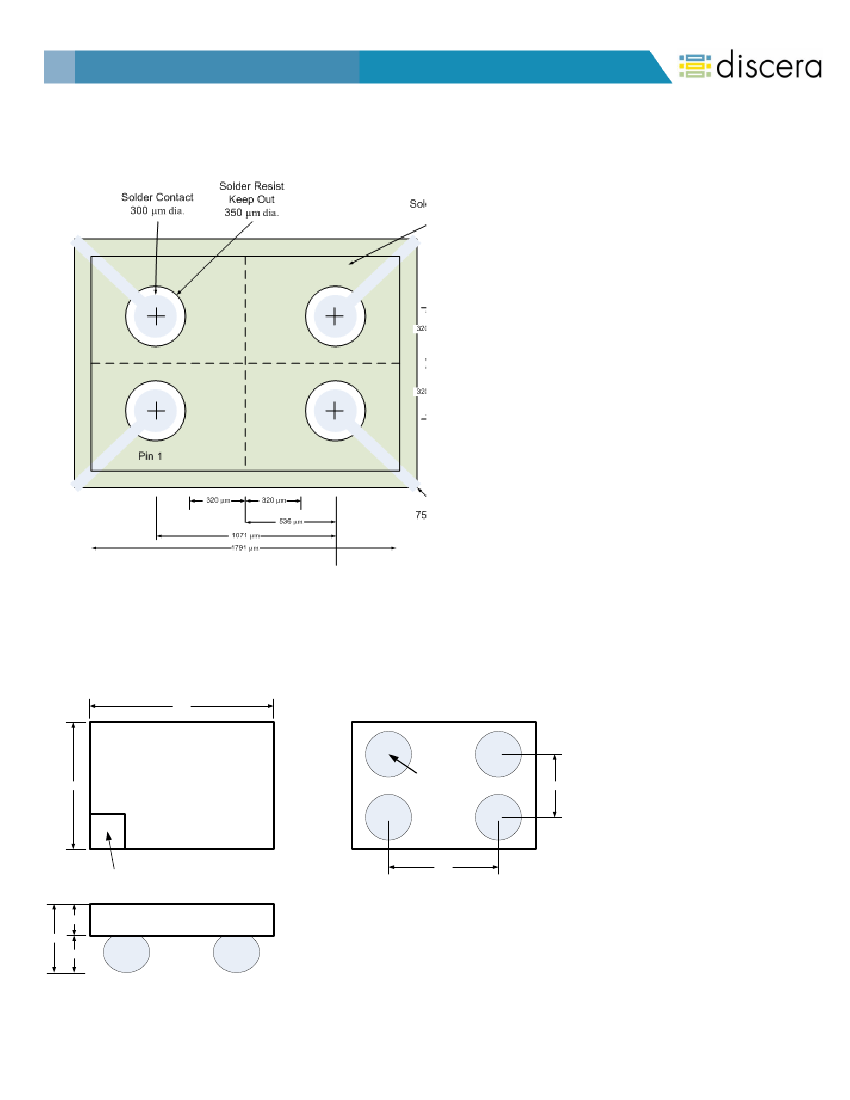

DSC3001
Ordering Information
Low-Power Ultra-Miniature Oscillator
DSC3001 PTS – xxx.xxxx T
PART NUMBERING GUIDE
Package
P=H:
1.6x1.2mm
Temperature
T=E:
-20
o
~ +70
o
C
T=I:
-40
o
~ +85
o
C
T=L:
-40
o
~ +105
o
C
Stability
S=1:
±50ppm
S=2:
±25ppm
S=5:
±10ppm
Frequency
Packing Option
XXX.XXXX
-
T:
Tape & Reel
Example: DSC3001HL2–012.0000T
The example part number above is a 12.0000MHz oscillator with ±25ppm stability over an operating
temperature of -40 to +105
o
C, shipped in Tape and Reel.
Disclaimer:
Discera makes no warranty of any kind, express or implied, with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Discera reserves the right to make changes without further notice to
materials described herein. Discera does not assume any liability arising from the
application or use of any product or circuit described herein. Discera does not authorize
its products for use a critical components in life-support systems where a malfunction or
failure may reasonably be expected to result in significant injury to the user. The
inclusion of Discera’s product in a life-support systems application implies that the
manufacturer assumes all risk of such use and in doing so indemnifies Discera against all
charges.
DISCERA, Inc.
Phone: +1 (408) 432-8600
●
●
1961 Concourse Drive,
Fax: +1 (408) 432-8609
San Jose, California
95131
● Email: sales@discera.com
●
●
USA
www.discera.com
