Soft Termination MLCC for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
GMJ107BB7474KAHT
Features
Item Summary
0.47uF±10%, 35V,
X7R, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping paper 3000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
500 MΩ·μF
Yes
Yes
Yes
Reflow
0.47 uF ± 10 %
0603/1608
35 V
10 %
X7R
-55 to +125 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 +0.20/-0.00 mm
0.8 +0.20/-0.00 mm
0.8 +0.20/-0.00 mm
0.35 +0.3/-0.25 mm
2018.10.03
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

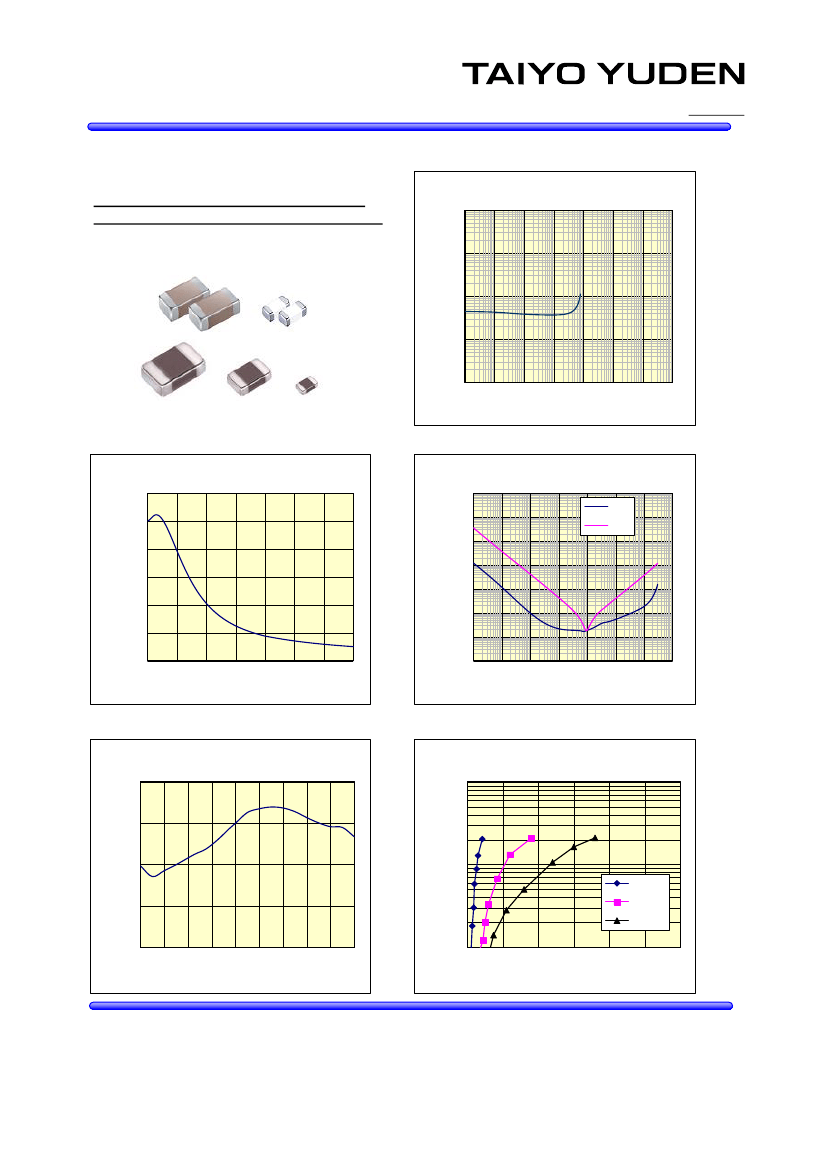

Multi Layer Ceramic Capacitor
○GMJ107BB7474KAHT
35V 1608 X7R 0.47uF +/- 10% t=1.0mmMAX
35V 0603 X7R 0.47uF +/- 10% t=0.039inchMAX
Capacitance[uF]
100
-Electrical Characteristics Data-
17R2A07
RoHS compliance product
GMJ107BB7474KAHT
Capacitance Freq.
10
1
0.1
0.01
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
GMJ107BB7474KAHT
DC Bias Char.
20
0
10000
1000
100
GMJ107BB7474KAHT
Impedance,ESR Freq.
ESR
Z
Z,ESR[OHM]
0
5
10 15 20 25 30
DC Bias Voltage[V]
35
GMJ107BB7474KAHT
Capacitance Temp.
-20
dC/C[%]
10
1
0.1
0.01
0.001
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
-40
-60
-80
-100
GMJ107BB7474KAHT
Ripple Current
100
10
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
1.5
2
2.5
Ripple Current[Arms]
3
