DS1089LU-21G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DS1089LU-21G

DS1089LU-21G: DescriptionProgrammable Oscillators; CategoryThe embedded processor and controller Microcontrollers and processors; File Size206KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS1089LU-21G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS1089LU-21G	-	-	View	Buy Now

DS1089LU-21G Overview

Programmable Oscillators

DS1089LU-21G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	0.118 INCH, MICRO, SOP-8
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
JESD-30 code	S-PDSO-G8
JESD-609 code	e0
length	3 mm
Humidity sensitivity level	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	14.7456 MHz
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.7 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	3 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, OTHER

Preview

Download Datasheet

View All

Rev 2; 5/06

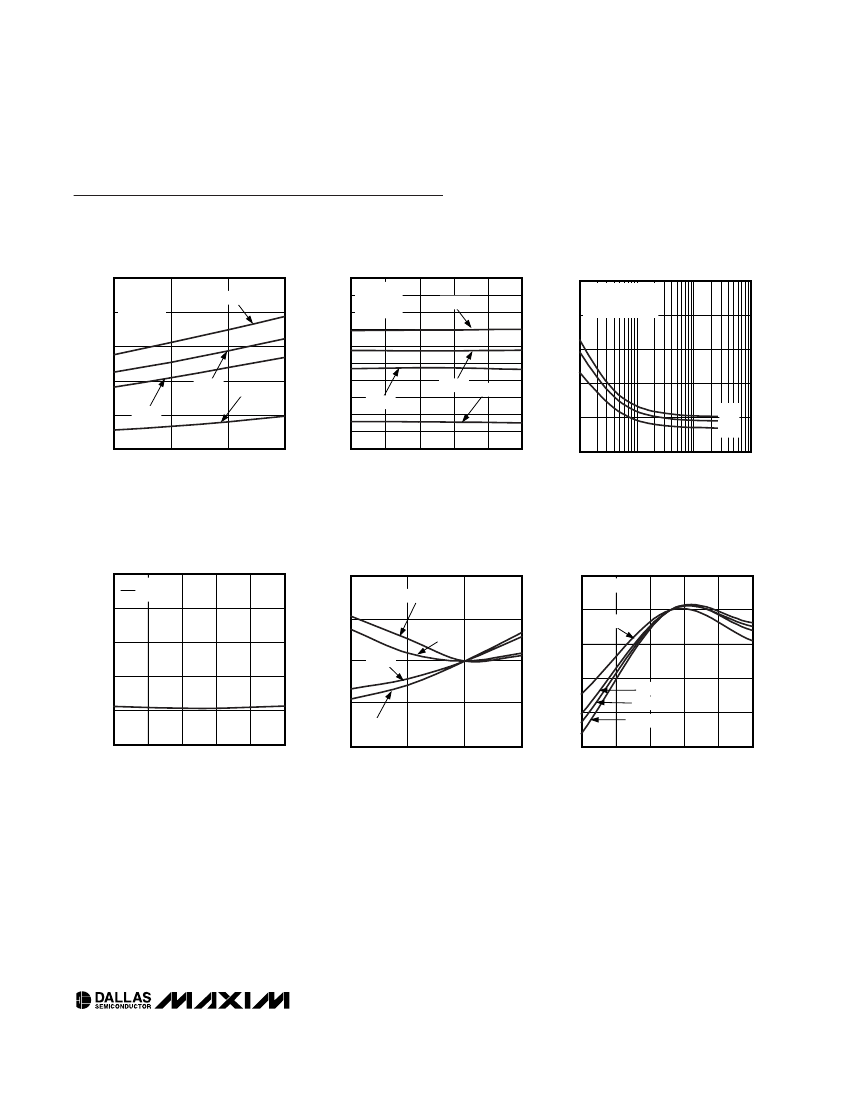

3.3V Center Spread-Spectrum EconOscillator™

General Description

The DS1089L is a clock generator that produces a

spread spectrum (dithered) square-wave output of fre-

quencies from 130kHz to 66.6MHz. The DS1089L is

shipped from the factory programmed at a specific fre-

quency. The DS1089L is pin-for-pin compatible with the

DS1087L, however, the DS1089L dithers at equal per-

centages above and below the center frequency. The

user still has access to the internal frequency divider,

selectable

±1%, ±2%, ±4%,

±8%

dithered output,

dithering rate, and programmable output power-

down/disable mode through an I

C-compatible pro-

gramming interface. All the device settings are stored

in nonvolatile (NV) EEPROM allowing it to operate in

stand-alone applications. The DS1089L also has

power-down and output-enable control pins for power-

sensitive applications.

Features

♦

Factory-Programmed Square-Wave Generator

from 33.3MHz to 66.6MHz

♦

Center Frequency Remains Constant Independent

of Dither Percentage

♦

No External Timing Components Required

♦

EMI Reduction

♦

Variable Dither Frequency

♦

User Programmable Down to 130kHz with Divider

(Dependent on Master Oscillator Frequency)

♦

±1%, ±2%, ±4%,

±8%

Selectable Dithered

Output

♦

Glitchless Output-Enable Control

♦

C-Compatible Serial Interface

♦

Nonvolatile Settings

♦

Power-Down Mode

♦

Programmable Output Power-Down/Disable Mode

DS1089L

Applications

Automotive Infotainment

Printers

Copiers

Computer Peripherals

POS Terminals

Cable Modems

Ordering Information

PART

DS1089LU-yxx*

TEMP RANGE

-40°C to +85°C

PIN-PACKAGE

8 µSOP (118 mil)

*See

Standard Frequency Options Table.

Pin Configuration and Typical Operating Circuits appear at end of data sheet.

Standard Frequency Options

PART

DS1089LU-21G

DS1089LU-4CL

DS1089LU-22F

DS1089LU-23C

DS1089LU-450

DS1089LU-866

DS1089LU-yxx

FREQUENCY (MHz)

14.7456

18.432

24.576

33.3

50.0

66.6

Fixed up to 66.6

SPREAD (±%)

1, 2, 4, or 8

DITHER FREQUENCY

MOSC

/ 4096

MOSC

/ 4096

MOSC

/ 2048

MOSC

/ 4096

MOSC

/ 4096

MOSC

/ 4096

MOSC

/ 2048 or 4096 or 8192

Add “/T” for Tape and Reel.

Custom frequencies available, contact factory.

EconOscillator is a trademark of Dallas Semiconductor Corp.

______________________________________________

Maxim Integrated Products

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
