MLCC with FLEXITERM

®

General Specifications

GENERAL DESCRIPTION

With increased requirements from the automotive industry for additional

component robustness, AVX recognized the need to produce a MLCC with

enhanced mechanical strength. It was noted that many components may be

subject to severe flexing and vibration when used in various under the hood

automotive and other harsh environment applications.

To satisfy the requirement for enhanced mechanical strength, AVX had to find

a way of ensuring electrical integrity is maintained whilst external forces are

being applied to the component. It was found that the structure of the

termination needed to be flexible and after much research and development,

AVX launched FLEXITERM

®

. FLEXITERM

®

is designed to enhance the

mechanical flexure and temperature cycling performance of a standard

ceramic capacitor with an X7R dielectric.

The industry standard for

flexure is 2mm minimum. Using FLEXITERM

®

, AVX provides up to

5mm of flexure without internal cracks. Beyond 5mm, the capacitor

will generally fail “open”.

As well as for automotive applications FLEXITERM

®

will provide Design

Engineers with a satisfactory solution when designing PCB’s which may be

subject to high levels of board flexure.

APPLICATIONS

High Flexure Stress Circuit Boards

• e.g. Depanelization: Components near edges

of board.

Variable Temperature Applications

• Soft termination offers improved reliability per-

formance in applications where there is tem-

perature variation.

• e.g. All kind of engine sensors: Direct

connection to battery rail.

Automotive Applications

• Improved reliability.

• Excellent mechanical performance and

thermo mechanical performance.

PRODUCT ADVANTAGES

• High mechanical performance able to withstand, 5mm bend test

guaranteed.

•

Increased temperature cycling performance, 3000 cycles and beyond.

•

Flexible termination system.

•

Reduction in circuit board flex failures.

•

Base metal electrode system.

•

Automotive or commercial grade products available.

HOW TO ORDER

0805

Style

0603

0805

1206

1210

1812

2220

5

Voltage

6 =6.3V

Z = 10V

Y = 16V

3 =25V

5 =50V

1 =100V

2 =200V

C

Dielectric

C = X7R

F = X8R

104

Capacitance

Code (In pF)

2 Sig Digits +

Number of Zeros

e.g., 104 = 100nF

K

Capacitance

Tolerance

J = ±5%*

K = ±10%

M = ±20%

*≤1μF

only

A

Z

2

A

Special Code

A = Std. Product

Failure

Terminations

Packaging

2 = 7" reel

Rate

Z = FLEXITERM

®

A=Commercial For FLEXITERM

®

4 = 13" reel

4 = Automotive

with Tin/Lead

termination see

AVX LD Series

NOTE: Contact factory for availability of Tolerance Options for Specific Part Numbers.

64

102617

MLCC with FLEXITERM

®

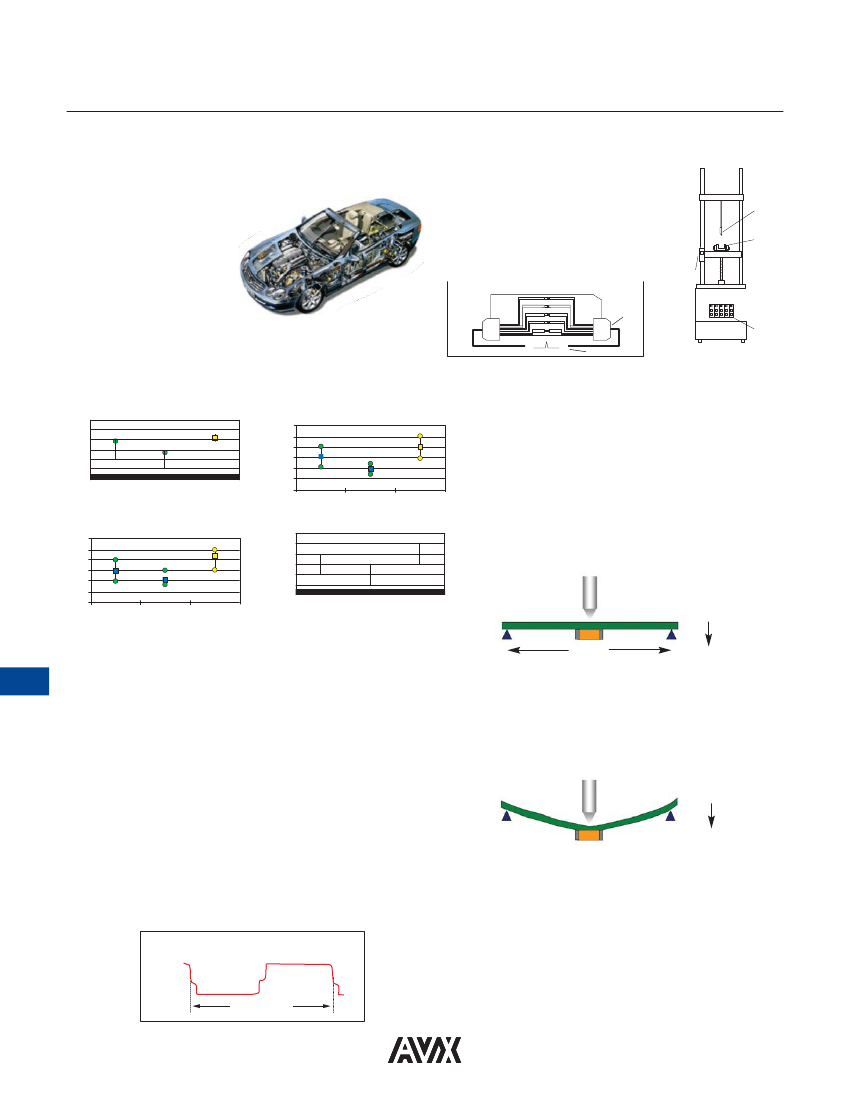

Specifications and Test Methods

PERFORMANCE TESTING

AEC-Q200 Qualification:

• Created by the Automotive Electronics

Council

• Specification defining stress

test qualification for

passive components

Testing:

Key tests used to compare

soft termination to

AEC-Q200 qualification:

• Bend Test

• Temperature Cycle Test

BOARD BEND TEST PROCEDURE

According to AEC-Q200

Test Procedure as per AEC-Q200:

Sample size:

Span: 90mm

20 components

Minimum deflection spec: 2 mm

LOADING

KNIFE

• Components soldered onto FR4 PCB (Figure 1)

• Board connected electrically to the test equipment

(Figure 2)

DIGITAL

CALIPER

BEND TESTPLATE

MOUNTING

ASSEMBLY

CONNECTOR

CONTROL

PANEL

CONTROL PANEL

BOARD BEND TEST RESULTS

AEC-Q200 Vrs AVX FLEXITERM

®

Bend Test

12

10

8

6

4

2

0

NPO

0603

Substrate Bend (mm)

Fig 1 - PCB layout with electrical connections

Fig 2 - Board Bend test

equipment

12

10

8

6

4

2

0

NPO

0805

Substrate Bend (mm)

AVX ENHANCED SOFT

TERMINATION BEND TEST

PROCEDURE

X7R soft term

X7R

X7R soft term

X7R

Substrate Bend (mm)

12

10

8

6

4

2

0

Substrate Bend (mm)

1206

NPO

X7R

X7R soft term

12

10

8

6

4

2

0

1210

Bend Test

The capacitor is soldered to the printed circuit

board as shown and is bent up to 10mm at

1mm per second:

NPO

X7R

X7R soft term

Max. = 10mm

TABLE SUMMARY

Typical bend test results are shown below:

Style

Conventional Termination

FLEXITERM

®

0603

>2mm

>5mm

0805

>2mm

>5mm

1206

>2mm

>5mm

90mm

TEMPERATURE CYCLE TEST PROCEDURE

Test Procedure as per AEC-Q200:

The test is conducted to determine the resistance of the

component when it is exposed to extremes of alternating

high and low temperatures.

• Sample lot size quantity 77 pieces

• TC chamber cycle from -55ºC to +125ºC for 1000 cycles

• Interim electrical measurements at 250, 500, 1000 cycles

• Measure parameter capacitance dissipation factor,

insulation resistance

Test Temperature Profile (1 cycle)

+125

0

C

+25

0

C

-55

0

C

1 hour 12mins

• The board is placed on 2 supports 90mm

apart (capacitor side down)

• The row of capacitors is aligned with the

load stressing knife

Max. = 10mm

• The load is applied and the deflection where

the part starts to crack is recorded (Note:

Equipment detects the start of the crack

using a highly sensitive current detection

circuit)

• The maximum deflection capability is 10mm

65

MLCC with FLEXITERM

®

Specifications and Test Methods

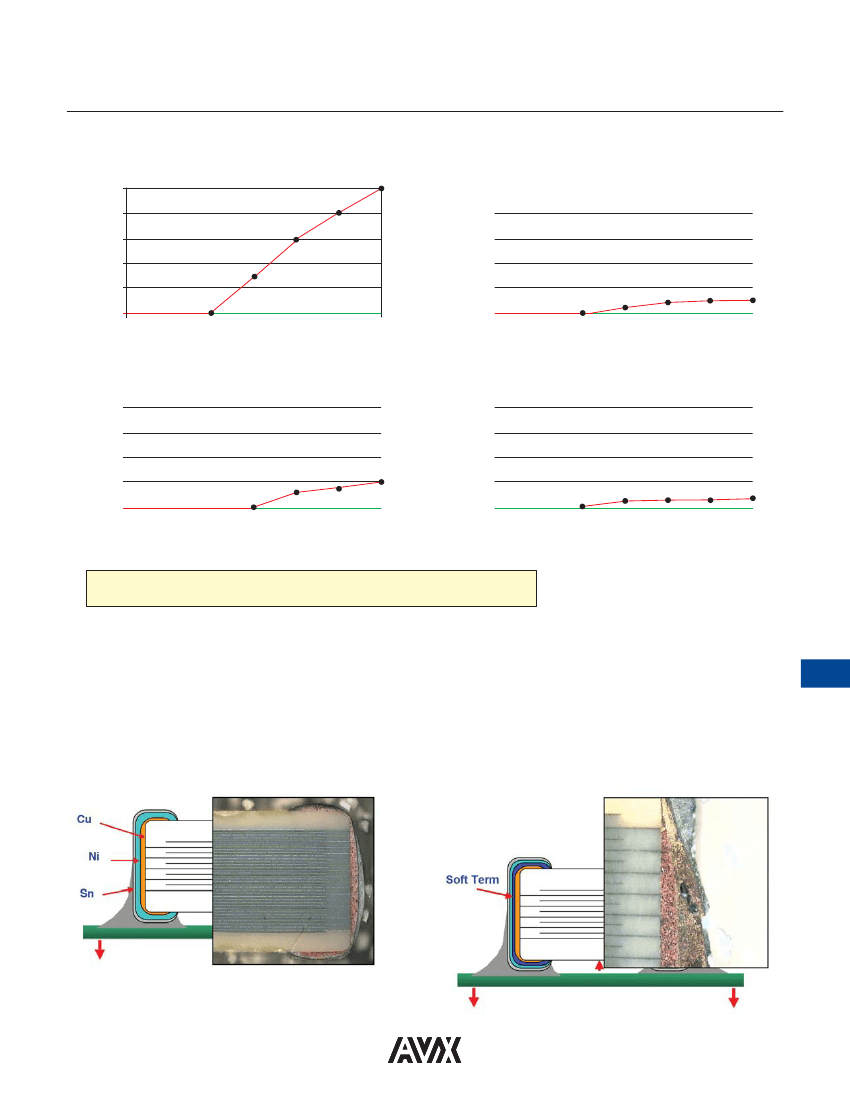

BEYOND 1000 CYCLES: TEMPERATURE CYCLE TEST RESULTS

10

8

% Failure

6

4

2

0

500

1000 1500 2000 2500 3000

1206

% Failure

0603

10

8

6

4

2

0

500

1000 1500 2000 2500 3000

1210

0805

10

8

% Failure

6

4

2

0

500

10

8

% Failure

6

4

2

0

500

1000 1500 2000 2500 3000

AEC-Q200 specification states

1000 cycles compared to AVX

3000 temperature cycles.

Soft Term - No Defects up to 3000 cycles

FLEXITERM® TEST SUMMARY

• Qualified to AEC-Q200 test/specification with the exception

of using AVX 3000 temperature cycles (up to +150°C bend

test guaranteed greater than 5mm).

• FLEXITERM

®

provides improved performance compared to

standard termination systems.

• Board bend test improvement by a factor of 2 to 4 times.

• Temperature Cycling:

– 0% Failure up to 3000 cycles

– No ESR change up to 3000 cycles

WITHOUT SOFT TERMINATION

WITH SOFT TERMINATION

Major fear is of latent board flex failures.

Far superior mechanical performance.

Generally open failure mode beyond

5mm flexure.

66

MLCC with FLEXITERM

®

X8R Dielectric Capacitance Range

SIZE

Soldering

271

331

471

681

102

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

393

473

563

683

823

104

124

154

184

224

274

334

394

474

684

824

105

Cap

(pF)

WVDC

270

330

470

680

1000

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

0.01

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.1

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.68

0.82

1

WVDC

0603

0805

1206

Reflow/Wave

25V

G

50V

G

Reflow/Wave

25V

J

N

50V

J

N

25V

Reflow/Wave

50V

Cap

(μF)

J

M

J

M

25V

50V

25V

50V

25V

50V

SIZE

0603

0805

1206

Letter

Max.

Thickness

A

0.33

(0.013)

C

0.56

(0.022)

E

0.71

(0.028)

PAPER

G

0.90

(0.035)

J

0.94

(0.037)

K

1.02

(0.040)

M

1.27

(0.050)

N

1.40

(0.055)

P

Q

1.52

1.78

(0.060)

(0.070)

EMBOSSED

X

2.29

(0.090)

Y

2.54

(0.100)

Z

2.79

(0.110)

AEC-Q200 Qualified

102617

67

MLCC with FLEXITERM

®

X7R Dielectric Capacitance Range

0402

Soldering

221

271

331

391

471

561

681

821

102

182

222

332

472

103

123

153

183

223

273

333

473

563

683

823

104

124

154

224

334

474

684

105

155

225

335

475

106

226

Cap

(pF)

220

270

330

390

470

560

680

820

1000

1800

2200

3300

4700

0603

Reflow/Wave

10V

16V

25V

50V 100V 200V 250V 16V

25V

50V

0805

Reflow/Wave

50V 100V 200V 250V 16V

25V

1206

Reflow/Wave

50V 100V 200V 250V 500V 16V

1210

Reflow Only

25V

1812

Reflow

Only

100V 25V

2220

Reflow Only

50V 100V

Reflow/Wave

16V

25V

50V 100V 50V

Cap 0.01

(μF) 0.012

0.015

0.018

0.022

0.027

0.033

0.047

0.056

0.068

0.082

0.1

0.12

0.15

0.22

0.33

0.47

0.68

1

1.5

2.2

3.3

4.7

10

22

C

G

J

G

J

G

J

G

J

M

N

J

N

J

M

N

J

N

J

N

J

N

J

M

Q

J

M

Q

25V

J

M

P

Q

J

M

Q

J

M

Q

J

M

Q

J

K

M

P

X

Z

K

M

P

Q

Z

25V

K

M

P

Q

Z

K

M

P

Q

X

Z

K

M

X

Z

K

M

X

Z

100V 25V

Z

16V

25V

50V

10V

16V

25V

50V 100V 200V 250V 16V

25V

50V 100V 200V 250V 16V

50V 100V 200V 250V 500V 16V

50V 100V 50V

50V 100V

0402

0603

0805

1206

1210

1812

2220

Letter

Max.

Thickness

A

0.33

(0.013)

C

0.56

(0.022)

E

0.71

(0.028)

PAPER

G

0.90

(0.035)

J

0.94

(0.037)

K

1.02

(0.040)

M

1.27

(0.050)

N

1.40

(0.055)

P

Q

1.52

1.78

(0.060)

(0.070)

EMBOSSED

X

2.29

(0.090)

Y

2.54

(0.100)

Z

2.79

(0.110)

68

102617
