PM124SH-120M-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PM124SH-120M-RC

PM124SH-120M-RC: DescriptionFixed Inductors 12uH 20%; CategoryPassive components inductor; File Size213KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM124SH-120M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM124SH-120M-RC	-	-	View	Buy Now

PM124SH-120M-RC Overview

Fixed Inductors 12uH 20%

PM124SH-120M-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	4949
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	4949
structure	Rectangular
core material	FERRITE
DC Resistance	0.038 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	4 mm
Package length	12.5 mm
Package form	SMT
Package width	12.5 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	3.8 A
self resonant frequency	25 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

Available in E12 values

■

Height of 4.5 mm maximum

■

Current rating to 6.35 amps

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

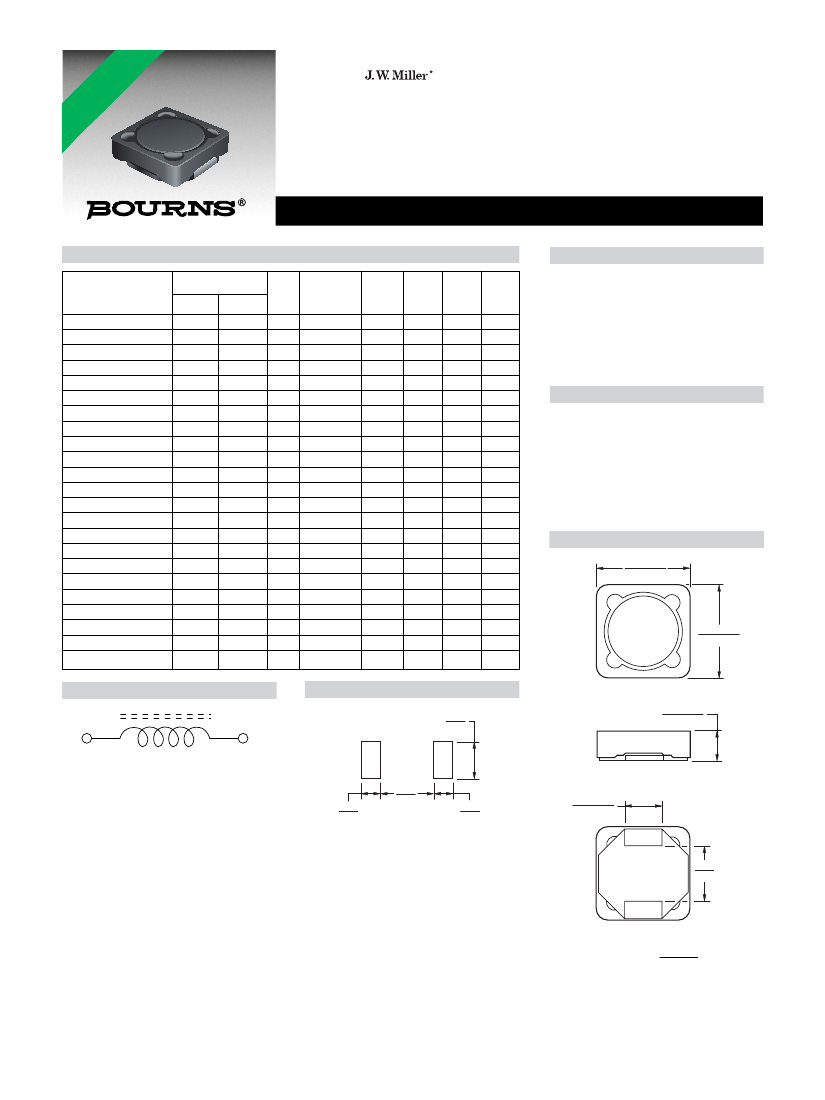

PM124SH Series - Shielded SMD Power Inductors

Electrical Speciﬁcations

Inductance 100 kHz

General Speciﬁcations

Typ.

Test

Frequency

(MHz)

7.96

2.52

0.796

SRF

Typ.

(MHz)

15.5

7.8

7.5

7.0

6.6

6.0

5.5

RDC

Max.

(mΩ)

15.0

18.0

23.0

27.0

32.0

38.0

47.0

55.0

67.5

85.0

97.0

120.0

135.0

170.0

200.0

250.0

300.0

370.0

440.0

550.0

660.0

780.0

950.0

I rms

Max.

(A)

6.35

6.00

5.20

4.50

4.00

3.80

3.50

3.20

3.00

2.55

2.30

2.15

2.00

1.80

1.50

1.35

1.25

1.20

1.10

0.98

0.92

0.80

0.75

I sat

Typ.

(A)

6.20

5.60

4.70

4.30

4.00

3.60

3.20

3.00

2.60

2.35

2.10

2.00

1.80

1.65

1.50

1.35

1.20

1.15

1.05

0.95

0.90

0.80

0.75

Bourns Part No.

PM124SH-3R9Y-RC

PM124SH-4R7M-RC

PM124SH-6R8M-RC

PM124SH-8R2M-RC

PM124SH-100M-RC

PM124SH-120M-RC

PM124SH-150M-RC

PM124SH-180M-RC

PM124SH-220M-RC

PM124SH-270M-RC

PM124SH-330M-RC

PM124SH-390M-RC

PM124SH-470M-RC

PM124SH-560M-RC

PM124SH-680M-RC

PM124SH-820M-RC

PM124SH-101M-RC

PM124SH-121M-RC

PM124SH-151M-RC

PM124SH-181M-RC

PM124SH-221M-RC

PM124SH-271M-RC

PM124SH-331M-RC

(µH)

3.9

4.7

6.8

8.2

100

120

150

180

220

270

330

Tol. %

± 30

± 20

Test Voltage ....................................0.1 V

Reﬂow Soldering .. 230 °C, 50 sec. max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature .. -40 °C to +125 °C

Resistance to Soldering Heat

............................... 260 °C for 10 sec.

Materials

Core ...........................Ferrite DR and RI

Wire ............ Enameled copper wire 130

Terminal ....................................Cu/Ni/Sn

Rated Current

...................Ind. drop 25 % typ. at Isat

Temperature Rise ................. 40 °C max.

at rated Irms

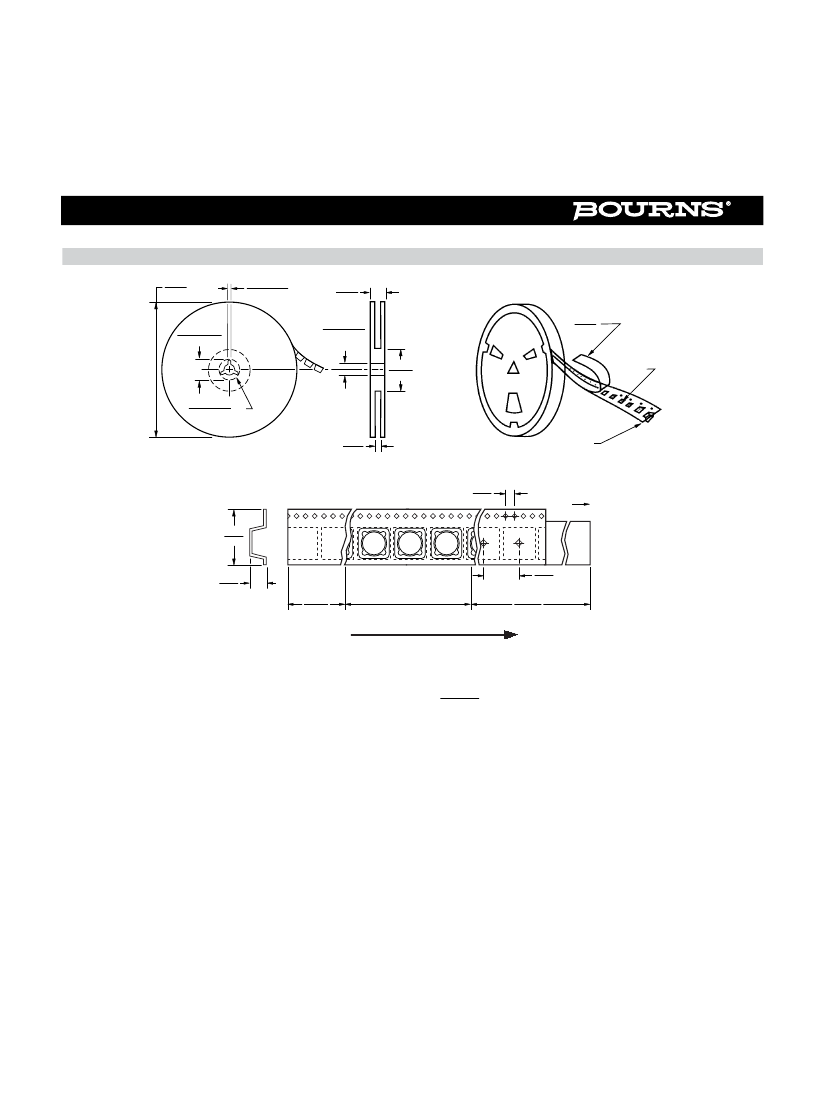

Packaging .................... 500 pcs. per reel

Product Dimensions

12.5

0.3

(.492

.012)

100

12.5

0.3

(.492

.012)

Electrical Schematic

Recommended Layout

5.4

REF.

(.213)

4.0

0.5

(.157

.020)

2.9

(.114)

REF.

6.8

(.268)

REF.

2.9

(.114)

REF.

5.0

0.3

(.197

.012)

7.0

TYP.

(.276)

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

PM124SH-120M-RC Related Products

	PM124SH-120M-RC	PM124SH-180M-RC	PM124SH-560M-RC	PM124SH-270M-RC	PM124SH-121M-RC	PM124SH-820M-RC	PM124SH-271M-RC	PM124SH-470M-RC	PM124SH-151M-RC
Description	Fixed Inductors 12uH 20%	Fixed Inductors 18uH 20%		Fixed Inductors 27uH 20%	Fixed Inductors 120uH 20%	Fixed Inductors 82uH 20%	Analog Comparators Comp-45Ns 65Ua RRIO	Fixed Inductors 47uH 20%	Fixed Inductors 150uH 20%
Tolerance	20%	20 %	20%	20%	20%	20%	20%	20%	20%
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Bourns	-	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
package instruction	4949	-	4949	4949	ROHS COMPLIANT	4949	4949	4949	ROHS COMPLIANT
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	-	12 weeks	12 weeks	12 weeks	12 weeks	12 weeks	12 weeks	12 weeks
uppercase and lowercase codes	4949	-	4949	4949	4949	4949	4949	4949	4949
structure	Rectangular	-	Rectangular	Rectangular	Shielded	Rectangular	Shielded	Rectangular	Shielded
core material	FERRITE	-	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.038 Ω	-	0.17 Ω	0.085 Ω	0.37 Ω	0.25 Ω	0.78 Ω	0.135 Ω	0.44 Ω
Nominal inductance(L)	12 µH	-	56 µH	27 µH	120 µH	82 µH	270 µH	47 µH	150 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	-	e3	e3	e3	e3	e3	e3	e3
Number of functions	1	-	1	1	1	1	1	1	1
Number of terminals	2	-	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	4 mm	-	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm
Package length	12.5 mm	-	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
Package form	SMT	-	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	12.5 mm	-	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
method of packing	TR, EMBOSSED, 13 INCH	-	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR	TR, EMBOSSED, 13 INCH	TR	TR, EMBOSSED, 13 INCH	TR
Maximum rated current	3.8 A	-	1.8 A	2.55 A	1.1 A	1.35 A	0.6 A	2 A	0.95 A
self resonant frequency	25 MHz	-	12 MHz	15.5 MHz	7.8 MHz	10 MHz	6 MHz	13 MHz	7.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	-	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
