Part Number

Search

B953AS-331M=P3

Description
Switching Voltage Regulators 5.5 to 36V 2A Step Down Swift Conv
CategoryPassive components
File Size976KB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric View All

B953AS-331M=P3 Online Shopping

Suppliers Part Number Price MOQ In stock
B953AS-331M=P3 - - View Buy Now

B953AS-331M=P3 Overview

Switching Voltage Regulators 5.5 to 36V 2A Step Down Swift Conv

B953AS-331M=P3 Parametric

Parameter NameAttribute value
Product CategoryFixed Inductors
ManufacturerMurata
RoHSDetails
Inductance330 uH
Tolerance20 %
Maximum DC Current1.1 A
Maximum DC Resistance495 mOhms
Q Minimum-
Test Frequency-
ProductPower Inductors
Termination StyleSMD/SMT
Termination-
Mounting StyleSMD/SMT
Package / Case-
Length12.8 mm
Width12.8 mm
Height6.8 mm
Diameter-
PackagingMouseReel
PackagingReel
PackagingCut Tape
TypeFerrite Inductors
Core MaterialFerrite
Lead Diameter-
Lead Spacing-
Operating Temperature Range-
Self Resonant Frequency-
Factory Pack Quantity500

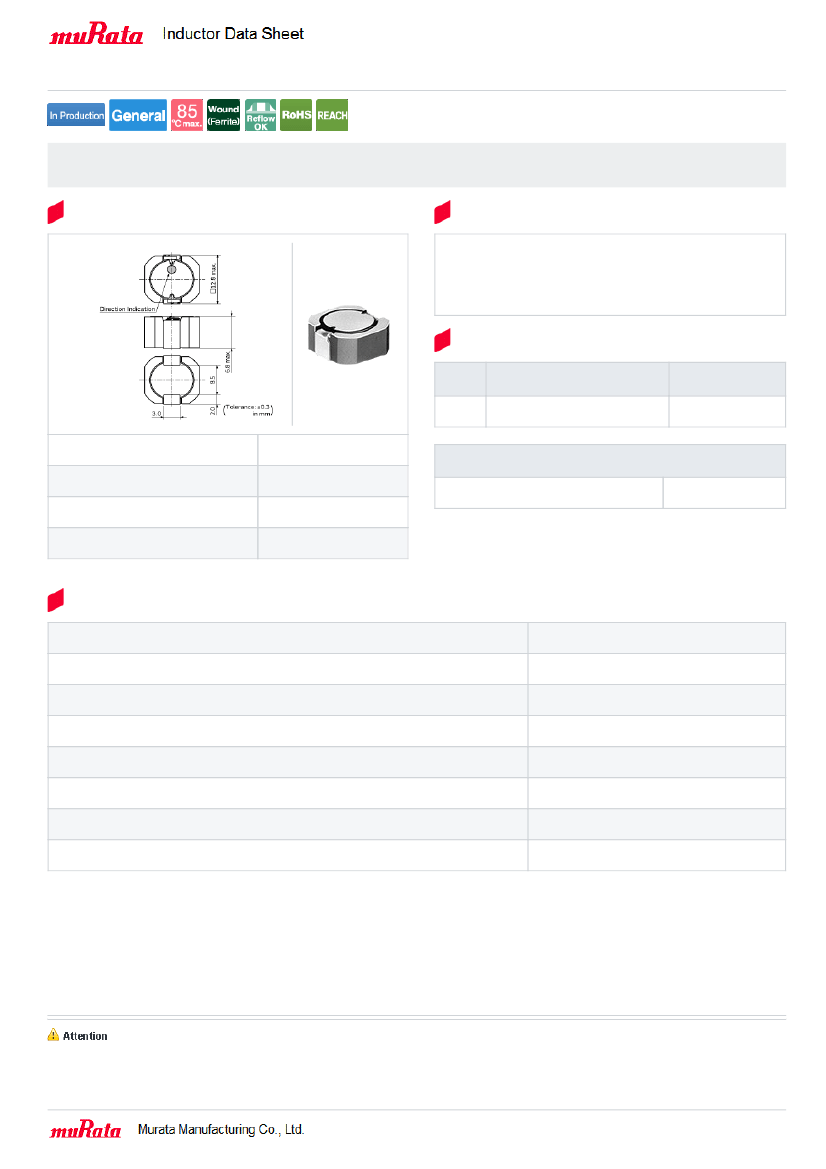

#B953AS-331M=P3
< List of part numbers with package codes >
#B953AS-331M=P3
Shape
Notes
Rated current (Isat) is specified when the decrease of the initial
inductance value at 10%. (The ambient reference temperature is 20℃.)
Rated current (Itemp) is specified when temperature of inductor the is
raised 40℃ by DC current. (The ambient reference temperature is 20℃.)
References
Packaging
code
=P3
Specifications
φ330mm
Embossed taping
Minimum quantity
500
L size
W size
T size
Size code in inch (mm)
12.5 ±0.3mm
12.5 ±0.3mm
6.8 mm
4949 (125125)
Mass (Typ.)
1 piece
3.688g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Operating temperature range (Self-temperature rise is included)
Class of magnetic shield
Series
330µH ±20%
0.1MHz
830mA
830mA
0.495Ω
-40〜85℃
Ferrite Core
DS126C2
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2018/01/10
