Type 735P, Metallized Polypropylene Film Capacitors

High Frequency, Wrap and Fill

The 735P series is designed and manufactured for use in many

demanding power applications. They are non-inductively wound

using the most reliable metallized polypropylene film available.

A wide range of capacitance values, voltage ratings, lead

terminations and sizes offer the designer an array of options to

best meet the form, fit and function requirements specified.

Highlights

- Excellent AC performance

- Low power dissipation

- Low dielectric absorption

- Low ESR

- Close tolerance

- High stability

- High ripple to 30 A

- Compliant to RoHS directive 2002/95/EC

Specifications

Capacitance Range

Capacitance Tolerance

DC Rated Voltage

Operating Temperature Range

ESR

Dissipation Factor

Insulation Resistance

DC Voltage Test

Vibration Test (Condition B)

DC Life Test

1.0 to 30.0 µF

±10%, ±5%

100 WVdc to 400 WVdc

–55 ºC to 105 ºC

20 kHz to 100 kHz

0.1% maximum - Measure all units at 1000 Hz, at +25 ºC

ΔV/ ΔT: 10 V/ms maximum

Measured at 100 WVDC after a 2 min charge:

At +25 ºC: 200 000 MΩ/µF or 400 000 MΩ minimum

200% of rated voltage for 2 minutes

No mechanical damage, short, open or intermittent circuits

140% of rated voltage for 1000 h at +105 ºC.

No open or short circuits. No visible damage.

Maximum Δ CAP ±1.0%

Minimum IR = 50% of initial limit

Maximum DF = 0.10%

95% relative humidity at +40 ºC for 250 h.

No visible damage.

Maximum Δ CAP ±1.0%

Minimum IR = 20% of initial limit

Maximum DF = 0.12%

Pull Test

Wire Leads: 5 lb (2.3 g) for one min. No physical damage.

Terminal Lugs: -10 lb (4.5 kg) for one min. No physical damage.

Lead Bend: After three complete consecutive bend. No damage.

Marking: Type or part number, capacitance and voltage.

RoHS Compliant

Humidity Test

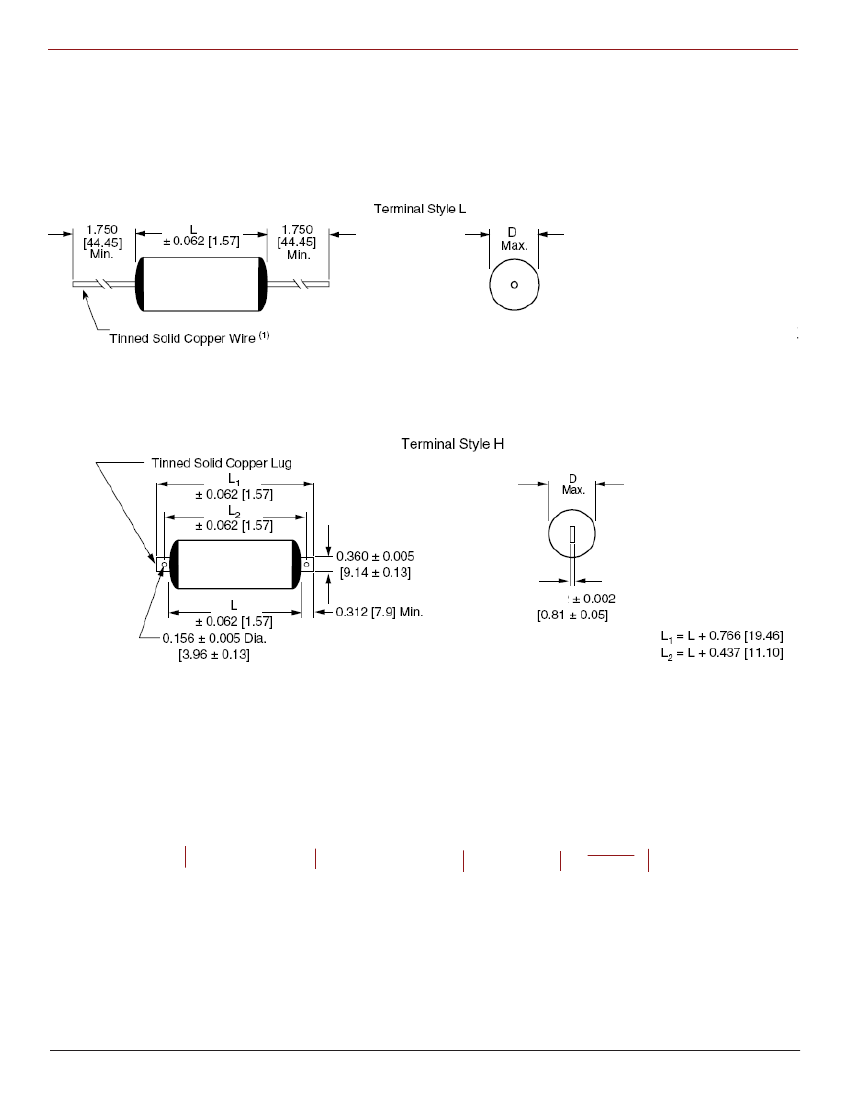

Physical Characteristics
