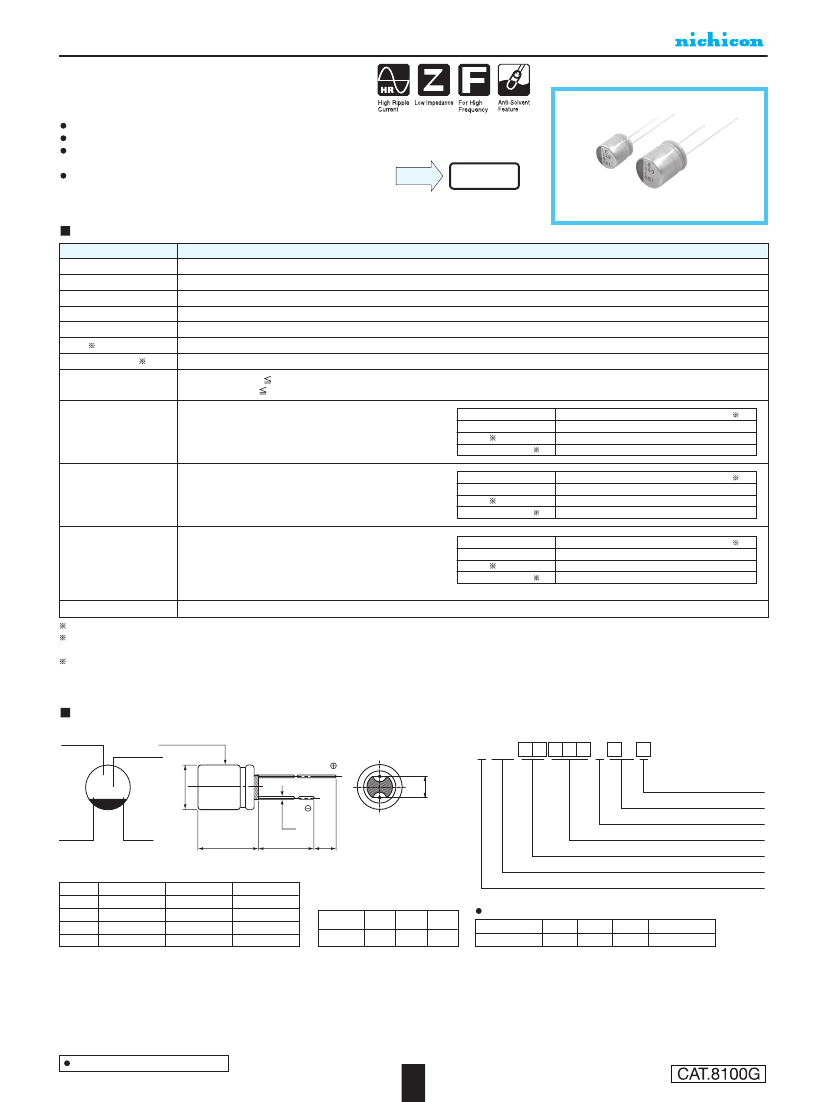

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
PLE
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
ESR (
1)
2)
Radial Lead Type, Ultra-low ESR
Ultra-low ESR, High ripple current.
Load life of 2000 hours at 105°C.
Radial lead type :
Lead free flow soldering condition correspondence
Compliant to the RoHS directive (2011/65/EU).
PLF
Low ESR
PLE
Performance Characteristics
– 55 to +105°C
2.5 to 6.3V
470 to 1500µF
± 20% at 120Hz, 20°C
Less than or equal to the specified value at 100kHz, 20°C
Less than or equal to the specified value.
Z+105°C / Z+20°C
Z– 55°C / Z+20°C
1.25
1.25
(100kHz)
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value
Tangent of loss angle (tan
δ)
Less than or equal to the specified value at 120Hz, 20°C
Leakage Current (
After 2 minutes' application of rated voltage at 20°C
Temperature Characteristics
(Max.Impedance Ratio)
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 2000 hours at 105°C.
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Damp Heat
(Steady State)
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 60°C, 90% RH.
Resistance to
Soldering Heat
After soldering the capacitor under the soldering conditions prescribed
here as preheat at 150 to 200°C for 60 to 180 seconds and peak
temperature at 265°C for 10 seconds or less, the capacitor shall meet
the specifications listed at right, provided that its temperature profile is
measured at both of terminal ends facing the soldering side.
Navy blue print on the case top
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Marking
1 ESR should be measured at both of the terminal ends closest to the capacitor body.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
3 Initial value : The value before test of examination of resistance to soldering.
Dimensions
Capacitance
Type numbering system (Example : 4V 560µF)
Resin coated Case
1
2
3
4
5
6
7
8
9 10 11 12
Voltage(g:4V)
φD±0.5
P L E 0 G 5 6 1 MCO 1
P ±0.5
Size code
Configuration
LE
560
g
841
φ
d
Series
Lot. No.
L+0.5MAX.
15MIN
4MIN
Capacitance tolerance (±20%)
Rated capacitance (560µF)
Rated voltage (4V)
Series name
Size
φD
L
P
φd
φ8
×
9L
8.0
8.5
3.5
0.6
φ8
×
12L
8.0
11.5
3.5
0.6
(mm)
φ10
×
13L
10.0
12.5
5.0
0.6
Type
Voltage
V
Code
2.5
e
4
g
6.3
j
Frequency coefficient of rated ripple current
0
Frequency0/ 120Hz
Coefficient
0.05
1kHz
0.30
10kHz 100kHz or more
0.70
1.00
Please refer to page 20 about the end seal configuration.
Dimension table in next page.
