Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP86PH06U

Preview

TMP86PH06U: DescriptionCMOS 8 BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size498KB，13 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

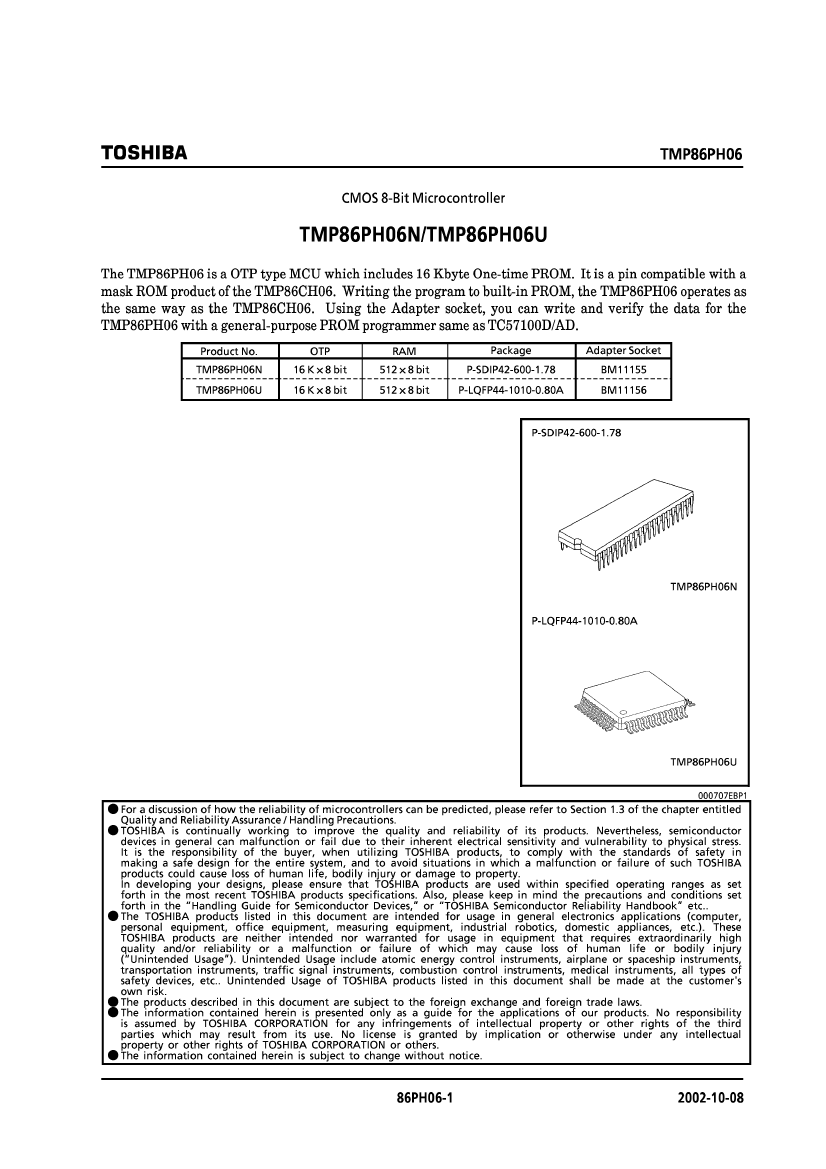

TMP86PH06U Overview

CMOS 8 BIT MICROCONTROLLER

TMP86PH06U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP

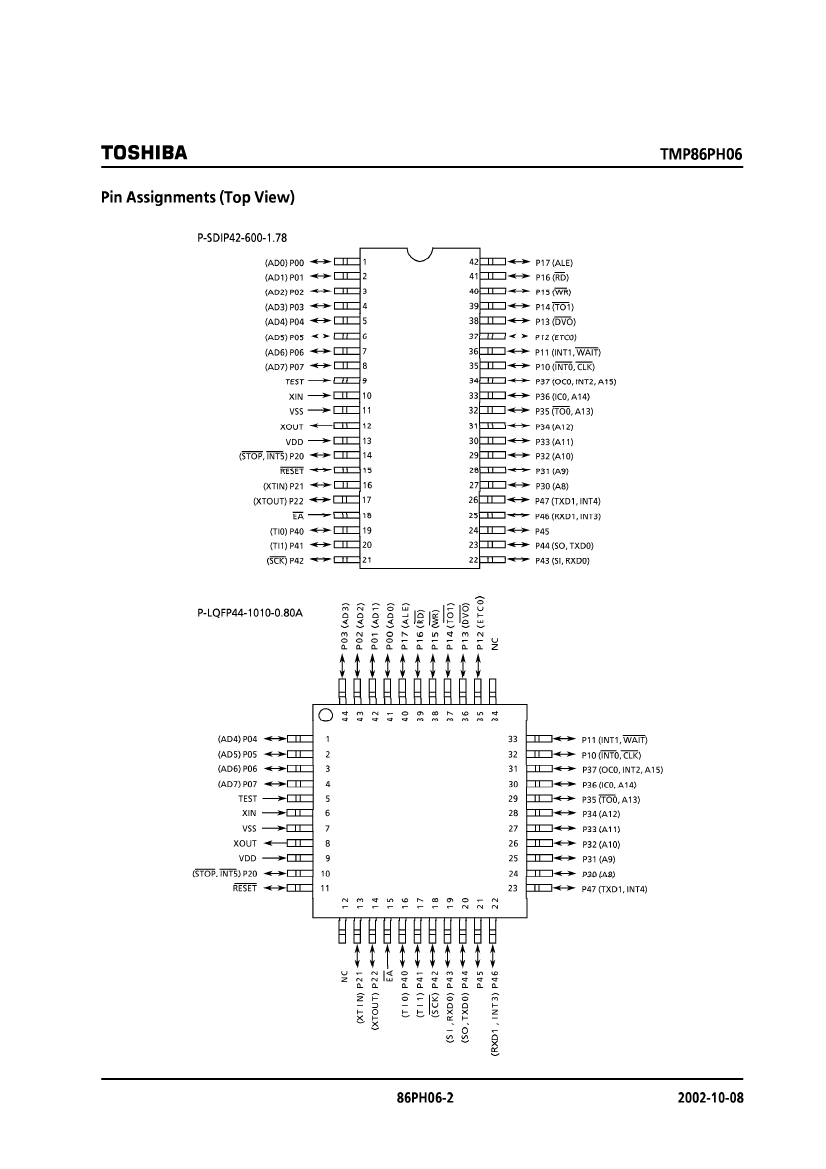

package instruction	QFP, QFP44,.5SQ,32

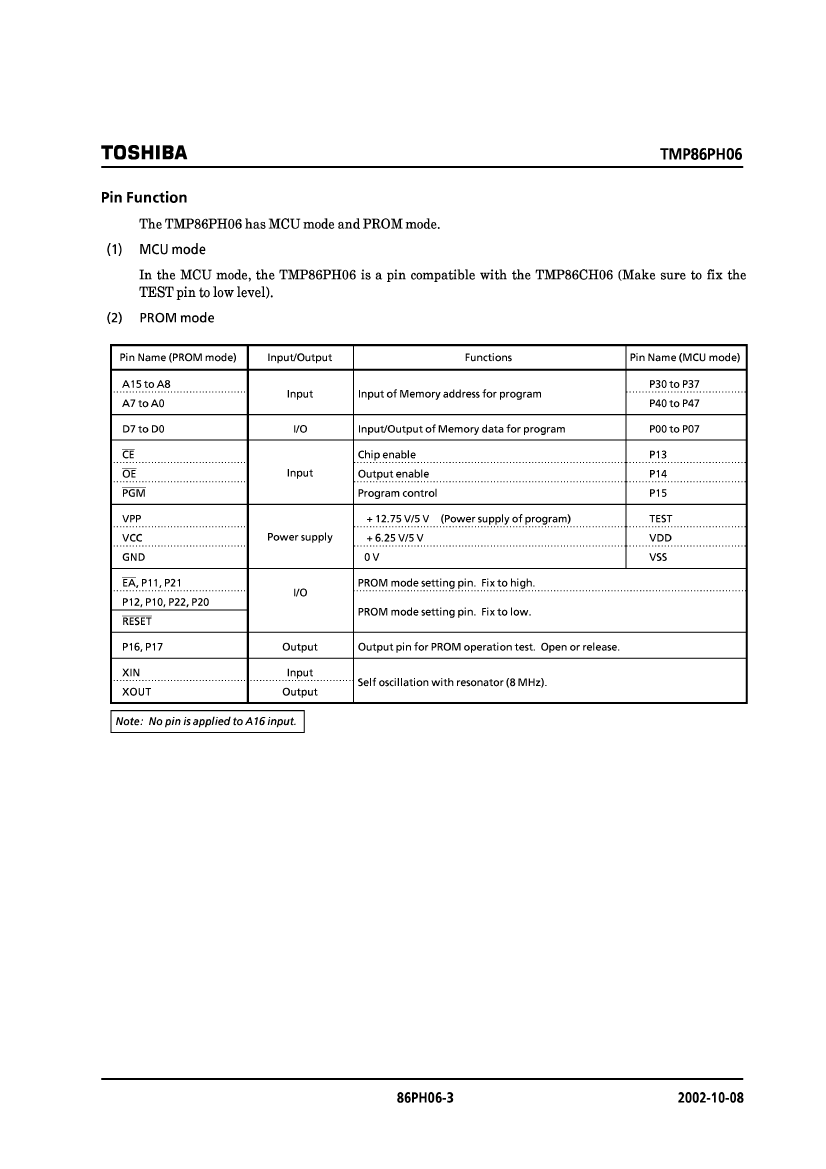

Contacts	44
Reach Compliance Code	unknow
Has ADC	NO
Other features	OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ
Address bus width
bit size	8
CPU series	TLCS-870/C
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
JESD-609 code	e0
length	10 mm
Number of I/O lines	35
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP44,.5SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified

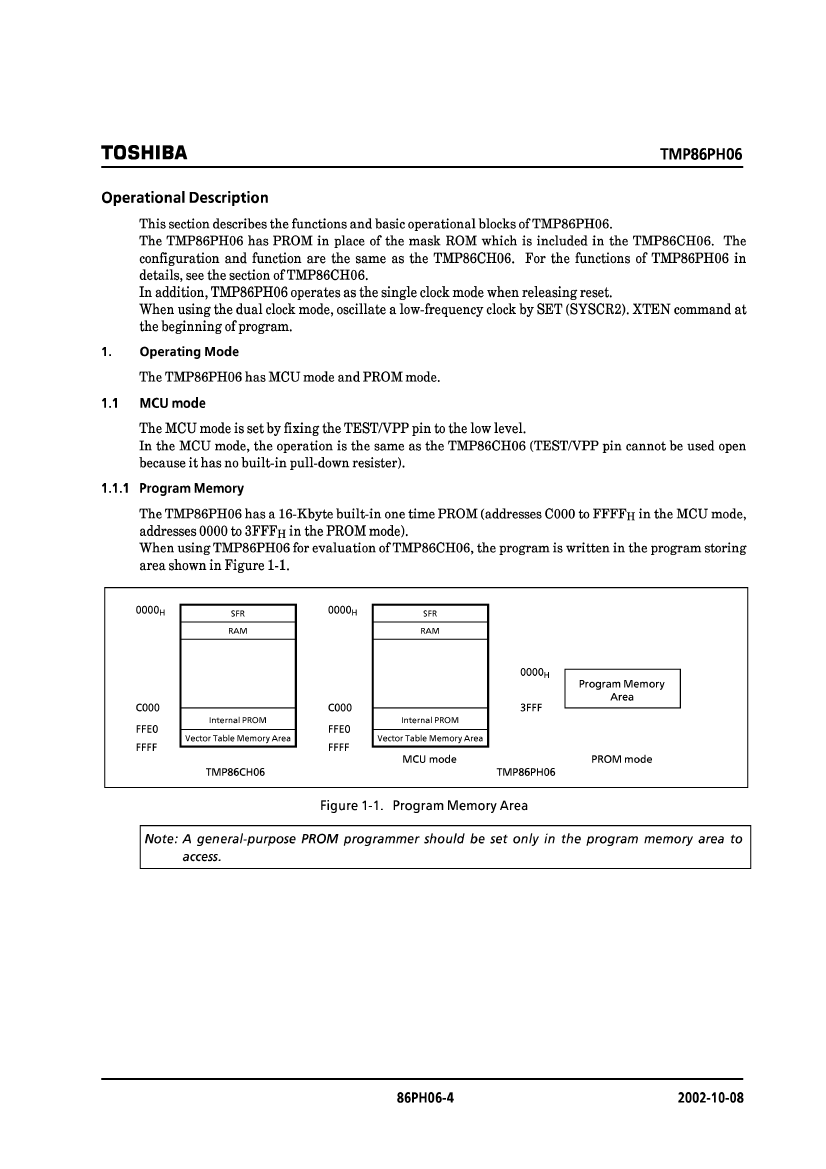

RAM (bytes)	512
rom(word)	16384
ROM programmability	OTPROM
Maximum seat height	1.9 mm
speed	16 MHz
Maximum slew rate	7 mA

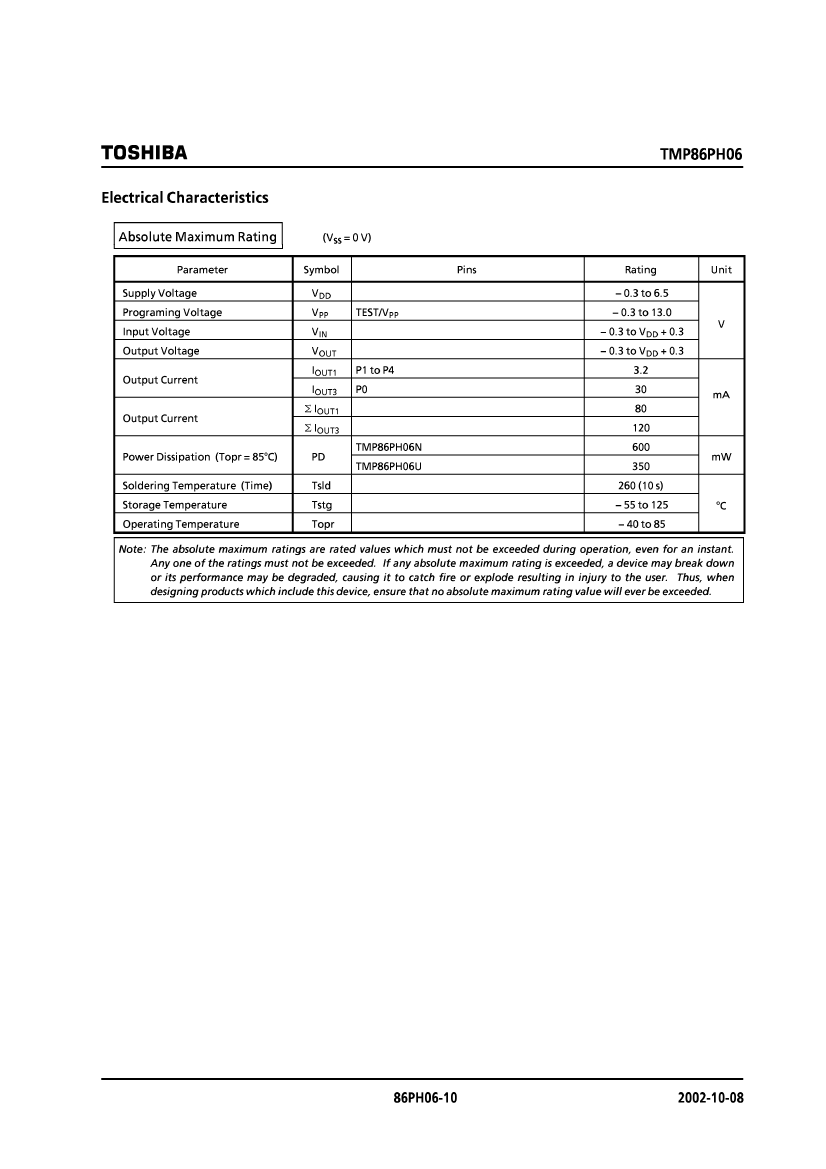

Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

TMP86PH06U Related Products

	TMP86PH06U	TMP86PH06N
Description	CMOS 8 BIT MICROCONTROLLER	CMOS 8 BIT MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	DIP
package instruction	QFP, QFP44,.5SQ,32	DIP, SDIP42,.6
Contacts	44	42
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
Other features	OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ	OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ
bit size	8	8
CPU series	TLCS-870/C	TLCS-870/C
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	S-PQFP-G44	R-PDIP-T42
length	10 mm	38 mm
Number of I/O lines	35	35
Number of terminals	44	42
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP
Encapsulate equivalent code	QFP44,.5SQ,32	SDIP42,.6
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	2/5 V	2/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	512	512
rom(word)	16384	16384
ROM programmability	OTPROM	OTPROM
Maximum seat height	1.9 mm	4.5 mm
speed	16 MHz	16 MHz
Maximum slew rate	7 mA	7 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	0.8 mm	1.778 mm
Terminal location	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	10 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
