Power Inductors

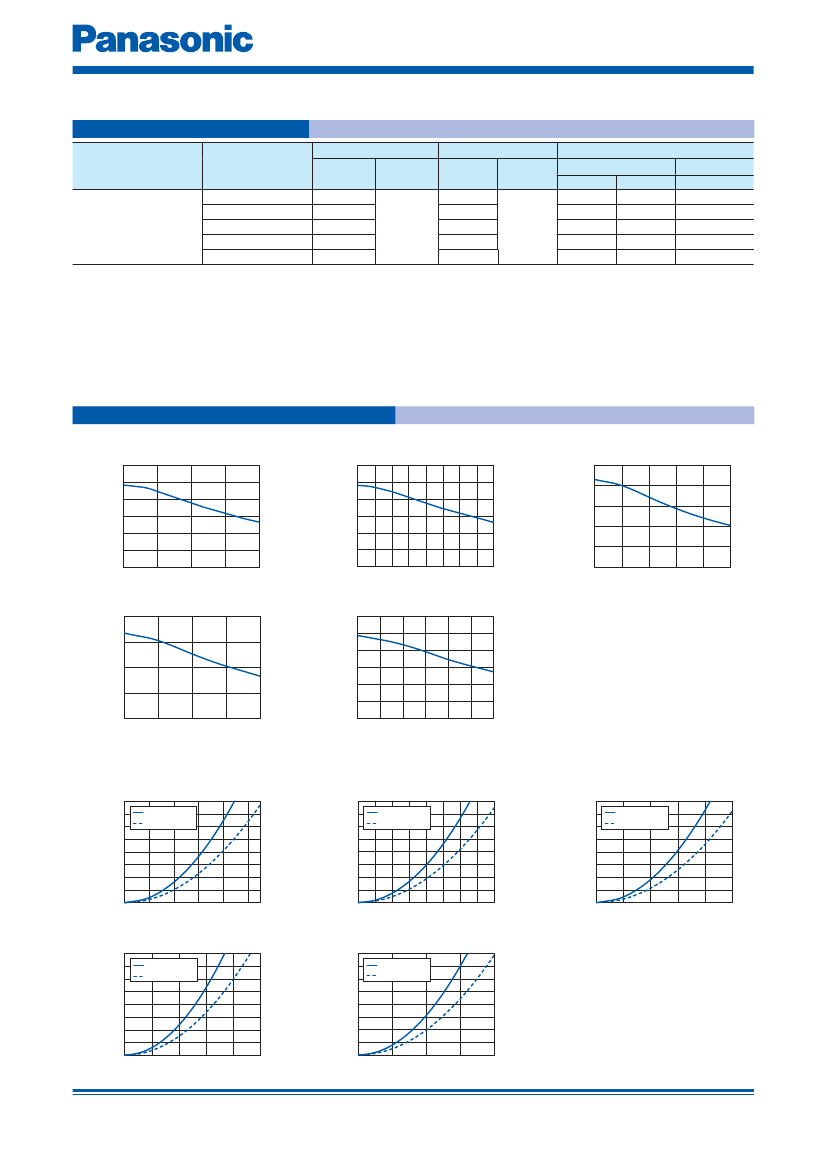

1. Series PCC-M0530M/PCC-M0540M (ETQP3M□□□YFP/ETQP4M□□□YFP)
Standard Parts
Series
PCC-M0530M
[5.5×5.0×3.0(mm)]
PCC-M0540M
[5.5×5.0×4.0(mm)]
Part No.
ETQP3M2R2YFP
ETQP3M3R3YFP
ETQP4M4R7YFP
ETQP4M220YFP
Inductance
½1
L0
Tolerance
(µH)
(%)
2.2
3.3
±20
4.7
22
DCR (at 20 °C) (mΩ)
Typ.
Tolerance
(max.)
(%)
22.6 (24.8)
31.3 (34.4)
±10
36.0 (39.6)
163 (179)
Rated Current (Typ. : A)
△T=40K
△L=–30%
½
2)
½
3)
(
(
(
½
4)
4.8
5.8
10.9
4.1
5.0
8.6
4.0
4.8
7.7
1.9
2.3
3.1
(
½
1) Measured at 100 kHz.
(
½
2) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on four-layer PWB (1.6 mm
FR4) and measured at room temperature. See also (
½
5)
(
½
3) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on multilayer PWB with high
heat dissipation performance. Note: Heat radiation constant are approx. 52 K/W measured on 5.5×5.0×3.0 mm
case size and approx. 48 K/W measured on 5.5×5.0×4.0 mm case size. See also (½5)
(
½
4) Saturation rated current : DC current which causes L(0) drop –30 %.
(
½
5) Within a suitable application, the part’s temperature depends on circuit design and certain heat dissipation
conditions. This should be double checked in a worst case operation mode.
In normal case, the max.standard operating temperature of +150 °C should not be exceeded.
For higher operating temperature conditions, please contact Panasonic representative in your area.
Performance Characteristics (Reference)
●
Inductance
2.5
Inductance (µH)
2.0
1.5
1.0
0.5
0.0
0
2
4
6
8
I
DC
(A)
10
12
14
vs DC Current
ETQP3M2R2YFP
Inductance (µH)
5.0
4.0
3.0
2.0
1.0
0.0
0
2
4
6
8
I
DC
(A)
10
12
14
ETQP3M3R3YFP
5.0
Inductance (µH)
4.0
3.0
2.0
1.0
0.0
0
2
ETQP4M4R7YFP
Inductance (µH)
30
25
20
15
10
5
0
0
1
ETQP4M220YFP
4
6
8
I
DC
(A)
10
12
14
2
I
DC
(A)
3
4
5
●
Case
Temperature vs DC Current
ETQP3M2R2YFP
PWB condition A
PWB condition B
PWB condition A : Four-layer PWB (1.6 mm FR4), See also (
½
2)
PWB condition B : Multilayer PWB with high heat dissipation performance. See also (
½
3)
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
ETQP3M3R3YFP
PWB condition A
PWB condition B
ΔT(K)
0
1
2
3
4
5
I
DC
(A)
6
7
8
ΔT(K)
0
1
2
3
4
I
DC
(A)
5
6
7
80
70
60
50
40
30
20
10
0
ETQP4M4R7YFP
PWB condition A
PWB condition B
80
70
60
50
40
30
20
10
0
ETQP4M220YFP
PWB condition A
PWB condition B
ΔT(K)
ΔT(K)
0
1
2
3
4
I
DC
(A)
5
6
7
0
0.5
1
1.5
2
I
DC
(A)
2.5
3
3.5
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
08
Jul. 2015
Power Inductors

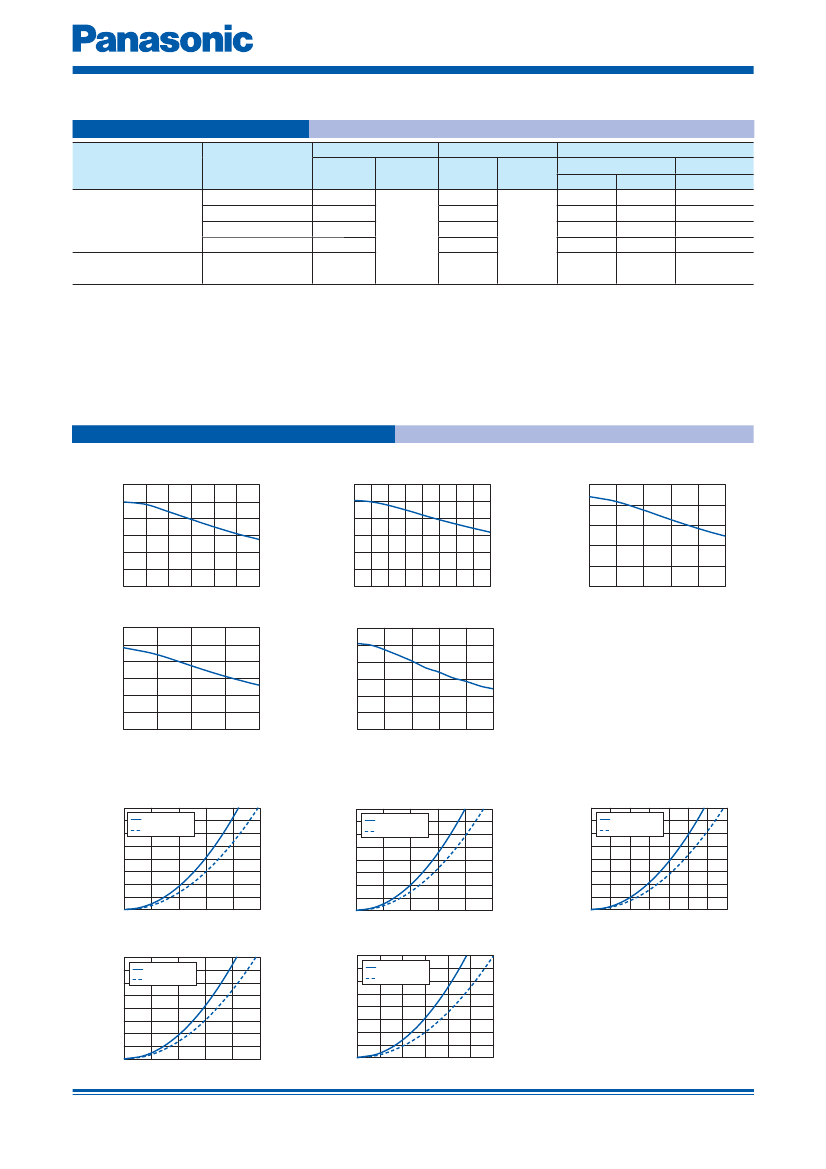

2. Series PCC-M0630M/PCC-M0645M (ETQP3M□□□YFN/ETQP4M□□□YFN)
Standard Parts
Series
PCC-M0630M
[6.5×6.0×3.0(mm)]
Part No.
DCR (at 20 °C) (mΩ)
Inductance
½1
L0
Tolerance
Typ.
Tolerance
(µH)
(%)
(max.)
(%)
0.68
6.3 (6.9)
1.0
7.9 (8.7)
±20
±10
6.8
39.3 (43.2)
10
54.2 (59.6)
47
210 (231)
Rated Current (Typ. : A)
△T=40K
△L=–30%
½
2)
½
3)
(
(
(
½
4)
9.8
12.0
24.0
8.8
10.7
20.0
4.1
5.2
10.0
3.3
4.5
8.3
1.8
2.2
3.8
ETQP3MR68YFN
ETQP3M1R0YFN
ETQP4M6R8YFN
PCC-M0645M
[6.5×6.0×4.5(mm)]
ETQP4M100YFN
ETQP4M470YFN
(
½
1) Measured at 100 kHz.
(
½
2) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on four-layer PWB (1.6 mm
FR4) and measured at room temperature. See also (
½
5)
½
3) DC current which causes temperature rise of 40 K. Partsare soldered by reflow on multilayer PWB with high heat
(
dissipation performance. Note: Heat radiation constant are approx. 44 K/W measured on 6.5×6.0×3.0 mm case
size and approx. 37 K/W measured on 6.5×6.0×4.5 mm case size. See also (
½
5)
½
4) Saturation rated current : DC current which causes L(0) drop –30 %.
(
(
½
5) Within a suitable application, the part’s temperature depends on circuit design and certain heat dissipation
conditions. This should be double checked in a worst case operation mode.
In normal case, the max.standard operating temperature of +150 °C should not be exceeded.
For higher operating temperature conditions, please contact Panasonic representative in your area.
Performance Characteristics (Reference)
●
Inductance
0.7
Inductance (µH)
0.6
0.5
0.4
0.3
0.2
0.1
0
vs DC Current
1
Inductance (µH)
0.8
0.6
0.4
0.2
0
0
5
10
I
DC
(A)
15
20
ETQP3MR68YFN
ETQP3M1R0YFN
0
4
8
12 16
I
DC
(A)
20
24
8
7
6
5
4
3
2
1
0
ETQP4M6R8YFN
Inductance (µH)
12
10
8
6
4
2
0
ETQP4M100YFN
Inductance (µH)
0 1 2 3 4 5 6 7 8 9 10
I
DC
(A)
0 1 2 3 4 5 6 7 8 9
I
DC
(A)
50
45
40
35
30
25
20
15
10
5
0
ETQP4M470YFN
Inductance (µH)
0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
I
DC
(A)
●
Case
Temperature vs DC Current
ETQP3MR68YFN
PWB condition A
PWB condition B
PWB condition A : Four-layer PWB (1.6 mm FR4), See also (
½
2)
PWB condition B : Multilayer PWB with high heat dissipation performance. See also (
½
3)
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
ETQP3M1R0YFN
PWB condition A
PWB condition B
ΔT(K)
0 2 4 6 8 10 12 14 16 18
I
DC
(A)
ΔT(K)
0 2 4 6 8 10 12 14 16 18
I
DC
(A)
80
70
60
50
40
30
20
10
0
ETQP4M6R8YFN
PWB condition A
PWB condition B
0
1
2
3 4
I
DC
(A)
5
6
7
80
70
60
50
40
30
20
10
0
ETQP4M100YFN
PWB condition A
PWB condition B
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6
I
DC
(A)
80
70
60
50
40
30
20
10
0
ETQP4M470YFN
PWB condition A
PWB condition B
ΔT(K)
ΔT(K)
ΔT(K)
0
0.5
1.0 1.5 2.0 2.5 3.0
I
DC
(A)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
08
Jul. 2015
Power Inductors
3. Series PCC-M0754M (ETQP5M□□□YFM)
Standard Parts
Series
Part No.
ETQP5M4R7YFM
ETQP5M100YFM
ETQP5M220YFM
ETQP5M330YFM
ETQP5M470YFM
Inductance
½1
L0
Tolerance
(µH)
(%)
4.7
10
±20
22
33
48
DCR (at 20 °C) (mΩ)
Typ.
Tolerance
(max.)
(%)
20(23)
37.6(41.3)
±10
92(102)
120(132)
156(172)
Rated Current (Typ. : A)
△T=40K
△L=–30%
½
2)
½
3)
(
(
(
½
4)
6.3
8.0
13.1
4.7
5.7
10.6
3.0
3.7
5.8
2.6
3.3
4.8
2.3
2.9
4.1
PCC-M0754M
[7.5×7.0×5.4(mm)]
(
½
1) Measured at 100 kHz.
(
½
2) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on four-layer PWB (1.6 mm FR4)
and measured at room temperature. See also (
½
5)
(
½
3) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on multilayer PWB with high heat dissipation
performance. Note: Heat radiation constant is approx. 31 K/W measured on 7.5×7.0×5.4 mm case size. See also (
½
5)
½
4) Saturation rated current : DC current which causes L(0) drop –30 %.
(
(
½
5) Within a suitable application, the part’s temperature depends on circuit design and certain heat dissipation conditions.
This should be double checked in a worst case operation mode.
In normal case, the max.standard operating temperature of +150 °C should not be exceeded.
For higher operating temperature conditions, please contact Panasonic representative in your area.
Performance Characteristics (Reference)
●
Inductance
6.0
Inductance (µH)
5.0
4.0
3.0
2.0
1.0
0.0
0
5
10
I
DC
(A)
15
20
vs DC Current
12
Inductance (µH)
10
8
6
4
2
0
0
2
4
6
8 10 12 14 16
I
DC
(A)
ETQP5M4R7YFM
ETQP5M100YFM
Inductance (µH)
25
20
15
10
5
0
0
ETQP5M220YFM
2
4
6
I
DC
(A)
8
10
40
Inductance (µH)
30
20
10
0
0
ETQP5M330YFM
Inductance (µH)
60
50
40
30
20
10
0
0
ETQP5M470YFM
2
4
I
DC
(A)
6
8
1
2
3
4
I
DC
(A)
5
6
●
Case
Temperature vs DC Current
ETQP5M4R7YFM
PWB condition A
PWB condition B
PWB condition A : Four-layer PWB (1.6 mm FR4), See also (
½
2)
PWB condition B : Multilayer PWB with high heat dissipation performance. See also (
½
3)
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
ETQP5M100YFM
PWB condition A
PWB condition B
0
2
4
6
I
DC
(A)
8
10
0
1
2
3
4 5
I
DC
(A)
6
7
8
80
70
60
50
40
30
20
10
0
ETQP5M220YFM
PWB condition A
PWB condition B
ΔT(K)
ΔT(K)
ΔT(K)
0
1
2
3
I
DC
(A)
4
5
80
70
60
50
40
30
20
10
0
ETQP5M330YFM
PWB condition A
PWB condition B
0
1
2
3
I
DC
(A)
4
5
80
70
60
50
40
30
20
10
0
ETQP5M470YFM
PWB condition A
PWB condition B
ΔT(K)
ΔT(K)
0
1
2
I
DC
(A)
3
4
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
08
Jul. 2015
Power Inductors
4. Series PCC-M0854M/PCC-M0850M (ETQP5M□□□YFK/ETQP5M□□□YGK)
Standard Parts
Series
Part No.
ETQP5M2R5YFK
ETQP5M100YFK
ETQP5M220YFK
ETQP5M470YFK
ETQP5M101YGK
Inductance
½1
DCR (at 20 °C) (mΩ)
L0
Tolerance
Typ.
Tolerance
(µH)
(%)
(max.)
(%)
2.5
7.6(8.4)
10
33(37)
22
63(70)
±20
±10
48
125(138)
100
302(333)
Rated Current (Typ. : A)
△T=40K
△L=–30%
½
2)
½
3)
(
(
(
½
4)
11.9
14.0
20.1
5.7
6.7
13.0
4.1
4.8
6.9
2.9
3.4
5.4
1.7
2.1
3.0
PCC-M0854M
[8.5×8.0×5.4(mm)]
PCC-M0850M
[8.5×8.0×5.0(mm)]
(
½
1) Measured at 100 kHz.
(
½
2) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on four-layer PWB (1.6 mm FR4)
and measured at room temperature. See also (
½
5)
(
½
3) DC current which causes temperature rise of 40 K. Parts are soldered by reflow on multilayer PWB with high heat dissipation performance. Note: Heat radiation
constant are approx. 27 K/W measured on 8.5×8.0×5.4 mm case size and approx. 29 K/W measured on 8.5×8.0×5.0 mm case size. See also (
½
5)
½
4) Saturation rated current : DC current which causes L(0) drop –30 %.
(
(
½
5) Within a suitable application, the part’s temperature depends on circuit design and certain heat dissipation
conditions. This should be double checked in a worst case operation mode.
In normal case, the max.standard operating temperature of + 150 °C should not be exceeded.
For higher operating temperature conditions, please contact Panasonic representative in your area.
Performance Characteristics (Reference)
●
Inductance
3.0
Inductance (µH)
2.5
2.0
1.5
1.0
0.5
0.0
0
5
10
15 20
I
DC
(A)
25
30
vs DC Current
12
Inductance (µH)
10
8
6
4
2
0
0 2
4
6 8 10 12 14 16
I
DC
(A)
ETQP5M2R5YFK
ETQP5M100YFK
Inductance (μH)
25
20
15
10
5
0
0
ETQP5M220YFK
2
4
6
I
DC
(A)
8
10
60
Inductance (µH)
50
40
30
20
10
0
0
ETQP5M470YFK
Inductance (µH)
120
100
80
60
40
20
0
0
ETQP5M101YGK
2
4
I
DC
(A)
6
8
1
2
3
I
DC
(A)
4
5
●
Case
Temperature vs DC Current
ETQP5M2R5YFK
PWB condition A
PWB condition B
PWB condition A : Four-layer PWB (1.6 mm FR4), See also (
½
2)
PWB condition B : Multilayer PWB with high heat dissipation performance. See also (
½
3)
80
70
60
50
40
30
20
10
0
80
70
60
50
40
30
20
10
0
ETQP5M100YFK
PWB condition A
PWB condition B
0
4
8
12
I
DC
(A)
16
20
0
2
4
6
I
DC
(A)
8
10
80
70
60
50
40
30
20
10
0
ETQP5M220YFK
PWB condition A
PWB condition B
ΔT(K)
ΔT(K)
ΔT(K)
0
1
2
3 4
I
DC
(A)
5
6
7
80
70
60
50
40
30
20
10
0
ETQP5M470YFK
PWB condition A
PWB condition B
80
70
60
50
40
30
20
10
0
ETQP5M101YGK
PWB condition A
PWB condition B
ΔT(K)
ΔT(K)
0
1
2
3
I
DC
(A)
4
5
0
0.5 1.0 1.5 2.0 2.5 3.0
I
DC
(A)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
I would like to ask you, CAMERA has two interrupt sources C and P_PATH. They share the same signal, so how does the system distinguish which interrupt this signal comes from?...
When there is light, the relay is disconnected regardless of whether there are people around; At night, as long as someone walks by, the relay will be energized, and the relay will automatically disco...
The phone needs to be ROOT and have RE manager installed. Open RE manager, find build.prop in the system folder, long press and select the opening method: text editor to find the model: ro.product.mod...
Component selection in switching power supply design In switching power supplies, the voltage and current waveforms are all sudden pulse states. In addition to the supply voltage applied to the compon...
There are three types of mobile TV: one is based on analog TV broadcasting network, another is based on mobile communication network, and the other is based on digital broadcasting network. The f...[Details]
1 Introduction
With the acceleration of the pace of urban modernization, society has higher requirements for urban road lighting and urban lighting projects. The state has clearly required tha...[Details]
Introduction
Power subsystems are becoming more and more integrated into the overall system. Power systems have moved from being separate "essential dangerous devices" to being monitorable...[Details]
We know that microcontroller development tools generally include real-time online emulators and programmers. Among them, online emulators are very good tools, but they are also more expensive...[Details]
Vertical cavity surface emitting lasers (VCSELs) are gradually replacing traditional edge emitting lasers, especially in low bandwidth and short-distance communication systems where cost factors ar...[Details]
1 Introduction
PROFIBUS is an international, open, and manufacturer-independent fieldbus standard. It is widely used in manufacturing automation, process industry automation, and automatio...[Details]
This week, Microsoft held its 2012 Microsoft Worldwide Partner Conference (WPC) in Toronto, Canada. At the conference, Microsoft showed its new products and services to partners around the world. A...[Details]
Toyohashi University of Technology demonstrated electric field coupled wireless power supply technology using life-size car tires and roads at the wireless technology exhibition "Wireless Technolog...[Details]
At very low temperatures, certain metals and alloys lose their resistance to electric
current
and become
superconductors
. Two parameters that are often measured are the transition ...[Details]
1. When the slip speed regulating motor is undergoing frequency conversion and energy saving transformation, the original excitation box (referred to as the speed regulating box) and the original s...[Details]
1. Disadvantages of choosing too high a voltage level
Choosing too high a voltage level will result in too high an investment and a long payback period. As the voltage level increases, the...[Details]
0 Introduction
Under normal circumstances, the three-phase power in the power system is symmetrical, and they meet certain amplitude and phase conditions; but when the load changes, the syst...[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
1 Load Regulation
Changes in power supply load will cause changes in power supply output. When the load increases, the output decreases, and vice versa, when the load decreases, the output inc...[Details]
The installation locations of DC-DC converters are relatively scattered. DC-DC converters can be found on the power board, main board, logic control board and other circuit boards of PDP color TVs....[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
