WIMA MP 3-Y2 / 3R-Y2
Metallized Paper (MP) RFI-Capacitors Class Y2
in PCM 10 mm to 27.5 mm. Capacitances from 1000 pF to 0.1
mF.
Rated Voltages 250 VAC and 300 VAC.
Special Features
˜
Particularly high reliability against
active and passive flammability
˜
Excellent self-healing as well as
high voltage strength
˜
Twice the safety by internal
series connection (300 VAC)
˜
High degree of interference
suppression due to good
attenuation and low ESR
˜
For temperatures up to +110° C
˜
According to RoHS 2011/65/EU
D
Electrical Data
Capacitance range:
1000 pF to 0.1
m
F (E12-values on request)
Rated voltages:
250 VAC, 300 VAC
Continuous DC voltage*
(general guide):
250 VAC:
1000 V
300 VAC:
1250 V
Capacitance tolerances:
±20%
Operating temperature range:
–40) C to +110) C
Climatic test category:
250 VAC: 40/110/56/C
300 VAC: 40/110/56/B
in accordance with IEC
Insulation resistance
at +20+ C:
12 x 10
3
M¸
Measuring voltage: 100 V/1 min.
Dissipation factors:
tan
d
13 x 10
–3
at 1 kHz and +20+ C
Test specifications:
in accordance with IEC 60384-14
Approvals:
Country
Germany
USA/Canada
Authority
VDE
UL
Specification
IEC 60384-14
UL 60384-14
CAN/CSA-E60384-14
Maximum pulse rise time
250 VAC:
Capacitance
pF/mF
1000 ... 4700
6800 ... 0.022
Capacitance
pF/mF
1000 ... 4700
6800 ... 0.015
0.022 ... 0.1
Pulse rise time V/msec
max. operation
2500
1750
Pulse rise time V/msec
max. operation
2500
1850
600
Maximum pulse rise time
300 VAC:
Typical Applications
Class Y2 RFI applications to meet
EMC regulations
˜
Capacitors connected to the mains
between phase or neutral and
earthed casing
˜
By-passing of the basic or
supplementary insulation,
pulse peak voltage
5 kV
for pulses equal to a voltage amplitude
with 2 x 250 VAC = 355 V
with 2 x 300 VAC = 425 V
according to IEC 60384-14
Test voltage:
2400 VDC, 2sec.
Reliability:
Operational life
300 000 hours
Failure rate
1 fit (0.5 x U
r
and 40) C)
Approval-No.
250 VAC 300 VAC 250 VAC
300 VAC
V
D E
EN 60384-14
Construction
Dielectric:
Paper, epoxy resin impregnated
Capacitor electrodes:
Vacuum-deposited
Internal construction:
250 VAC
Capacitor paper
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Terminating wire
Symbol
87455
40032534
E 100438 E 100438
Mechanical Tests
Pull test on pins:
10 N in direction of pins
according to IEC 60068-2-21
Vibration:
6 hours at 10 ... 2000 Hz and
0.75 mm displacement amplitude or 10 g
in accordance with IEC 60068-2-6
Low air density:
1kPa = 10 mbar in
accordance with IEC 60068-2-13
Bump test:
4000 bumps at 390 m/sec
2
in
accordance with IEC 60068-2-29
* If safety-approved EMI suppression
capacitors are operated with a DC vol-
tage being above the specified AC voltage
rating the given approvals are no longer
valid (IEC 60384-14).
Furthermore the permissible pulse rise time
du/dt (F
max
.) will be subject to a reduction
according to
F
max.
= F
r
x 2 x UAC / UDC
if the DC operating voltage UDC is higher
than 2 x UAC

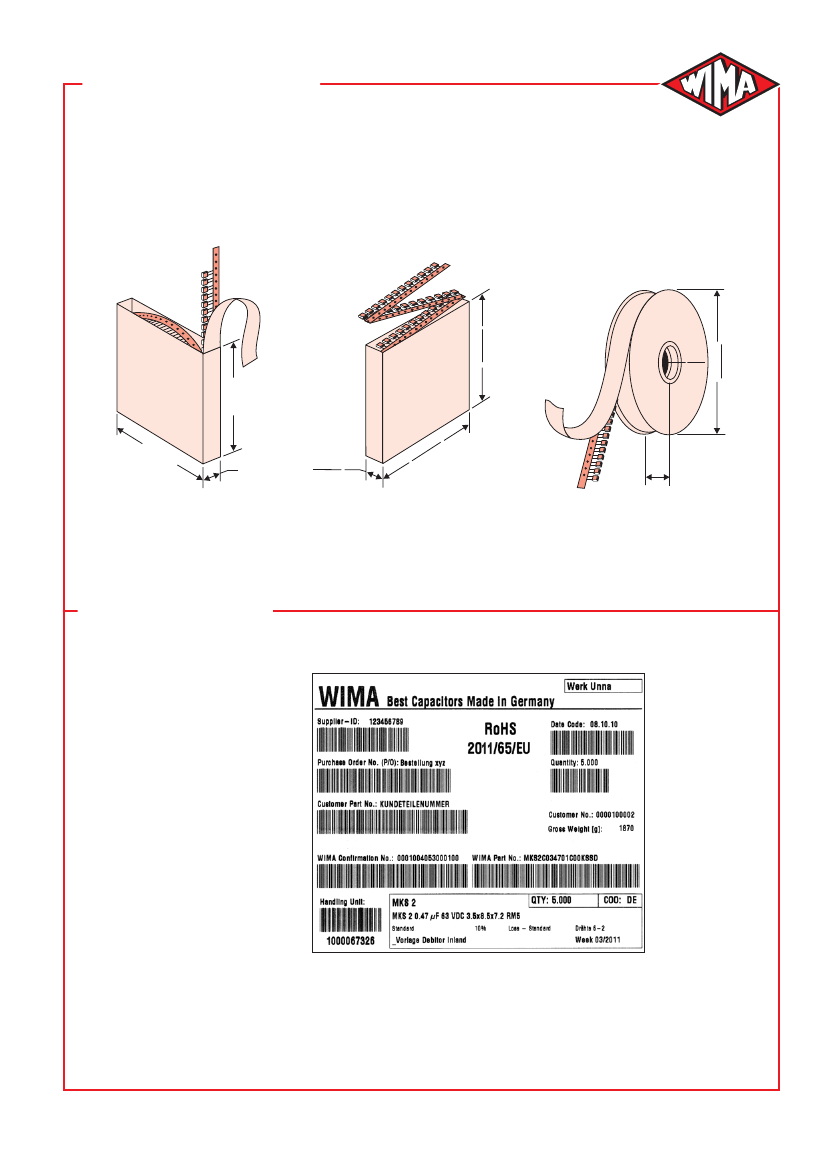

Packing
Available taped and reeled.
Detailed taping information and graphs
at the end of the catalogue.
For further details and graphs please
refer to Technical Information.
300 VAC
Capacitor paper
Vacuum-deposited
electrode
Metal contact layer
(schoopage)
Terminating wire
Encapsulation:
Self-extinguishing epoxy resin, UL 94 V-0.
metal foil
Terminations:
Tinned wire.
Marking:
Marking: Black on Silver.
94
04.18
WIMA MP 3-Y2 / 3R-Y2
Continuation
D
General Data
Capacitance
1000 pF
1500 „
2200 „
3300 „
4700 „
6800 „
0.01
m
F
0.015 „
0.022 „
0.033 „
0.047 „
0.068 „
0.1
m
F
W
4
4
4
4
5
5
5
6
7
H
8.5
8.5
8.5
8.5
10
13
13
14
15
L
13.5
13.5
13.5
13.5
13.5
19
19
19
19
250 VAC
*
PCM**
10
10
10
10
10
15
15
15
15
300 VAC*
Part number
W
5
5
5
5
6
7
8
10
8
8
10
12
13
H
13
13
13
13
14
15
17
18
20
20
22
24
25
10
L
19
19
19
19
19
19
19
19
28
28
28
28
33
PCM**
15
15
15
15
15
15
15
15
22.5
22.5
22.5
22.5
27.5
Part number
MPRY2W1100FC00_ _ _ _
MPRY2W1150FC00_ _ _ _
MPRY2W1220FC00_ _ _ _
MPRY2W1330FC00_ _ _ _
MPRY2W1470FD00_ _ _ _
MPRY2W1680FE00_ _ _ _
MPRY2W2100FF00_ _ _ _
MPRY2W2150FG00_ _ _ _
MPRY2W2220FH00_ _ _ _
MPRY2W2330FH00_ _ _ _
MPRY2W2470FI00_ _ _ _
MPRY2W2680FJ00_ _ _ _
MPRY2W3100FK00_ _ _ _
MPY20W1100FA00_ _ _ _
MPY20W1150FA00_ _ _ _
MPY20W1220FA00_ _ _ _
MPY20W1330FA00_ _ _ _
MPY20W1470FB00_ _ _ _
MPY20W1680FC00_ _ _ _
MPY20W2100FC00_ _ _ _
MPY20W2150FD00_ _ _ _
MPY20W2220FE00_ _ _ _
* f = 50/60 Hz
** PCM = Printed circuit module = pin spacing
Upon request with long pins 35-2 mm max.
Dims. in mm.
W
L
Z
S
1
7
5
3
68
00
pF
0.1
7
5
3
10
0
--
-- 2 150 0
--
-
20 0 pF
-- 0
- 33 0 p
-- 0. .01
47 00 p F
0. 01 µ
00 p F
02 5 F
F
pF
PC
2 µF
µF
M
PC
10
M
15
--
--
--
250 VAC
1
3
5 7
10
3
5 7
100
d = 0.6
P
if PCM 10
d = 0.8
P
if PCM
15
6 -
2
d
H
0.01
1000
f/MHz
PCM
at the pin exi t
points
(
±
0.5)
Impedance change with frequency
(general guide)
10
Z
S
7
5
300 VAC
1
Part number completion:
Tolerance:
Packing:
Pin length:
20 % = M
bulk = S
6-2 = SD
3
pF F
p F
00
0 p
10 50
00
pF F
-- - 1 22
p
- -
00 0 pF
-
33 70 00 µF F
-- - 4 68 ,01 15 µ
-
µF
-- - 0 0,0 2 µF F
- - .02 33 µ F
- 0 .0 47 µ
-- 0 .0 68
-- - 0 0.0
- -
-
0.
1
µF
0.1
7
5
3
--
Taped version see page 148.
0.01
1
3
5 7
10
3
5 7
100
f/MHz
1000
Rights reserved to amend design data without prior notification.
Impedance change with frequency
(general guide)
04.18
95
D
Recommendation for Processing
and Application of
Through-Hole Capacitors
Soldering Process
Internal temperature of the capacitor must
be kept as follows:
Polyester:
preheating: T
max.
125° C
soldering: T
max.
135° C
Polypropylene: preheating: T
max.
100° C
soldering: T
max.
110° C
Single wave soldering
Soldering bath temperature: T
260 ° C
Dwell time:
t
5 sec
Double wave soldering
Soldering bath temperature: T
260 ° C
Dwell time:
St
5 sec
Due to different soldering processes and
heat requirements the graphs are to be
regarded as a recommendation only.
WIMA Quality and Environmental Philosophy
ISO 9001:2008 Certification
ISO 9001:2008 is an international basic
standard of quality assurance systems
for all branches of industry. The approval
according to ISO 9001:2008 of our facto-
ries by the infaz (Institut für Auditierung und
Zertifizierung) certifies that organisation,
equipment and monitoring of quality assu-
rance in our factories correspond to inter-
nationally recognized standards.
WIMA Environmental Policy
All WIMA capacitors, irrespective of
whether through-hole devices or SMD,
are made of environmentally friendly
materials. Neither during manufacture
nor in the product itself any toxic sub-
stances are used, e.g.
–
–
–
–
–
Lead
PCB
CFC
Hydrocarbon chloride
Chromium 6+
–
–
–
–
–
PBB/PBDE
Arsenic
Cadmium
Mercury
etc.
RoHS Compliance
According to the RoHS Directive 2011/65/EU
certain hazardous substances like e.g. lead,
cadmium, mercury must not be used any
longer in electronic equipment as of July 1st,
2006. For the sake of the environment WIMA
has refraind from using such substances since
years already.
WIMA WPCS
The WIMA Process Control System (WPCS)
is a quality surveillance and optimization
system developed by WIMA. WPCS is a
major part of the quality-oriented WIMA
production. Points of application during
production process:
”
”
”
”
”
”
”
incoming material inspection
metallization
film inspection
schoopage
pre-healing
pin attachment
cast resin preparation/
encapsulation
”
100% final inspection
”
Testing as per customer requirements
We merely use pure, recyclable materials
for packing our components, such as:
”
”
”
”
carton
cardboard
adhesive tape made of paper
polystyrene
WIMA Kondensatoren sind bleifrei
konform RoHS 2011/65/EU
WIMA capacitors are lead free
in accordance with RoHS 2011/65/EU
Tape for lead-free WIMA capacitors
We almost completely refrain from using
packing materials such as:
”
foamed polystyrene (Styropor®)
”
adhesive tapes made of plastic
”
metal clips
DIN EN ISO 14001:2004
WIMA’s environmental management has
been established in accordance with the
guidelines of DIN EN ISO 14001:2004 to
optimize the production processes with
regard to energy and resources.
04.18
15
D
Typical Dimensions for
Taping Configuration
P
2
P
Vh
H
H
1
W
2
P
1
Diagram 1:
PCM 2.5/5/7.5mm
W
0
D
0
F
P
0
P
d
P
W
W
1
H
1
t
P
1
P
1
H
d
F
P
0
P
2
F
P
2
d
P
0
Diagram 2: PCM 10/15 mm
Diagram 3: PCM 22.5 and 27.5*mm
*PCM 27.5 taping possible with two feed holes between components
Dimensions for Radial Taping
Designation
Carrier tape width
Hold-down tape width
Hole position
Hold-down tape position
Feed hole diameter
Pitch of component
Feed hole pitch
Feed hole centre
to pin
Hole centre to
component centre
Feed hole centre to bottom
edge of the component
Feed hole centre to top
edge of the component
Pin spacing at
upper edge of carrier tape
Pin diameter
Component alignment
Total tape thickness
Package
(see also page 149)
Unit
Dims in mm.
„
Symbol
PCM 2.5 taping
W
W
0
W
1
W
2
D
0
P
P
0
P
1
P
2
H
H
1
F
d
Dh
t
18.0
p0.5
6.0
for hot-sealing
adhesive tape
PCM 5 taping
18.0
p0.5
6.0
for hot-sealing
adhesive tape
PCM 7.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 10 taping*
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 15 taping*
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 22.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 27.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
25.4
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
25.4
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
38.1
p1.5
12.7
p0.3
7.8
p0.7
19.05
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
30.0 to 43.0
22.5
p0.8
0.8
–0.05
p
3.0 max.
0.6
p0.2
54
p2
B 60
p2
68
p2
depending
on PCM and
component dimensions
+0,08
cumulative pitch
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
*
38.1
p1.5
or 50.8
p1.5
12.7
p0.3
5.3
p0.7
19.05
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
35.0 to 45.0
27.5
p0.8
0.8
–0.05
p
3.0 max.
0.6
p0.2
+0.08
cumulative pitch
error max.
1.0 mm/20 pitch
5.1
p0.5
6.35
p1.3
16.5
p0.3
18.5
p0.5
H+H
component
< H
1
32.25 max.
2.5
p0.5
0.4
p0.05
p
2.0 max.
0.6
p0.2
3.85
p0.7
6.35
p1.3
16.5
p0.3
18.5
p0.5
H+H
component
< H
1
32.25 max.
5.0
+0.8
–0.2
2.6
p0.7
6.35
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
24.5 to 31.5
7.5
p0.8
„
7.7
p0.7
12.7
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
25.0 to 31.5
10.0
p0.8
+0.06
„
5.2
p0.7
12.7
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
26.0 to 37.0
15
p0.8
+0,06
0.5
p0.05
p
2.0 max.
0.6
p0.2
ROLL/AMMO
0.5
p0.05
or
0.6
–0.05
0.5
p0.05
or
0.6
–0.05
0.8
–0.05
p
3.0 max.
0.6
p0.2
AMMO
+0,08
p
3.0 max.
0.6
p0.2
p
3.0 max.
0.6
p0.2
52
p2
B 58
p2
or
66
p2
REEL
P
360 max.
P
30
p1
B
52
p2
58
p2
depending on
comp. dimensions
REEL
P
360 max.
P
30
p1
REEL
P
500 max.
P
25
p1
see details page 150.
Please clarify customer-specific deviations with the manufacturer.
Diameter of pins see General Data.
148
04.18
*
PCM 10 and PCM 15 can be crimped to PCM 7.5.
Position of components according to PCM 7.5 (sketch 1). P
0
= 12.7 or 15.0 is possible
D
Types of Tape Packaging of
Capacitors for Automatic
Radial Insertion
˜
ROLL Packaging
˜
AMMO Packaging
˜
REEL Packaging
340 max.
370 max.
30
±
1
25
±
1
340 max.
34
0m
ax.
50 max.
50 max.
70 max.
.
ax
0 m ax.
34 0 m
49
B
BAR CODE (Labelling)
Labelling of package units in
plain text and with
alphanumerical Bar Code
Scanner decoding of
„
„
„
„
„
„
„
„
–
–
–
–
–
–
WIMA supplier number
Customer‘s P/O number
Customer‘s part number
WIMA confirmation number
WIMA part number
Lot number
Date code
Quantity
article
capacitance value
rated voltage
dimensions
capacitance tolerance
packing
BARCODE „Code 39”
In addition part description of
as well as gross weight and customer‘s
name are indicated in plain text.
04.18
360 max.
500 max.
149
京公网安备 11010802033920号
EEWORLD
