2450DP15H5400E

Description
Signal Conditioning 4900-5900 MHz LPF/BPF Cer. Chip
CategoryPassive components
File Size98KB,2 Pages
ManufacturerJohanson Technology
Websitehttp://www.johansontechnology.com
Download Datasheet Parametric View All

2450DP15H5400E Online Shopping

Suppliers Part Number Price MOQ In stock
2450DP15H5400E - - View Buy Now

2450DP15H5400E Overview

Signal Conditioning 4900-5900 MHz LPF/BPF Cer. Chip

2450DP15H5400E Parametric

Parameter NameAttribute value
Product CategorySignal Conditioning
ManufacturerJohanson Technology
RoHSDetails
ProductDiplexers
Frequency2450 MHz, 5400 MHz
Frequency Range2400 MHz to 2500 MHz, 4900 MHz to 5900 MHz
Impedance50 Ohms
Termination StyleSMD/SMT
Package / Case0805 (2012 metric)
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
PackagingReel
Insertion Loss0.7 dB, 1 dB
MountingSMD/SMT
Operating Temperature Range- 40 C to + 85 C
Factory Pack Quantity4000
TypeHigh Frequency Ceramic, Diplexer
Unit Weight0.000194 oz

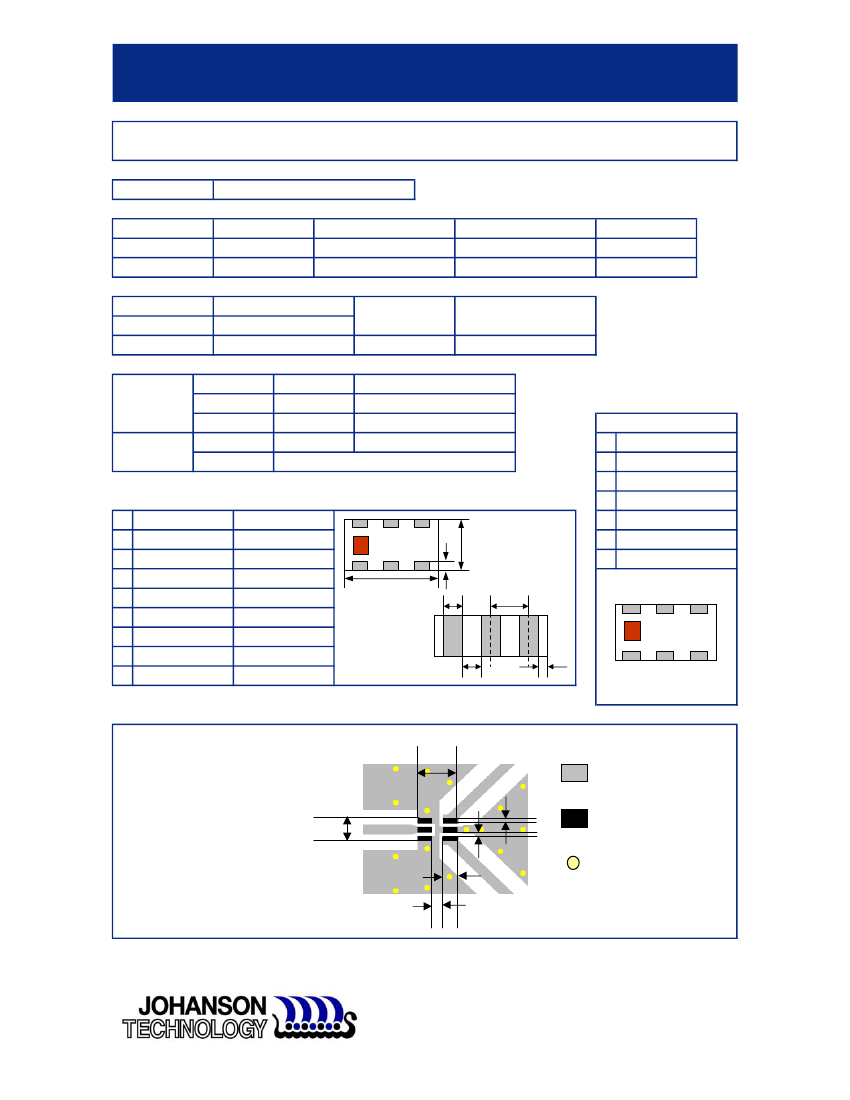

"High Frequency Ceramic Solutions"
2450 / 5400 MHz Diplexer
Detail Specification: 12/16/2011
General Specifications
Part Number
2450DP15H5400
P/N 2450DP15H5400
Page 1 of 2
Passband (MHz)
2400 - 2500
4900 - 5900
Insertion Loss
0.7 max
1.0 max
2 Watts max.
50
-40 to +85°C
Suffix = S
Suffix = E
Suffix = R
Suffix = None
Attenuation I
18 min @ 4.8 ~ 6.0 GHz
19 min @ 1.8 ~ 2.5 GHz
Attenuation II
18 min @ 7.2 ~ 7.5 GHz
25 ref. @ 10.3 ~ 10.7 GHz
Return Loss
9.5 min.
9.5 min.
Input Power
Impedance
Operating Temp
Bulk
Storage Temp
+5 ~ +35°C, Humidity:
45~75%RH, 18 mos. Max
4000
Reel Quanity
Eg. 5400BL15B200S
Eg. 5400BL15B200E
Eg. 5400BL15B200R
Eg. 5400BL15B200(E or S)
Packaging
Style*
Termination
Style
T&R
T & R
(Reverse)
100% Tin
Tin / Lead
Terminal Configuration
No.
1
2
3
Function
Higher Freq. Port (P1)
GND
Lower Freq. Port (P3)
GND
Common Port (P2)
GND
3
2
1
Please consult Factory
*
http://johansontechnology.com/en/integrated-passives/integrated-passive-tape-a-reel-packaging.html
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079 ± 0.004
0.049 ± 0.004
0.022 ± 0.004
0.012 ± 0.004
0.008 ± 0.004
0.012 +.004/-.008
0.014 ± 0.004
0.026 ± 0.002
mm
2.00 ± 0.10
1.25 ± 0.10
0.55 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.30
+0.1/-0.2
Unit : mm
4
c
W
5
6
L
a
p
T
g
b
4
5
6
0.35 ± 0.10
0.65 ± 0.05
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50
impedance matching characteristics.
Units: mm
2.80
*
0.35
Solder Resist
1.65
*
0.30
1.00
0.80
Land
Through-hole (
φ
0.35)
*

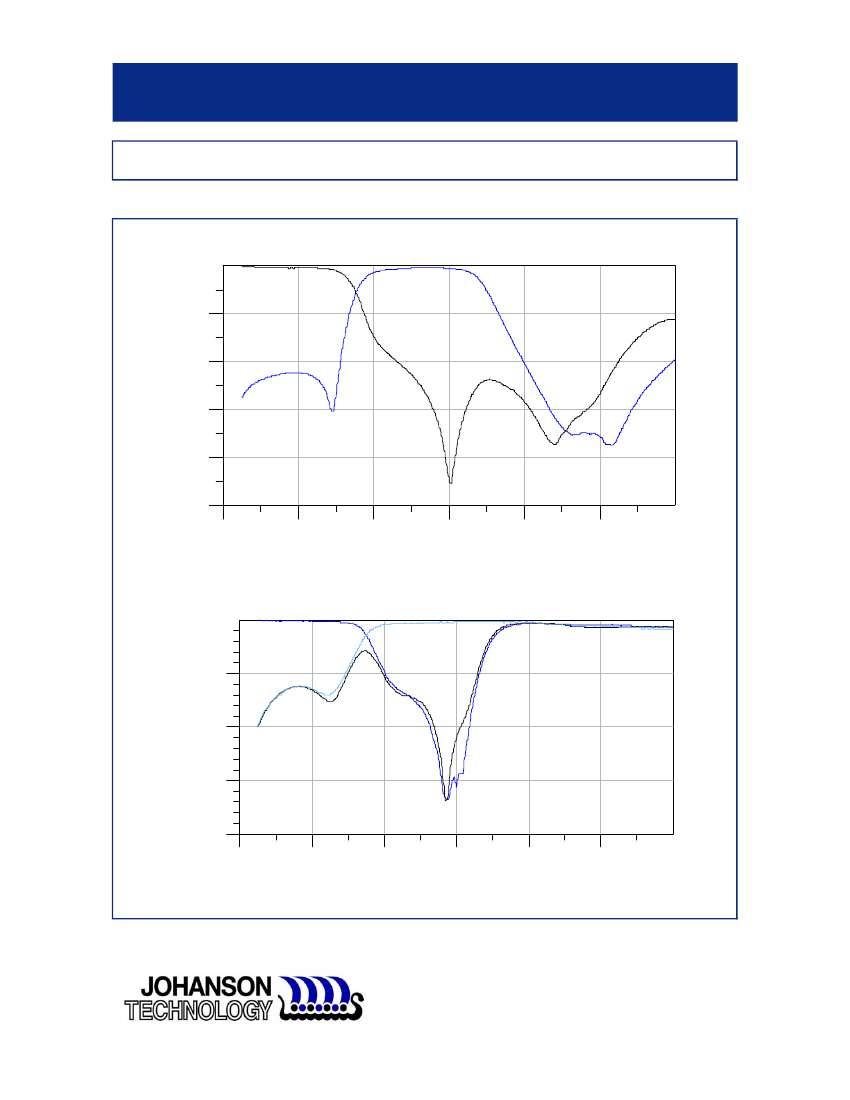

Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2011 Johanson Technology, Inc. All Rights Reserved
