H11A4TV-M

Description
NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,7.5KV ISOLATION,DIP
CategoryLED optoelectronic/LED    photoelectric
File Size609KB,15 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

H11A4TV-M Overview

NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,7.5KV ISOLATION,DIP

H11A4TV-M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFairchild
package instructionDIP-6
Reach Compliance Codecompli
Is SamacsysN
Other featuresUL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Mi30 V
ConfigurationSINGLE
Nominal current transfer ratio10%
Maximum dark power50 nA
Maximum forward current0.06 A
Maximum insulation voltage7500 V
JESD-609 codee3
Number of components1
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Optoelectronic device typesTRANSISTOR OUTPUT OPTOCOUPLER
Terminal surfaceMATTE TIN
Base Number Matches1

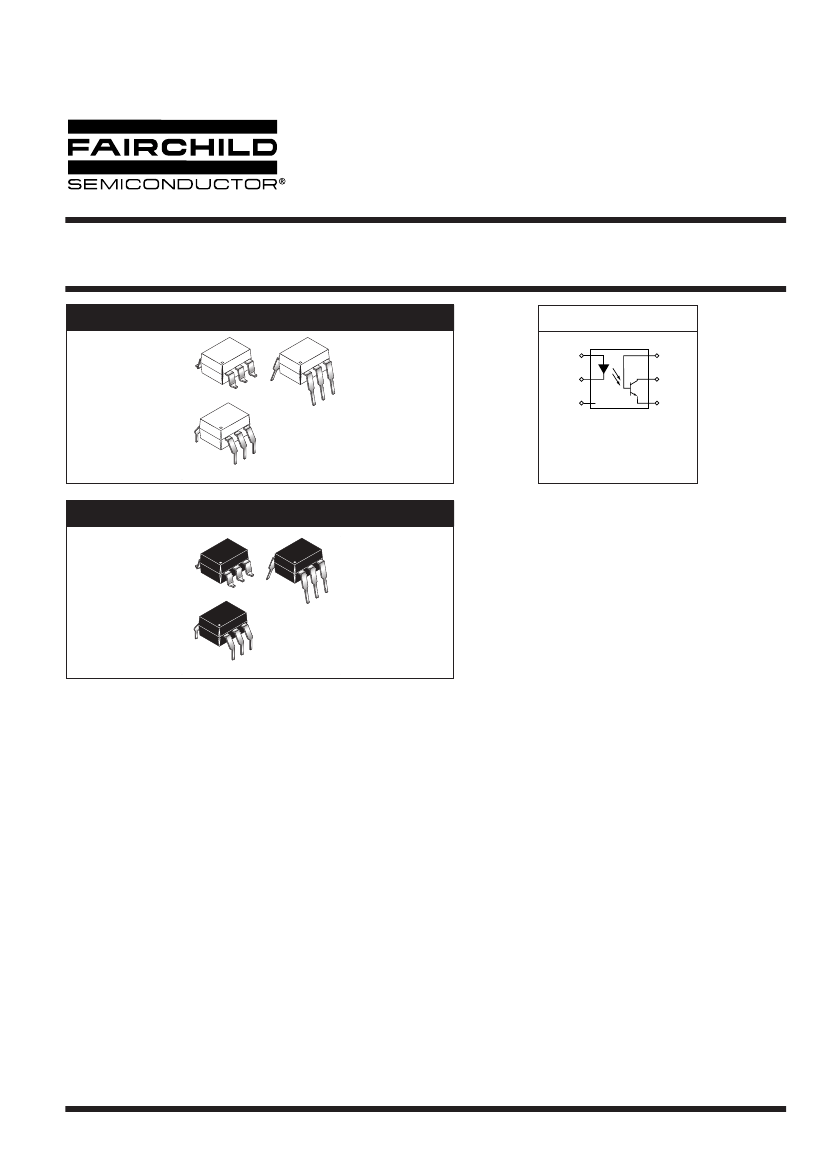

GENERAL PURPOSE 6-PIN
PHOTOTRANSISTOR OPTOCOUPLERS
4N25
4N37
4N26
H11A1
4N27
H11A2
4N28
H11A3
4N35
H11A4
SCHEMATIC
1
6
4N36
H11A5
WHITE PACKAGE (-M SUFFIX)
6
1
6
2
5
3
NC
4
1
6
1
PIN 1. ANODE
2. CATHODE
3. NO CONNECTION
4. EMITTER
5. COLLECTOR
6. BASE
BLACK PACKAGE (NO -M SUFFIX)
6
1
6
1
6
1
DESCRIPTION
The general purpose optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin
dual in-line package.
FEATURES
• Also available in white package by specifying -M suffix, eg. 4N25-M
• UL recognized (File # E90700)
• VDE recognized (File # 94766)
- Add option V for white package (e.g., 4N25V-M)
- Add option 300 for black package (e.g., 4N25.300)
APPLICATIONS
• Power supply regulators
• Digital logic inputs
• Microprocessor inputs
