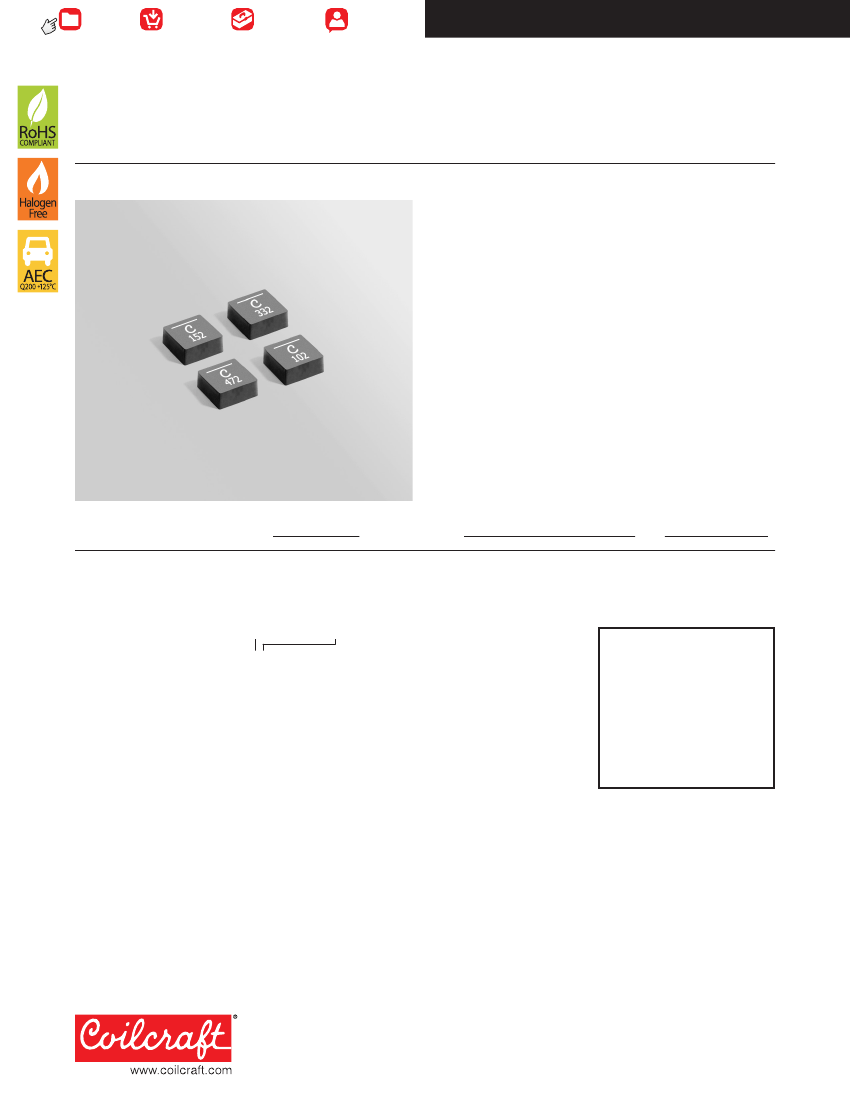

Document 745-1
Shielded Power Inductors – XFL4020
• Exceptionally low DCR – 10.8 mOhm
• Excellent current handling capability
Designer’s Kit C436
contains 5 each of all values
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Core material
Composite
Core and winding loss
See www.coilcraft.com/coreloss
Weight
162 – 169 mg
Ambient temperature
–40°C to +125°C with (40°C rise)
Irms
current.
Maximum part temperature
+165°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.23 mm thick, 8 mm pocket spacing, 2.3 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Inductance
2
±20% (µH)
1.0
1.5
2.2
3.3
4.7
DCR (mOhms)
3
typ
max
10.80
11.90
14.40
15.80
21.35
23.50
34.80
38.30
52.20
57.40
SRF typ
4
(MHz)
64
59
38
33
26
Isat
(A)
5
10% drop 20% drop
4.5
5.1
4.1
4.4
3.1
3.5
2.7
2.8
2.0
2.5
Irms
(A)
6
20°C rise 40°C rise
8.0
11.0
6.7
9.1
6.0
8.0
3.9
5.2
3.6
5.0
Part
XFL4020-102ME_
XFL4020-152ME_
XFL4020-222ME_
XFL4020-332ME_
XFL4020-472ME_
number
1
30% drop
5.4
4.6
3.7
2.9
2.7
1. When ordering, please specify
termination
and
packaging
codes:
XFL4020-472MEC
Termination: E
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready. To have a leader and trailer added
($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked
(3500 parts per full reel).
2. Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4395A or equivalent.
5. DC current at 25°C that causes the specified inductance drop from its value without current.
Click for temperature derating information.
6. Current that causes the specified temperature rise from 25°C ambient. This information is for reference only
and does not represent absolute maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Irms
Testing
Irms
testing was performed on
0.75 inch wide × 0.25 inch thick
copper traces in still air.
Temperature rise is highly
dependent on many factors
including pcb land pattern, trace
size, and proximity to other com-
ponents. Therefore temperature
rise should be verified in appli-
cation conditions.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 745-1
Revised 10/09/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
ERATURE
HIGH TEMP

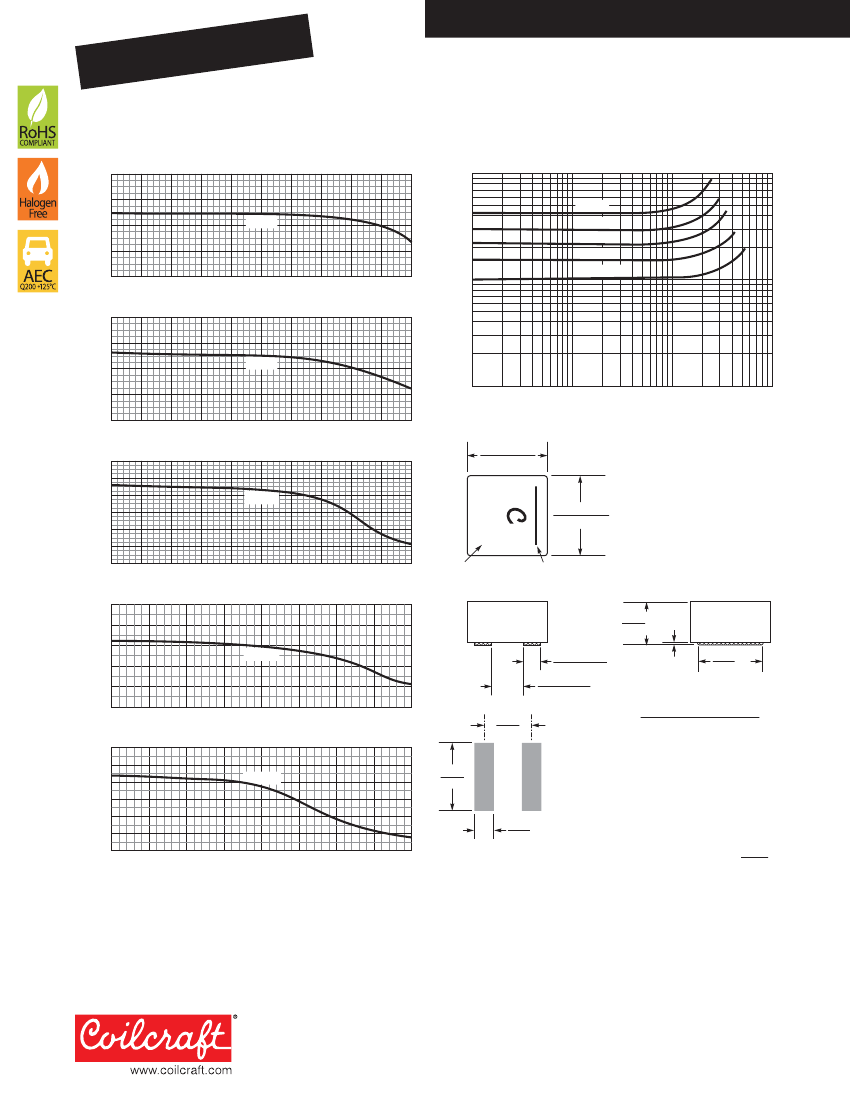

Shielded Power Inductors – XFL4020 Series
L vs Current
Inductance (µH)
1.6
1.2
0.8
0.4
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5 5.0
Document 745-2
L vs Frequency
10
4.7 µH
1.0 µH
Inductance (µH)
3.3 µH
2.2 µH
1.5 µH
1
1.0 µH
Current (A)
Inductance (µH)
2.4
1.8
1.2
0.6
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5 5.0
1.5 µH
0.1
0.1
1.0
10
100
Frequency (MHz)
Current (A)
0.157 ±0.012
4,0 ±0,3
Inductance (µH)
3.0
2.5
2.0
1.5
1.0
0.5
0
XXX
2.2 µH
0.157 ±0.012
4,0 ±0,3
0
0.5
1.0
1.5
2.0
Current (A)
2.5
3.0
3.5
4.0
4.5 5.0
Dash
number
Line indicates
alignment of
terminations
0.083
max *
2,10
Inductance (µH)
5.0
4.0
3.0
2.0
1.0
0
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
0.093
2,37
3.3 µH
0.032 ±0.002
0,82 ±0,05
0.062 ±0.010
1,57 ±0,25
See
table
0.128
typ
3,25
Terminal
thickness (typ)
(in / mm)
0.0039 / 0.10
0.0039 / 0.10
0.0032 / 0.08
0.0023 / 0.06
0.0023 / 0.06
Current (A)
Inductance (µH)
6.0
5.0
4.0
3.0
2.0
1.0
0
4.7 µH
0.134
3,4
Dash
number
-102
-152
-222
-332
-472
0
0.5
1.0
1.5
Current (A)
2.0
2.5
3.0
3.5
4.0
Recommended
Land Pattern
0.038
0,98
* For optional tin-lead and tin-silver-
copper terminations, dimensions are
for the mounted part. Dimensions
before mounting can be an
additional 0.005 inch / 0.13 mm.
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 745-2
Revised 10/09/17
© Coilcraft Inc. 2017
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
