Suppression Chokes
https://www.schurter.com /PG81_82
DKIH-3
Compensated High Current Choke, 3-phase
See below:
Approvals and Compliances

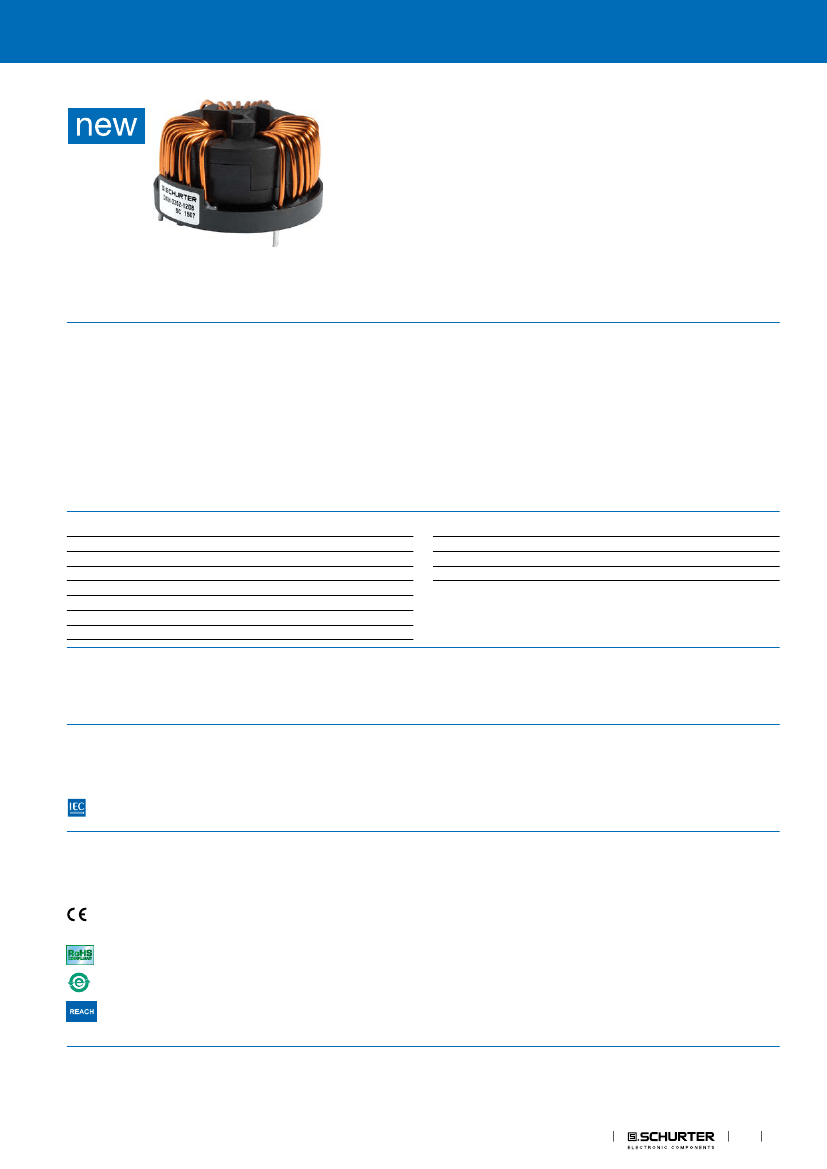

Description
-
-
-
-
-
Current compensated choke
3-phase choke
THT-terminals
Flange for mounting onto printed circuit board
Other versions on request:
-4 wire versions
-Customer specific pin outs
Compact size and light weight
Open design for optimal cooling
Nanocrystalline or ferrite ring cores
Customer specific pin outs available
Applications
-
-
-
-
Frequency converter
Charge stations
UPS-systems
Switching power supplies
References
Weblinks
Substitute for type
DKIL-3
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product
Unique Selling Proposition
-
-
-
-
Technical Data
Rated voltage
Rated Current
Rated inductance
Power Operating Frequency
Terminal Type
Weight
Material: Housing
max 600 VAC
10 - 50 A @ Ta 40 °C
0.08 - 10.8 mH, Tol. -30% +50%
0 - 400 Hz
THT
90 - 160 g
UL 94V-0
Test Voltage
Climatic Category
Allowable Operation Temp.
3740 VDC, 2 sec, winding to winding
40/100/21 acc. to IEC 60068-1
-40 °C to 100 °C
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

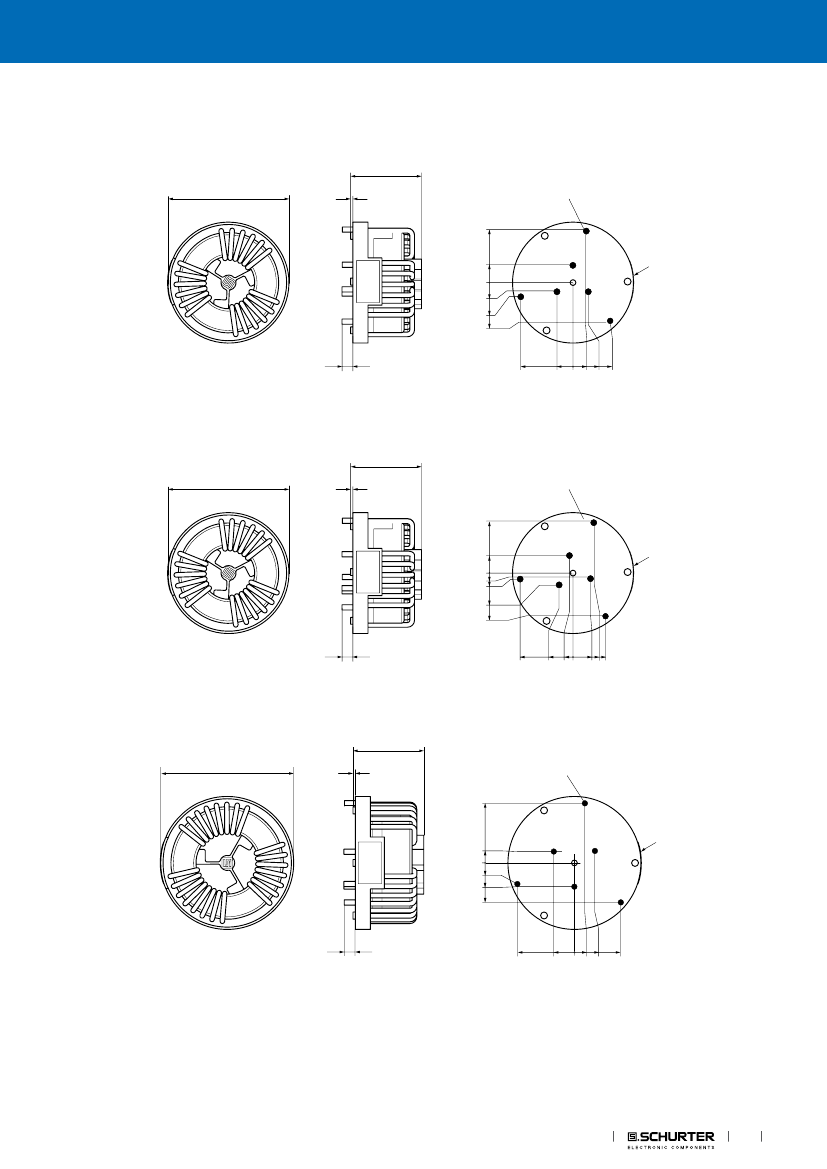

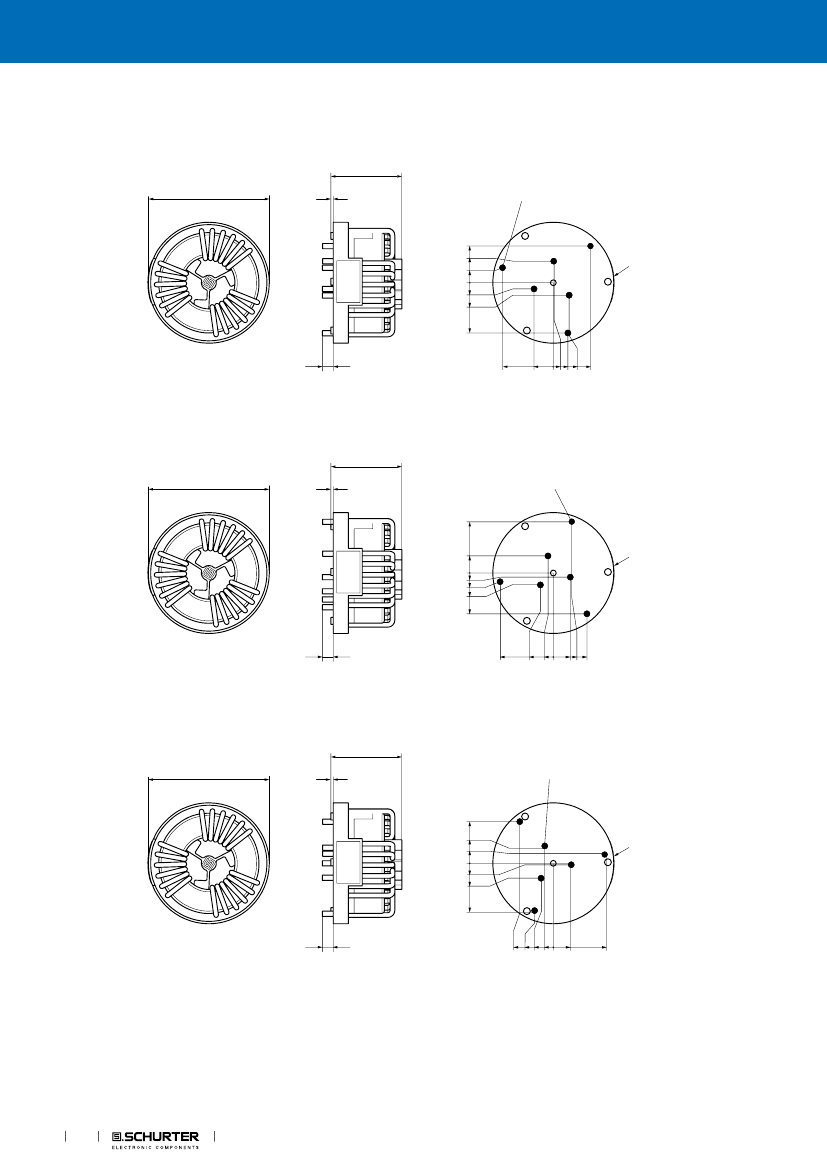

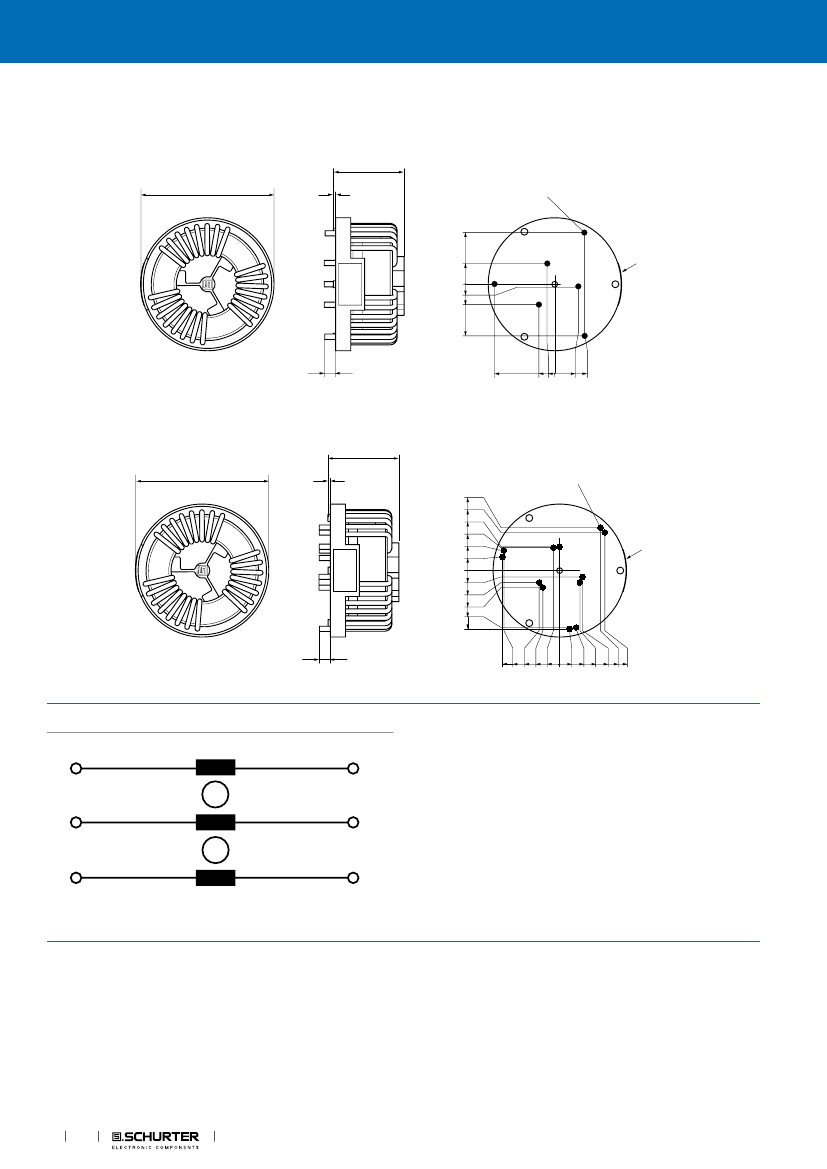

EMC Products
1
Suppression Chokes
https://www.schurter.com /PG81_82
DKIH-3

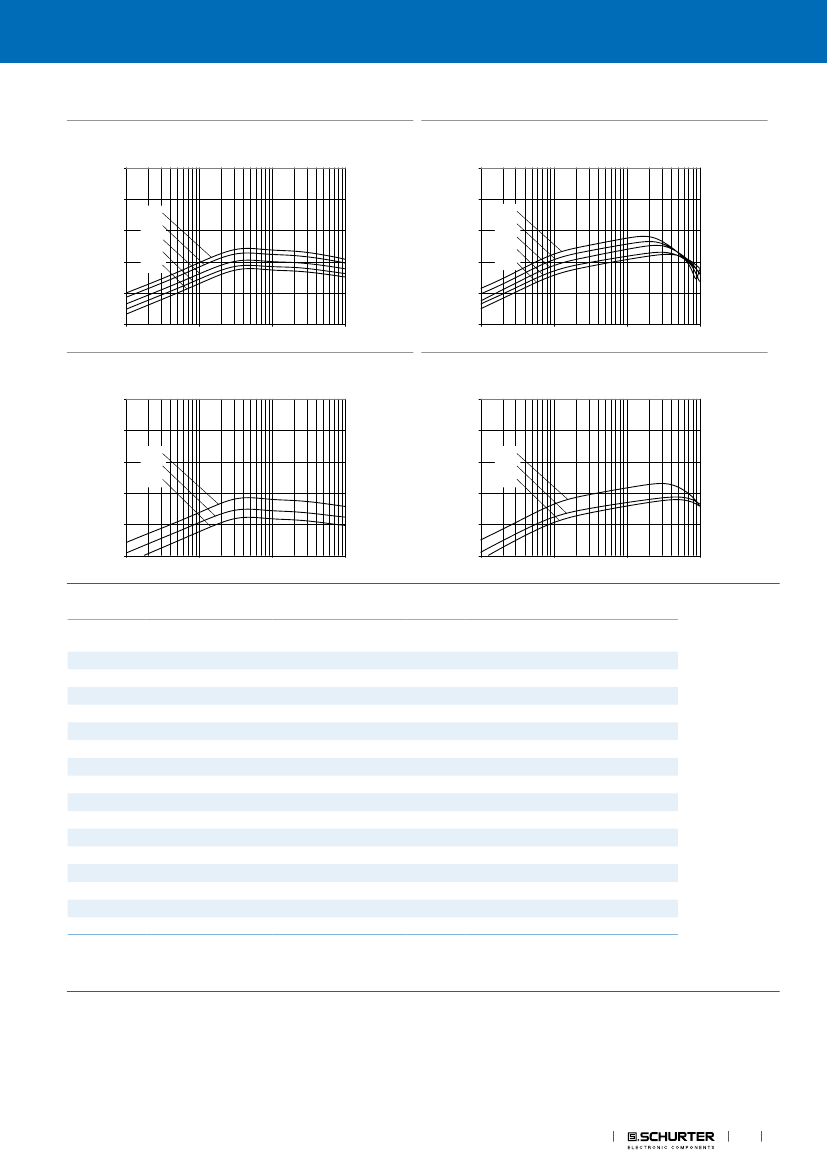

Impedance curves
DKIH-3352-xxxx
z [Ω]
1M
DKIH-3352-xxxx-NK
z [Ω]
1M
100k
10 A
10k
12 A
16 A
20 A
25 A
100k
10 A
10k
12 A
16 A
20 A
1k
25 A
1k
100
100
10
10k
100k
1M
10M f [Hz]
10
10k
100k
1M
10M f [Hz]
DKIH-3358-xxxx
z [Ω]
1M
DKIH-3358-xxxx-NK
z [Ω]
1M
100k
32 A
40 A
50 A
1k
100k
32 A
40 A
50 A
1k
10k
10k
100
100
10
10k
100k
1M
10M f [Hz]
10
10k
100k
1M
10M f [Hz]
All Variants
I
n
[A]
10
10
12
12
16
16
20
20
25
25
32
32
40
40
50
50
L
n
[mH]
1.1
10.8
0.75
7.2
0.46
4.4
0.35
3.1
0.24
2.2
0.33
2.6
0.15
1.1
0.08
0.7
R
cu
[mΩ]
7.5
7.5
4.5
4.5
3
3
1.5
1.5
1.2
1.2
1.1
1.1
0.6
0.6
0.4
0.4
Tripped Power Dissi-
pation [W]
2.3
2.3
1.9
1.9
2.3
2.3
1.8
1.8
2.3
2.3
3.4
3.4
2.9
2.9
3
3
f
RES
[MHz]
0.5
1.5
0.5
2
0.5
2.5
0.5
3
0.5
3.5
0.4
3
0.4
5
0.4
5
Copper ø
[mm]
1.25
1.25
1.5
1.5
1.8
1.8
2.24
2.24
2.24
2.24
2.8
2.8
3.15
3.15
2 x 2.5
2 x 2.5
Weight [g]
90 g
90 g
90 g
90 g
90 g
90 g
105 g
105 g
100 g
100 g
155 g
155 g
145 g
145 g
160 g
160 g
Housings
52-10
52-10
52-12
52-12
52-16
52-16
52-20
52-20
52-25
52-25
58-32
58-32
58-40
58-40
58-50
58-50
Packing unit [pcs.]
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Order Number
DKIH-3352-102J
DKIH-3352-1011-NK
DKIH-3352-12D8
DKIH-3352-120Q-NK
DKIH-3352-16D5
DKIH-3352-162N-NK
DKIH-3352-20D4
DKIH-3352-204L-NK
DKIH-3352-25D3
DKIH-3352-254K-NK
DKIH-3358-32D3
DKIH-3358-326K-NK
DKIH-3358-40D2
DKIH-3358-401J-NK
DKIH-3358-50C8
DKIH-3358-50D7-NK
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
09.07.2018
