Test terminal strip - UTWE 6-2/D19 - 3069418
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test terminal strip, VDE coded type D19, Connection method: Screw connection, Number of positions: 19,
Cross section: 0.2 mm² - 10 mm², AWG: 24 - 8, Width: 188.6 mm, Height: 56.5 mm, Color: gray, Mounting
type: Wall mounting
Why buy this product
Cost-effective, thanks to the tailored, modular design and use of standardized CLIPLINE complete accessories
Space saving, thanks to compact, modular test terminal strips
The integrated, robust switch contact is designed for the most stringent demands, and the use of high-quality materials ensures the
transmission of signal currents, even after multiple actuations
Maximum safety with leading and automatic transformer short circuit
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356943130
85369010
Made to Order (non-returnable)
1 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
19
1
38
19
6 mm²
gray
PA
V0
4 kV
III
11/15/2016 Page 1 / 6
https://www.phoenixcontact.com/hq/products/3069418
Test terminal strip - UTWE 6-2/D19 - 3069418
Technical data
General
Insulating material group
Maximum load current
Current I
th
Nominal voltage U
N
Open side panel
Terminal block mounting
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
I
30 A (with 10 mm² conductor cross section)
24 A
400 V AC/DC
No
0.8 Nm ... 1 Nm
Test passed
4.8 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.2 mm² / 0.2 kg
6 mm / 1.4 kg
10 mm² / 2 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of aging test
Ageing test for screwless modular terminal block temperature cycles
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test passed
0.2 mm²
10 N
6 mm²
80 N
10 mm²
90 N
Test passed
5N
Test passed
≤ 4.8 mV
Test passed
Test passed
4 mm²
300 A
4 mm²
500 A
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
11/15/2016 Page 2 / 6
2
https://www.phoenixcontact.com/hq/products/3069418
Test terminal strip - UTWE 6-2/D19 - 3069418
Technical data
General
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Service life test category 2, bogie mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
Length
Height
Plate thickness
Pitch
188.6 mm
100 mm
56.5 mm
1 mm ... 4 mm
8.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Screw connection
IEC 60947-7-1
0.2 mm²
11/15/2016 Page 3 / 6
https://www.phoenixcontact.com/hq/products/3069418
Test terminal strip - UTWE 6-2/D19 - 3069418
Technical data
Connection data
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
10 mm²
24
8
0.2 mm²
10 mm²
24
8
0.25 mm²
0.25 mm²
6 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.5 mm²
2.5 mm²
0.25 mm²
1.5 mm²
12 mm
A5
M4
1.5 Nm
1.8 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Assembly
Mounting type
Plate thickness
Min. tightening torque of the mounting screw:
Max. tightening torque of the mounting screw:
Wall mounting
1 mm ... 4 mm
0.8 Nm
1 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
11/15/2016 Page 4 / 6
https://www.phoenixcontact.com/hq/products/3069418
Test terminal strip - UTWE 6-2/D19 - 3069418

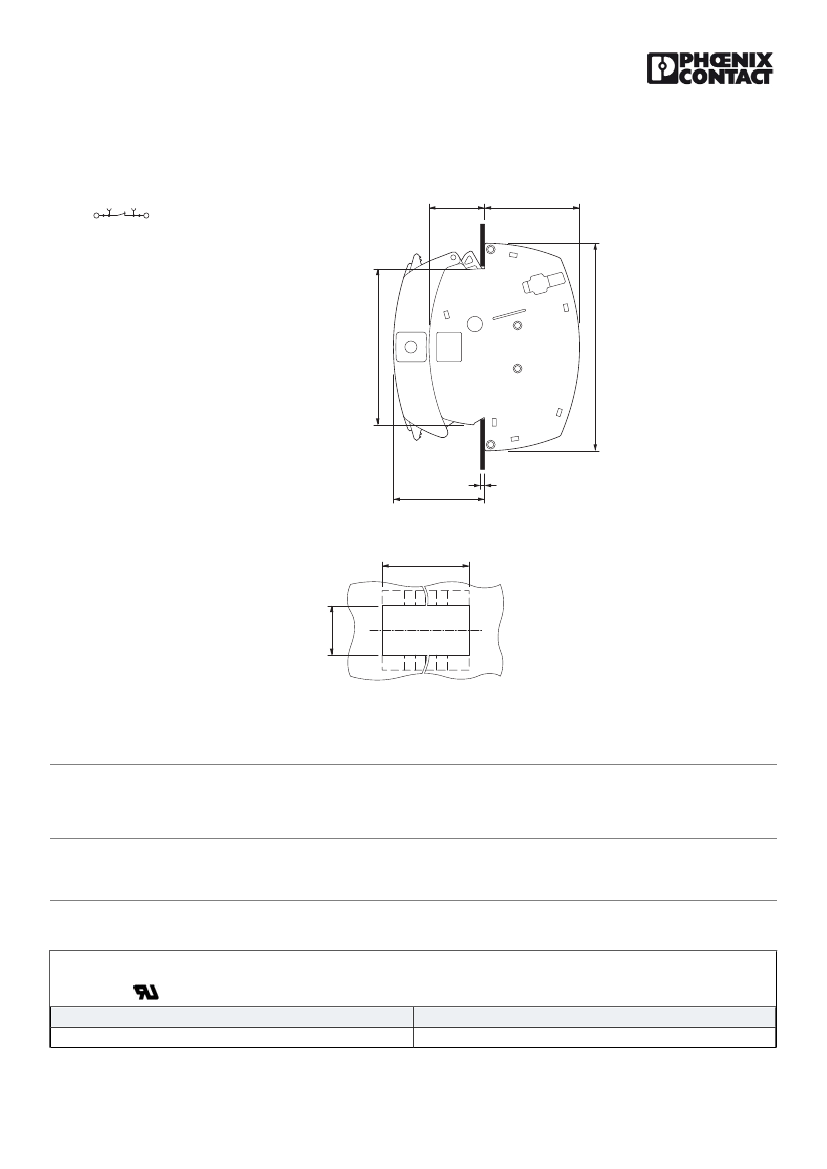

Circuit diagram
Dimensional drawing
22
34,5
61
35,7
1
4
Dimensional drawing
188,6
+0,5
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
D
24-8
11/15/2016 Page 5 / 6
62
+3
-1
81
