Part Number:
7798A

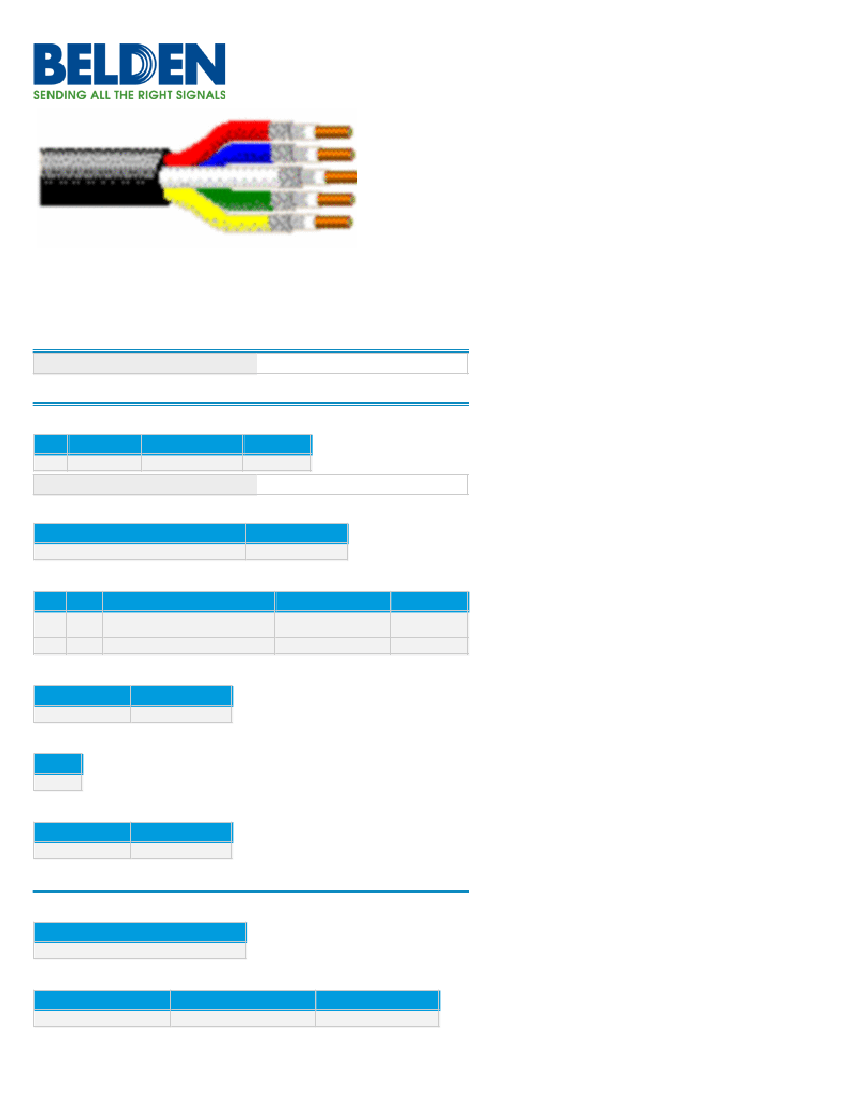

VideoFLEX® Snake, RG59, 10 Coax 20 AWG, Riser
Product Description
Digital Coax Snake Cable, RG59, 10 Coax 20 AWG, solid bare copper conductors, foam HDPE core, Duofoil® + 95% tinned copper braid, Riser, PVC jacket.
Technical Specifications
Product Overview
Environmental Space:
Physical Characteristics (Overall)
Conductor
AWG
20
Indoor/Outdoor
Material
Nominal Diameter No. of Coax
10
BC - Bare Copper 0.032 in
Total Number of Conductors:
Insulation
Material
10
Nominal Diameter
Gas-injected FHDPE - Foam High Density Polyethylene 0.145 in
Inner Shield Material
Type Layer
Tape
Braid
1
2
Material
Aluminum Foil-Polyester Tape-Aluminum
Foil
TC - Tinned Copper
Material Trade Name Coverage [%]
Duofoil®
100 %
95 %
Inner Jacket Material
Material
Nominal Diameter
PVC - Polyvinyl Chloride 0.233 in
Outer Shield Material
Material
Unshielded
Outer Jacket Material
Material
Nominal Diameter
PVC - Polyvinyl Chloride 1.166 in
Electrical Characteristics
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Conductor DCR
Nominal Conductor DCR Nominal Inner Shield DCR Outer Conductor DCR
10 Ohm/1000ft
3.8 Ohm/1000ft
3.8 Ohm/1000ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5 - 1600 MHz
1600 - 4500 MHz
4500 - 6000 MHz
23 dB
21 dB
15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz
3.6 MHz
10 MHz
71.5 MHz
135 MHz
270 MHz
360 MHz
540 MHz
720 MHz
750 MHz
1000 MHz
1500 MHz
2500 MHz
3000 MHz
4500 MHz
6000 MHz
0.3 dB/100ft
0.6 dB/100ft
0.9 dB/100ft
2.1 dB/100ft
2.7 dB/100ft
3.8 dB/100ft
4.4 dB/100ft
5.5 dB/100ft
6.4 dB/100ft
6.5 dB/100ft
7.6 dB/100ft
9.4 dB/100ft
12.4 dB/100ft
13.8 dB/100ft
18 dB/100ft
21.1 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.22 ns/ft
83 %
Inductance
Nominal Inductance
0.107 µH/ft
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Non-UL Temp Rating:
UL Temp Rating:
Operating Temp Range:
Mechanical Characteristics
Bulk Cable Weight:
Max Recommended Pulling Tension:
Min Bend Radius/Minor Axis:
Standards
NEC/(UL) Specification:
CEC/C(UL) Specification:
RG Type:
CMR
CMG
RG-59/U Type
555(lbs/1000ft)
720(lbs)
11.75(in)
75°C
60°C
-35°C To +75°C
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV):
EU Directive 2003/96/EC (BFR):
EU Directive 2011/65/EU (ROHS II):
EU Directive 2012/19/EU (WEEE):
EU Directive 2015/863/EU:
EU Directive Compliance:
EU CE Mark:
EU RoHS Compliance Date (yyyy-mm-dd):
CA Prop 65 (CJ for Wire & Cable):
MII Order #39 (China RoHS):
Suitability
Suitability - Indoor:
Suitability - Outdoor:
Flammability, LS0H, Toxicity Testing
UL Flammability:
Part Number
Plenum (Y/N):
Suggested Connectors:
© 2018 Belden, Inc
All Rights Reserved.
Yes
Yes
Yes
Yes
Yes
EU Directive 2003/11/EC (BFR)
Yes
2004-01-01
Yes
Yes
Yes
Yes
UL1666 Vertical Shaft
No
Kings 2065-2-9 75 Ohm BNC, each coax
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without
notice, and the listing of such information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "ASIS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages
(including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Belden believes this product to be incompliance with EU RoHS(Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the compliance date may be instock at Belden facilities and in our Distributor's
inventory. The information provided in this Product Disclosure, and the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden's knowledge,
information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide for the safe handling, storage, and any other operation of the product
itself or the one that it becomes a part of. This Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for
determining the applicability of legislation and regulations based on their individual usage of the product.
Belden declares this product to be incompliance with EU LVD (Low Voltage Directive 73/23/EEC), as amended by directive 93/68/EEC.
