BD6758MWV-E2

Description
Motor / Motion / Ignition Controllers u0026 Drivers 5ch System Lens Dr for Camera
CategoryOther integrated circuit (IC)    The signal circuit
File Size820KB,20 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

BD6758MWV-E2 Online Shopping

Suppliers Part Number Price MOQ In stock
BD6758MWV-E2 - - View Buy Now

BD6758MWV-E2 Overview

Motor / Motion / Ignition Controllers u0026 Drivers 5ch System Lens Dr for Camera

BD6758MWV-E2 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeQFN
package instruction5 X 5 MM, ROHS COMPLIANT, UQFN-36
Contacts36
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Analog Integrated Circuits - Other TypesSTEPPER MOTOR CONTROLLER
JESD-30 codeS-XQCC-N36
length5 mm
Number of functions1
Number of terminals36
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Maximum output current0.8 A
Package body materialUNSPECIFIED
encapsulated codeHVQCCN
Encapsulate equivalent codeLCC32,.2SQ,16
Package shapeSQUARE
Package formCHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3,5 V
Certification statusNot Qualified
Maximum seat height1 mm
Maximum supply current (Isup)2.5 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.5 V
Nominal supply voltage (Vsup)3 V
surface mountYES
Temperature levelOTHER
Terminal formNO LEAD
Terminal pitch0.4 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width5 mm
Base Number Matches1
Datasheet
Motor Drivers for Digital Still Cameras
5-Channel System Lens Driver
for Digital Still Cameras
BD6758MWV
BD6758KN
Key Specifications
Power Supply Voltage Range:
2.5V to 5.5V
Motor Power Supply Voltage Range: 2.5V to 5.5V
Circuit Current(No Signal & No Load): 1.4mA(Typ)
Stand-By Current:
10μA(Max)
Control Input Voltage Range:
0V to V
CC
V
H-Bridge Output Current:
-0.5A/ch to +0.5A/ch
Output ON-Resistance(Channel 1 to 4): 1.2Ω(Typ)
1.0Ω(Typ)
Output ON-Resistance(Channel 5):
Operating Temperature Range:
-25°C to +85°C
General Description
The BD6758MWV and BD6758KN are motor drivers
that integrate 4 Full-ON type H-Bridges and 1 Linear
Constant-Current type H-Bridge. These devices are
intended to drive a stepping motor for auto focus
system, and to drive DC motors for zoom and iris.
Features
Low ON-Resistance Power CMOS Output
Drive Mode Switch Function
High-Precision(±3%) Linear Constant-Current Driver
Phase Compensation Capacitor-Free Design
for Linear Constant-Current Drive Block
High-Precision (1.2V±3%) Reference Voltage
Under Voltage Locked Out Protection
& Thermal Shut Down Circuit

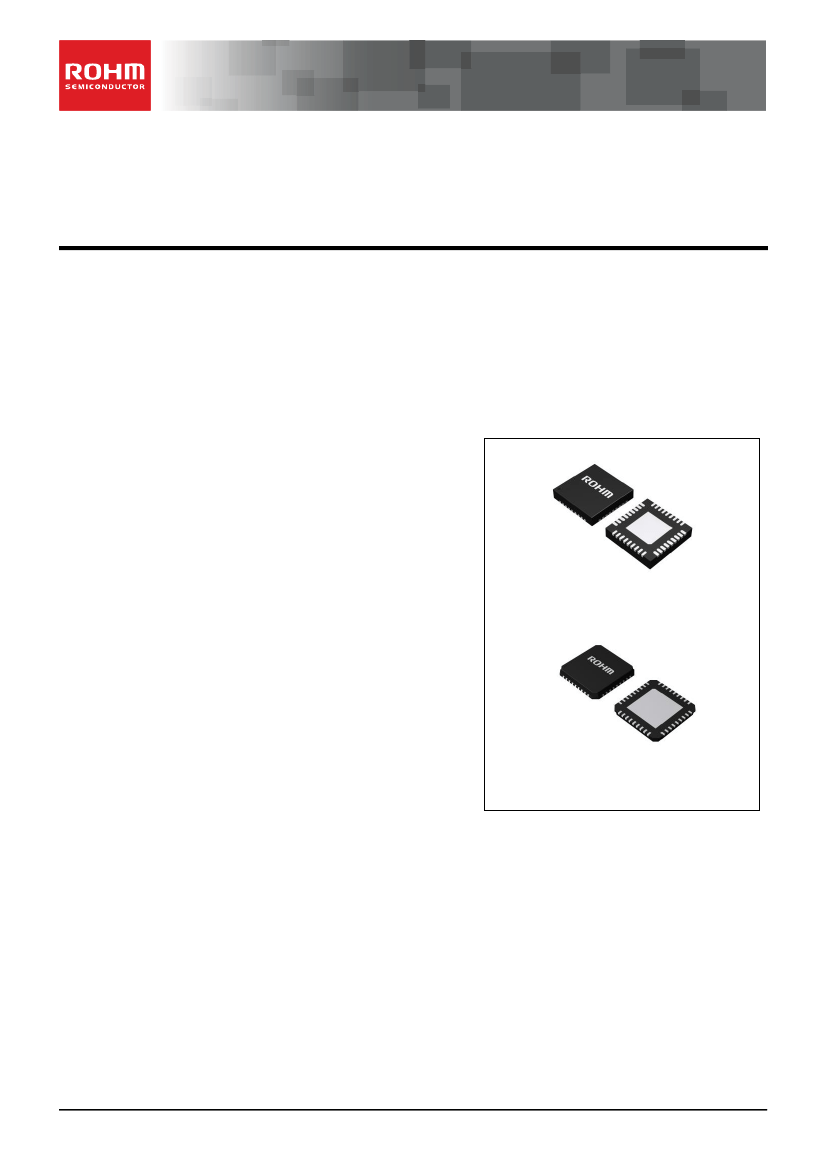

Package
W(Typ) x D(Typ) x H(Max)
Applications
Mobile system
Home appliance
Amusement system, etc
UQFN036V5050
5.00mm x 5.00mm x 1.00mm
VQFN36
6.20mm x 6.20mm x 0.95mm
○Product
structure:Silicon monolithic integrated circuit
.
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product has no designed protection against radioactive rays
1/16
TSZ02201-0H3H0B601360-1-2
09.Dec.2015 Rev.001
