HMC748LC3CTR

Description
Encoders, Decoders, Multiplexers u0026 Demultiplexers 13 Gbps Fast RT 1:2 Fanout Buff prog out
Categorysemiconductor    logic
File Size678KB,8 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Download user manual Parametric Compare View All

HMC748LC3CTR Online Shopping

Suppliers Part Number Price MOQ In stock
HMC748LC3CTR - - View Buy Now

HMC748LC3CTR Overview

Encoders, Decoders, Multiplexers u0026 Demultiplexers 13 Gbps Fast RT 1:2 Fanout Buff prog out

HMC748LC3CTR Parametric

Parameter NameAttribute value
Product CategoryEncoders, Decoders, Multiplexers & Demultiplexers
ManufacturerADI
RoHSDetails
PackagingReel
Factory Pack Quantity100
HMC748LC3C
v05.0514
14 Gbps, 2:1 SELECTOR w/ PROGRAMMABLE
OUTPUT VOLTAGE & POSITIVE SUPPLY
Typical Applications
The HMC748LC3C is ideal for:
Features
Supports High Data Rates: up to 14 Gbps
Single-ended inputs
Differential & Single-Ended Outputs
Fast Rise and Fall Times: 22 / 22 ps
Low Power Consumption: 250 mW typ.
Programmable Differential
Output Voltage Swing: 600 - 1200 mV
Propagation Delay: 125 ps
Single Supply: +3.3 V
16 Lead Ceramic 3x3 mm SMT Package: 9 mm
2
HIGH SPEED LOGIC - SMT
• 2:1 Multiplexer up to 14 Gbps
• RF ATE Applications
• Broadband Test & Measurement
• Serial Data Transmission up to 14 Gbps
• Redundant Path Switching
• Built-in Test

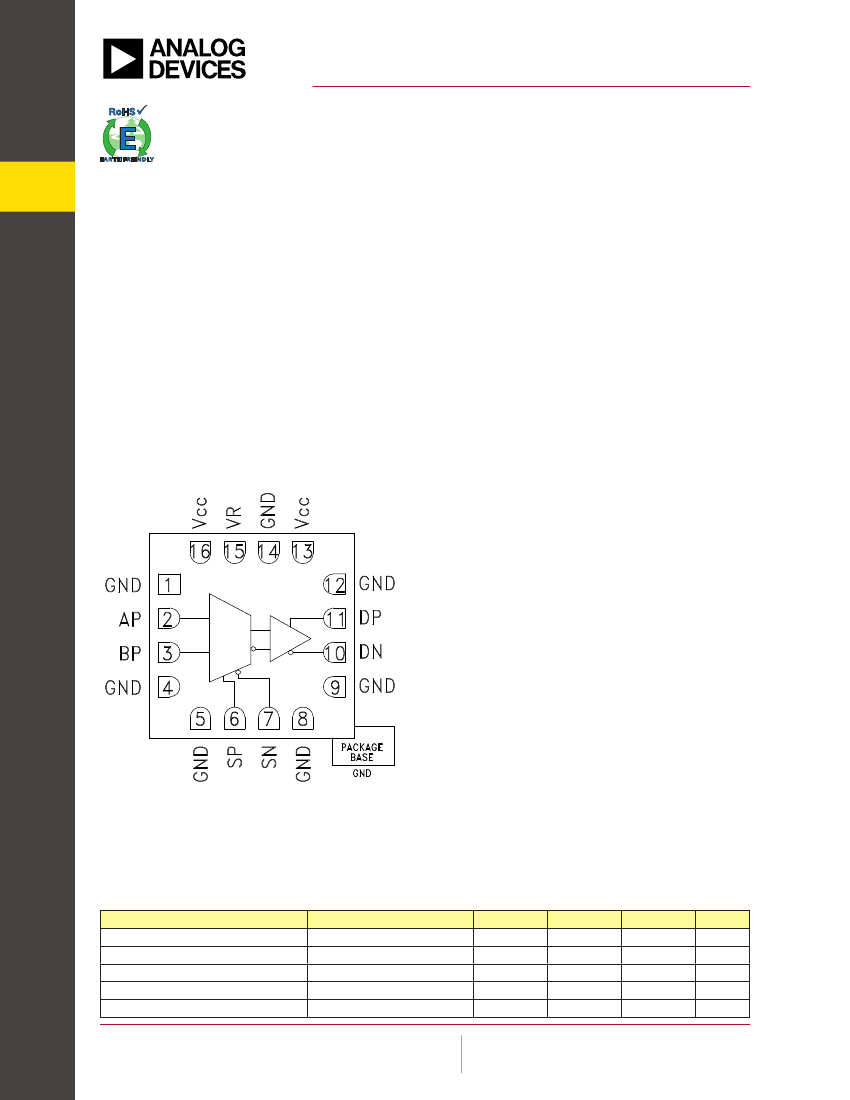

Functional Diagram
General Description
The HMC748LC3C is a 2:1 Selector designed to sup-
port data transmission rates of up to 14 Gbps, and
selector port operation of up to 14 GHz. The selector
routes one of the two single-ended inputs to the
differential output upon assertion of the proper select
port. The HMC748LC3C also features an output level
control pin, VR, that allows for loss compensation or
for signal level optimization.
All select differential inputs to the HMC748LC3C
are CML and terminated on-chip with 50 ohms to the
positive supply, Vcc, and may be AC or DC coupled.
The single-ended inputs to the HMC748LC3C are CML
terminated on-chip with 50 ohms to the positive supply,
GND, and may be DC coupled. The differential CML
outputs are source terminated to 50 ohms and may
also be AC or DC coupled. Outputs can be connected
directly to a 50 ohm Vcc terminated system, while DC
blocking capacitors may be used if the terminating
system is 50 ohms to ground. The HMC748LC3C
operates from a single + 3.3 V supply and is available
in ROHS-compliant 3x3 mm SMT package.

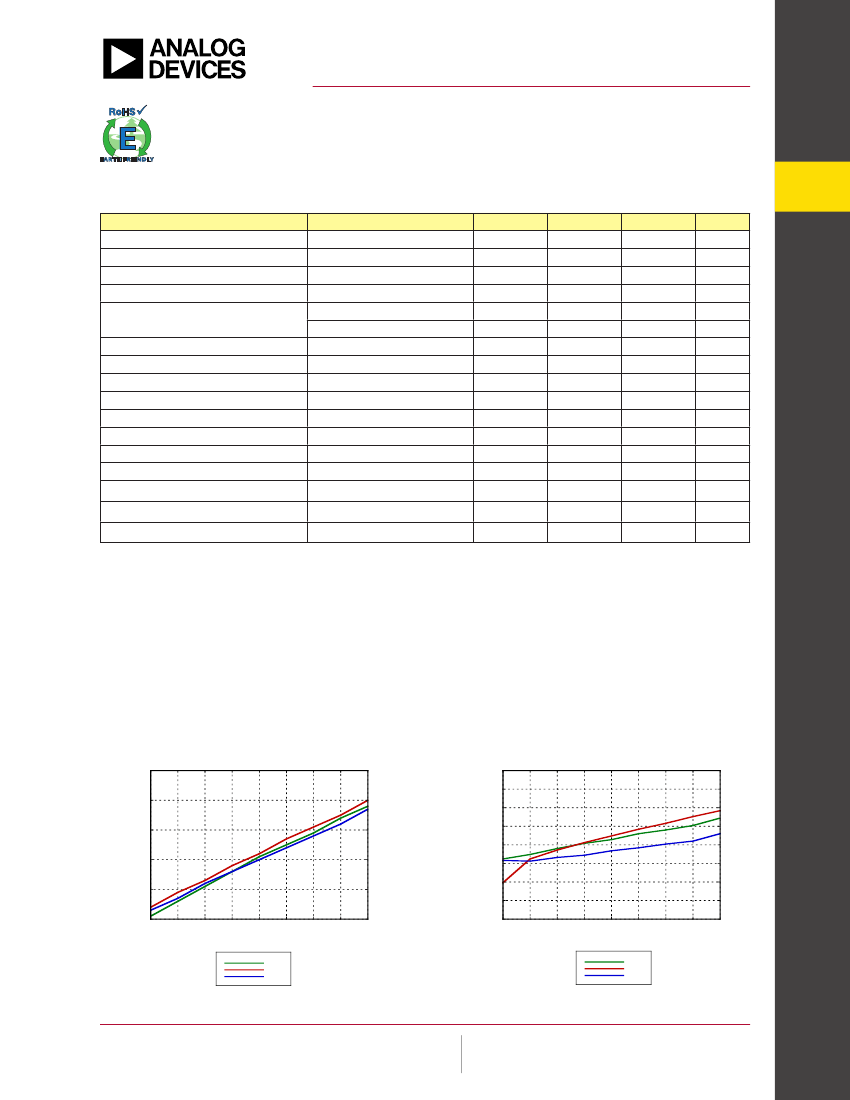

Electrical Specifications, T
A
= +25 °C,
Vcc = 3.3 V, VR = 3.3 V
Parameter
Power Supply Voltage
Power Supply Current
Maximum Data Rate
Maximum Select Rate
Maximum Serial Transmission Rate
Conditions
Min.
3.0
Typ.
3.3
76
14
14
26
Max
3.6
Units
V
mA
Gbps
GHz
Gbps
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery and to place orders: Hittite Microwave
other
For price, delivery, and to place orders: Analog Devices, Inc.,
Chelmsford, MA 01824
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or
Corporation, 2 Elizabeth Drive,
9106, Norwood, MA 02062-9106
One Technology Way, P.O. Box
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
