BYS10-45HE3-TR: DescriptionLDO Voltage Regulators 250mA Adj LDO 2%; Categorysemiconductor Discrete semiconductor; File Size79KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

BYS10-45HE3-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BYS10-45HE3-TR	-	-	View	Buy Now

BYS10-45HE3-TR Overview

LDO Voltage Regulators 250mA Adj LDO 2%

BYS10-45HE3-TR Parametric

Parameter Name	Attribute value
Product Category	Schottky Diodes & Rectifiers
Manufacturer	Vishay
RoHS	Details
Product	Schottky Diodes
Mounting Style	SMD/SMT
Package / Case	SMA (DO-214AC)
If - Forward Current	1.5 A
Vrrm - Repetitive Reverse Voltage	45 V
Vf - Forward Voltage	0.5 V
Ifsm - Forward Surge Current	40 A
Configuration	Single
Technology	Si
Ir - Reverse Current	500 uA
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Qualification	AEC-Q101
Packaging	Reel
Packaging	MouseReel
Packaging	Cut Tape
Height	2.09 mm
Length	4.5 mm
Operating Temperature Range	- 65 C to + 150 C
Factory Pack Quantity	1800
Type	Schottky Diode
Width	2.79 mm
Unit Weight	0.003739 oz

Preview

Download Datasheet

View All

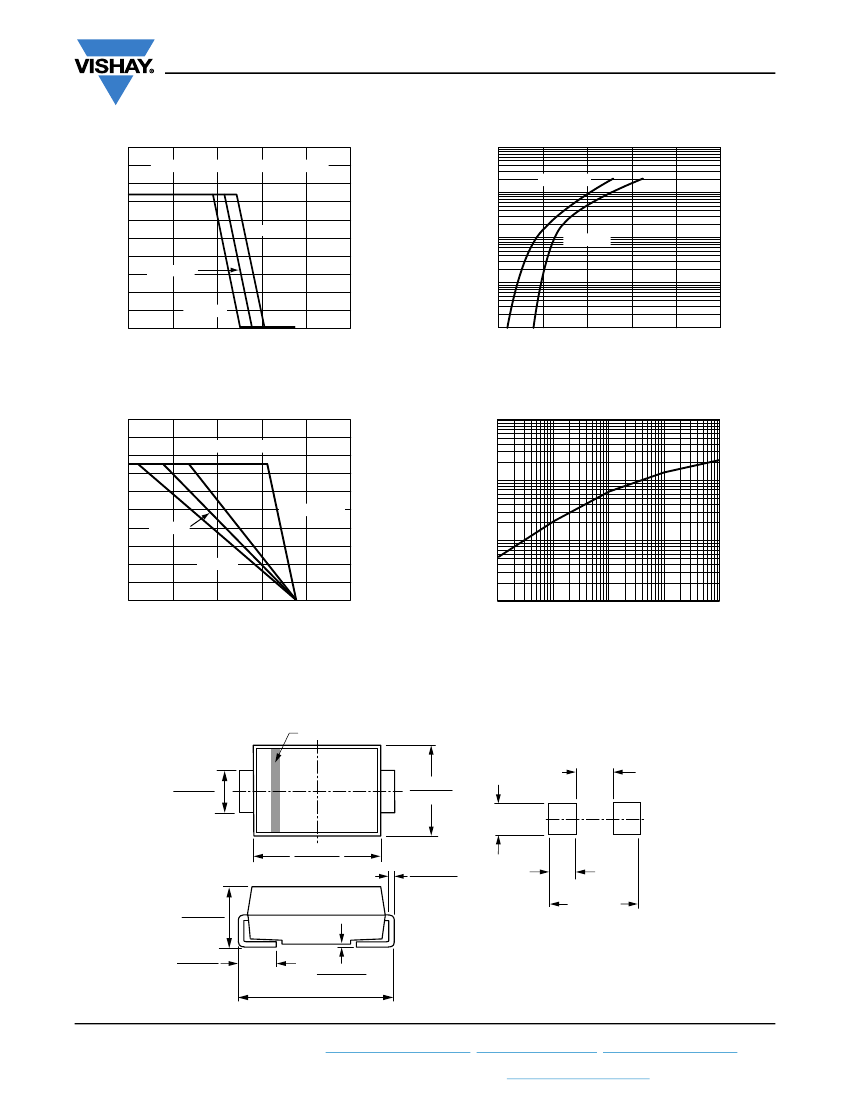

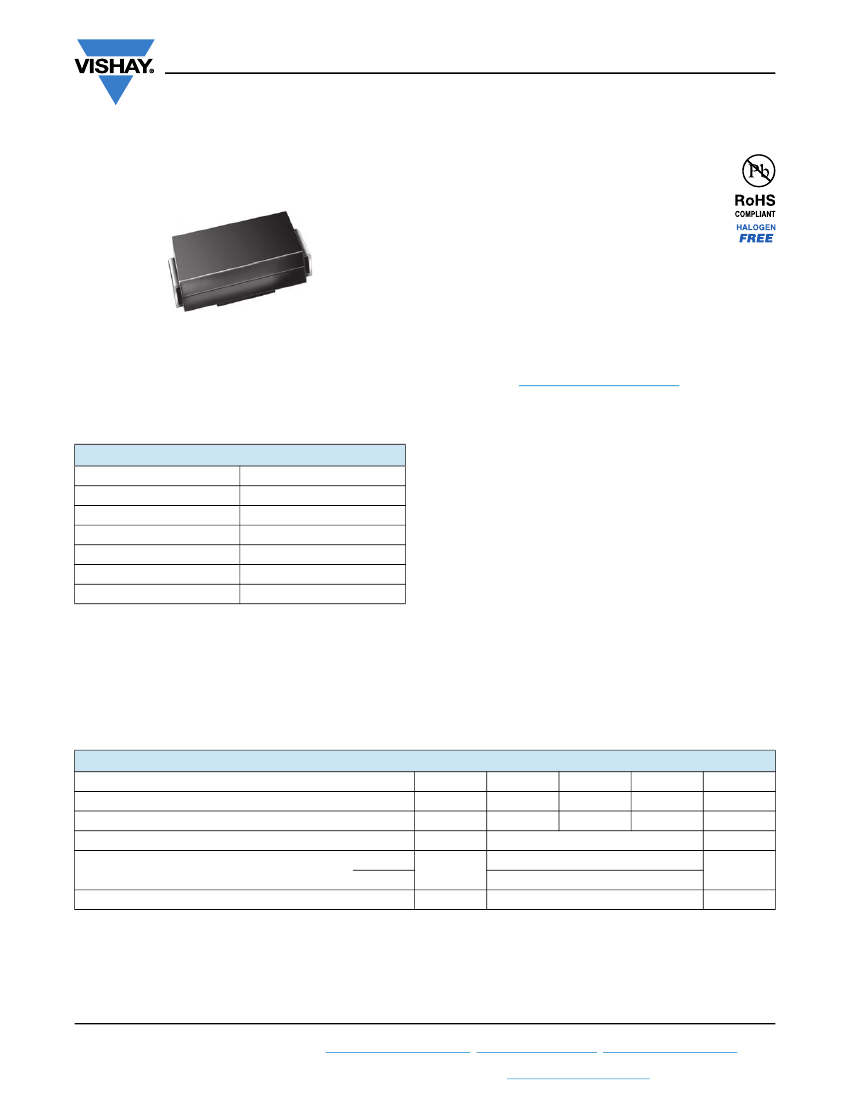

BYS10-25, BYS10-35, BYS10-45

www.vishay.com

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

Available

• Very low switching losses

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

SMA

(DO-214AC)

• AEC-Q101 qualified

- Automotive ordering code: base P/NHE3 or P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variations

1.5 A

25 V, 35 V, 45 V

40 A

0.50 V

150 °C

SMA (DO-214AC)

Single

For use in low voltage high frequency inverters,

freewheeling, DC/DC converters, and polarity protection

applications.

MECHANICAL DATA

Case:

SMA (DO-214AC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, commercial

grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“X” denotes revision code e.g. A, B, ......)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meets JESD 201 class 2

whisker test

Polarity:

color band denotes the cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current

Peak forward surge current single half sine-wave

superimposed on rated load

Junction and storage temperature range

8.3 ms

10 ms

RRM

F(AV)

FSM

, T

STG

SYMBOL

BYS10-25

BYS 025

BYS10-35

BYS 035

1.5

-65 to +150

BYS10-45

BYS 045

°C

UNIT

Revision: 21-Jul-17

Document Number: 86013
