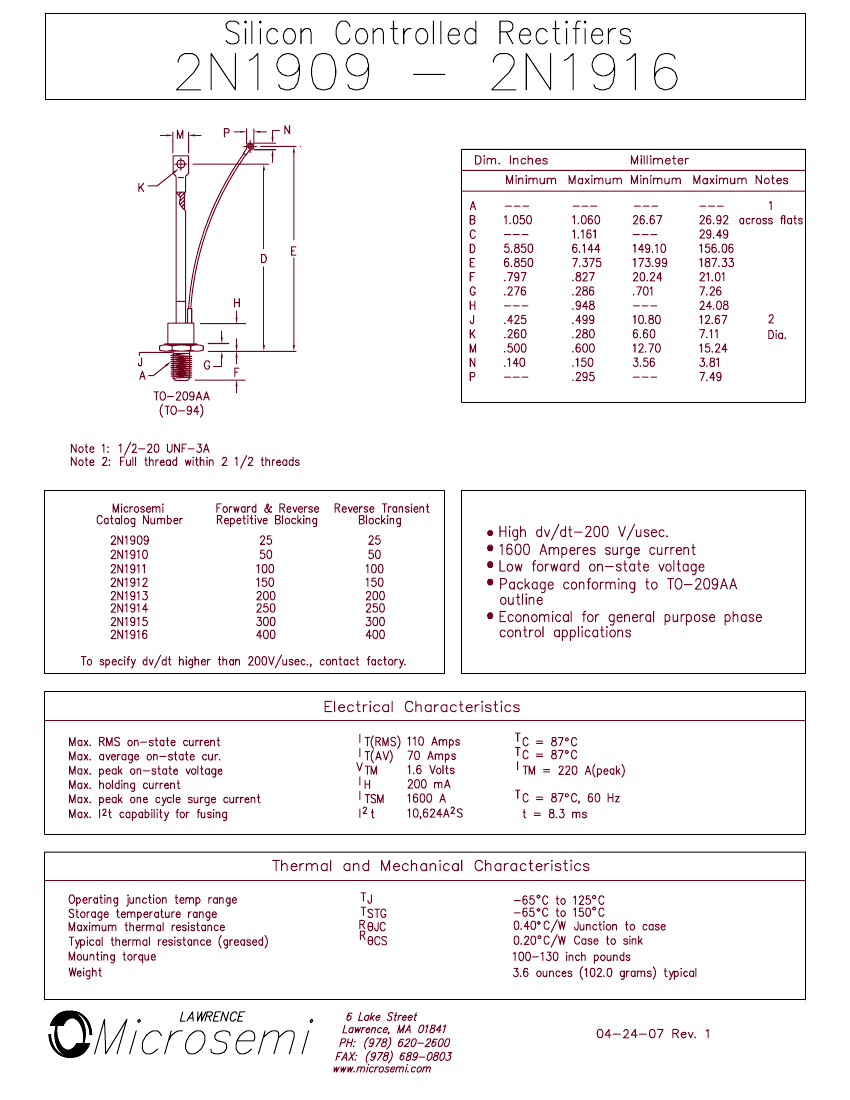

2N1916 datasheet, PDF - EEWORLD Datasheet

2N1916: DescriptionSCRs Silicon Controlled Rectifier; CategoryAnalog mixed-signal IC Trigger device; File Size153KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Related ProductsFound2parts with similar functions to 2N1916

Download Datasheet Parametric Compare View All

2N1916 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N1916	-	-	View	Buy Now

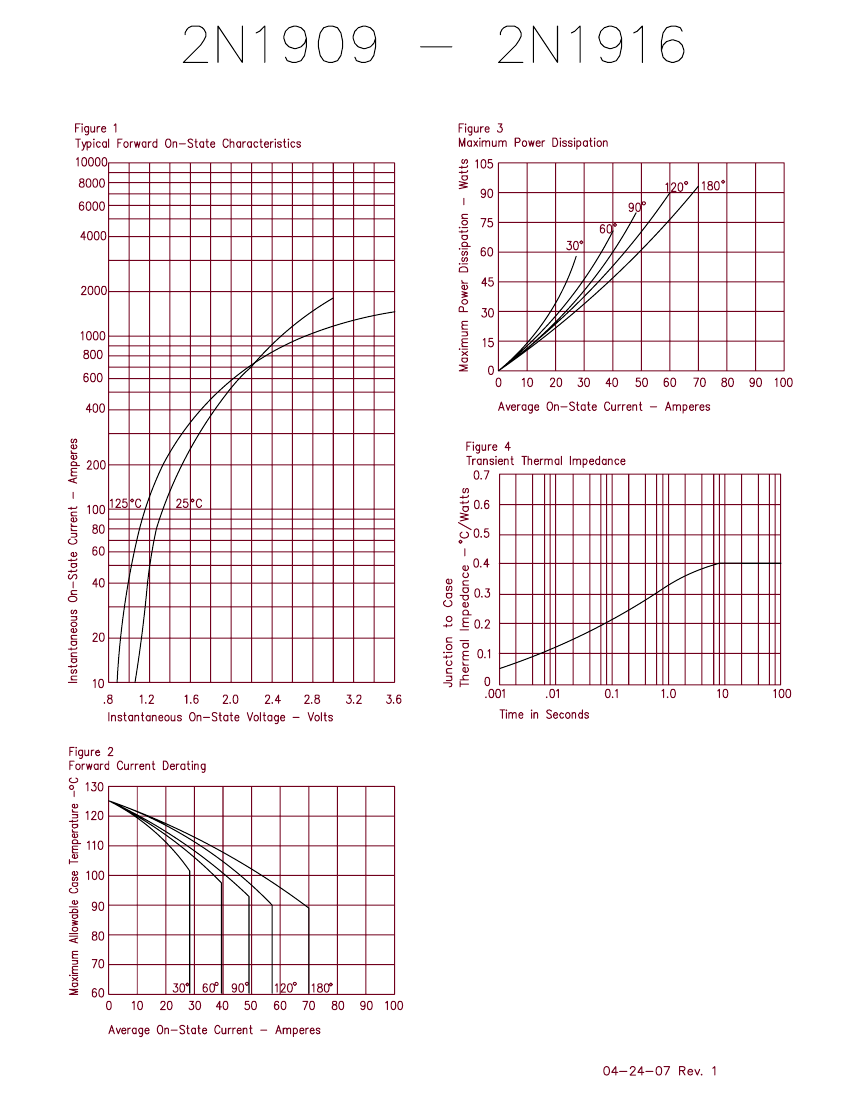

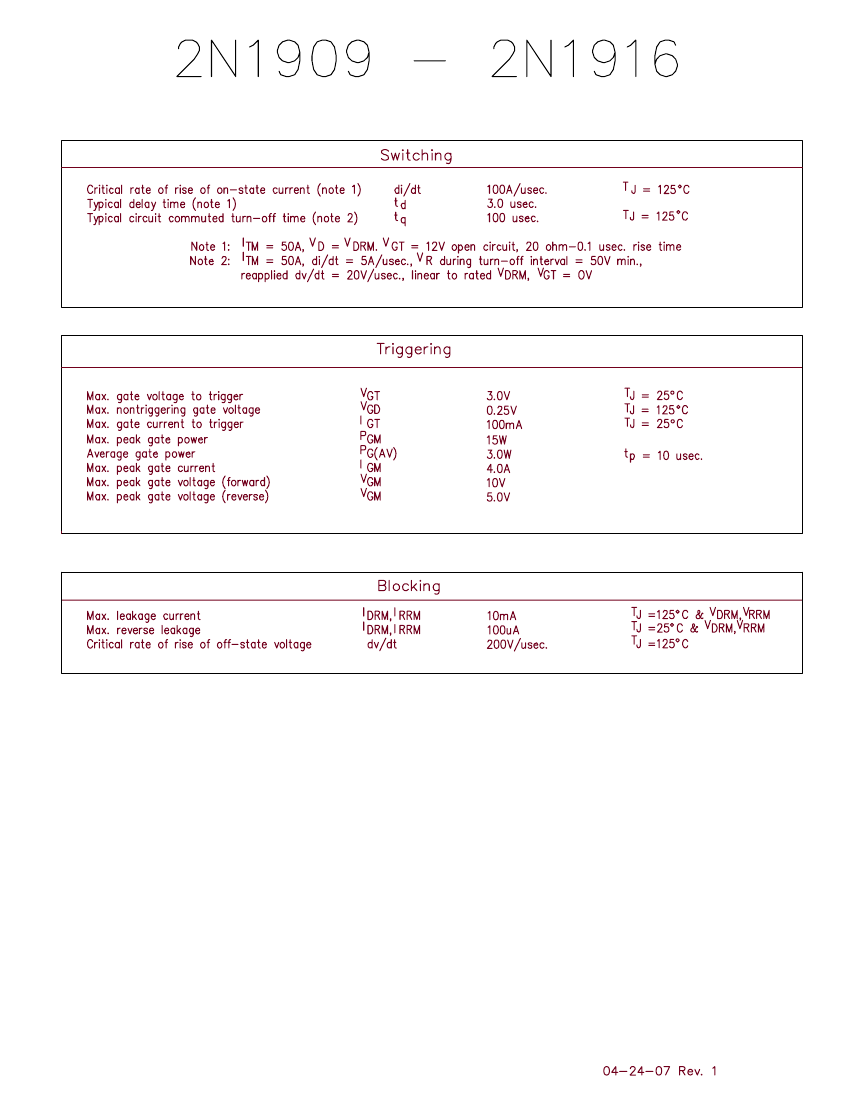

SCRs Silicon Controlled Rectifier

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Maximum DC gate trigger current	100 mA
JEDEC-95 code	TO-209AA
JESD-30 code	O-MUPM-H2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	110 A
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

	2N1916	GP5548-2641-CB101Q	2N1913
Description	SCRs Silicon Controlled Rectifier	Fixed Resistor, Metal Film, 0.25W, 2640ohm, 250V, 0.25% +/-Tol, 100ppm/Cel,	SCRs Silicon Controlled Rectifier
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
JESD-609 code	e0	e0	e0
Number of terminals	2	2	2
Maximum operating temperature	125 °C	160 °C	125 °C
Minimum operating temperature	-65 °C	-55 °C	-65 °C
Package shape	ROUND	TUBULAR PACKAGE	ROUND
Package form	POST/STUD MOUNT	Axial	POST/STUD MOUNT
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Is it lead-free?	Contains lead	-	Contains lead
Parts packaging code	TO-94	-	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H2	-	POST/STUD MOUNT, O-MUPM-H2
Contacts	3	-	3
Configuration	SINGLE	-	SINGLE
Maximum DC gate trigger current	100 mA	-	100 mA
JEDEC-95 code	TO-209AA	-	TO-209AA
JESD-30 code	O-MUPM-H2	-	O-MUPM-H2
Number of components	1	-	1
Package body material	METAL	-	METAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified
Maximum rms on-state current	110 A	-	110 A
Repeated peak reverse voltage	400 V	-	200 V
surface mount	NO	-	NO
Terminal form	HIGH CURRENT CABLE	-	HIGH CURRENT CABLE
Terminal location	UPPER	-	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
Trigger device type	SCR	-	SCR
Base Number Matches	1	-	1

Part Number	Manufacturer	Description
2N1916	POWEREX	110 A, 500 V, SCR
2N1916E3	Microsemi	Silicon Controlled Rectifier, 110A I(T)RMS, 400V V(RRM), 1 Element, TO-209AA, TO-94, 2 PIN
