DSC9A01
Silicon NPN epitaxial planar type
For low frequency amplification
DSC5A01 in SSMini3 type package
Features
High forward current transfer ratio h
FE
with excellent linearity
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

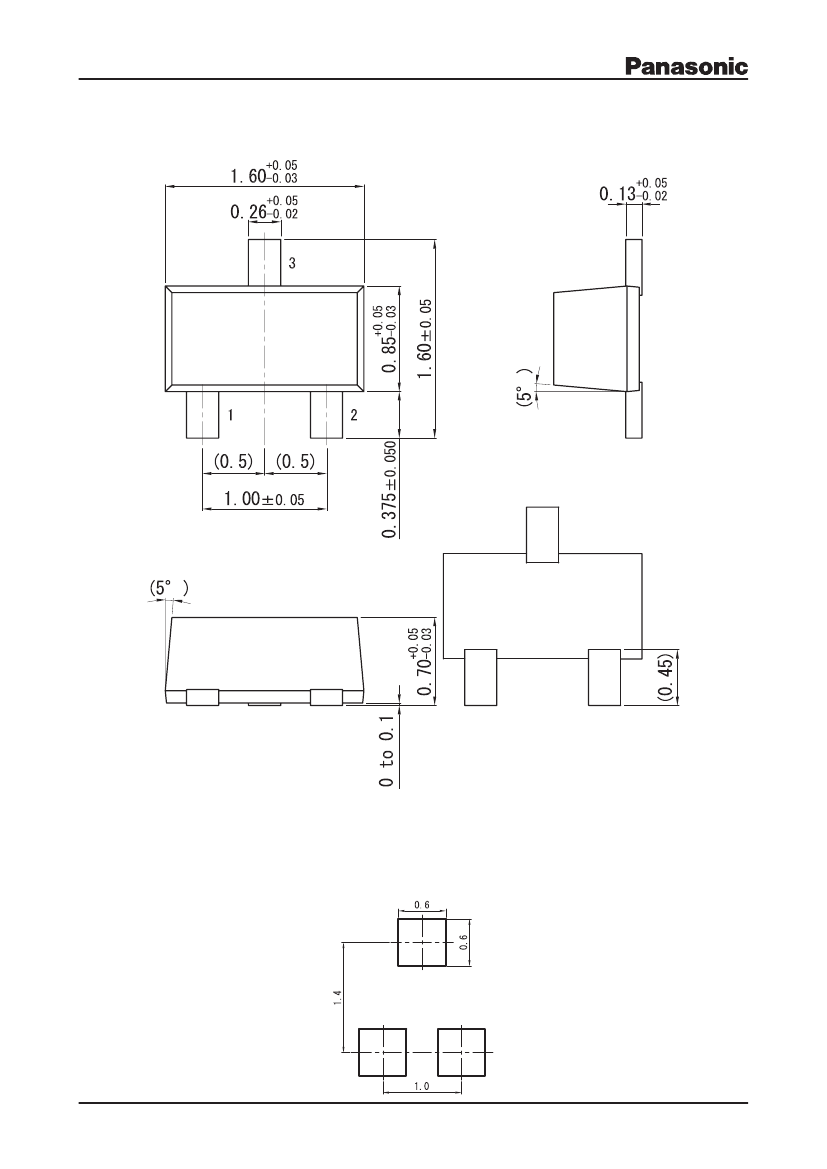

Unit: mm
Marking Symbol: C8
Packaging
DSC9A01×0L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Peak collector current
Collector power dissipation
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
opr
T
stg
Rating
50
40
15
50
100
125
150
–40 to +85
–55 to +150
Unit
V
V
V
mA
mA
mW
°C
°C
°C
1: Base
2: Emitter
3: Collector
Panasonic
JEITA
Code
SSMini3-F3-B
SC-89
SOT-490
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Forward current transfer ratio
*1
Collector-emitter saturation voltage
Transition frequency
Symbol
V
CBO
V
CEO
V
EBO
I
CBO
I
CEO
h
FE
V
CE(sat)
f
T
Conditions
I
C
= 10
mA,
I
E
= 0
I
C
= 1 mA, I
B
= 0
I
E
= 10
mA,
I
C
= 0
V
CB
= 20 V, I
E
= 0
V
CE
= 20 V, I
B
= 0
V
CE
= 10 V, I
C
= 2 mA
I
C
= 10 mA, I
B
= 1 mA
V
CE
= 10 V, I
C
= 2 mA
400
0.05
150
Min
50
40
15
0.1
1
2 000
0.20
Typ
Max
Unit
V
V
V
mA
mA
V
MHz
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *1: Rank classification
Code
Rank
h
FE
Marking Symbol
R
R
400 to 800
C8R
S
S
600 to 1 200
C8S
T
T
1 000 to 2 000
C8T
Publication date: February 2014
Ver. DED
