MC74LVXT4066DTR2 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74LVXT4066DTR2

MC74LVXT4066DTR2: DescriptionMultiplexer Switch ICs 2-6V ANLG Mux/Demux; CategoryAnalog mixed-signal IC The signal circuit; File Size193KB，13 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn; Environmental Compliance

Download Datasheet Parametric Compare View All

MC74LVXT4066DTR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC74LVXT4066DTR2	-	-	View	Buy Now

MC74LVXT4066DTR2 Overview

Multiplexer Switch ICs 2-6V ANLG Mux/Demux

MC74LVXT4066DTR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ON Semiconductor
Parts packaging code	TSSOP
package instruction	TSSOP, TSSOP14,.25
Contacts	14
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

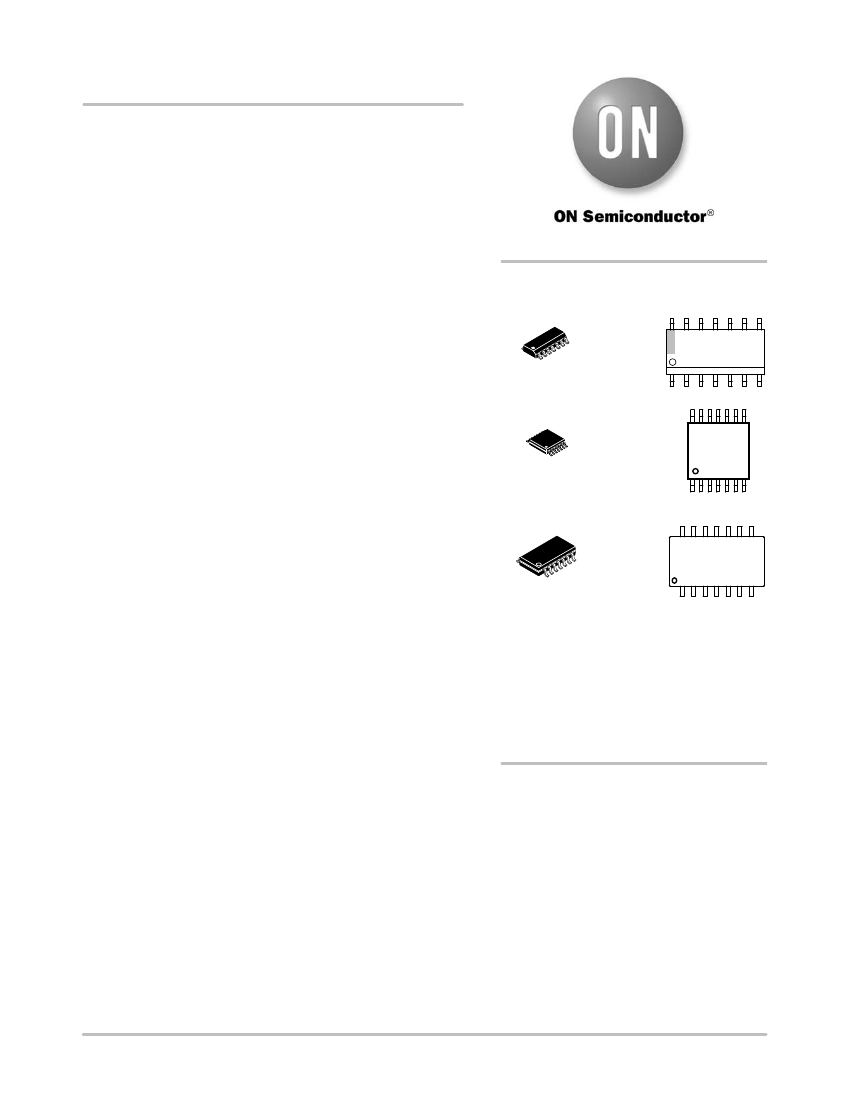

MC74LVXT4066

Quad Analog Switch/

Multiplexer/Demultiplexer

High−Performance Silicon−Gate CMOS

The MC74LVXT4066 utilizes silicon−gate CMOS technology to

achieve fast propagation delays, low ON resistances, and low

OFF−channel leakage current. This bilateral switch/multiplexer/

demultiplexer controls analog and digital voltages that may vary

across the full power−supply range (from V

to GND).

The LVXT4066 is identical in pinout to the metal−gate CMOS

MC14066 and the high−speed CMOS HC4066A. Each device has four

independent switches. The device has been designed so that the ON

resistances (R

) are much more linear over input voltage than R

of metal−gate CMOS analog switches.

The ON/OFF control inputs are compatible with standard LSTTL

outputs. The input protection circuitry on this device allows

overvoltage tolerance on the ON/OFF control inputs, allowing the

device to be used as a logic−level translator from 3.0 V CMOS logic to

5.0 V CMOS Logic or from 1.8 V CMOS logic to 3.0 V CMOS Logic

while operating at the higher−voltage power supply.

The MC74LVXT4066 input structure provides protection when

voltages up to 7.0 V are applied, regardless of the supply voltage. This

allows the MC74LVXT4066 to be used to interface 5.0 V circuits to

3.0 V circuits.

Features

http://onsemi.com

MARKING

DIAGRAMS

SOIC−14

D SUFFIX

CASE 751A

TSSOP−14

DT SUFFIX

CASE 948G

SOEIAJ−14

M SUFFIX

CASE 965

LVXT4066

WL, L

WW, W

G or

= Specific Device Code

= Assembly Location

= Wafer Lot

= Year

= Work Week

= Pb−Free Package

LVXT4066

ALYWG

LVXT

4066

ALYWG

LVXT4066G

AWLYWW

•

Fast Switching and Propagation Speeds

High ON/OFF Output Voltage Ratio

Low Crosstalk Between Switches

Diode Protection on All Inputs/Outputs

Wide Power−Supply Voltage Range (V

−

GND) = 2.0 to 6.0 V

Analog Input Voltage Range (V

−

GND) = 2.0 to 6.0 V

Improved Linearity and Lower ON Resistance over Input Voltage

than the MC14016 or MC14066

•

Low Noise

•

These Devices are Pb−Free and are RoHS Compliant

(Note: Microdot may be in either location)

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 2 of this data sheet.

Semiconductor Components Industries, LLC, 2011

May, 2011

−

Rev. 3

Publication Order Number:

MC74LVXT4066/D
