BR25S640FJ-WE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR25S640FJ-WE2

BR25S640FJ-WE2: DescriptionEEPROM SPI 64K BIT 8K X 8 1.8V/2.5V/3.3V/5V; Categorystorage storage; File Size674KB，35 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR25S640FJ-WE2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR25S640FJ-WE2	-	-	View	Buy Now

BR25S640FJ-WE2 Overview

EEPROM SPI 64K BIT 8K X 8 1.8V/2.5V/3.3V/5V

BR25S640FJ-WE2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	4.90 X 6 MM, 1.65 MM HEIGHT, ROHS COMPLIANT, SOP-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Maximum clock frequency (fCLK)	20 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	1.8/5 V
Certification status	Not Qualified
Maximum seat height	1.475 mm
Serial bus type	SPI
Maximum standby current	0.000002 A
Maximum slew rate	0.008 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE
Base Number Matches	1

Preview

Download Datasheet

View All

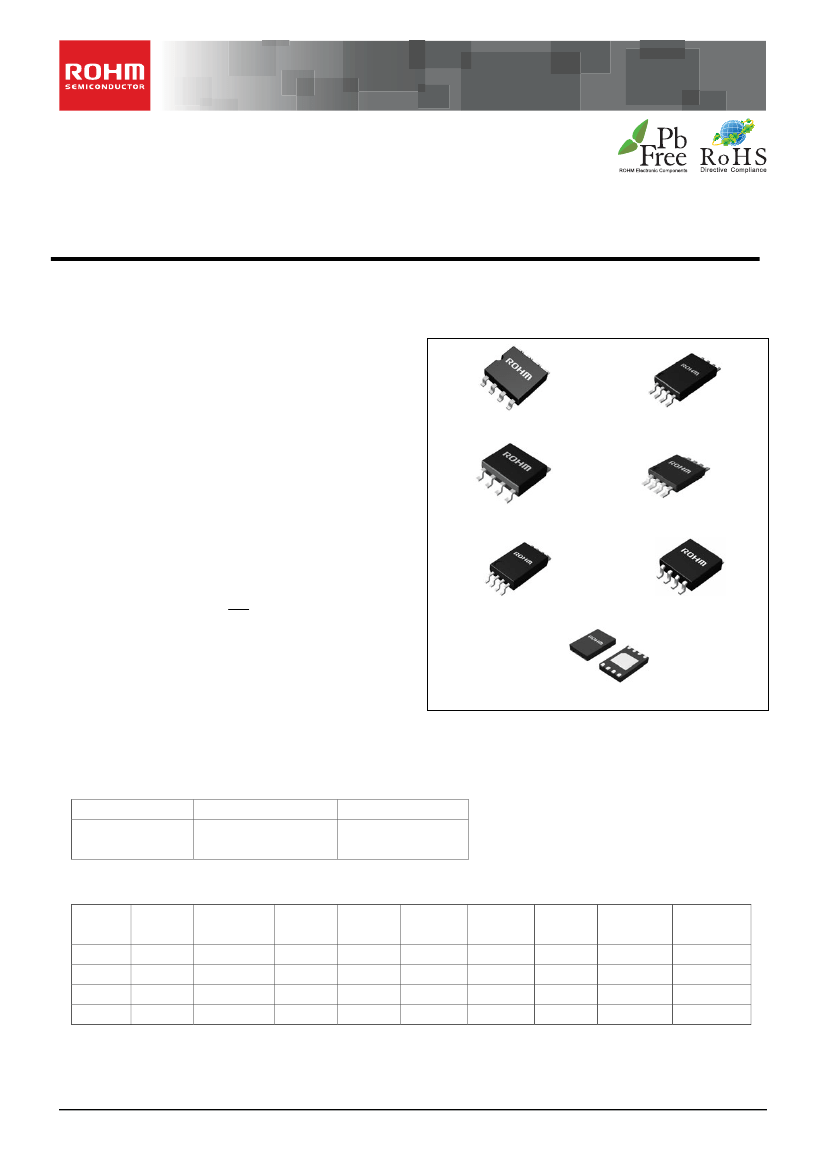

Datasheet

Serial EEPROM Series Standard EEPROM

SPI BUS EEPROM

BR25Sxxx-W Series

(32K 64K 128K 256K)

●General

Description

BR25Sxxx-W series is a serial EEPROM of SPI BUS interface method

●Features

High speed clock action up to 20MHz (Max.)

Wait function by HOLDB terminal

Part or whole of memory arrays settable as read only

memory area by program

1.7V to 5.5V single power source action most suitable

for battery use

Page write mode useful for initial value write at

factory shipment

Highly reliable connection by Au pad and Au wire

For SPI bus interface (CPOL, CPHA) = (0, 0), (1, 1)

Auto erase and auto end function at data rewrite

Low current consumption

At write action (5V)

: 1.5mA (Typ.)

At read action (5V)

: 1.0mA (Typ.)

At standby action (5V) : 0.1μA (Typ.)

Address auto increment function at read action

Write mistake prevention function

Write prohibition at power on

Write prohibition by command code (WRDI)

Write prohibition by WP pin

Write prohibition block setting by status registers

(BP1, BP0)

Write mistake prevention function at low voltage

Data kept for 40 years

Data rewrite up to 1,000,000 times

Data at shipment

Memory array: FFh

Status register: WPEN, BP1, BP0 : 0

●Packages

W(Typ.) x D(Typ.) x H(Max.)

SOP8

5.00mm x 6.20mm x 1.71mm

TSSOP-B8

3.00mm x 6.40mm x 1.20mm

SOP- J8

4.90mm x 6.00mm x 1.65mm

TSSOP-B8J

3.00mm x 4.90mm x 1.10mm

SSOP-B8

3.00mm x 6.40mm x 1.35mm

MSOP8

2.90mm x 4.00mm x 0.90mm

VSON008X2030

2.00mm x 3.00mm x 0.60mm

●Page

write

Page

Part Number

●BR25Sxxx-W

Series

Capacity Bit format

32Kbit

64Kbit

128Kbit

256Kbit

4K×8

8K×8

16K×8

32K×8

32Byte

BR25S320-W

BR25S640-W

64Byte

BR25S128-W

BR25S256-W

Power source

voltage

1.7V to 5.5V

SOP8

●

SOP-J8

●

SSOP-B8 TSSOP-B8 MSOP8

●

TSSOP-B8J

●

VSON008

X2030

●

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111½14½001

○This

product is not designed protection against radioactive rays

1/31

TSZ02201-0R2R0G100330-1-2

21.AUG.2012 Rev.001

BR25S640FJ-WE2 Related Products

	BR25S640FJ-WE2	BR25S320FVJ-WE2	BR25S640FVT-WE2	BR25S128FVT-WE2
Description	EEPROM SPI 64K BIT 8K X 8 1.8V/2.5V/3.3V/5V	EEPROM SPI 32K BIT 4K X 8 1.8V/2.5V/3.3V/5V	Operational Amplifiers - Op Amps Dual uPower Single Supply Rail-Rail	EEPROM SPI 128K BIT 16K X 8 1.8V/2.5V/3.3V/5V
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	4.90 X 6 MM, 1.65 MM HEIGHT, ROHS COMPLIANT, SOP-8	3 X 4.90 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, TSSOP-8	ROHS COMPLIANT, TSSOP-8	3 X 6.40 MM, 1.20 MM HEIGHT, ROHS COMPLIANT, TSSOP-8
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	16 weeks	16 weeks	16 weeks	16 weeks
Maximum clock frequency (fCLK)	20 MHz	20 MHz	20 MHz	20 MHz
Data retention time - minimum	40	40	40	40
Durability	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	S-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	3 mm	4.4 mm	4.4 mm
memory density	65536 bit	32768 bit	65536 bit	131072 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
word count	8192 words	4096 words	8192 words	16384 words
character code	8000	4000	8000	16000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	8KX8	4KX8	8KX8	16KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	TSSOP	TSSOP	TSSOP
Encapsulate equivalent code	SOP8,.25	TSSOP8,.19	TSSOP8,.25	TSSOP8,.25
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	1.8/5 V	1.8/5 V	1.8/5 V	1.8/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.475 mm	1.1 mm	1.2 mm	1.2 mm
Serial bus type	SPI	SPI	SPI	SPI
Maximum standby current	0.000002 A	0.000002 A	0.000002 A	0.000002 A
Maximum slew rate	0.008 mA	0.008 mA	0.008 mA	0.008 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.7 V	1.7 V	1.7 V	1.7 V
Nominal supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	3 mm	3 mm	3 mm
Maximum write cycle time (tWC)	5 ms	5 ms	5 ms	5 ms
write protect	HARDWARE	HARDWARE	HARDWARE	HARDWARE
Base Number Matches	1	-	1	1
