DSP56303AG100B1 datasheet, PDF

Datasheet> All Categories > semiconductor> The embedded processor and controller> DSP56303AG100B1

DSP56303AG100B1: DescriptionDigital Signal Processors u0026 Controllers - DSP, DSC 24 BIT DSP PB FREE; Categorysemiconductor The embedded processor and controller; File Size1MB，108 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

DSP56303AG100B1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DSP56303AG100B1	-	-	View	Buy Now

DSP56303AG100B1 Overview

Digital Signal Processors u0026 Controllers - DSP, DSC 24 BIT DSP PB FREE

DSP56303AG100B1 Parametric

Parameter Name	Attribute value
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Manufacturer	NXP
Mounting Style	SMD/SMT
Package / Case	LQFP-144
Product	DSPs
Core	56300
Maximum Clock Frequency	100 MHz
Data RAM Size	24 kB
Operating Supply Voltage	3.3 V
Maximum Operating Temperature	+ 100 C
Data Bus Width	24 bit
Instruction Type	Fixed Point
Minimum Operating Temperature	- 40 C
Unit Weight	0.046530 oz

Preview

Download Datasheet

View All

Freescale Semiconductor

Technical Data

DSP56303

Rev. 11, 2/2005

DSP56303

24-Bit Digital Signal Processor

Memory Expansion Area

Triple

Timer

HI08

ESSI

SCI

PrograM

RAM

4096

bits

(default)

PM_EB

X Data

RAM

2048

bits

(default)

XM_EB

Y Data

RAM

2048

bits

(default)

YM_EB

Peripheral

Expansion Area

Address

Generation

Unit

Six-Channel

DMA Unit

Bootstrap

ROM

YAB

XAB

PAB

DAB

24-Bit

External

Address

Bus

Address

Switch

External

Bus

Interface

and Inst.

Cache Control

Control

External

Data Bus

Switch

The DSP56303 is intended

for use in telecommunication

applications, such as multi-

line voice/data/ fax

processing, video

conferencing, audio

applications, control, and

general digital signal

processing.

PIO_EB

DSP56300

Core

DDB

YDB

XDB

PDB

GDB

Internal

Data

Bus

Switch

EXTAL

XTAL

Clock

Generator

PLL

RESET

PINIT/NMI

Program

Interrupt

Controller

Program

Decode

Controller

MODA/IRQA

MODB/IRQB

MODC/IRQC

MODD/IRQD

Program

Address

Generator

What’s New?

Data

Rev. 11 includes the following

changes:

•

Adds lead-free packaging and

part numbers.

24 + 56

→

56-bit MAC

Two 56-bit Accumulators

56-bit Barrel Shifter

Data ALU

Power

Management

JTAG

OnCE™

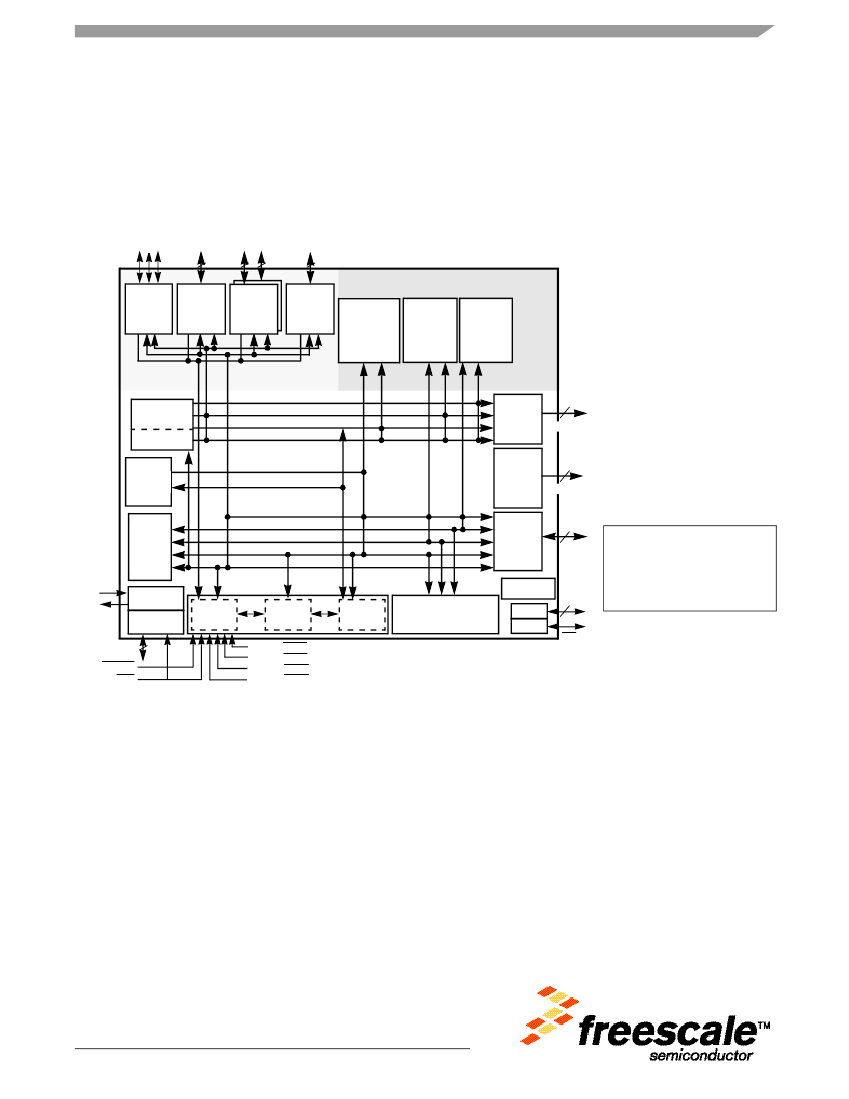

Figure 1.

DSP56303 Block Diagram

The DSP56303 is a member of the DSP56300 core family of programmable CMOS DSPs. Significant architectural

features of the DSP56300 core family include a barrel shifter, 24-bit addressing, instruction cache, and DMA. The

DSP56303 offers 100 MMACS using an internal 100 MHz clock at 3.0–3.6 volts. The DSP56300 core family

offers a rich instruction set and low power dissipation, as well as increasing levels of speed and power to enable

wireless, telecommunications, and multimedia products.
