Z86E0308PSC: Description8-bit Microcontrollers - MCU Z8 512Byte OTP 8MHz; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，52 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86E0308PSC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z86E0308PSC	-	-	View	Buy Now

Z86E0308PSC Overview

8-bit Microcontrollers - MCU Z8 512Byte OTP 8MHz

Z86E0308PSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Other features	OPTIONAL LOW EMI MODE; EPROM PROTECT; TWO STANDBY MODES
Address bus width
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
length	22.86 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of I/O lines	14
Number of serial I/Os
Number of terminals	18
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	61
RAM (number of words)	60
rom(word)	512
ROM programmability	OTPROM
Maximum seat height	4.24 mm
speed	8 MHz
Maximum slew rate	11 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

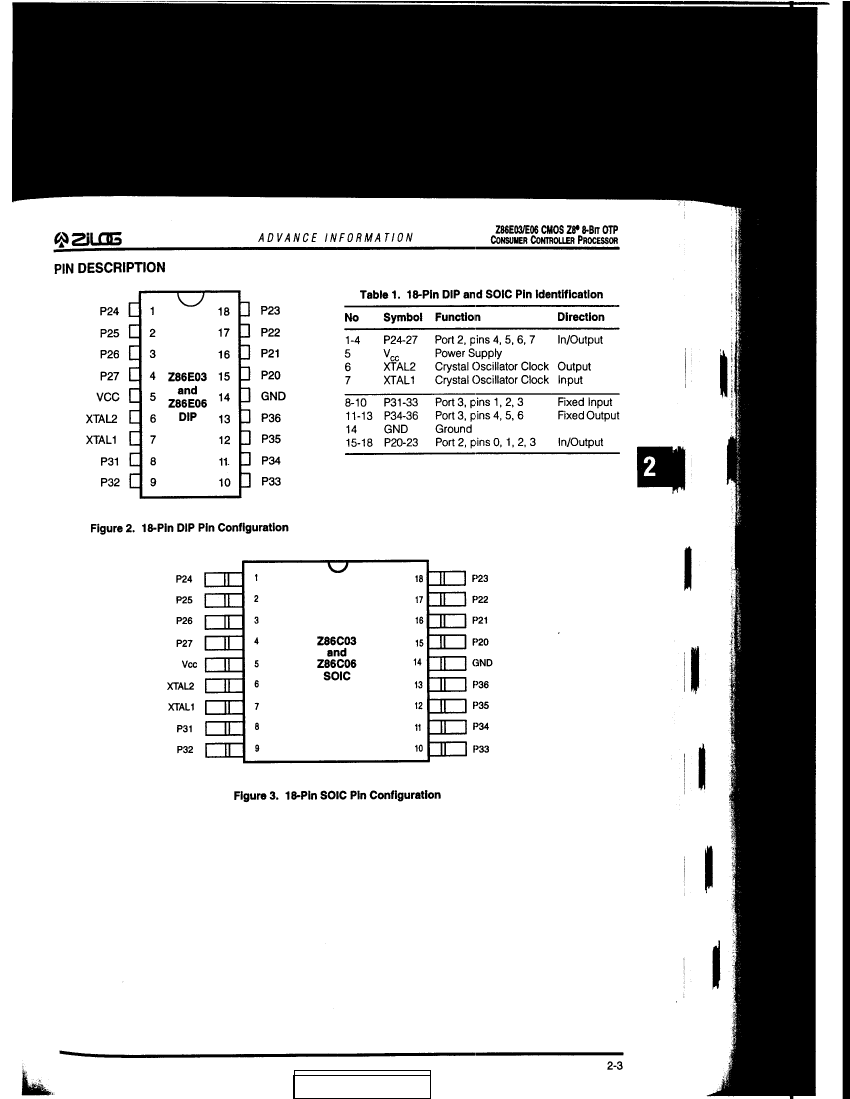

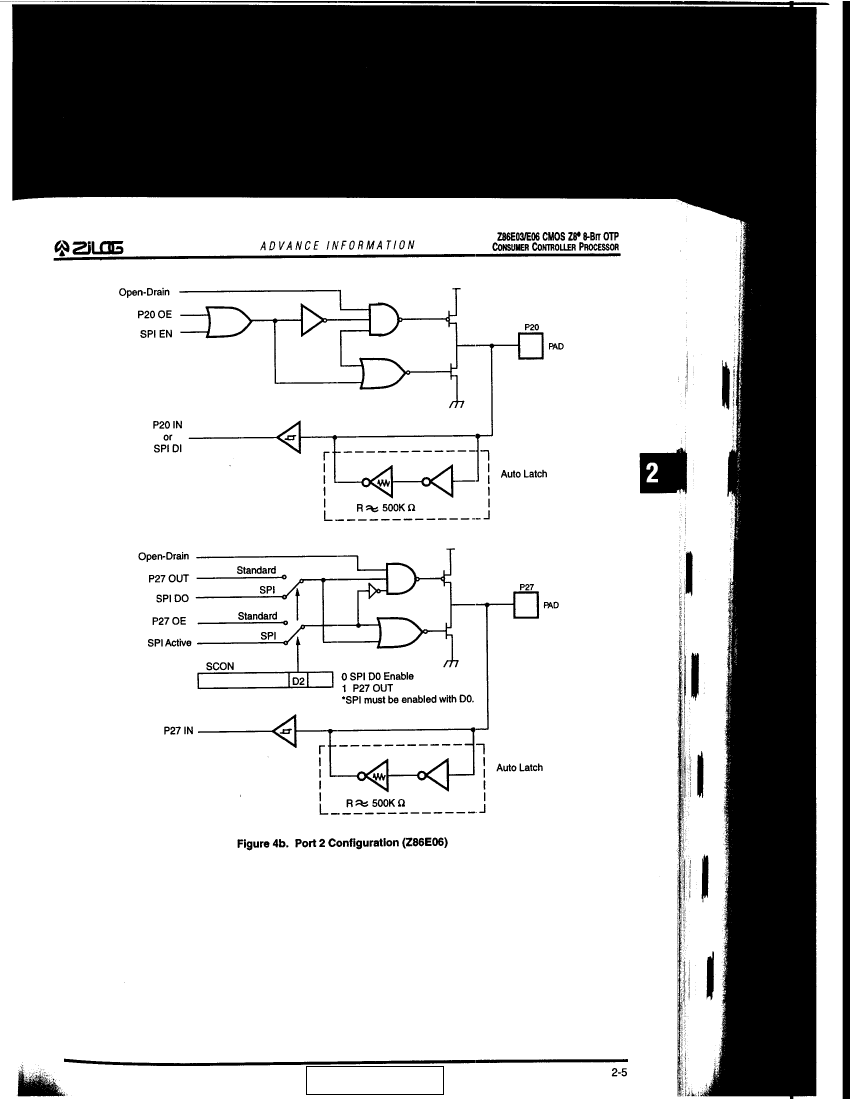

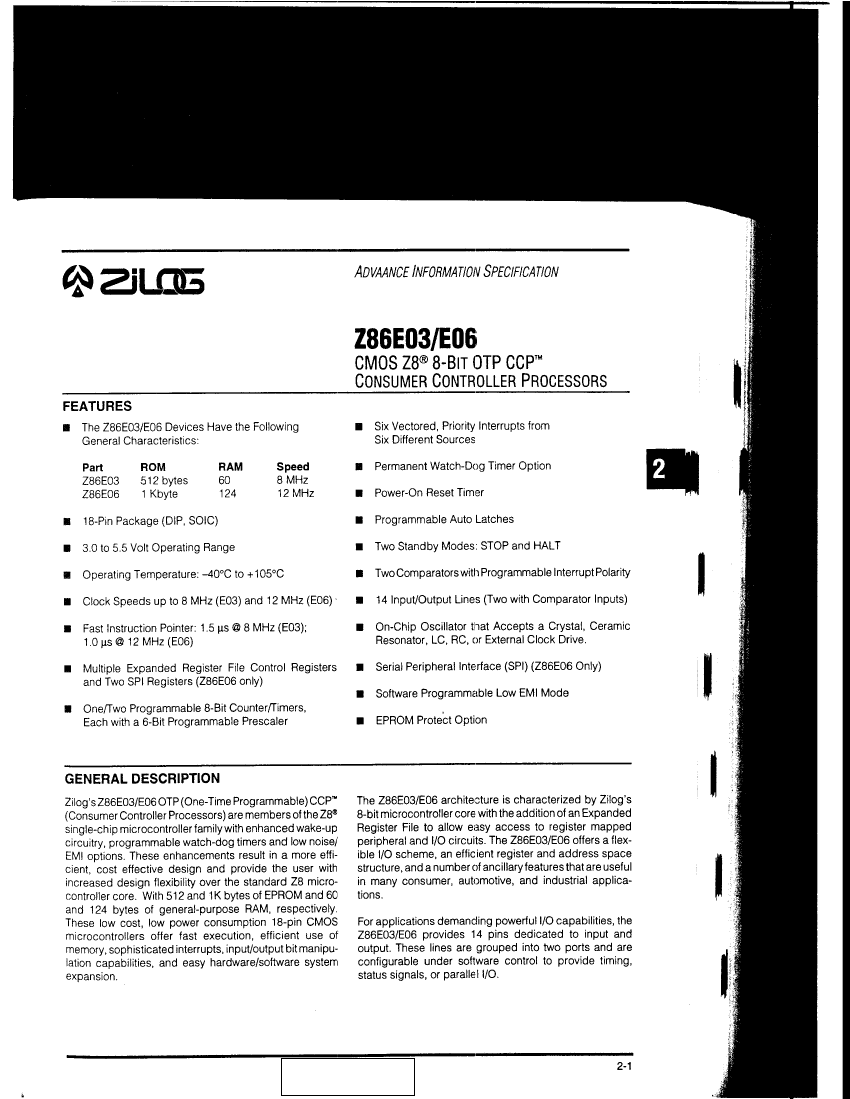

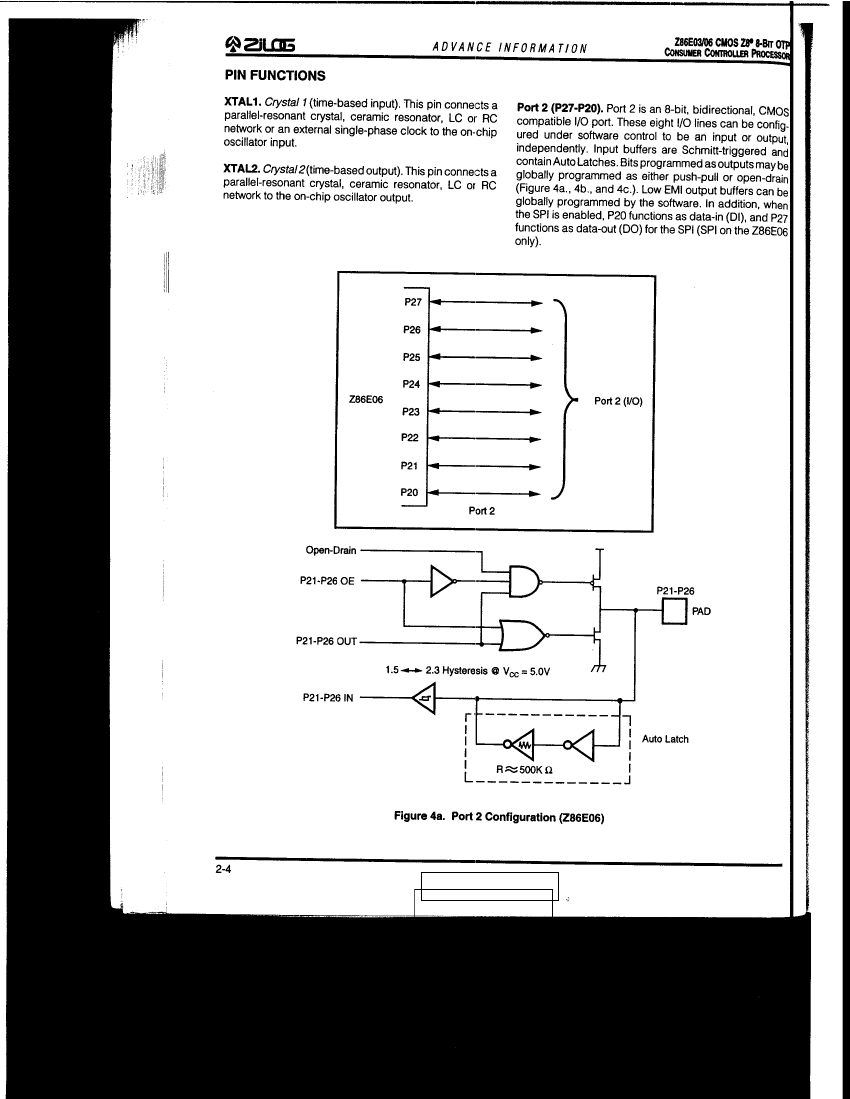

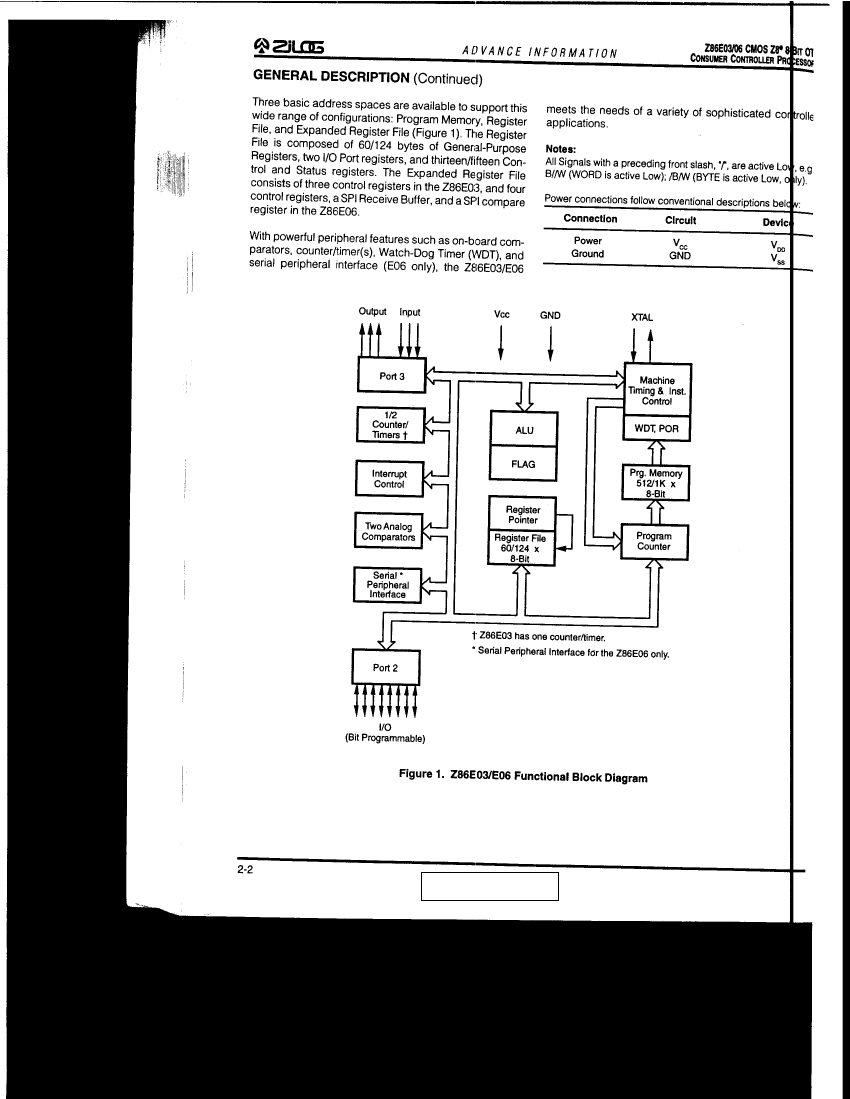

Preview

Download Datasheet

View All

PS021001-0603

Z86E0308PSC Related Products

	Z86E0308PSC	Z86E0612PSG	Z86E0612SSC	Z86E0308SSG	Z86E0308SSC
Description	8-bit Microcontrollers - MCU Z8 512Byte OTP 8MHz		8-bit Microcontrollers - MCU Z8 1K OTP 12MHz	8-bit Microcontrollers - MCU Z8 512Byte OTP 8MHz	8-bit Microcontrollers - MCU Z8 512Byte OTP 8MHz
Is it lead-free?	Contains lead	-	-	Lead free	Contains lead
Maker	Zilog, Inc.	-	-	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	-	-	SOIC	SOIC
package instruction	DIP, DIP18,.3	-	-	SOP,	SOP, SOP18,.4
Contacts	18	-	-	18	18
Reach Compliance Code	unknown	-	-	unknown	unknown
Has ADC	NO	-	-	NO	NO
Other features	OPTIONAL LOW EMI MODE; EPROM PROTECT; TWO STANDBY MODES	-	-	OPTIONAL LOW EMI MODE; EPROM PROTECT; TWO STANDBY MODES	OPTIONAL LOW EMI MODE; EPROM PROTECT; TWO STANDBY MODES
bit size	8	-	-	8	8
boundary scan	NO	-	-	NO	NO
maximum clock frequency	8 MHz	-	-	8 MHz	8 MHz
DAC channel	NO	-	-	NO	NO
DMA channel	NO	-	-	NO	NO
Format	FIXED POINT	-	-	FIXED POINT	FIXED POINT
Integrated cache	NO	-	-	NO	NO
JESD-30 code	R-PDIP-T18	-	-	R-PDSO-G18	R-PDSO-G18
length	22.86 mm	-	-	11.575 mm	11.575 mm
low power mode	YES	-	-	YES	YES
Number of external interrupt devices	6	-	-	6	6
Number of I/O lines	14	-	-	14	14
Number of terminals	18	-	-	18	18
Number of timers	1	-	-	1	1
On-chip data RAM width	8	-	-	8	8
On-chip program ROM width	8	-	-	8	8
Maximum operating temperature	105 °C	-	-	105 °C	105 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C
PWM channel	NO	-	-	NO	NO
Package body material	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	-	SOP	SOP
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	-	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	225
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified
RAM (number of words)	60	-	-	60	60
rom(word)	512	-	-	512	512
ROM programmability	OTPROM	-	-	OTPROM	OTPROM
Maximum seat height	4.24 mm	-	-	2.65 mm	2.65 mm
speed	8 MHz	-	-	8 MHz	8 MHz
Maximum slew rate	11 mA	-	-	11 mA	11 mA
Maximum supply voltage	5.5 V	-	-	5.5 V	5.5 V
Minimum supply voltage	3 V	-	-	3 V	3 V
Nominal supply voltage	3.3 V	-	-	3.3 V	3.3 V
surface mount	NO	-	-	YES	YES
technology	CMOS	-	-	CMOS	CMOS
Temperature level	INDUSTRIAL	-	-	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	-	-	GULL WING	GULL WING
Terminal pitch	2.54 mm	-	-	1.27 mm	1.27 mm
Terminal location	DUAL	-	-	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	30
width	7.62 mm	-	-	7.5 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	-	-	MICROCONTROLLER	MICROCONTROLLER
