HEF4051BTD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HEF4051BTD

HEF4051BTD: DescriptionMultiplexer Switch ICs 8-CHANNEL MUX/DEMUX; CategoryAnalog mixed-signal IC The signal circuit; File Size214KB，23 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

HEF4051BTD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HEF4051BTD	-	-	View	Buy Now

HEF4051BTD Overview

Multiplexer Switch ICs 8-CHANNEL MUX/DEMUX

HEF4051BTD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
length	9.9 mm
Nominal Negative Supply Voltage (Vsup)
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	230 ns
Maximum connection time	80 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HEF4051B

8-channel analog multiplexer/demultiplexer

Rev. 11 — 11 September 2014

Product data sheet

1. General description

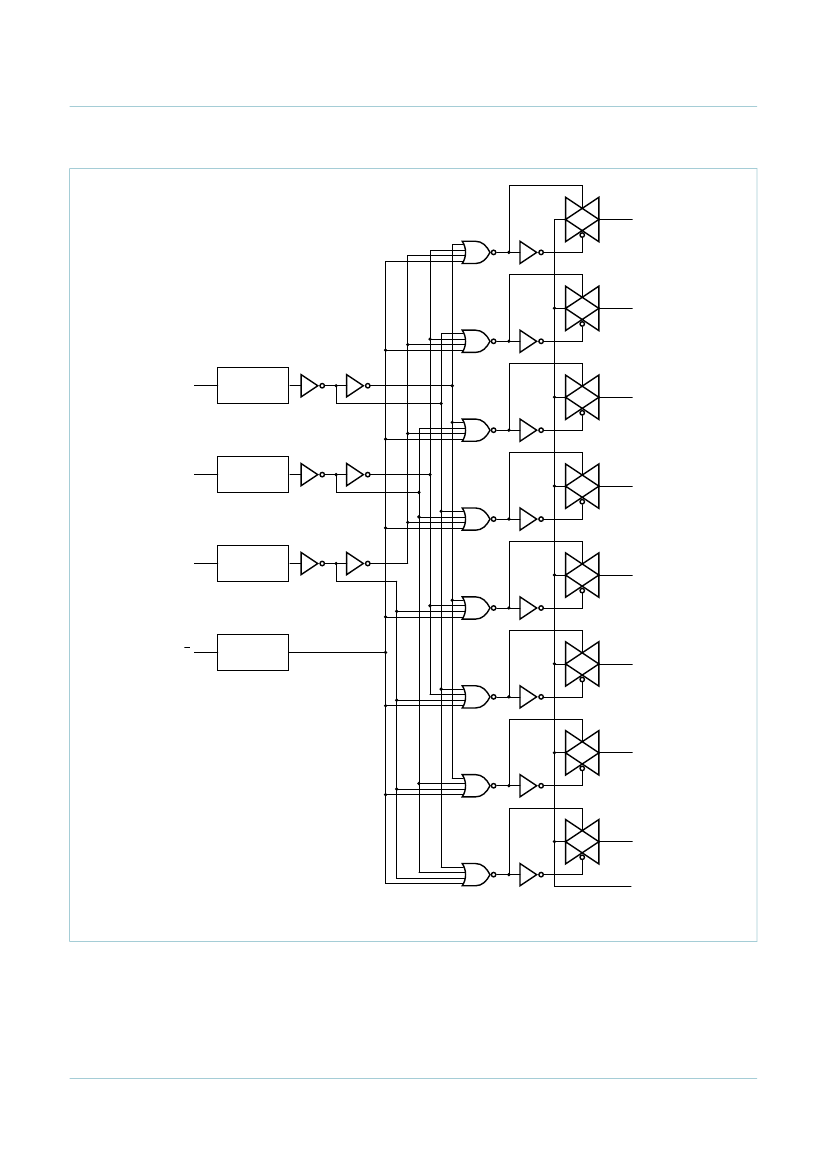

The HEF4051B is an 8-channel analog multiplexer/demultiplexer with three address

inputs (S1 to S3), an active LOW enable input (E), eight independent inputs/outputs

(Y0 to Y7) and a common input/output (Z). The device contains eight bidirectional analog

switches, each with one side connected to an independent input/output (Y0 to Y7) and the

other side connected to a common input/output (Z). With E LOW, one of the eight

switches is selected (low-impedance ON-state) by S1 to S3. With E HIGH, all switches

are in the high-impedance OFF-state, independent of S1 to S3. If break before make is

needed, then it is necessary to use the enable input.

and V

are the supply voltage connections for the digital control inputs (S1 to S3,

and E). The V

to V

range is 3 V to 15 V. The analog inputs/outputs (Y0 to Y7, and Z)

can swing between V

as a positive limit and V

as a negative limit. V



may not

exceed 15 V. Unused inputs must be connected to V

, V

, or another input. For

operation as a digital multiplexer/demultiplexer, V

is connected to V

(typically

ground). V

and V

are the supply voltage connections for the switches.

2. Features and benefits



Fully static operation

5 V, 10 V, and 15 V parametric ratings

Standardized symmetrical output characteristics

Specified from

40 C

to +85

C

and

40 C

to +125

C

Complies with JEDEC standard JESD 13-B

3. Applications



Analog multiplexing and demultiplexing



Digital multiplexing and demultiplexing



Signal gating
