BZX55B2V4-BZX55B75
500mW, 2% Tolerance SMD Zener Diode
Small Signal Diode
DO-35 Axial Lead
HERMETICALLY SEALED GLASS
D
Features
Wide zener voltage range selection : 2.4V to 75V
V
Z
Tolerance Selection of ±2%
Moisture sensitivity level 1
Matte Tin(Sn) lead finish with Nickel(Ni) underplate
Pb free version and RoHS compliant
All External Surfaces are Corrosion Resistant and
Leads are Readily Solderable
ESD rating 15KV per human body model
A
C
B
Dimensions
A
B
C
D
Unit (mm)
Min
0.45
3.05
1.53
Max
0.55
5.08
2.28
Unit (inch)
Min
Max
0.018 0.022
0.120 0.200
0.060 0.090
Mechanical Data
Case : DO-35 package (SOD-27)
High temperature soldering guaranteed : 260°C/10s
Polarity : Indicated by cathode band
Weight : 109 ± 4 mg
25.40 38.10 1.000 1.500
Ordering Information
Part No.
BZX55BXXX A0
BZX55BXXX R0
Package
DO-35
DO-35
Packing
5Kpcs / Ammo
10Kpcs / 14" Reel
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation
Forward Voltage
Junction and Storage Temperature Range
I
F
=10mA
Thermal Resistance (Junction to Ambient) (Note 1)
Symbol
P
D
V
F
RθJA
T
J
, T
STG
Value
500
1.0
240
-65 to + 200
Units
mW
V
°C/W
°C
Notes:1. Valid provided that electrodes are kept at ambient temperature, and mount on PC board 50mmx50mmx1.6mm
Zener I vs. V Characteristics
Current
I
F
V
ZM
V
Z
V
BR
V
R
I
R
I
ZK
V
F
Voltage
V
BR
I
ZK
Z
ZK
I
ZT
V
Z
Z
ZT
Forward Region
: Voltage at I
ZK
: Test current for voltage V
BR
: Dynamic impedance at I
ZK
: Test current for voltage V
Z
: Voltage at current I
ZT
: Dynamic impedance at I
ZT
: Maximum steady state current
: Voltage at I
ZM
I
ZT
I
ZM
BreakdownRegion
Leakage Region
I
ZM
V
ZM
Version : C12
BZX55B2V4-BZX55B75
500mW, 2% Tolerance SMD Zener Diode
Small Signal Diode
Electrical Characteristics
Ta = 25°C unless otherwise noted
V
F
Forward Voltage = 1.0V Maximum @ I
F
= 10 mA for all part numbers
Part Number
BZX55B2V4
BZX55B2V7
BZX55B3V0
BZX55B3V3
BZX55B3V6
BZX55B3V9
BZX55B4V3
BZX55B4V7
BZX55B5V1
BZX55B5V6
BZX55B6V2
BZX55B6V8
BZX55B7V5
BZX55B8V2
BZX55B9V1
BZX55B10
BZX55B11
BZX55B12
BZX55B13
BZX55B15
BZX55B16
BZX55B18
BZX55B20
BZX55B22
BZX55B24
BZX55B27
BZX55B30
BZX55B33
BZX55B36
BZX55B39
BZX55B43
BZX55B47
BZX55B51
BZX55B56
BZX55B62
BZX55B68
BZX55B75
V
Z
@ I
ZT
(Volt)
Nom
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
Min
2.35
2.65
2.94
3.23
3.53
3.82
4.21
4.61
5.00
5.49
6.08
6.66
7.35
8.04
8.92
9.80
10.78
11.76
12.74
14.70
15.68
17.64
19.60
21.56
23.52
26.46
29.40
32.34
35.28
38.22
42.14
46.06
49.98
54.88
60.76
66.64
73.50
Max
2.45
2.75
3.06
3.37
3.67
3.98
4.39
4.79
5.20
5.71
6.32
6.94
7.65
8.36
9.28
10.20
11.22
12.24
13.26
15.30
16.32
18.36
20.40
22.44
24.48
27.54
30.60
33.66
36.72
39.78
43.86
47.94
52.02
57.12
63.24
69.36
76.50
I
ZT
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
Z
ZT
@ I
ZT
(Ω)
Max
85
85
85
85
85
85
75
60
35
25
10
8
7
7
10
15
20
20
26
30
40
50
55
55
80
80
80
80
80
90
90
110
125
135
150
160
170
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
600
600
600
600
600
600
600
600
550
450
200
150
50
50
50
70
70
90
110
110
170
170
220
220
220
220
220
220
220
500
600
700
700
1000
1000
1000
1000
I
R
@ V
R
(μA)
Max
50
10
4.0
2.0
2.0
2.0
1.0
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(V)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
5.0
6.2
6.8
7.5
8.2
9.1
10
11
12
14
15
17
18
20
22
24
27
28
32
35
38
42
47
51
56
Notes:
1. The Zener Voltage (V
Z
) is tested under pulse condition of 10ms
2. The device numbers listed have a standard tolerance on the nominal zener voltage of
±2%.
3. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown an
tighter voltage tolerances, contact your nearest
Taiwan semiconductor
representative.
4. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms valu
equal to 10% of the DC zener current (
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK
.
I
Version : C12
BZX55B2V4-BZX55B75
500mW, 2% Tolerance SMD Zener Diode
Small Signal Diode

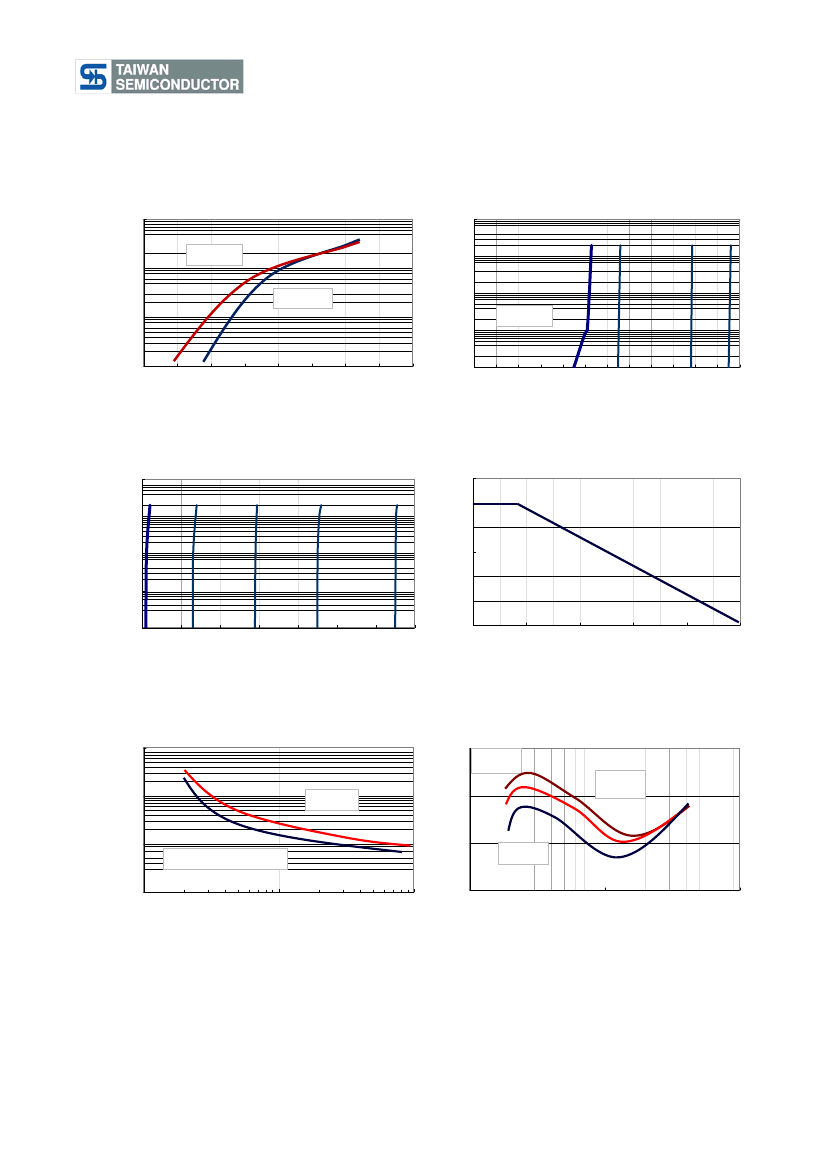

Rating and Sharacteristic Curves
FIG 1 Typical Forward Characteristics
1000
100
FIG 2 Zener Breakdown Characteristics
Forward Current (mA)
Ta=75°C
100
Zener Current (mA)
10
Ta=25°C
10
1
Ta=25°C
0
1
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
0
0
1
2
3
4
5
6
7
8
9
10
11
12
Forward Voltage (V)
Zener Voltage (V)
FIG 3 Zener Breakdown Characteristics
100
600
FIG 4 Admissible Power Disspation Curve
Power Dissipation (mW)
500
400
300
200
100
0
10
Zener Current (mA)
1
0
0
10
20
30
40
50
60
70
80
0
40
80
120
160
200
Zener Voltage (V)
Ambient Tempeture (°C)
FIG 5 Typical Capacitance
Dynamic Impedence (Ώ)
1000
1000
FIG 6 Effect of Zener Voltage on Impedence
Iz=1mA
Iz=5mA
Capacitance(pF)
100
1V Bias
100
Ta=150°C
10
Bias at 50% of VZ(Nom)
10
Iz=20m
Ta=25°C
1
1
1
10
100
1
10
100
Zener Voltage (V)
Zener Voltage (V)
Version : C12
