MAX190BMRG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MAX190BMRG

MAX190BMRG: DescriptionAnalog to Digital Converters - ADC; CategoryAnalog mixed-signal IC converter; File Size1011KB，28 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX190BMRG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAX190BMRG	-	-	View	Buy Now

MAX190BMRG Overview

Analog to Digital Converters - ADC

MAX190BMRG Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	CERDIP-24
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum analog input voltage	5.25 V
Minimum analog input voltage
Maximum conversion time	18 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.0244%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	SERIAL, PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.076 MHz
Sample and hold/Track and hold	TRACK
Maximum seat height	5.72 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	15.24 mm

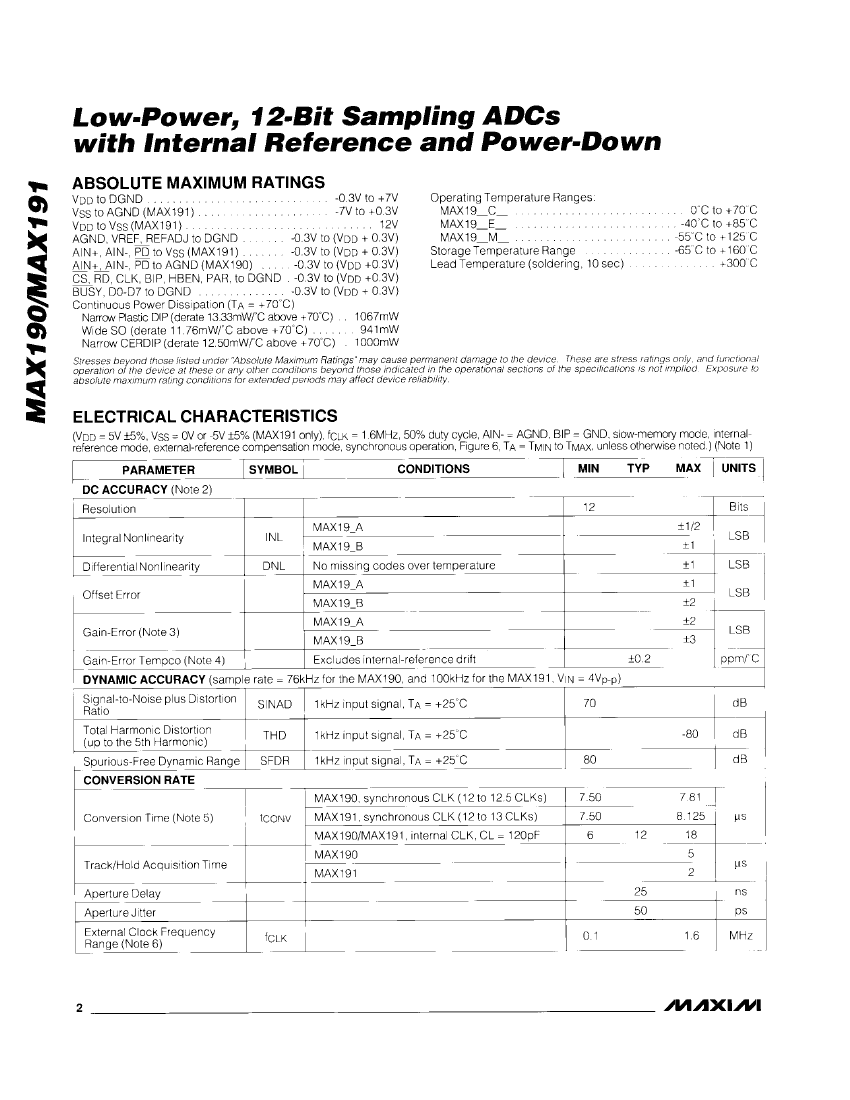

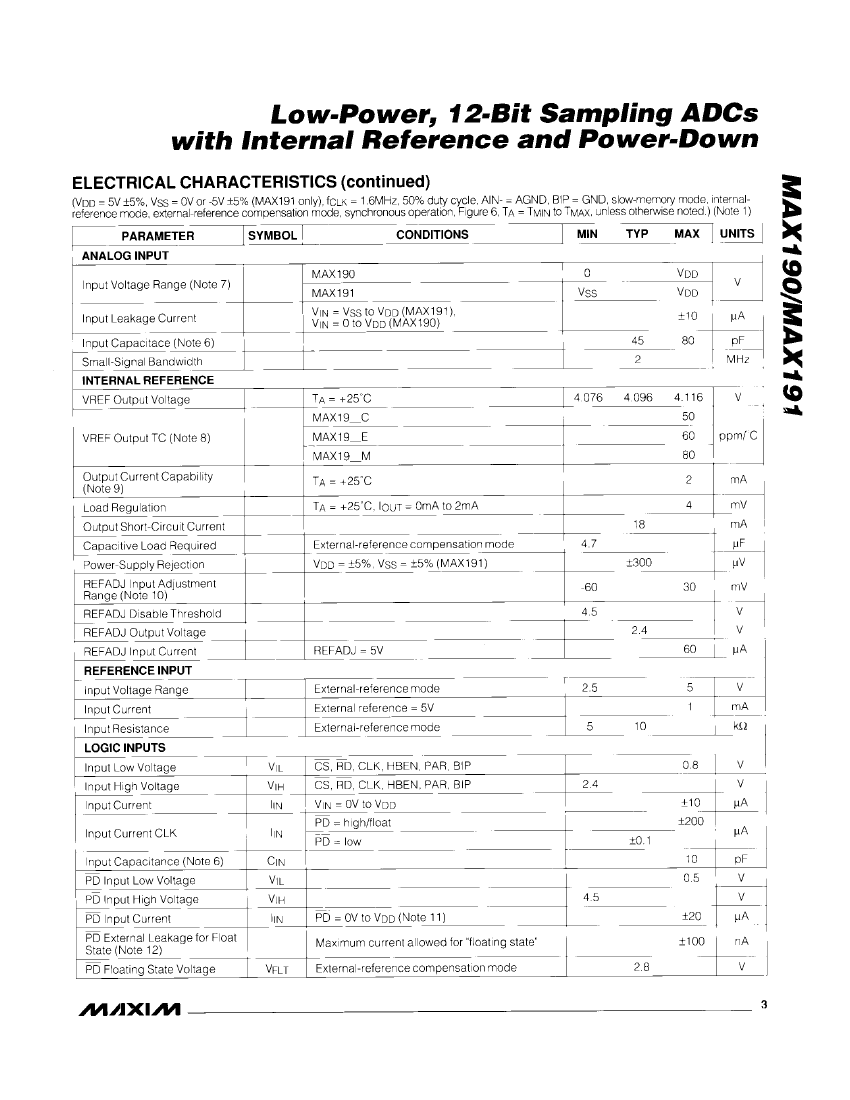

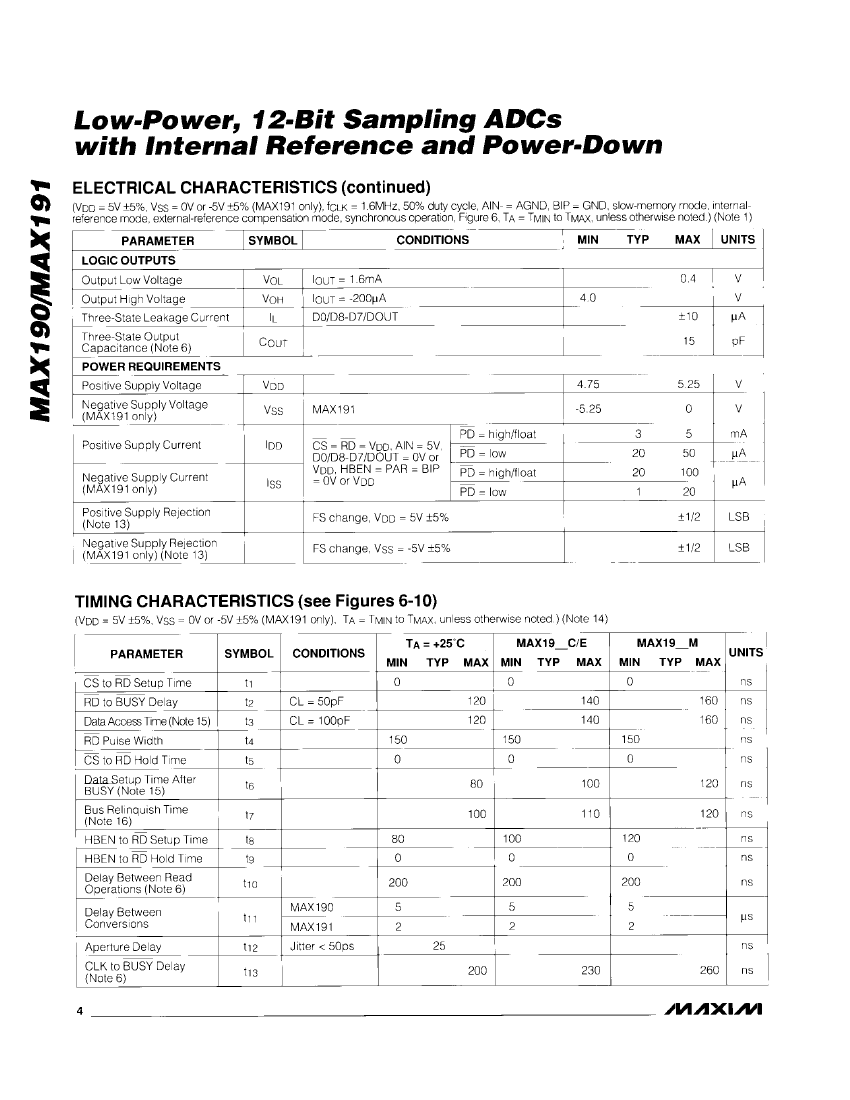

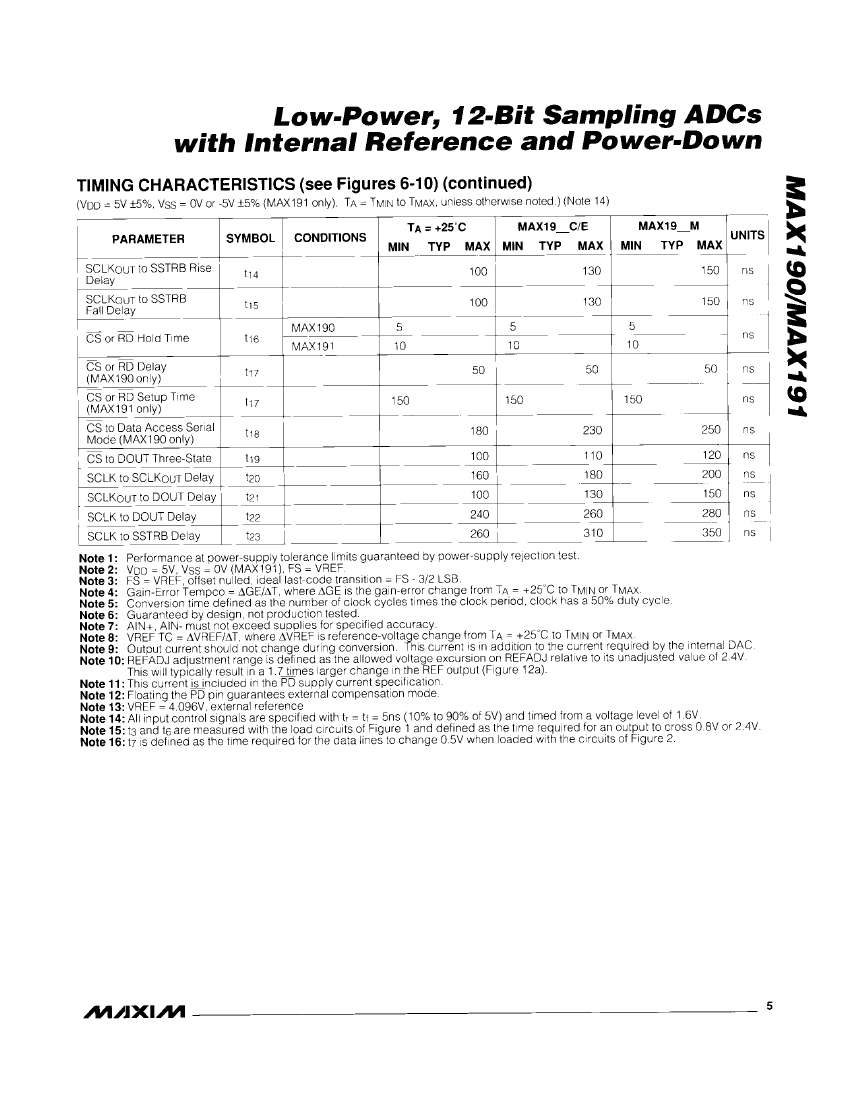

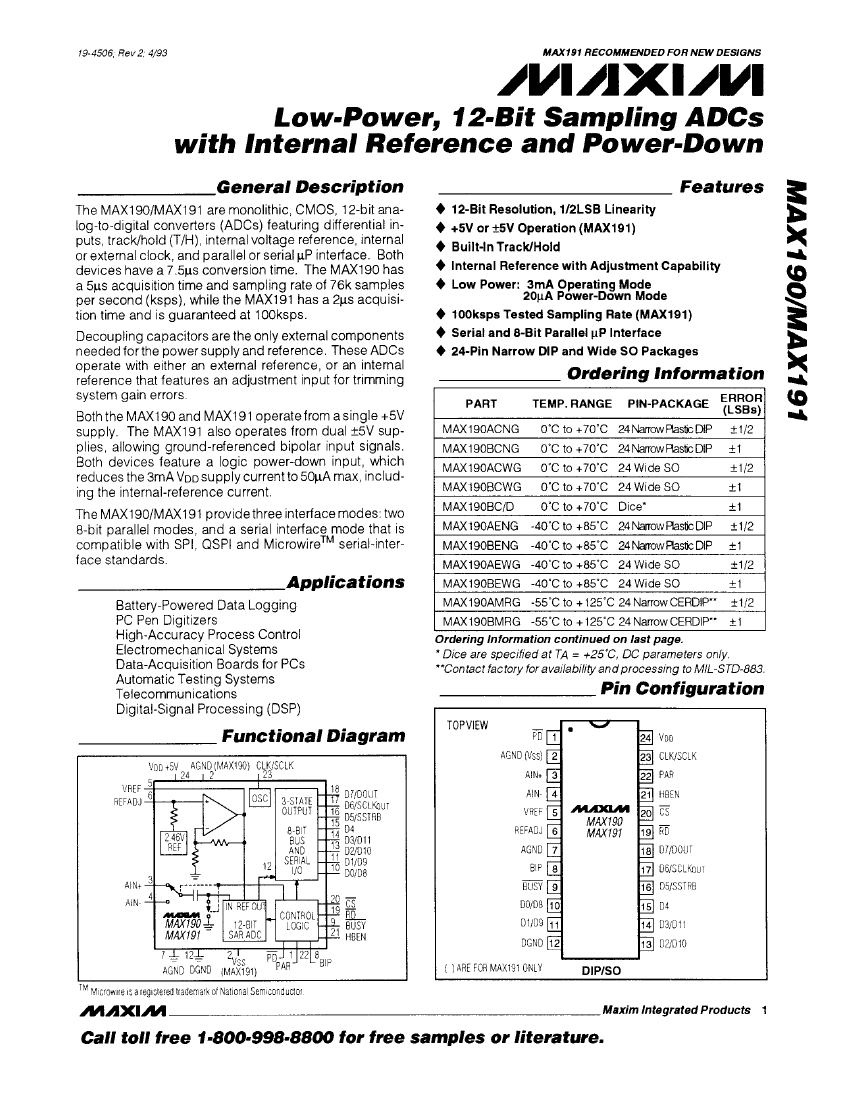

Preview

Download Datasheet

View All

MAX190BMRG Related Products

	MAX190BMRG	MAX190AMRG	MAX6841EUKD2-T	MAX6841EUKD4-T	MAX6841EUKD1+T	MAX190BENG-T	MAX190ACNG-T	MAX190BCNG-T	MAX190AENG-T
Description	Analog to Digital Converters - ADC	Analog to Digital Converters - ADC	Supervisory Circuits	Supervisory Circuits	Supervisory Circuits	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, 8 Bits Access, CMOS, PDIP24, PLASTIC, DIP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, 8 Bits Access, CMOS, PDIP24, PLASTIC, DIP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, 8 Bits Access, CMOS, PDIP24, PLASTIC, DIP-24	ADC, Successive Approximation, 12-Bit, 1 Func, 1 Channel, Serial, Parallel, 8 Bits Access, CMOS, PDIP24, PLASTIC, DIP-24
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	-	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	DIP	SOIC	SOIC	-	DIP	DIP	DIP	DIP
package instruction	CERDIP-24	CERDIP-24	MO-178, SOT-23, 5 PIN	MO-178, SOT-23, 5 PIN	-	DIP,	DIP,	DIP,	DIP,
Contacts	24	24	5	5	-	24	24	24	24
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	-	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	5.25 V	5.25 V	-	-	-	5.25 V	5.25 V	5.25 V	5.25 V
Maximum conversion time	18 µs	18 µs	-	-	-	18 µs	18 µs	18 µs	18 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	-	-	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-PDSO-G5	R-PDSO-G5	-	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0	e0
Maximum linear error (EL)	0.0244%	0.0244%	-	-	-	0.0244%	0.0244%	0.0244%	0.0244%
Number of analog input channels	1	1	-	-	-	1	1	1	1
Number of digits	12	12	-	-	-	12	12	12	12
Number of functions	1	1	1	1	-	1	1	1	1
Number of terminals	24	24	5	5	-	24	24	24	24
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C	-	85 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C	-	-40 °C	-	-	-40 °C
Output bit code	BINARY	BINARY	-	-	-	BINARY	BINARY	BINARY	BINARY
Output format	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS	-	-	-	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS	SERIAL, PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	LSSOP	LSSOP	-	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	240	240	245	245	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	0.076 MHz	0.076 MHz	-	-	-	0.076 MHz	0.076 MHz	0.076 MHz	0.076 MHz
Sample and hold/Track and hold	TRACK	TRACK	-	-	-	TRACK	TRACK	TRACK	TRACK
Maximum seat height	5.72 mm	5.72 mm	1.45 mm	1.45 mm	-	4.572 mm	4.572 mm	4.572 mm	4.572 mm
Nominal supply voltage	5 V	5 V	-	-	-	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	-	NO	NO	NO	NO
technology	CMOS	CMOS	BICMOS	BICMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	0.95 mm	0.95 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	20	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	1.625 mm	1.625 mm	-	7.62 mm	7.62 mm	7.62 mm	7.62 mm
length	-	-	2.9 mm	2.9 mm	-	30.545 mm	30.545 mm	30.545 mm	30.545 mm
