AVRF107M35F24T-F datasheet, PDF

Datasheet> All Categories > Passive components> AVRF107M35F24T-F

AVRF107M35F24T-F: DescriptionAluminum Electrolytic Capacitors - SMD 100uF 35V 105C; CategoryPassive components; File Size664KB，5 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric Compare View All

AVRF107M35F24T-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AVRF107M35F24T-F	-	-	View	Buy Now

AVRF107M35F24T-F Overview

Aluminum Electrolytic Capacitors - SMD 100uF 35V 105C

AVRF107M35F24T-F Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - SMD
Manufacturer	Cornell Dubilier
RoHS	Details
Capacitance	100 uF
Voltage Rating DC	35 VDC
Tolerance	20 %
ESR	160 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C

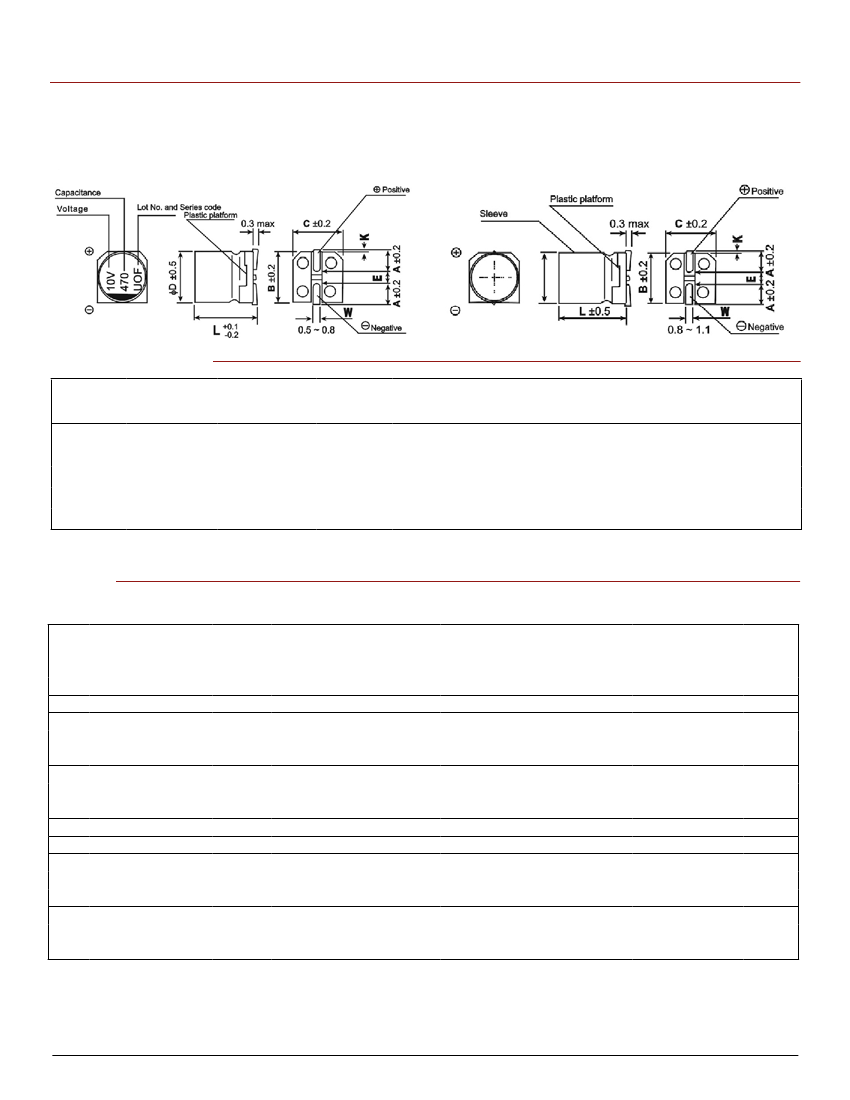

Diameter	8 mm
Length	10.2 mm
Height	8.3 mm
Lead Spacing	3.1 mm
Life	5000 Hour
Ripple Current	600 mA
Packaging	MouseReel
Packaging	Cut Tape
Packaging	Reel
Dissipation Factor DF	0.12
Leakage Current	35 uA
Product	Low ESR Electrolytic Capacitors
Factory Pack Quantity	500
Termination Style	SMD/SMT
Type	SMT Aluminum Electrolytic Capacitors

Preview

Download Datasheet

View All

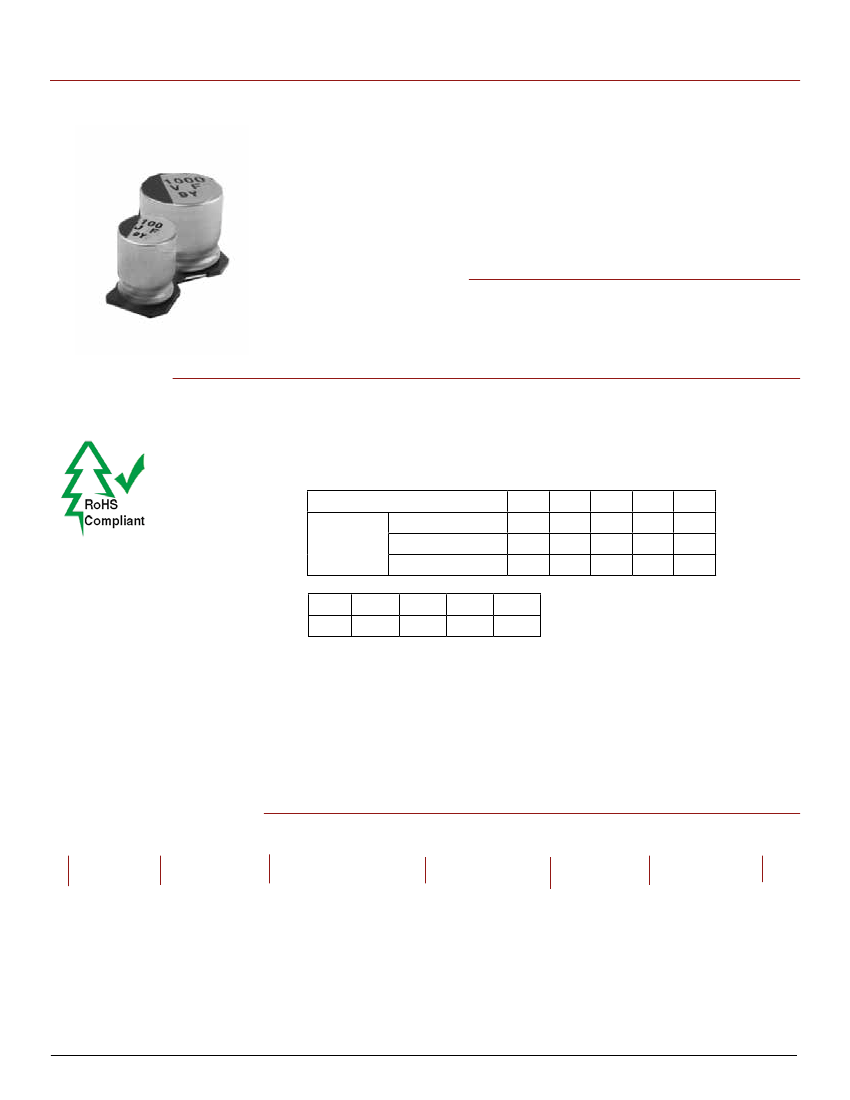

Type AVRF

–55 °C to 105 °C

SMT Aluminum Electrolytic Capacitors - Lowest E.S.R., 105 °C

Low Impedance and Long-Life for Filtering, Bypassing and Power Supply Decoupling

Type AVRF Capacitors are the best and by a wide margin. With 40% to

60% lower impedance, 30% to 50% smaller case size and more than twice

the life compared to low-ESR type AFC, the Type AVRF also excels at

cold performance down to –55

°C.

In addition, this terrific low- impedance

performance, approaching low-ESR tantalum capacitors, is at a significant

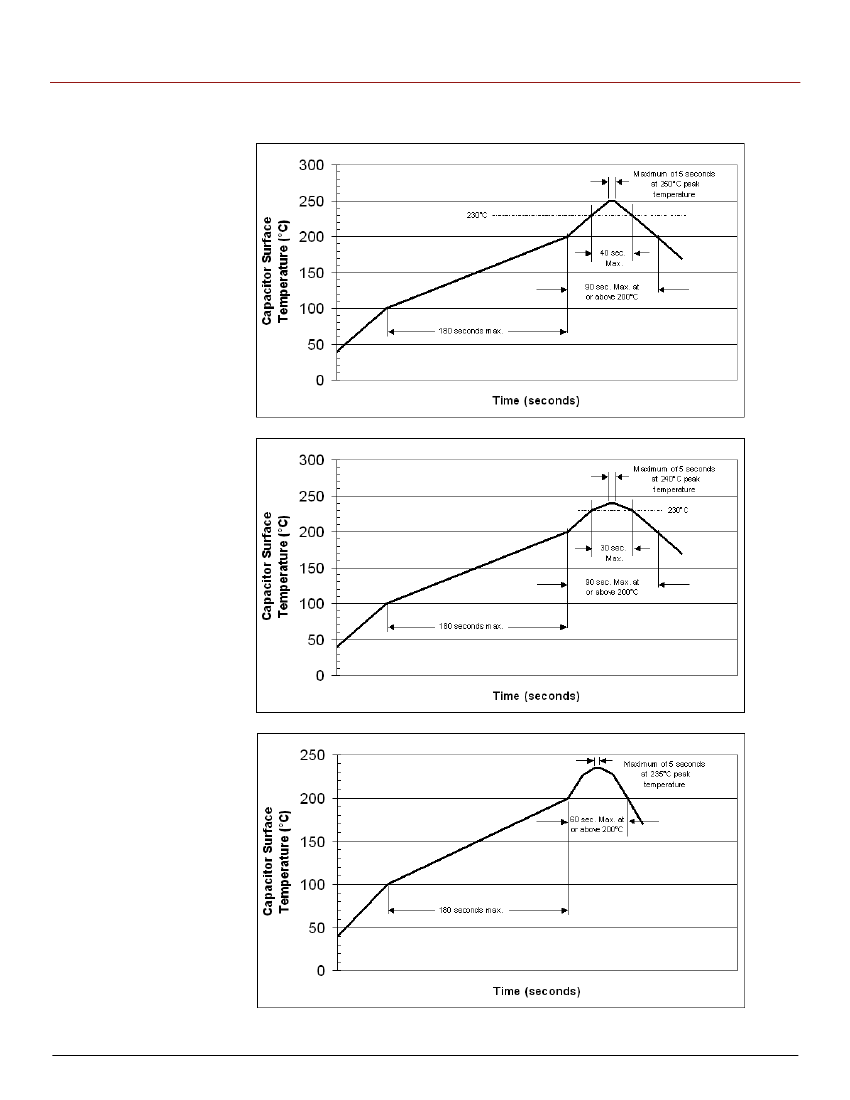

cost savings compared to tantalum. The vertical cylindrical cases facilitate

automatic mounting and reflow soldering into the same footprint of like-rated

tantalum capacitors except without the need for voltage derating.

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

–55 °C to +105 °C

6.3, 10, 16, 25, 35 Vdc

4.7 µF to 1500 µF

±20% @ 120 Hz and +20 °C

0.01 CV or 3 µA @ +20 °C, after two minutes (whichever is greater)

Rated Voltage (Vdc)

6.3

Low Temperature

Characteristics @ 120 Hz:

Complies with the EU

Directive 2002/95/EC re-

quirement restricting the

use of Lead (Pb), Mercu-

ry (Hg), Cadmium (Cd),

Hexavalent chromium

(Cr(VI)), PolyBrominat-

ed Biphenyls (PBB) and

PolyBrominated Diphenyl

Ethers (PBDE).

Dissipation Factor:

6.3V

0.26

10 V

0.19

16 V

0.16

Impedance

Z(-40ºC)/Z(+20ºC)

Ratio

Z(-55ºC)/Z(+20ºC)

25 V

0.14

Life Test:

Part Numbering System

AVRF

Type

AVRF

106

2000 h @ 105 °C, 4.0 — 6.3 mm dia.

Shelf Test:

1000 h @ 105 °C

5000 h @ 105 °C, 8.0 — 10.0 mm dia.

∆

Capacitance ±30% (10 mm Dia.: ±35%)

∆

Capacitance ±30% (10 mm Dia.: ±35%

DF:

≤

200% of limit (10 mm Dia.: ≤300%)

DF:

≤

200% of limit (10 mm Dia.: ≤300%)

DCL:

≤

100% of limit

DCL:

≤

100% of limit

Z(-25ºC)/Z(+20ºC)

35 V

0.12

Specifications

12T

–F

Case Packaging Code RoHS

Code

12 = Carrier tape

Compliant

Width (mm)

T = Tape & Reel

Highlights

•

+105

°C,

Up to 5000 Hour Load Life

•

Ultra-low Impedance

•

Voltage Range: 6.3 Vdc to 35 Vdc

Capacitance

475 = 4.7 µF

106 = 10.0 µF

107 = 100.0 µF

108 = 1000.0 µF

Capacitance

Voltage Code

Tolerance

06 = 6.3 Vdc 25 = 25 Vdc

M = ±20%

10 = 10 Vdc

16 = 16 Vdc

35 = 35 Vdc

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com

Type AVRF

–55 °C to 105 °C

SMT Aluminum Electrolytic Capacitors - Lowest E.S.R., 105 °C

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and data

(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer

is responsible for checking, confirming and verifying the extent to which the Information contained in this

datasheet or other publication is applicable to an order at the time the order is placed. All Information given

herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation

or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based

on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has

of operating conditions that such Cornell Dubilier company regards as typical for such applications, but

are not intended to constitute any guarantee, warranty or representation regarding any such matter – and

Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning

the suitability for a specific customer application, use, storage, transportation, or operating environment.

The Information is intended for use only by customers who have the requisite experience and capability to

determine the correct products for their application. Any technical advice inferred from this Information or

otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given

gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability

for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality

and safety standards regarding the design and manufacturing of its products, in light of the current state

of the art, isolated component failures may still occur. Accordingly, customer applications which require a

high degree of reliability or safety should employ suitable designs or other safeguards (such as installation

of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the

failure of an electrical component does not result in a risk of personal injury or property damage. Although

all product-related warnings, cautions and notes must be observed, the customer should not assume that all

safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be

required.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
