HA13151, HA13152
14 W
×
4-Channel BTL Power IC
ADE-207-116
1st. Edition
Description
The HA13151/HA13152 are high output and low distortion 4 ch BTL power IC designed for digital car
audio.
At 13.2 V to 4
Ω
load, this power IC provides output power 14 W with 10% distortion.
Functions
•
•
•
•
4 ch BTL power amplifiers
Built-in standby circuit
Built-in muting circuit
Built-in protection circuit (surge, T.S.D, and ASO)
Features
•
•
•
•
Few external parts lead to compact set-area possibility
Popping noise minimized
Low output noise
Built-in high reliability protection circuit
HA13151, HA13152

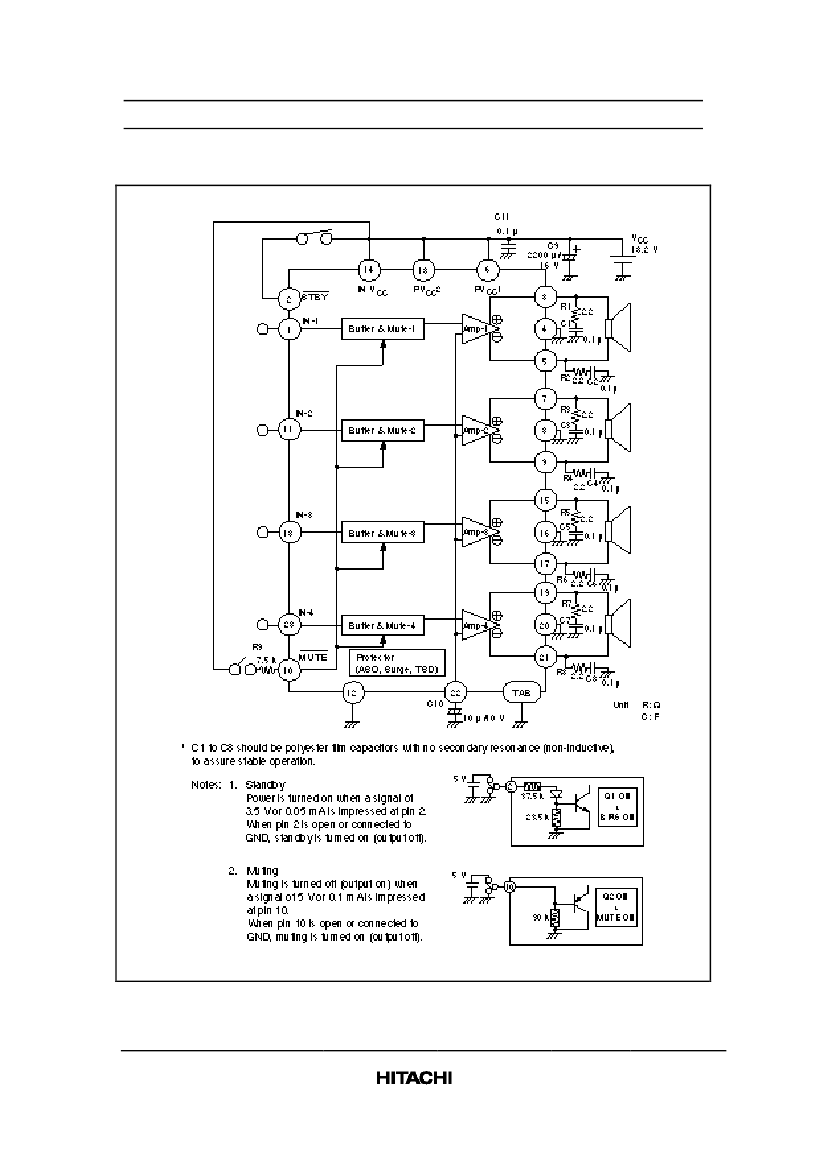

Block Diagram
Absolute Maximum Ratings
(Ta = 25°C)
Item
Symbol
Rating
Unit
Remarks
2
HA13151, HA13152
Operating supply voltage
Supply voltage when no signal*
1
Peak supply voltage*
2
Output current*
3
Power dissipation*
4
Junction temperature
Operating temperature
Storage temperature
Notes: 1.
2.
3.
4.
V
CC
V
CC
(DC)
V
CC
(PEAK)
I
O
(PEAK)
P
T
Tj
Topr
Tstg
18
26
50
3
83
150
–30 to +85
–55 to +125
V
V
V
A
W
°C
°C
°C
Tolerance within 30 seconds
Tolerance in surge pulse waveform
Value per 1 channel
Value when attached on the infinite heat sink plate at Ta = 25 °C.
The derating carve is as shown in the graph below.
3
HA13151, HA13152
Electrical Characteristics
(V
CC
= 13.2 V, f = 1 kHz, R
L
= 4
Ω,
Rg = 600
Ω,
Ta =
25°C)
HA13151
Item
Quiescent current
Output offset voltage
Gain
Gain difference between
channels
Rated output power
Max output power
Total harmonic distortion
Output noise voltage
Ripple rejection
Channel cross talk
Input impedance
Standby current
Standby control voltage
(high)
Standby control voltage
(low)
Muting control voltage
(high)
Muting control voltage
(low)
Muting attenuation
Symbol
I
Q
1
∆V
Q
G
V
∆G
V
Po
Pomax
T.H.D.
WBN
SVR
C.T.
Rin
I
Q
2
V
STH
V
STL
V
MH
V
ML
ATTM
Min
—
–300
30.5
–1.5
—
—
—
—
—
—
—
—
3.5
0
3.5
0
—
Typ
270
0
32
0
14
22
0.05
0.15
55
70
25
—
—
—
—
—
70
Max
—
+300
33.5
+1.5
—
—
—
—
—
—
—
200
V
CC
1.5
V
CC
1.5
—
Unit
mA
mV
dB
dB
W
W
%
mVrms
dB
dB
kΩ
µA
V
V
V
V
dB
Vout = 0 dBm
V
CC
= 13.2 V
THD = 10%, R
L
= 4
Ω
V
CC
= 13.7 V
THD = Max, R
L
= 4
Ω
Po = 3 W
Rg = 0
Ω
BW = 20 to 20 kHz
Rg = 600
Ω,
f = 120 Hz
Rg = 600
Ω
Vout = 0 dBm
Test Conditions
Vin = 0
4
HA13151, HA13152
HA13152
Item
Quiescent current
Output offset voltage
Gain
Gain difference between
channels
Rated output power
Max output power
Total harmonic distortion
Output noise voltage
Ripple rejection
Channel cross talk
Input impedance
Standby current
Standby control voltage
(high)
Standby control voltage
(low)
Muting control voltage
(high)
Muting control voltage
(low)
Muting attenuation
Symbol
I
Q
1
∆V
Q
G
V
∆G
V
Po
Pomax
T.H.D.
WBN
SVR
C.T.
Rin
I
Q
2
V
STH
V
STL
V
MH
V
ML
ATTM
Min
—
–300
38.5
–1.5
—
—
—
—
—
—
—
—
3.5
0
3.5
0
—
Typ
270
0
40
0
14
22
0.05
0.25
45
60
25
—
—
—
—
—
60
Max
—
+300
41.5
+1.5
—
—
—
—
—
—
—
200
V
CC
1.5
V
CC
1.5
—
Unit
mA
mV
dB
dB
W
W
%
mVrms
dB
dB
kΩ
µA
V
V
V
V
dB
Vout = 0 dBm
V
CC
= 13.2 V
THD = 10%, R
L
= 4
Ω
V
CC
= 13.7 V
THD = Max, R
L
= 4
Ω
Po = 3%
Rg = 0
Ω
BW = 20 to 20 kHz
Rg = 600
Ω,
f = 120 Hz
Rg = 600
Ω
Vout = 0 dBm
Test Conditions
Vin = 0
5
