GTOMQ04800GB00KS00 datasheet, PDF

Datasheet> All Categories > Passive components> GTOMQ04800GB00KS00

GTOMQ04800GB00KS00: DescriptionFilm Capacitors GTO MKP 8.0 F 1200 VDC 70x49 KM55; CategoryPassive components; File Size240KB，5 Pages; ManufacturerWIMA; Websitehttps://www.wima.de/

Download Datasheet Parametric View All

GTOMQ04800GB00KS00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GTOMQ04800GB00KS00	-	-	View	Buy Now

GTOMQ04800GB00KS00 Overview

Film Capacitors GTO MKP 8.0 F 1200 VDC 70x49 KM55

GTOMQ04800GB00KS00 Parametric

Parameter Name	Attribute value
Product Category	Film Capacitors
Manufacturer	WIMA
Termination Style	Insert Threaded
Product	AC and Pulse Film Capacitors
Dielectric	Polypropylene (PP)
Capacitance	8 uF
Voltage Rating AC	500 VAC
Voltage Rating DC	1.2 kVDC
Tolerance	10 %
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 85 C
Width	70 mm
Height	49 mm
Capacitance - nF	8000 nF
Unit Weight	9.770887 oz

Preview

Download Datasheet

View All

WIMA GTO MKP

GTO MKP Capacitors for Pulse Applications with Internal

Series Connection. Capacitances from 1.0

to 100

mF.

Rated Voltages from 400 VDC to 2000 VDC.

Special Features

Pulse duty construction

Self-healing

Cylindrical capacitor body with

axial screw and thread connections

size M6 or M8

Internal series connection from

400 VAC

Very low dissipation factor

Negative capacitance change

versus temperature

According to RoHS 2011/65/EU

Electrical Data

Capacitance range:

1.0

F to 100

Rated voltages:

400 VDC, 600 VDC, 850 VDC, 1000 VDC,

1200 VDC, 1500 VDC, 2000 VDC

Capacitance tolerances:

±20%, ±10%, ±5%

Operating temperature range:

–55) C to +85) C

Climatic test category:

55/085/56 in accordance with IEC

Insulation resistance

at +20+ C:



10 000 sec (M¸ x

mF)

(mean value: 50 000 sec)

Measuring voltage: 100 V/1 min.

Test voltage:

1.2 U

, 2 sec.

Dielectric absorption:

0.05 %

Dissipation factors

at + 20) C: tan

at f

1 kHz



3 x 10

-4

Voltage derating:

A voltage derating factor of 1.35 % per K

must be applied from +65° C for DC

voltages and from +60° C for AC

voltages.

Reliability:

Operational life



300 000 hours

Failure rate



1 fit (0.5 x U

and 40) C)

Specific dissipation:

Box size

D x L in mm

60 x 49

70 x 49

80 x 49

90 x 49

90 x 58

90 x 97

< C



5 x 10

-4

Specific dissipation in Watts per K

above the ambient temperature

0.186

0.231

0.280

0.333

0.364

0.501

C > 50



8 x 10

-4

Typical Applications

For high pulse and high frequency

applications requiring extremely

reliable contacts e.g.

Damping of voltage spikes on

GTO-Thyristors

Construction

Dielectric:

Polypropylene (PP) film

Capacitor electrodes:

Double-sided metallized plastic film

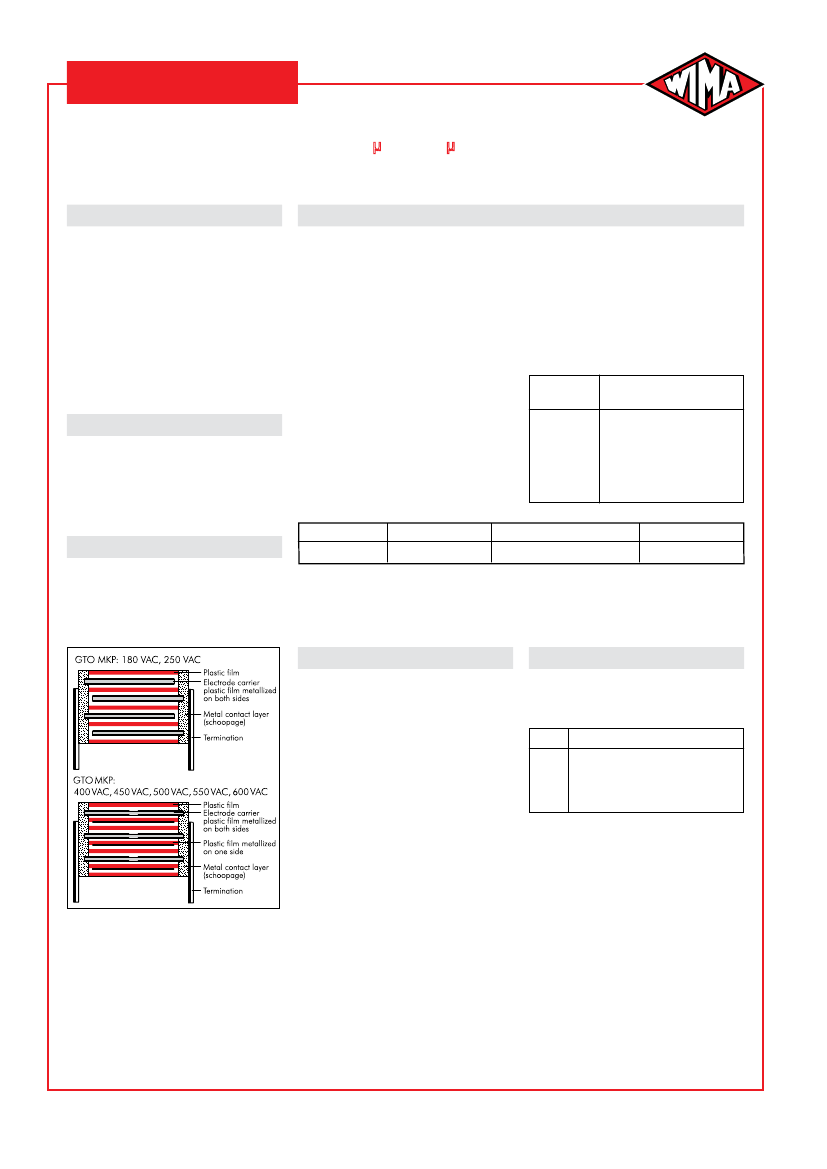

Internal construction:

Mounting Recommendation

Excessive mechanical strain, e.g. pressure

or shock onto the capacitor body, is to be

avoided during mounting and usage of the

capacitors. When fixing the capacitor the

screw torque is to be limited to max. 5 Nm.

Packing

Transportation-safe packing in

cardboard boxes.

Packing units

pcs. per packing unit

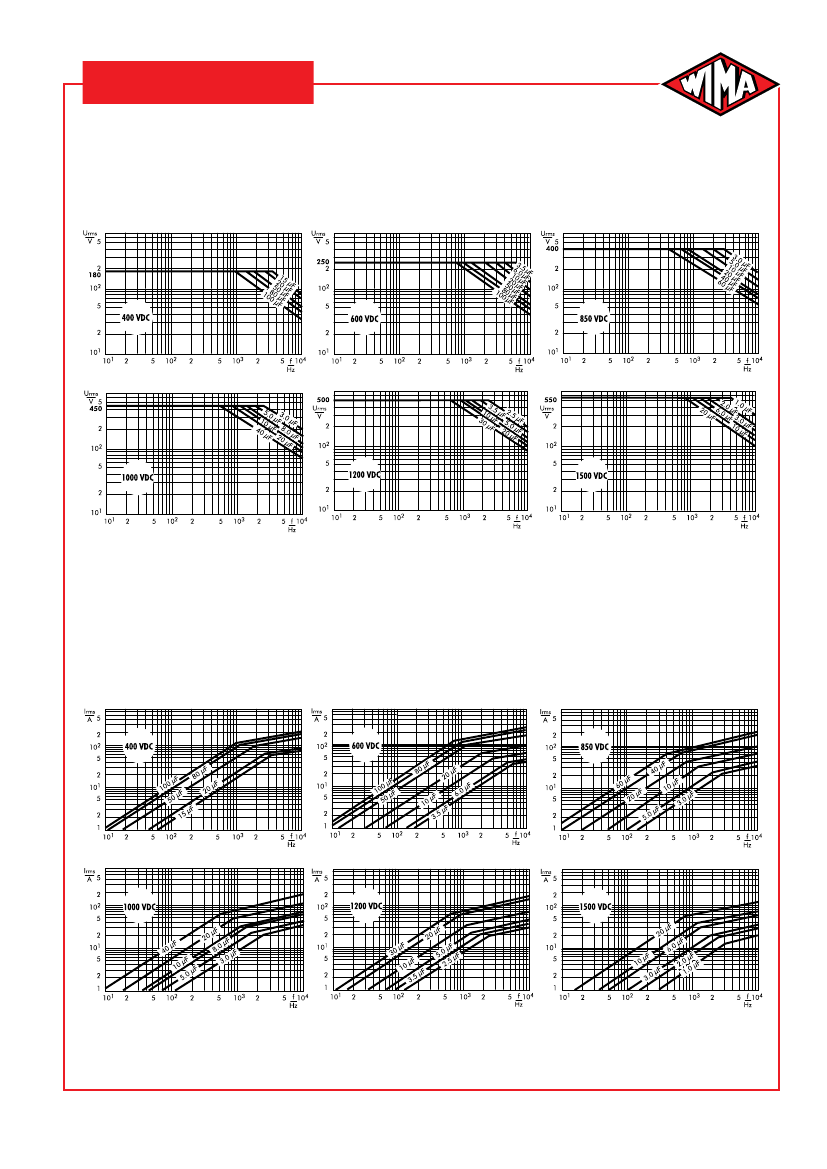

For further details and graphs please

refer to Technical Information.

Encapsulation:

Solvent-resistant, flame-retardant plastic

case with PU seal, UL 94 V-0

Terminations:

Axial screw connection M6 or M8.

Marking:

Colour: Red. Marking: Black on Silver.

112

04.16
