SDS130R-224M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SDS130R-224M

SDS130R-224M: DescriptionFixed Inductors 220uH 20% 2.7ohm Shield SMT Pwr Induc; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SDS130R-224M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SDS130R-224M	-	-	View	Buy Now

SDS130R-224M Overview

Fixed Inductors 220uH 20% 2.7ohm Shield SMT Pwr Induc

SDS130R-224M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	API Delevan
package instruction	5040
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	5040
structure	Shielded
core material	FERRITE
DC Resistance	2.7 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	SDS130R
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	3 mm
Package length	12.7 mm
Package form	SMT
Package width	10.1 mm
method of packing	TR, 13 Inch
Maximum rated current	0.4 A
series	SDS130R
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES

TI )

RA A

T (m

EN UM

RR IM

CU AX

AN )

ST S

SI HM

RE M (O

DC MU

SDS130R

)

(µ

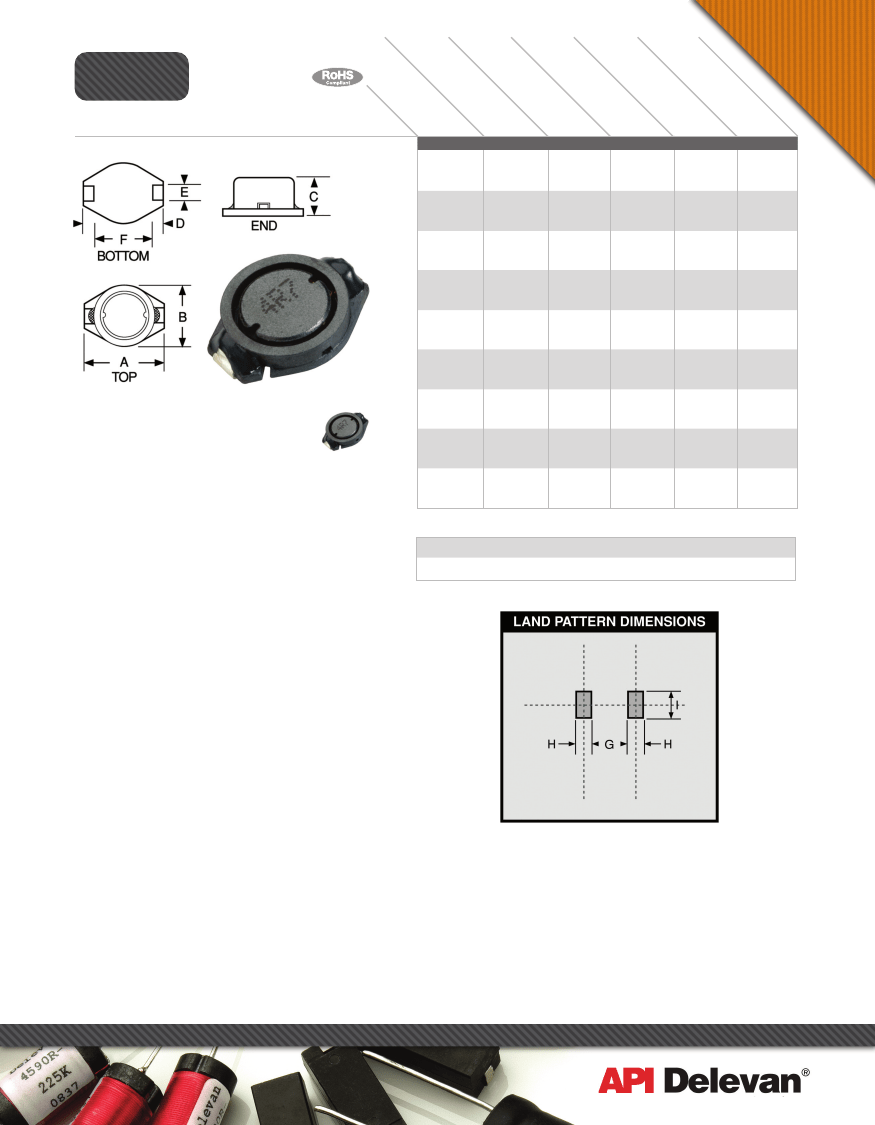

Surface Mount Shielded Power Choke

-222N

-302N

-392N

-472N

-682N

-103M

-123M

-153M

-183M

-223M

-273M

-333M

-393M

-473M

-563M

-683M

-823M

-104M

-124M

-154M

-184M

-224M

-274M

-334M

-394M

-474M

Actual Size

Physical Parameters

Inches

0.500 ±0.008

0.398 ±0.008

0.118 Max.

0.094 ±0.008

0.087 ±0.008

0.303 ±0.015

0.287 Ref.

0.118 Ref.

0.110 Ref.

SERIES SDS130 FERRITE

2.2

±30%

3.0

±30%

3.9

±30%

4.7

±30%

6.8

±30%

±20%

100

±20%

120

±20%

150

±20%

180

±20%

220

±20%

270

±20%

330

±20%

390

±20%

470

±20%

CORE & SLEEVE

100

0.045

100

0.062

100

0.070

100

0.078

100

0.100

0.145

0.185

0.20

0.27

0.30

0.40

0.45

0.56

0.65

0.68

0.80

1.20

1.40

1.52

1.80

2.20

2.70

3.10

3.60

4.60

5.10

3500

3000

2800

2500

2200

2000

1750

1500

1400

1300

1200

1100

950

800

750

700

650

600

550

500

450

400

350

300

250

200

Millimeters

12.7 ±0.2

10.1±0.2

3.0 Max.

2.4 ±0.2

2.2 ±0.2

7.7 ±0.4

7.3 Ref.

3.0 Ref.

2.8 Ref.

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

Current rating at 25°C Ambient

40°C Max. Rise

Operating Temperature Range

-40°C to +85°C

Weight Maximum

0.85 grams

Marking

For values lower than 10

H the R indicates a

decimal point and the remaining digits indicate the

inductance in

H. For values 10

H and above, the ﬁrst

two digits indicate the inductance in

H and the third digit

indicates the number of trailing zeros where a zero

indicates that there are no trailing zeros.

Example: SDS130R-222N (2.2

2R2

Example: SDS130R-473M (47

470

Packaging

Tape & Reel (24mm): 13" reel

1000 pieces max.

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009

SDS130R-224M Related Products

	SDS130R-224M	SDS130R-223M	SDS130R-393M	SDS130R-563M	SDS130R-472N	SDS130R-683M	SDS130R-184M	SDS130R-394M	SDS130R-123M	SDS130R-153M
Description	Fixed Inductors 220uH 20% 2.7ohm Shield SMT Pwr Induc	Fixed Inductors 22uH 20% .3ohm Shield SMT Pwr Induc	Fixed Inductors 39uH 20% .56ohm Shield SMT Pwr Induc	Fixed Inductors 56uH 20% .68ohm Shield SMT Pwr Induc	Fixed Inductors 4.7uH 30% .078ohm Shield SMT Pwr Induc	Fixed Inductors 68uH 20% .8ohm Shield SMT Pwr Induc	Fixed Inductors 180uH 20% 2.2ohm Shield SMT Pwr Induc	Fixed Inductors 390uH 20% 4.6ohm Shield SMT Pwr Induc	Fixed Inductors 12uH 20% .185ohm Shield SMT Pwr Induc	Fixed Inductors 15uH 20% .2ohm Shield SMT Pwr Induc
Tolerance	20%	20%	20%	20%	30 %	20 %	20%	20 %	20 %	20%
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	-	Lead free	-	-	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	-	conform to	-	-	conform to
package instruction	5040	5040	5040	5040	-	-	5040	-	-	5040
Reach Compliance Code	compliant	compliant	compliant	compliant	-	-	compliant	-	-	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	-	-	EAR99
uppercase and lowercase codes	5040	5040	5040	5040	-	-	5040	-	-	5040
structure	Shielded	Shielded	Shielded	Shielded	-	-	Shielded	-	-	Shielded
core material	FERRITE	FERRITE	FERRITE	FERRITE	-	-	FERRITE	-	-	FERRITE
DC Resistance	2.7 Ω	0.3 Ω	0.56 Ω	0.68 Ω	-	-	2.2 Ω	-	-	0.2 Ω
Nominal inductance(L)	220 µH	22 µH	39 µH	56 µH	-	-	180 µH	-	-	15 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	-	POWER INDUCTOR	-	-	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1	e1	e1	e1	-	-	e1	-	-	e1
Manufacturer's serial number	SDS130R	SDS130R	SDS130R	SDS130R	-	-	SDS130R	-	-	SDS130R
Number of functions	1	1	1	1	-	-	1	-	-	1
Number of terminals	2	2	2	2	-	-	2	-	-	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-	85 °C	-	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-	-	-40 °C
Package height	3 mm	3 mm	3 mm	3 mm	-	-	3 mm	-	-	3 mm
Package length	12.7 mm	12.7 mm	12.7 mm	12.7 mm	-	-	12.7 mm	-	-	12.7 mm
Package form	SMT	SMT	SMT	SMT	-	-	SMT	-	-	SMT
Package width	10.1 mm	10.1 mm	10.1 mm	10.1 mm	-	-	10.1 mm	-	-	10.1 mm
method of packing	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	-	-	TR, 13 Inch	-	-	TR, 13 Inch
Maximum rated current	0.4 A	1.3 A	0.95 A	0.75 A	-	-	0.45 A	-	-	1.5 A
series	SDS130R	SDS130R	SDS130R	SDS130R	-	-	SDS130R	-	-	SDS130R
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	-	-	YES	-	-	YES
surface mount	YES	YES	YES	YES	-	-	YES	-	-	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	-	-	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)	-	-	Tin/Silver/Copper (Sn95.5Ag3.8Cu0.7)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-	-	DUAL ENDED	-	-	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	-	WRAPAROUND	-	-	WRAPAROUND
Test frequency	1 MHz	1 MHz	1 MHz	1 MHz	-	-	1 MHz	-	-	1 MHz
