4604H-101-105LF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4604H-101-105LF

4604H-101-105LF: DescriptionResistor Networks u0026 Arrays 4pins 1Mohms Bussed; CategoryPassive components The resistor; File Size211KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4604H-101-105LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4604H-101-105LF	-	-	View	Buy Now

4604H-101-105LF Overview

Resistor Networks u0026 Arrays 4pins 1Mohms Bussed

4604H-101-105LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SIP, 4010
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Epoxy Resin
Component power consumption	0.3 W
The first element resistor	1000000 Ω
JESD-609 code	e1
Lead length	3.3 mm
lead spacing	2.54 mm
Manufacturer's serial number	4600H
Installation features	THROUGH HOLE MOUNT
Network Type	BUSSED
Number of components	3
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	8.89 mm
Package length	10.11 mm
Package shape	RECTANGULAR PACKAGE
Package form	SIP
Package width	2.49 mm
method of packing	BULK
Rated power dissipation(P)	0.8 W
Rated temperature	70 °C
resistance	1000000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	4600H
size code	4010
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

RoHS compliant*

■

High proﬁle offers increased power

■

Recommended for rosin ﬂux and solvent

handling

■

Wide assortment of pin packages enhances

design ﬂexibility

■

Ammo-pak packaging available

clean or no clean ﬂux processes

■

Marking on contrasting background for

permanent identiﬁcation

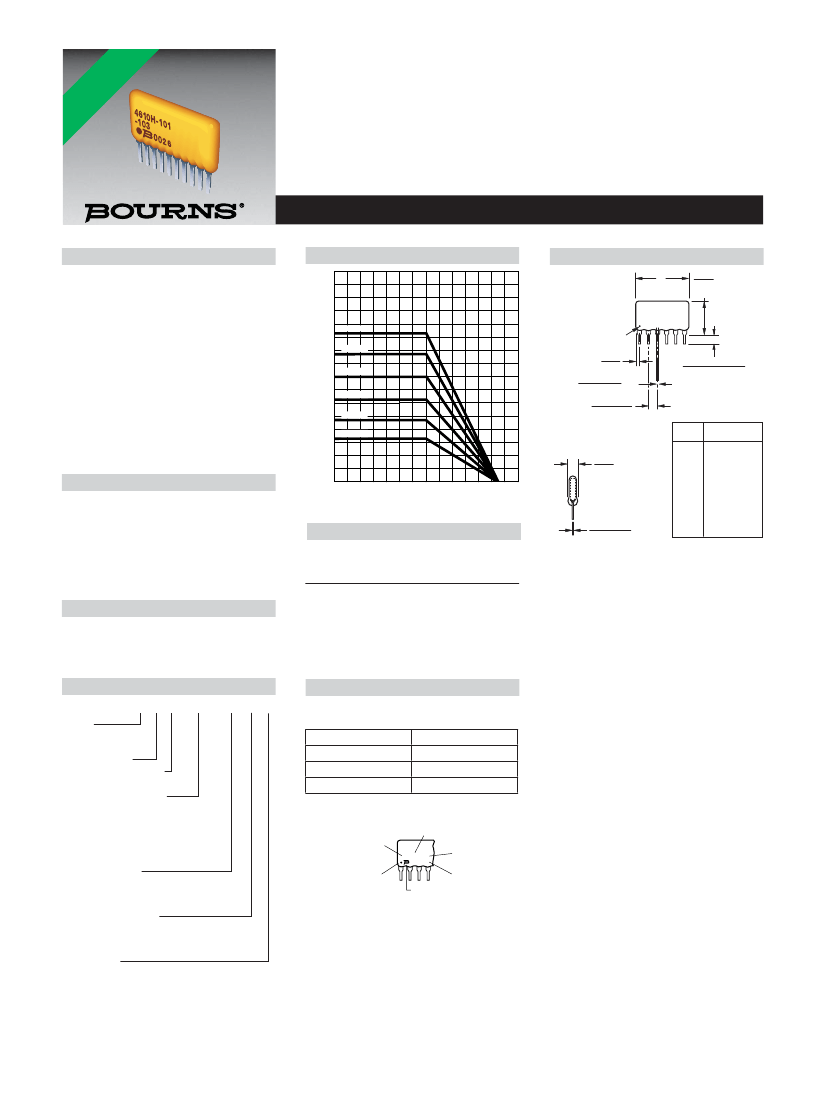

4600H Series - Thick Film Conformal SIPs

Product Characteristics

Resistance Range

....................10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 megohms ... ±100 ppm/°C

below 50

.................... ±250 ppm/°C

above 2.2 megohms ..... ±250 ppm/°C

TCR Tracking ........................ 50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Operating Temperature

............................... -55 °C to +125 °C

Environmental Characteristics

TESTS PER MIL-STD-202 ........ΔR MAX.

Short Time Overload ................ ±0.25 %

Load Life................................... ±1.00 %

Moisture Resistance ................. ±0.50 %

Resistance to Soldering Heat

.............................................. ±0.50 %

Terminal Strength ..................... ±0.25 %

Thermal Shock ......................... ±0.25 %

Physical Characteristics

Flammability ........Conforms to UL94V-0

Body Material ...................... Epoxy resin

Standard Packaging

..................Bulk, Ammo-pak available

How To Order

Package Power Temp. Derating Curve

Product Dimensions

MAXIMUM

8.89

MAX.

(.350)

3.50

3.00

2.50

2.00

1.50

4606H

1.00

.50

4604H

4614H

4612H

4610H

4608H

PIN #1

REF.

MAX. 1.24

BOTH ENDS (.049)

.508

.050

TYP.

(.020

.002)

2.54

.07

(.100

.003*)

TYP.

NON-ACCUM.

WATTS

3.3 +0.5/-0.3

(.130 +.020/ -.012)

2.49

MAX.

(.098)

125

AMBIENT TEMPERATURE (

C )

Package Power Ratings (Watts)

Ambient

Temp.

Pkg.

70 °C

Pkg.

70 °C

4604H

0.80

4610H

2.00

4605H

1.00

4611H

2.20

4606H

1.20

4612H

2.40

4607H

1.40

4613H

2.60

4608H

1.60

4614H

2.80

4609H

1.80

Typical Part Marking

Represents total content. Layout may

vary.

Part Number

4606H-101-RC

4608H-102-RC

4610H-104-RC/RC

Part Number

6H-1-RC

8H-2-RC

10H-4-RC/RC

.254

.050

TYP.

(.010

.002)

Count

A Maximum

mm (Inches)

10.11 (.398)

12.65 (.498)

15.19 (.598)

17.73 (.698)

20.27 (.798)

22.81 (.898)

25.35 (.998)

27.89 (1.098)

30.43 (1.198)

32.97 (1.298)

35.51 (1.398)

Maximum package length is equal to 2.54mm (.100") times the

number of pins, less .005mm (.002").

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

46 06 H - 101 - 222 __ LF

Model

(46 = Conformal

SIP)

Number of Pins

Physical Conﬁguration

(H = Thick Film High Proﬁle)

Electrical Conﬁguration

• 101 = Bussed

• 102 = Isolated

• 104 = Dual Terminator

• AP1 = Bussed Ammo**

• AP2 = Isolated Ammo**

• AP4 = Dual Ammo**

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 5 megohms)

Terminations

• All electrical conﬁgurations EXCEPT 104 & AP4:

LF = Sn/Ag/Cu-plated (RoHS compliant)

• ONLY electrical conﬁgurations 104 & AP4:

L = Sn/Ag/Cu-plated (RoHS compliant)

Consult factory for other available options.

**Available for packages with 10 pins or less.

RC = ohmic value, 3-digit resistance

code.

NUMBER OF PINS

CIRCUIT

6H-2-222

YYWW

PIN ONE

INDICATOR

RESISTANCE

CODE

DATE CODE

MANUFACTURER'S

TRADEMARK

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
